NSN 5315-01-318-4831 68A3120652041, 68A312065-2041, 01-318-4831

Product Details | HEADLESS SHOULDER PIN

5315-01-318-4831 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.

Part Alternates: 68A3120652041, 68A312065-2041, 5315-01-318-4831, 01-318-4831, 5315013184831, 013184831

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 APR 1990	01-318-4831	16749 ( PIN, SHOULDER, HEADLESS )

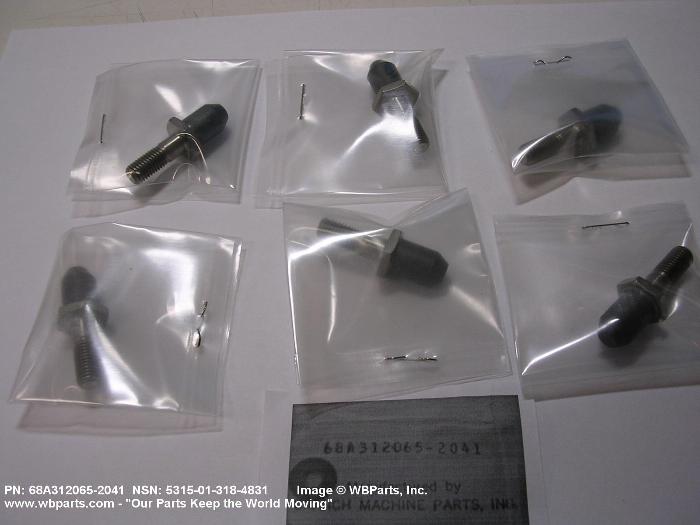

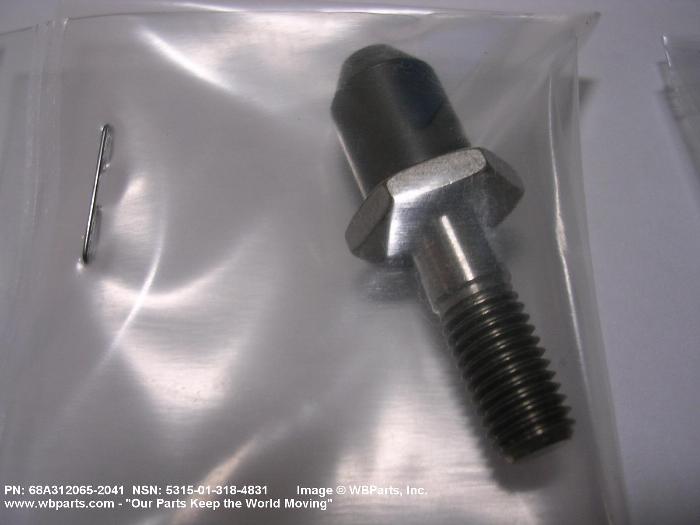

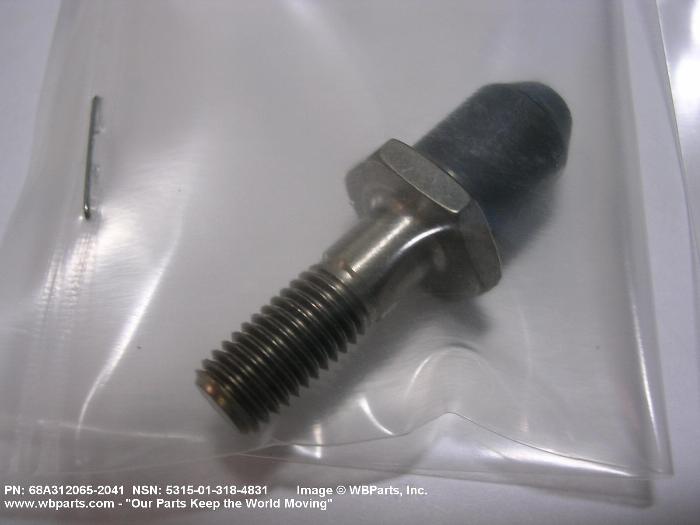

Drawings & Photos | NSN 5315-01-318-4831

Part Number	Request Date	QTY	Origin
5315-01-318-4831	2025-10-298	30	US
5315-01-318-4831	2025-04-114	4	US
5315-01-318-4831	2020-12-353	10	us
5315-01-318-4831	2017-05-151	267	DIBBS
5315-01-318-4831	2017-04-94	86	DIBBS
68A3120652041	2016-10-279	4	US
68A3120652041	2016-10-279	16	US
68A3120652041	2016-10-279	28	US
68A3120652041	2016-10-279	48	US
68A3120652041	2016-10-279	4	US
5315-01-318-4831	2015-04-97	92	DIBBS
5315-01-318-4831	2011-08-242	24	United States
5315-01-318-4831	2011-06-181	24	US
5315-01-318-4831	2010-04-100	44	DIBBS
5315-01-318-4831	2010-02-56	200	DIBBS
5315-01-318-4831	2009-08-236	37	DIBBS
5315-01-318-4831	2009-08-236	200	DIBBS
5315-01-318-4831	2008-01-23	6	United States

Cross Reference | NSN 5315-01-318-4831

Part Number	Cage Code	Manufacturer
68A312065-2041	14248	HARLOW AEROSTRUCTURES LLC
68A312065-2041	1V662	WOLFE MACHINE, INC. DBA WOLFMACHINE.COM
68A312065-2041	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-318-4831

Compare

Related Products | NSN 5315-01-318-4831

5315-01-318-4832, 5315-01-318-4833, 5315-01-318-4834, 5315-01-318-4835, 5315-01-318-4836

Technical Data | NSN 5315-01-318-4831

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-T-9047,COND ANL MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	J161 SHOULDER
SHANK LENGTH	0.530 INCHES MINIMUM AND 0.550 INCHES MAXIMUM
SHOULDER WIDTH ACROSS FLATS	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
SHANK DIAMETER	0.3731 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM
OVERALL LENGTH	1.340 INCHES MINIMUM AND 1.400 INCHES MAXIMUM
SECOND SHANK DIAMETER	0.2492 INCHES NOMINAL
SECOND SHANK LENGTH	0.720 INCHES MINIMUM AND 0.740 INCHES MAXIMUM
FIRST END STYLE	1 CHAMFERED
FIRST END TAPER LENGTH	0.140 INCHES NOMINAL
FIRST END TAPER ANGLE	29.5 DEGREES MINIMUM AND 30.5 DEGREES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	1 CHAMFERED
SECOND END TAPER LENGTH	0.040 INCHES MINIMUM AND 0.070 INCHES MAXIMUM
SECOND END TAPER ANGLE	45.0 DEGREES NOMINAL
FIRST END LOCATION	UNTHREADED END
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.492 INCHES MINIMUM AND 0.512 INCHES MAXIMUM
III END ITEM IDENTIFICATION	68A312006/RADOME NOSE BARREL

Restrictions/Controls & Freight Information | NSN 5315-01-318-4831

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-01-318-4831

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
