NSN 5315-01-320-0526 16A230615, 16A2306-15, 01-320-0526
Product Details | HEADLESS SHOULDER PIN
5315-01-320-0526 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 16A230615, 16A2306-15, 5315-01-320-0526, 01-320-0526, 5315013200526, 013200526
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1990 | 01-320-0526 | 16749 ( PIN, SHOULDER, HEADLESS ) |

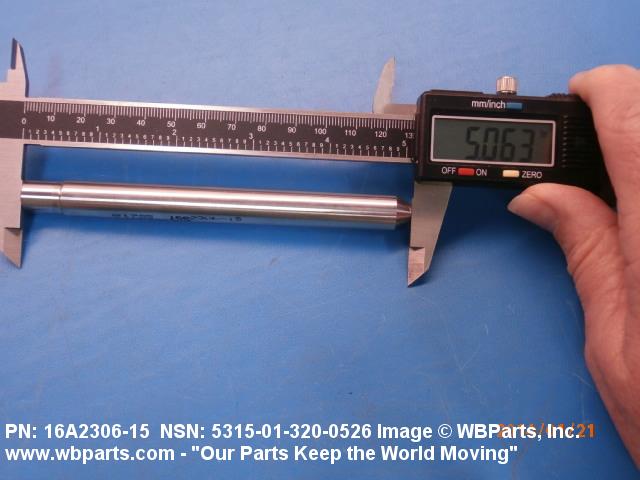

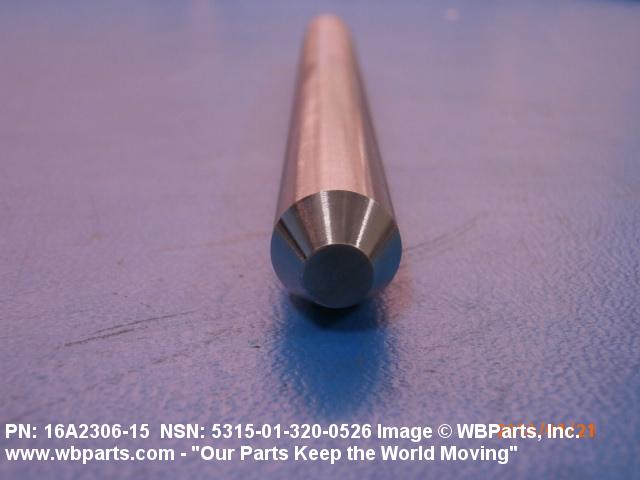

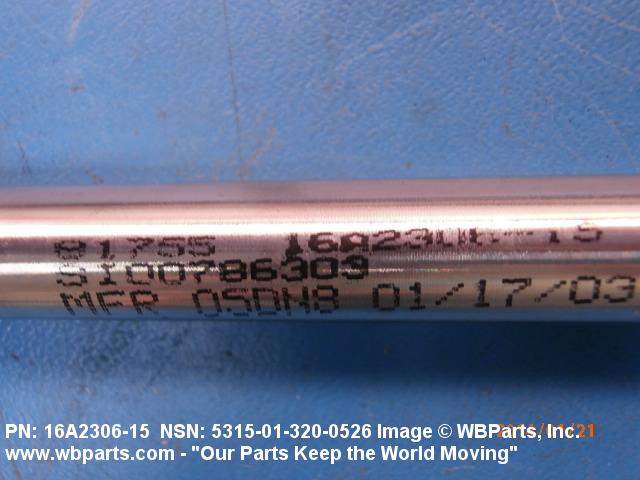

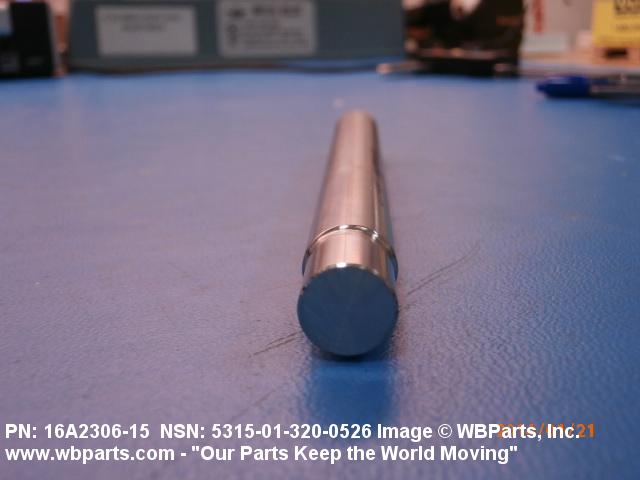

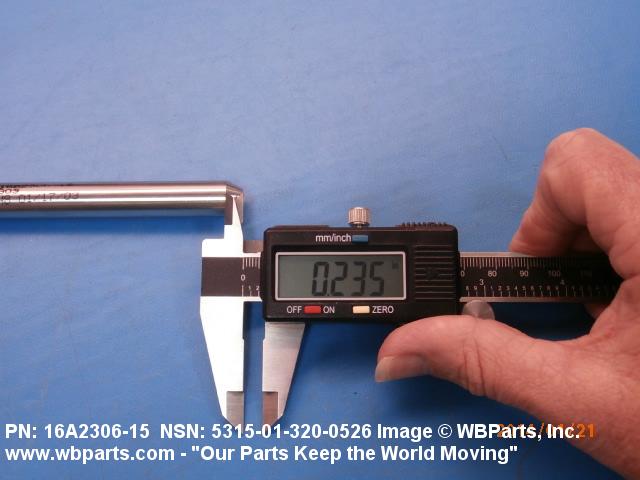

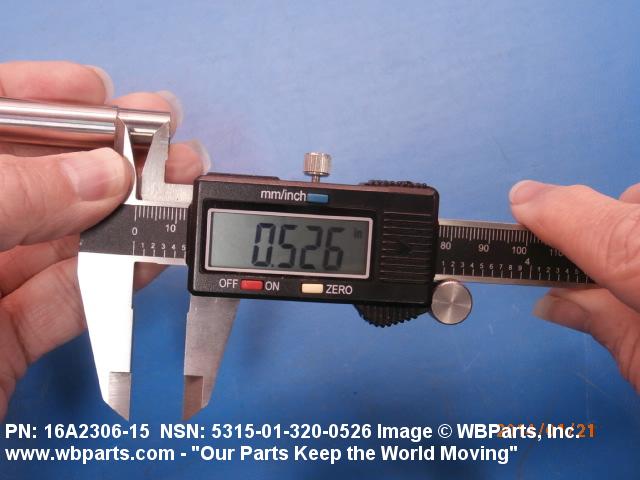

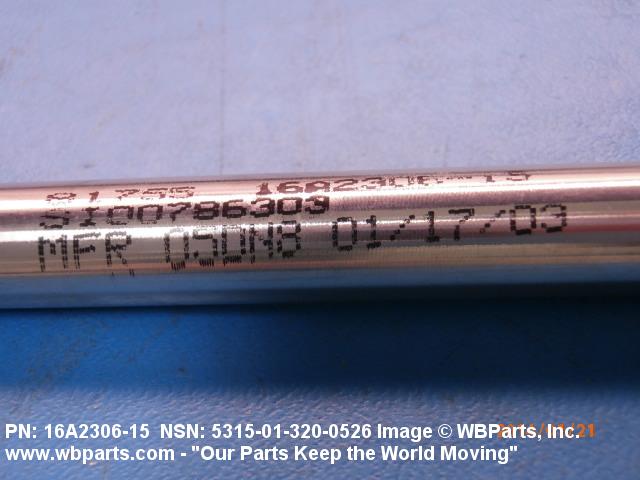

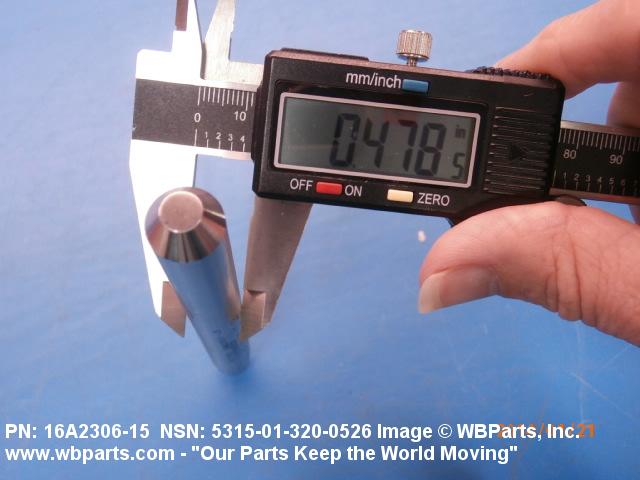

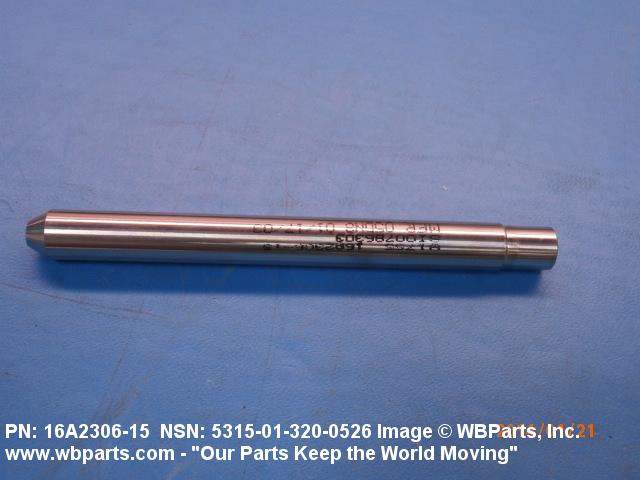

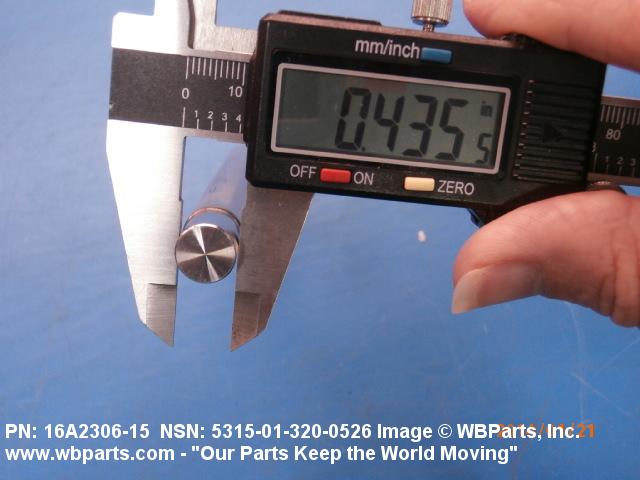

Drawings & Photos | NSN 5315-01-320-0526
Demand History | NSN 5315-01-320-0526
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-320-0526 | 2021-11-327 | 1 | United States |
| 5315-01-320-0526 | 2021-01-15 | 10 | us |
| 5315-01-320-0526 | 2017-05-142 | 2 | United States |
| 5315-01-320-0526 | 2013-11-318 | 1 | United States |
| 16A230615 | 2011-06-158 | 4 | US |
Cross Reference | NSN 5315-01-320-0526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16A2306-15 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-320-0526
Technical Data | NSN 5315-01-320-0526
| Characteristic | Specifications |
|---|---|
| SPECIFICATION/STANDARD DATA | 81755-16A2306 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-320-0526
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
