NSN 5315-01-341-9093 P04520, P045-20, 5315-008-20
Product Details | HEADLESS SHOULDER PIN

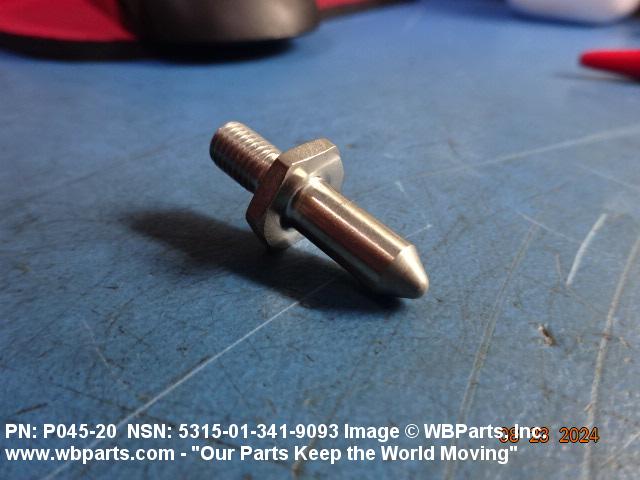

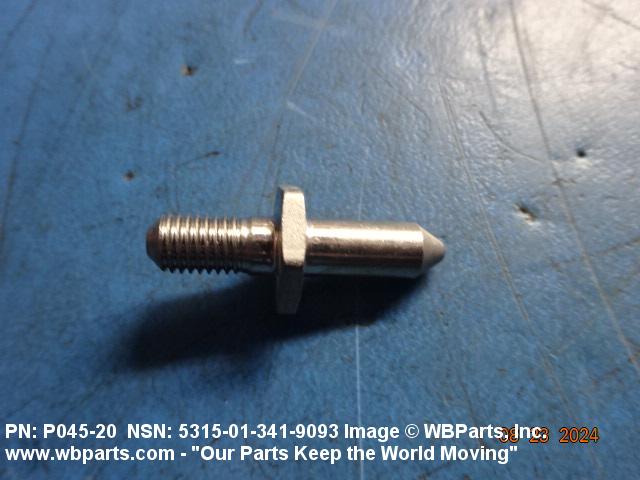

5315-01-341-9093 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: P04520, P045-20, 5315-008-20, 5315-01-341-9093, 01-341-9093, 5315013419093, 531500820, 013419093
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUL 1991 | 01-341-9093 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-341-9093
Demand History | NSN 5315-01-341-9093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-341-9093 | 2024-08-218 | 20 | United States |
| 5315-01-341-9093 | 2014-12-359 | 50 | IL |
| P04520 | 2014-05-127 | 4 | IL |
| P04520 | 2014-05-124 | 4 | IL |
| 5315-01-341-9093 | 2008-04-107 | 129 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-341-9093
Technical Data | NSN 5315-01-341-9093
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.500 INCHES NOMINAL |
| SHOULDER WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OVERALL LENGTH | 0.800 INCHES NOMINAL |
| SECOND SHANK DIAMETER | 0.250 INCHES NOMINAL |
| SECOND SHANK LENGTH | 0.660 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 16 CHAMFERED |
| SECOND END TAPER LENGTH | 0.150 INCHES NOMINAL |
| FIRST END LOCATION | THREADED END |
Restrictions/Controls & Freight Information | NSN 5315-01-341-9093
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
