NSN 5315-01-423-4970 P04513C, P045-13C, 01-423-4970
Product Details | HEADLESS SHOULDER PIN
5315-01-423-4970 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: P04513C, P045-13C, 5315-01-423-4970, 01-423-4970, 5315014234970, 014234970
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 DEC 1995 | 01-423-4970 | 16749 ( PIN, SHOULDER, HEADLESS ) |

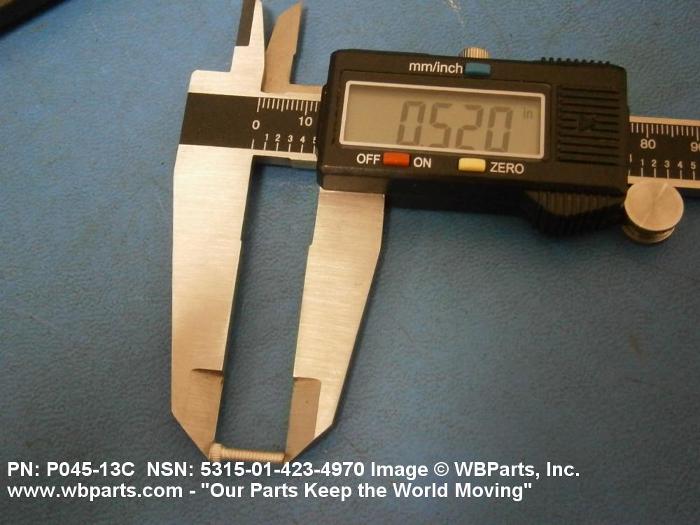

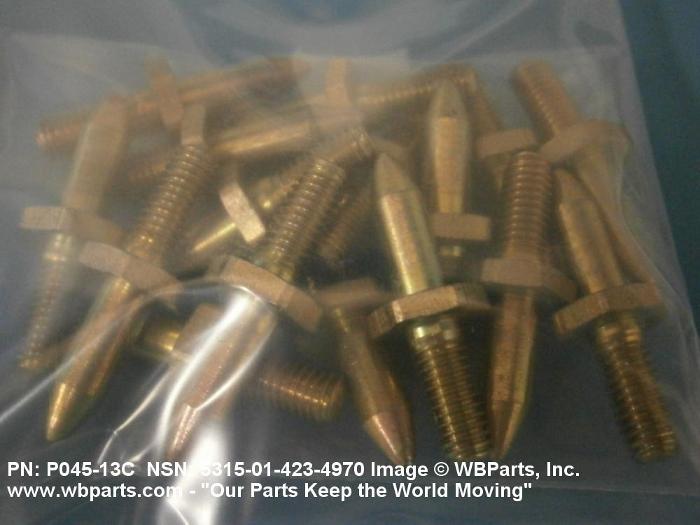

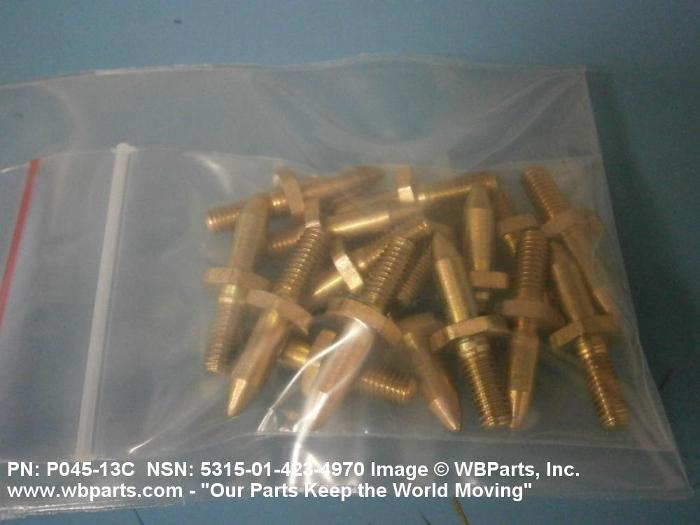

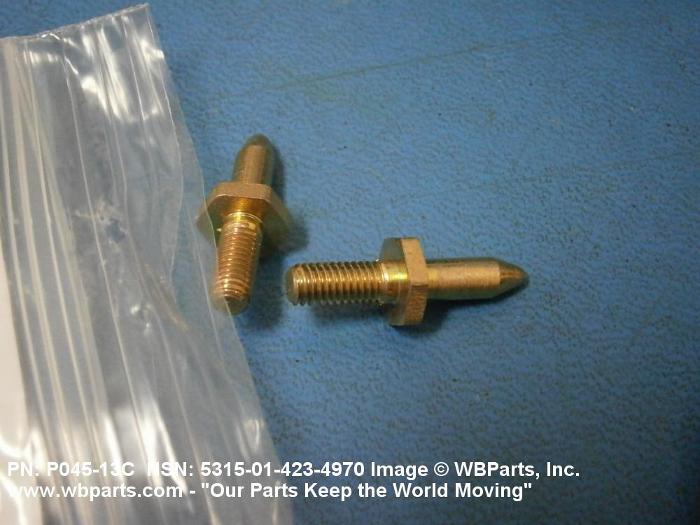

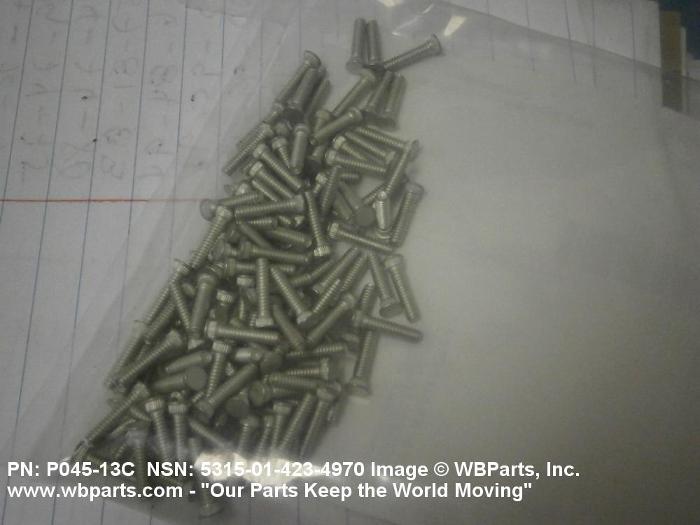

Drawings & Photos | NSN 5315-01-423-4970
Demand History | NSN 5315-01-423-4970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P04513C | 2014-09-266 | 42 | US |
| P04513C | 2012-05-144 | 16 | United States |
| P04513C | 2012-04-95 | 40 | United States |
Cross Reference | NSN 5315-01-423-4970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P045-13C | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-423-4970
Technical Data | NSN 5315-01-423-4970
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720,COMP 302 COND B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.450 INCHES NOMINAL |
| SHOULDER WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| SHANK DIAMETER | 0.190 INCHES NOMINAL |

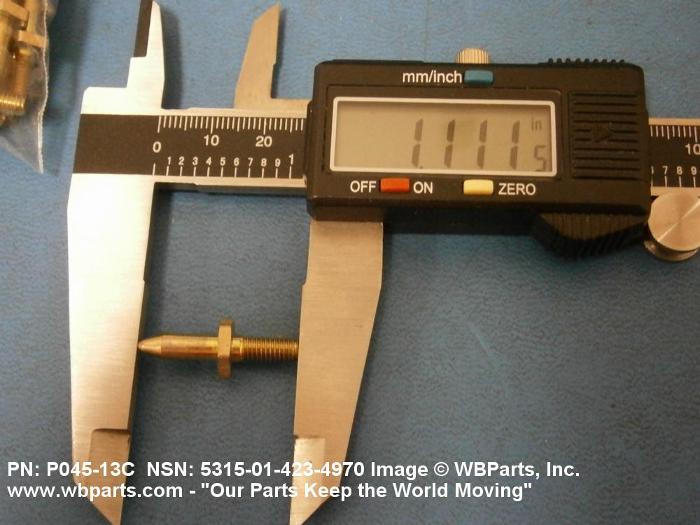

| OVERALL LENGTH | 1.110 INCHES NOMINAL |
| SECOND SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| SECOND SHANK LENGTH | 0.360 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.050 INCHES NOMINAL |
| FIRST END CORNER RADIUS | 0.050 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 16 CHAMFERED |
| SECOND END TIP RADIUS | 0.060 INCHES NOMINAL |
| SECOND END TAPER LENGTH | 0.210 INCHES NOMINAL |
| SECOND END TAPER ANGLE | ANY ACCEPTABLE |
| FIRST END LOCATION | CHAMFERED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.390 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| III END ITEM IDENTIFICATION | F-16 |
Restrictions/Controls & Freight Information | NSN 5315-01-423-4970
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
