NSN 5315-01-526-7897 AAP139C343, AAP139C3-4-3, D792682C4N3
Product Details | HEADLESS SHOULDER PIN
5315-01-526-7897 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: AAP139C343, AAP139C3-4-3, D792682C4N3, VS3258C343, VS3258C3-4-3, 11415C343, 11415C3-4-3, 3M943C343, 3M943C3-4-3, 5315-01-526-7897, 01-526-7897, 5315015267897, 015267897
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JAN 2005 | 01-526-7897 | 16749 ( PIN, SHOULDER, HEADLESS ) |

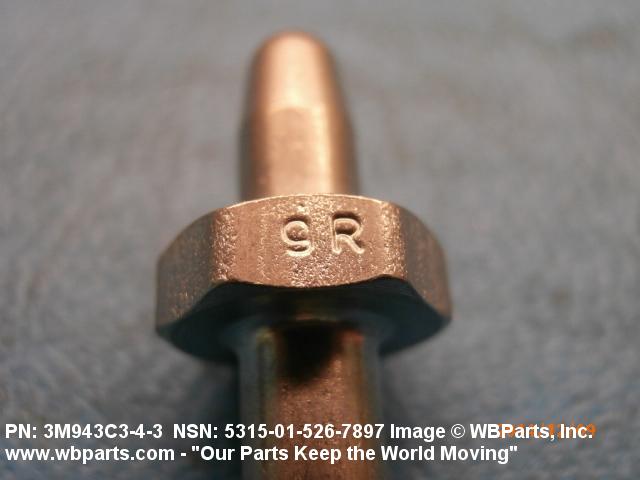

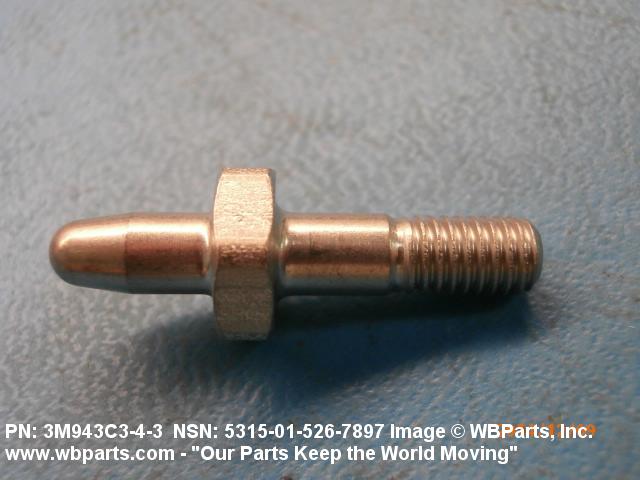

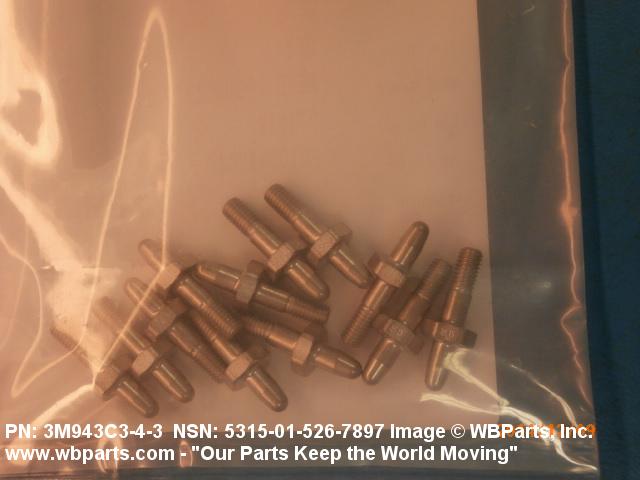

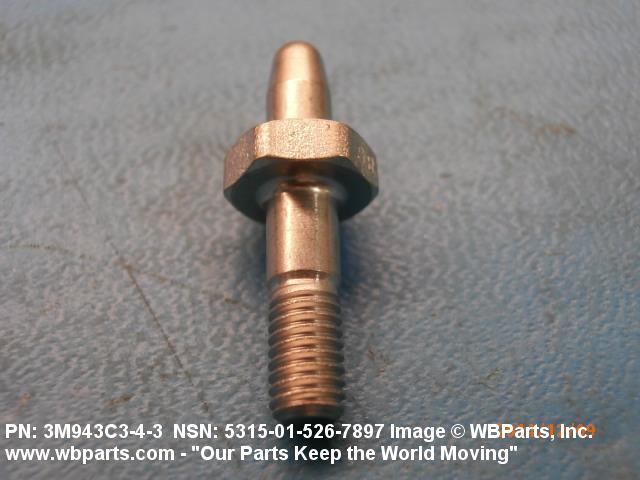

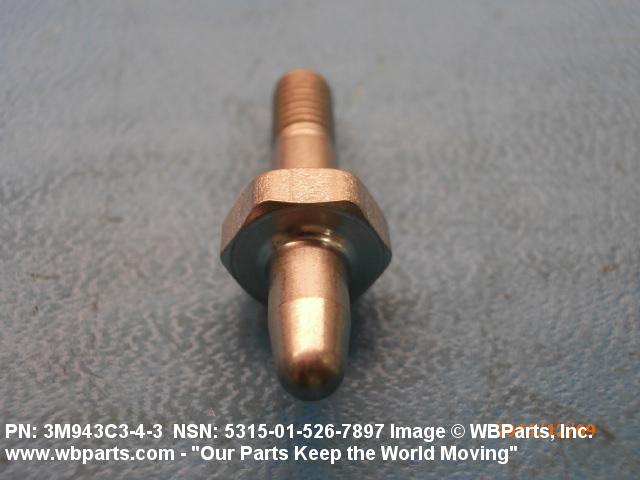

Drawings & Photos | NSN 5315-01-526-7897
Demand History | NSN 5315-01-526-7897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-526-7897 | 2014-05-141 | 650 | DIBBS |
| 5315-01-526-7897 | 2014-04-120 | 650 | DIBBS |
| 5315-01-526-7897 | 2013-10-300 | 20 | DIBBS |
| 5315-01-526-7897 | 2013-06-164 | 1 | DIBBS |
| 5315-01-526-7897 | 2013-03-65 | 2 | DIBBS |
| 5315-01-526-7897 | 2013-01-16 | 2 | DIBBS |
| 5315-01-526-7897 | 2012-11-310 | 130 | DIBBS |
Cross Reference | NSN 5315-01-526-7897
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11415C3-4-3 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M943C3-4-3 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3M943C3-4-3 | 0K6Z0 | SATURN FASTENERS INC DIV ACUMENT |
| 3M943C3-4-3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M943C3-4-3 | 56946 | G. S. PRECISION, INC. |
| 3M943C3-4-3 | 73197 | HI-SHEAR CORPORATION |
| 3M943C3-4-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M943C3-4-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 3M943C3-4-3 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| 3M943C3-4-3 | L4528 | LISI AEROSPACE CANADA CORP |
| AAP139C3-4-3 | 84256 | AVIBANK MFG., INC. |
| D792682C4N3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| VS3258C3-4-3 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-526-7897
Related Products | NSN 5315-01-526-7897
Technical Data | NSN 5315-01-526-7897
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.378 INCHES NOMINAL |

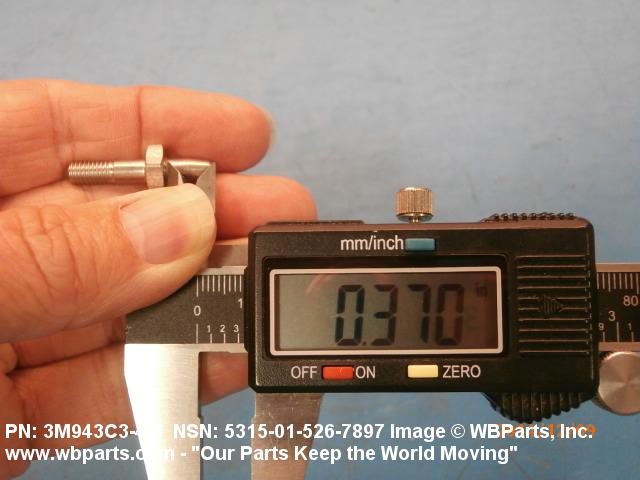

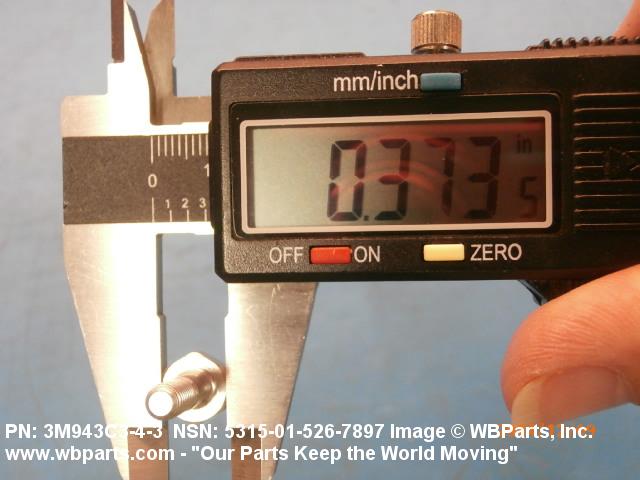

| SHOULDER WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |

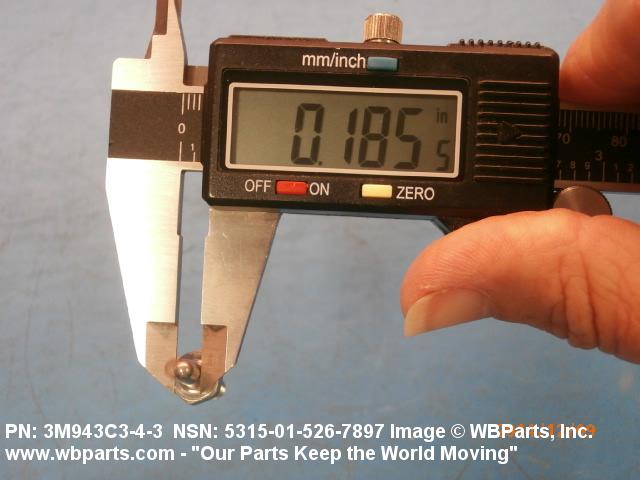

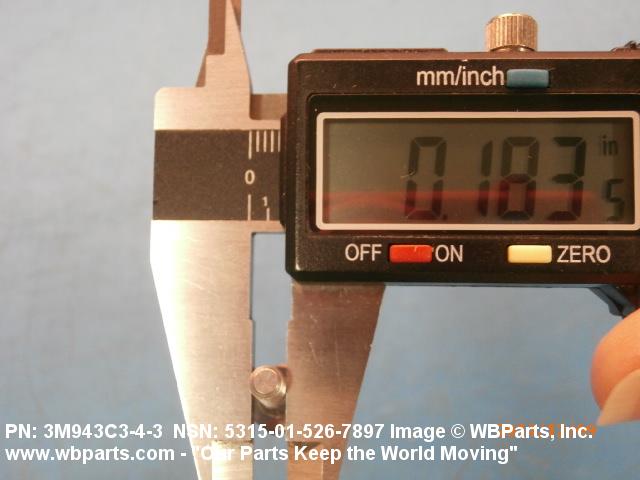

| SHANK DIAMETER | 0.1851 INCHES MINIMUM AND 0.1863 INCHES MAXIMUM |

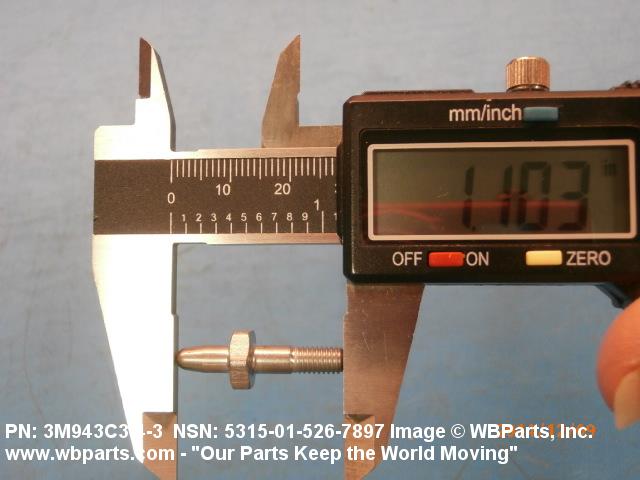

| OVERALL LENGTH | 1.098 INCHES NOMINAL |

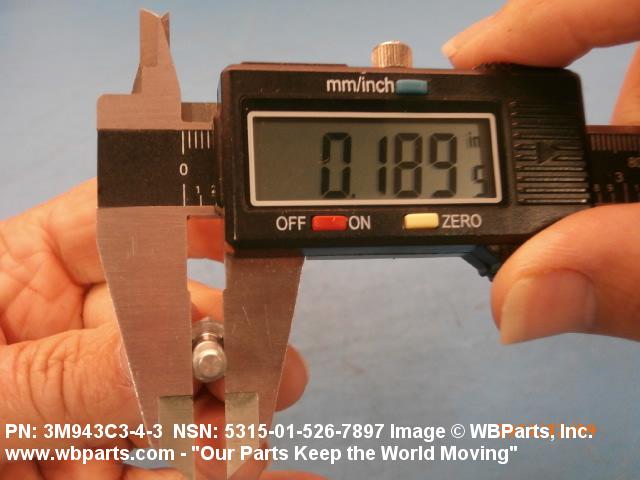

| SECOND SHANK DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |

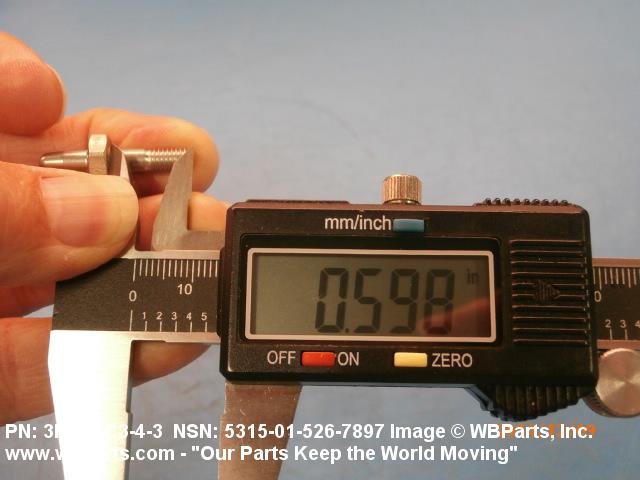

| SECOND SHANK LENGTH | 0.595 INCHES NOMINAL |
| FIRST END STYLE | 16 CHAMFERED |
| FIRST END TIP RADIUS | 0.060 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| FIRST END TAPER LENGTH | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | UNTHREADED END |

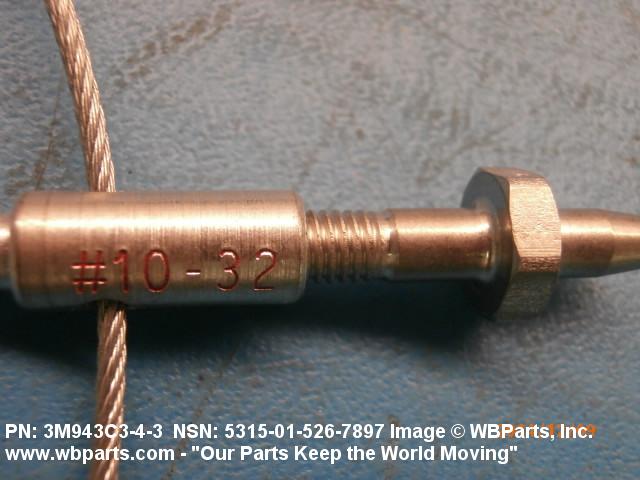

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

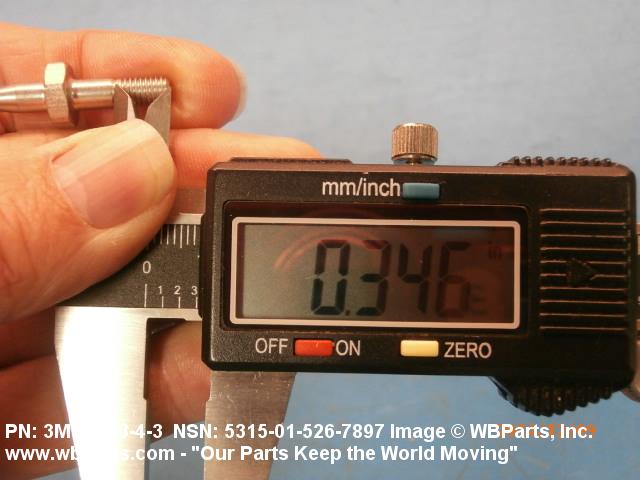

| THREAD LENGTH | 0.345 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AC/DC POWER |
Restrictions/Controls & Freight Information | NSN 5315-01-526-7897
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-526-7897
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
