NSN 5320-00-038-3213 HS158, HS15-8, 00-038-3213
Product Details | PIN-RIVET COLLAR
5320-00-038-3213 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HS158, HS15-8, 5320-00-038-3213, 00-038-3213, 5320000383213, 000383213
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-038-3213 | 67166 ( COLLAR, PIN-RIVET ) |

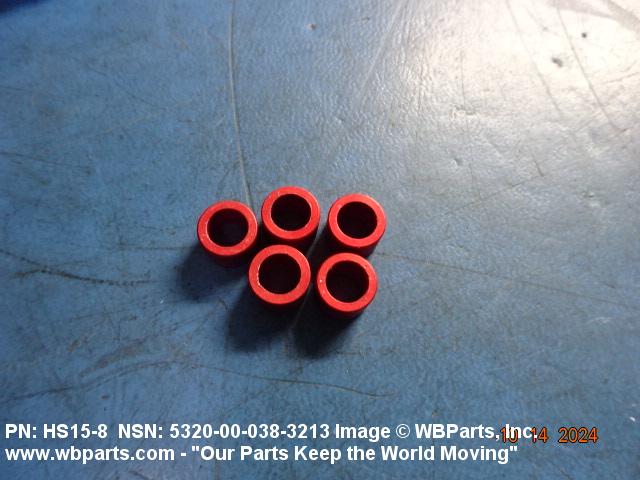

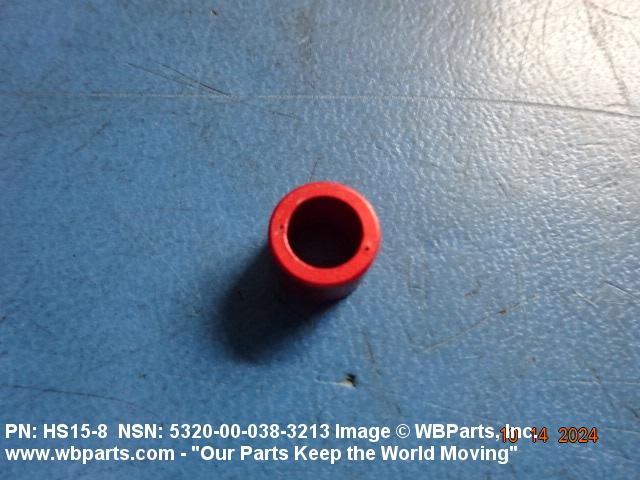

Drawings & Photos | NSN 5320-00-038-3213
Demand History | NSN 5320-00-038-3213
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-038-3213 | 2024-09-270 | 5 | United States |
| 5320-00-038-3213 | 2020-11-309 | 192 | United States |
| HS158 | 2019-05-142 | 18 | United States |
| HS158 | 2013-09-260 | 800 | US |
| 5320-00-038-3213 | 2009-07-204 | 10 | United States |
| 5320-00-038-3213 | 2007-10-277 | 500 | us |
Cross Reference | NSN 5320-00-038-3213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS15-8 | 73197 | HI-SHEAR CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-038-3213
Technical Data | NSN 5320-00-038-3213
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-7986,COMP 24S MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| COLLAR OUTSIDE DIAMETER | 0.361 INCHES MINIMUM AND 0.371 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| COLLAR INSIDE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2530 INCHES MAXIMUM |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HS15-8 |
Restrictions/Controls & Freight Information | NSN 5320-00-038-3213
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
