Product Details | PIN-RIVET COLLAR
5320-01-208-7618 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30AC12, BACC30AC-12, HL139312, HL1393-12, 5320-01-208-7618, 01-208-7618, 5320012087618, 012087618
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAY 1985 | 01-208-7618 | 67166 ( COLLAR, PIN-RIVET ) |

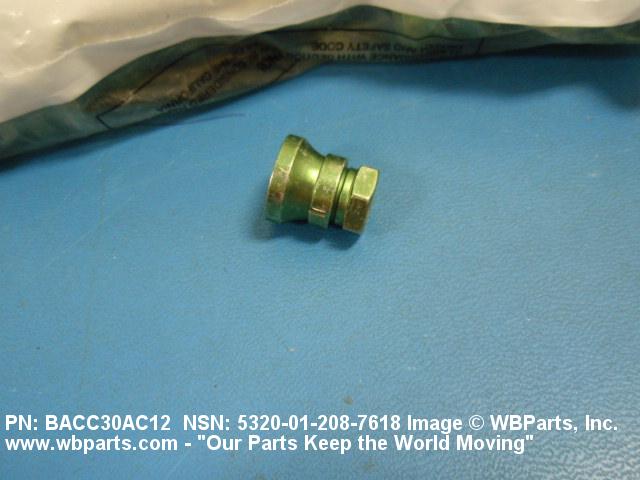

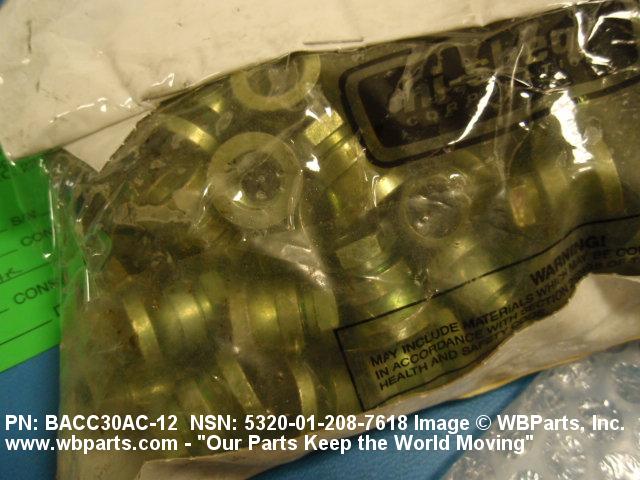

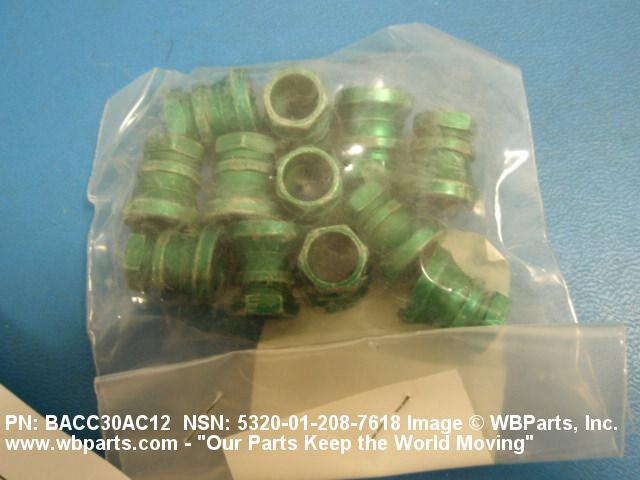

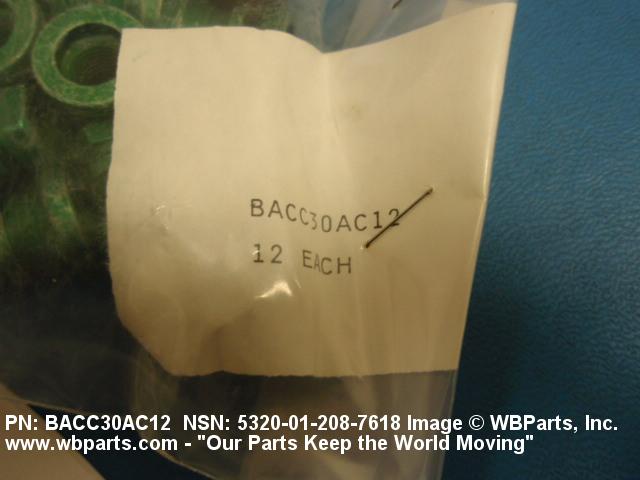

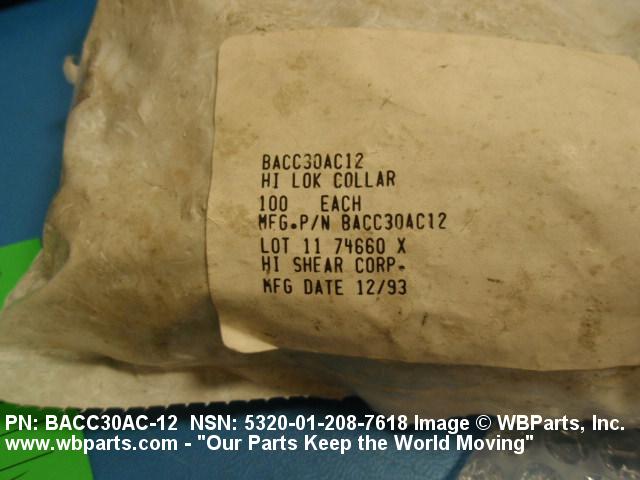

Drawings & Photos | NSN 5320-01-208-7618
Demand History | NSN 5320-01-208-7618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACC30AC-12 | 2022-07-31 | 105 | DIBBS |
| HL1393-12 | 2022-07-31 | 105 | DIBBS |
| BACC30AC12 | 2020-04-07 | 70 | ID |
| BACC30AC12 | 2013-01-02 | 240 | US |
| 5320-01-208-7618 | 2010-08-03 | 446 | DIBBS |
| 5320-01-208-7618 | 2010-04-09 | 446 | DIBBS |
| 5320-01-208-7618 | 2009-08-24 | 398 | United States |
| 5320-01-208-7618 | 2009-08-24 | 215 | United States |
| 5320-01-208-7618 | 2009-08-10 | 398 | DIBBS |
| 5320-01-208-7618 | 2009-07-15 | 215 | DIBBS |
Cross Reference | NSN 5320-01-208-7618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC30AC-12 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACC30AC-12 | 81205 | THE BOEING COMPANY DBA BOEING |
| HL1393-12 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL1393-12 | 73197 | HI-SHEAR CORPORATION |
| HL1393-12 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL1393-12 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-01-208-7618
Related Products | NSN 5320-01-208-7618
5320-01-208-8071, 5320-01-208-8072, 5320-01-208-8945, 5320-01-209-0157, 5320-01-209-1339
Technical Data | NSN 5320-01-208-7618
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
| COLLAR OUTSIDE DIAMETER | 0.677 INCHES MINIMUM AND 0.683 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.744 INCHES MAXIMUM |
| COLLAR INSIDE DIAMETER | 0.410 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-208-7618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-208-7618
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
