Product Details | PIN-RIVET COLLAR
5320-01-127-1576 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: C959728, C9597-2-8, HL1285MRW8, HL1285MRW-8, HL1285MTW8, HL1285MTW-8, HL1285MWR8, HL1285MWR-8, SPL51857D4, KFN6894, KFN689-4, 80649428, 80649-428, 5320-01-127-1576, 01-127-1576, 5320011271576, 011271576
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1982 | 01-127-1576 | 67166 ( COLLAR, PIN-RIVET ) |

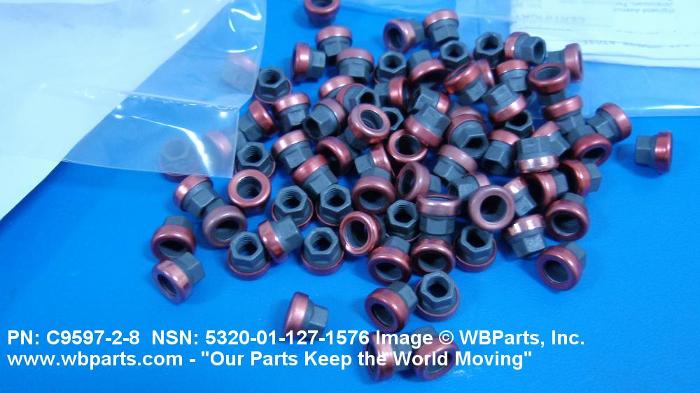

Drawings & Photos | NSN 5320-01-127-1576
Demand History | NSN 5320-01-127-1576
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C959728 | 2022-08-23 | 300 | United States |
| 80649-428 | 2021-06-10 | 35091 | DIBBS |
| HL1285MRW-8 | 2021-06-10 | 35091 | DIBBS |
| HL1285MTW-8 | 2021-06-10 | 35091 | DIBBS |
| HL1285MWR-8 | 2021-06-10 | 35091 | DIBBS |
| KFN689-4 | 2021-06-10 | 35091 | DIBBS |
| 80649-428 | 2020-11-16 | 19034 | DIBBS |
| HL1285MRW-8 | 2020-11-16 | 19034 | DIBBS |
| HL1285MTW-8 | 2020-11-16 | 19034 | DIBBS |
| HL1285MWR-8 | 2020-11-16 | 19034 | DIBBS |
| KFN689-4 | 2020-11-16 | 19034 | DIBBS |
| 80649-428 | 2020-11-05 | 19034 | DIBBS |
| HL1285MRW-8 | 2020-11-05 | 19034 | DIBBS |
| HL1285MTW-8 | 2020-11-05 | 19034 | DIBBS |
| HL1285MWR-8 | 2020-11-05 | 19034 | DIBBS |
| KFN689-4 | 2020-11-05 | 19034 | DIBBS |
| C959728 | 2020-07-29 | 50 | United States |
| 80649-428 | 2020-05-21 | 15365 | DIBBS |
| HL1285MRW-8 | 2020-05-21 | 15365 | DIBBS |
| HL1285MTW-8 | 2020-05-21 | 15365 | DIBBS |
| HL1285MWR-8 | 2020-05-21 | 15365 | DIBBS |
| KFN689-4 | 2020-05-21 | 15365 | DIBBS |
| 5320-01-127-1576 | 2018-06-06 | 1 | DIBBS-RFPs |
| 5320-01-127-1576 | 2017-03-24 | 48100 | DIBBS |
| 5320-01-127-1576 | 2017-03-16 | 48100 | DIBBS |
| 5320-01-127-1576 | 2017-02-22 | 29 | MANUAL |
| 5320-01-127-1576 | 2016-12-18 | 81000 | DIBBS |
| 5320-01-127-1576 | 2016-12-12 | 5000 | DIBBS |
| 5320-01-127-1576 | 2016-12-09 | 20330 | DIBBS |
| 5320-01-127-1576 | 2016-12-01 | 20330 | DIBBS |
| 5320-01-127-1576 | 2016-11-28 | 20000 | DIBBS |
| 5320-01-127-1576 | 2015-07-15 | 21648 | DIBBS |
| 5320-01-127-1576 | 2011-03-14 | 11156 | DIBBS |
| 5320-01-127-1576 | 2009-01-20 | 4755 | DIBBS |
| 5320-01-127-1576 | 2008-08-20 | 80 | United States |
Cross Reference | NSN 5320-01-127-1576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80649-428 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| C9597-2-8 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| HL1285MRW-8 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL1285MRW-8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL1285MRW-8 | 60516 | WEST COAST AEROSPACE INC |
| HL1285MRW-8 | 73197 | HI-SHEAR CORPORATION |
| HL1285MRW-8 | L4528 | LISI AEROSPACE CANADA CORP |
| HL1285MTW-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL1285MTW-8 | 73197 | HI-SHEAR CORPORATION |
| HL1285MTW-8 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL1285MTW-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL1285MWR-8 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL1285MWR-8 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| KFN689-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| SPL51857D4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-01-127-1576
Related Products | NSN 5320-01-127-1576
5320-01-127-2999, 5320-01-127-3819, 5320-01-127-3820, 5320-01-127-3822, 5320-01-127-7153
Technical Data | NSN 5320-01-127-1576
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY ALUMINUM ALLOY 2024 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE COLLAR ANODIZE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE BODY MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE WASHER |
| HARDNESS RATING | 46.0 ROCKWELL C MAXIMUM COLLAR |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED WASHER |
| COLLAR OUTSIDE DIAMETER | 0.465 INCHES NOMINAL |
| COLLAR OVERALL HEIGHT | 0.360 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM AND CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-127-1576
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-127-1576
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
