NSN 5320-00-117-6828 MS20470AD4, MS20470AD46, MS20470AD-4-6

Product Details | SOLID RIVET

5320-00-117-6828 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20470AD4, MS20470AD46, MS20470AD-4-6, MS20470AD4-6, MS40470AD46, MS40470AD4-6, AN442AD46, AN442AD4-6, AN470AD46, AN470AD4-6, AN47AD46, AN47AD4-6, AS125741, GHN1000323, GHN10003-23 , JKN00073288 , 6026-3000-6, 6026-3002-2, 6026-3004-5, 6026314612, 6026-3146-12, 216-1034-31, 2161034P31, 216-1034P31, 2161034PT31, 216-1034PT31, 216MS017P031, 252AD46, 25-2AD4-6, 2780024061, 278-002-4061, 04050452039390 , 10123463, 139473, 1JC3555H46, 7903738-25, 939.17.81.237, 9391781237, 9461312306, 946131-2306, 6026-3167-3, 5320-00-117-6828, 00-117-6828, 5320001176828, 001176828, 602630006, 216103431, 602631673, 602630045, 602630022, 790373825

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-117-6828	00861 ( RIVET, SOLID )

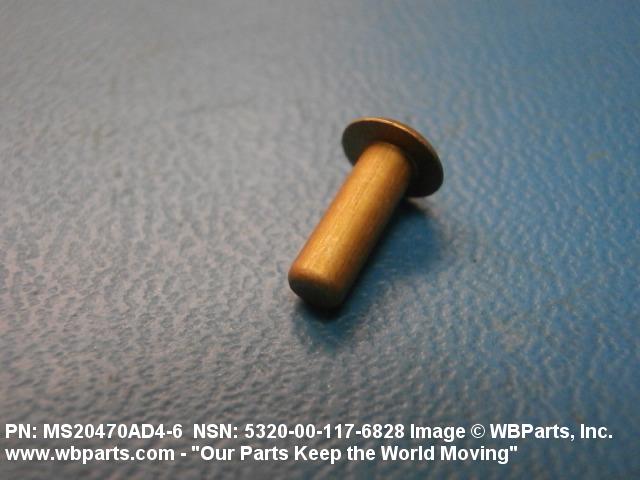

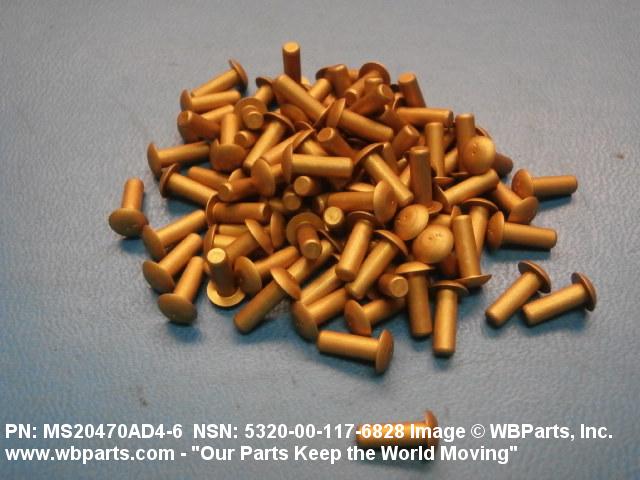

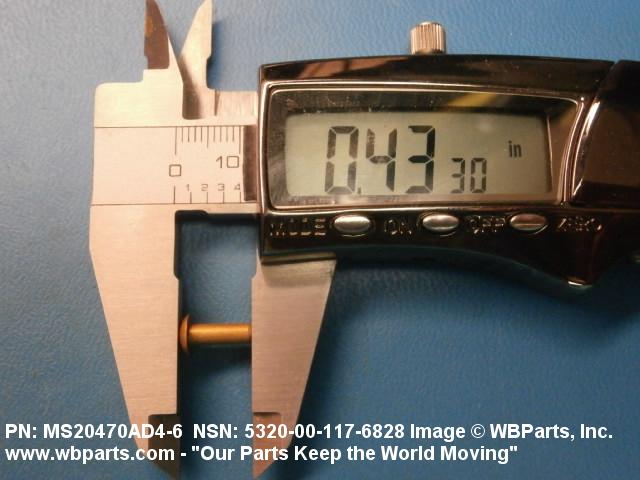

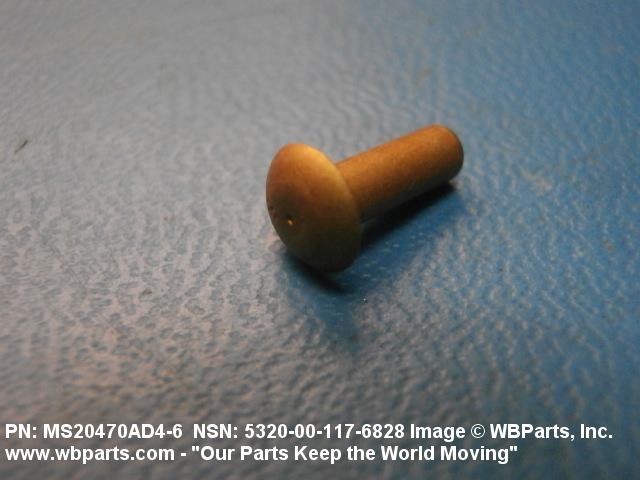

Drawings & Photos | NSN 5320-00-117-6828

Part Number	Request Date	QTY	Origin
MS20470AD46	2025-12-345	200	Sweden
MS20470AD4	2025-09-269	100	France
MS20470AD46	2025-05-140	222	US
MS20470AD46	2025-05-134	8	United States
MS20470AD46	2025-05-134	8	United States
MS20470AD46	2025-04-106	1	France
5320-00-117-6828	2025-03-85	100	DIBBS
MS20470AD4	2025-02-38	700	IN
MS20470AD46	2025-01-16	32	France
5320-00-117-6828	2024-10-281	20	US
MS20470AD46	2024-10-277	1000	Singapore
MS20470AD46	2024-10-276	250	US
5320-00-117-6828	2024-09-262	23	DIBBS
MS20470AD46	2024-04-96	2	BR
MS20470AD4	2024-02-53	200	US
MS20470AD46	2023-11-307	191	US
5320-00-117-6828	2023-10-289	191	DIBBS
MS20470AD4	2023-09-269	20	PH
MS20470AD46	2023-09-257	500	AE
5320-00-117-6828	2023-06-178	79	DIBBS
5320-00-117-6828	2023-06-170	79	DIBBS
MS20470AD4	2023-05-151	20	us
5320-00-117-6828	2023-03-75	1567	DIBBS
MS20470AD46	2023-02-48	20	US
MS20470AD46	2023-02-48	8	Malta
MS20470AD4	2023-02-39	20	Taiwan
5320-00-117-6828	2022-12-349	65	DIBBS
AN470AD46	2022-11-322	4	South Africa
MS20470AD46	2022-10-278	100	Malaysia
MS20470AD4	2022-10-276	748	TR
MS20470AD46	2022-02-38	500	US
MS20470AD46	2022-01-28	1000	United States
MS20470AD46	2022-01-11	32	Malta
MS20470AD46	2022-01-10	5	United States
MS20470AD4	2021-11-308	40	US
MS20470AD46	2021-10-300	1000	United States
MS20470AD46	2021-09-257	100	United States
MS20470AD46	2021-08-230	180	IN
MS20470AD46	2021-08-221	64	United States
MS20470AD4-6	2021-02-53	250	BD
MS20470AD46	2020-11-324	500	Thailand
MS20470AD4	2020-09-274	1	United States
5320-00-117-6828	2020-09-252	100	SA
5320-00-117-6828	2020-07-196	1	TW
MS20470AD46	2020-05-135	136	US
MS20470AD46	2020-04-92	28	United States
MS20470AD46	2019-10-288	1	United States
MS20470AD46	2019-09-269	300	United States
5320-00-117-6828	2019-09-269	455	DIBBS
MS20470AD46	2019-09-262	300	United States
MS20470AD46	2019-08-233	16	United States
MS20470AD46	2019-05-136	650	United States
MS20470AD4	2019-05-127	100	US
MS20470AD46	2019-02-38	200	us
5320-00-117-6828	2018-12-345	145	DIBBS
MS20470AD46	2018-10-285	100	United States
MS20470AD46	2018-04-103	144	US
MS20470AD4	2018-04-96	50	US
MS20470AD46	2018-02-57	1	United States
MS20470AD4	2017-08-236	144	United States
MS20470AD46	2017-06-166	500	United States
MS20470AD46	2017-04-109	240	United States
MS20470AD46	2017-04-109	360	United States
MS20470AD46	2017-04-109	480	United States
5320-00-117-6828	2017-03-68	5	Malaysia
5320-00-117-6828	2017-03-68	5	Malaysia
5320-00-117-6828	2017-03-66	5	Malaysia
MS20470AD46	2017-02-54	200	US
MS20470AD46	2016-11-307	221	United States
5320-00-117-6828	2016-08-215	1478	DIBBS
MS20470AD46	2016-06-158	100	United States
MS20470AD4	2016-05-152	72	US
5320-00-117-6828	2016-05-123	619	DIBBS
5320-00-117-6828	2016-03-73	2591	DIBBS
MS20470AD4	2016-01-21	100	United States
5320-00-117-6828	2016-01-19	19	United States
MS20470AD4-6	2016-01-18	4	Australia
MS20470AD4-6	2016-01-18	4	Australia
MS20470AD46	2015-06-152	10000	United States
5320-00-117-6828	2015-03-77	503	DIBBS
5320-00-117-6828	2014-10-301	1971	DIBBS
5320-00-117-6828	2014-07-196	100	AR
MS20470AD4	2014-03-71	8	Australia
MS20470AD4	2014-03-66	5	Turkey
MS20470AD46	2014-02-58	100	UM
MS20470AD4	2014-01-23	18	CA
MS20470AD4-6	2014-01-06	1	US
5320-00-117-6828	2013-11-307	710	DIBBS
AN442AD4-6	2013-08-229	1260	Canada
MS20470AD46	2013-08-226	600	United States
MS20470AD4	2013-04-99	200	US
MS20470AD4	2013-02-59	1	United States
MS20470AD4	2013-01-17	1	US
MS20470AD4	2012-12-349	415	United States
MS20470AD4	2012-11-332	100	AZ
MS20470AD4	2012-06-178	100	Mexico
MS20470AD4	2012-06-160	100	United States
MS20470AD4	2012-06-156	100	United States
MS20470AD46	2012-04-110	10	US
MS20470AD4	2012-04-108	1000	United States
MS20470AD4	2011-10-304	18	United States
5320-00-117-6828	2011-07-200	1000	IT
5320-00-117-6828	2011-05-136	269	Canada
AN470AD46	2011-04-108	30	US
5320-00-117-6828	2011-03-76	24	US
MS20470AD46	2011-03-69	15	US
5320-00-117-6828	2011-03-63	6000	United States
MS20470AD46	2011-02-34	1	US
MS20470AD46	2011-01-28	100	United States
MS20470AD46	2010-10-291	390	us
5320-00-117-6828	2010-09-259	50	RO
MS20470AD46	2010-09-259	150	United States
MS20470AD4	2010-03-76	50	United States
MS20470AD46	2009-09-259	3000	India
MS20470AD4	2009-09-253	17	US
MS20470AD4	2009-09-253	17	US
MS20470AD4	2009-09-253	17	US
MS20470AD46	2009-07-196	10	us
5320-00-117-6828	2009-07-187	100	us
MS20470AD46	2009-02-54	600	Greece
MS20470AD46	2009-01-06	1500	us
MS20470AD46	2008-11-330	15	Turkey
5320-00-117-6828	2008-11-313	1000	us
5320-00-117-6828	2008-10-298	116	US
5320-00-117-6828	2008-10-290	25	us
5320-00-117-6828	2008-08-241	40	India
MS20470AD46	2008-08-239	250	United States
MS20470AD46	2008-08-219	14	United States
MS20470AD46	2008-08-218	2	United States
MS20470AD46	2008-06-165	10	US
MS20470AD46	2008-06-162	8000	DK
5320-00-117-6828	2008-06-157	300	South Korea
MS20470AD46	2008-06-156	1000	DK
5320-00-117-6828	2008-03-84	10	us
5320-00-117-6828	2008-02-44	18500	US
MS20470AD46	2007-11-325	5	Iraq
MS20470AD4	2007-04-93	31	United States

Cross Reference | NSN 5320-00-117-6828

Part Number	Cage Code	Manufacturer
04050452039390	C4680	JK DEFENCE & SECURITY PRODUCTS GMBH DBA JK TECHNISCHE HYGIENE
139473	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
1JC3555H46	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
216-1034-31	49956	RAYTHEON COMPANY DBA RAYTHEON
216-1034P31	49956	RAYTHEON COMPANY DBA RAYTHEON
216-1034PT31	49956	RAYTHEON COMPANY DBA RAYTHEON
216MS017P031	04164	RAYTHEON ELECTRONIC SYSTEMS, INC
216MS017P031	49956	RAYTHEON COMPANY DBA RAYTHEON
25-2AD4-6	38597	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
278-002-4061	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
278-002-4061	C1834	KONTRON AG
5320001176828	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6026-3000-6	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-3002-2	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-3004-5	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-3146-12	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-3167-3	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
7903738-25	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
939.17.81.237	S4080	PILATUS AIRCRAFT LTD
946131-2306	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN442AD4-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN470AD4-6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN47AD4-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AS125741	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
JKN00073288	C4680	JK DEFENCE & SECURITY PRODUCTS GMBH DBA JK TECHNISCHE HYGIENE
MS20470AD-4-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20470AD4	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
MS20470AD4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20470AD4-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20470AD4-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS40470AD4-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-117-6828

Compare

Related Products | NSN 5320-00-117-6828

5320-00-117-6829, 5320-00-117-6830, 5320-00-117-6831, 5320-00-117-6832, 5320-00-117-6833

Technical Data | NSN 5320-00-117-6828

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	OXIDE FILM OR ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-A-8625 MIL SPEC 2ND TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	26000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

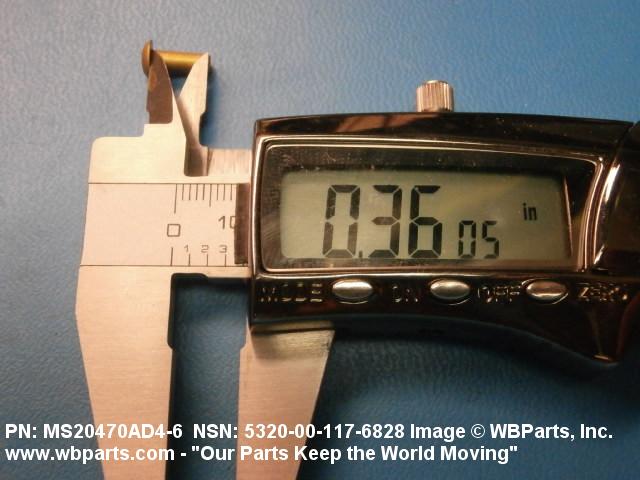

FASTENER LENGTH	0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM

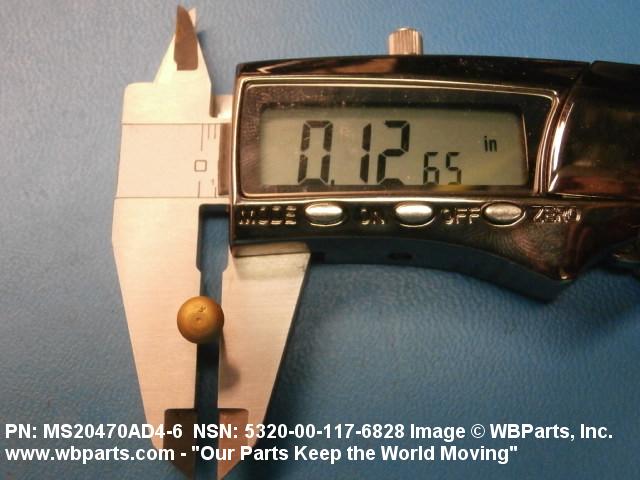

SHANK DIAMETER	0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM
GRIP LENGTH	0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5320-00-117-6828

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-117-6828

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds
