NSN 5320-00-117-6840 MS20470AD57, MS20470AD5-7, MS20470AD57A
Product Details | SOLID RIVET

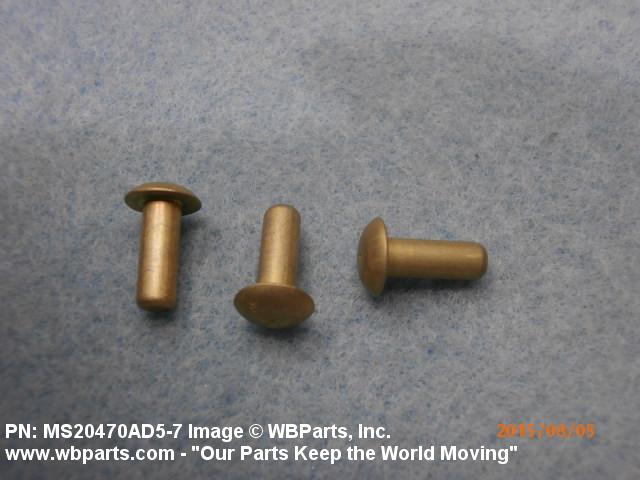

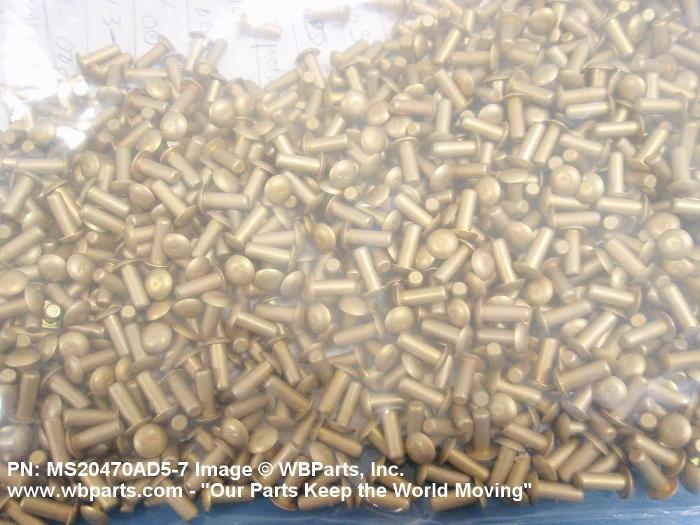

5320-00-117-6840 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470AD57, MS20470AD5-7, MS20470AD57A, MS20470AD5-7A, AN470AD57, AN470AD5-7, GHN1000347, GHN10003-47 , 413719-081, 939.17.81.254, 9391781254, 5320-00-117-6840, 00-117-6840, 5320001176840 , 413719081, 001176840
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6840 | 00861 ( RIVET, SOLID ) |

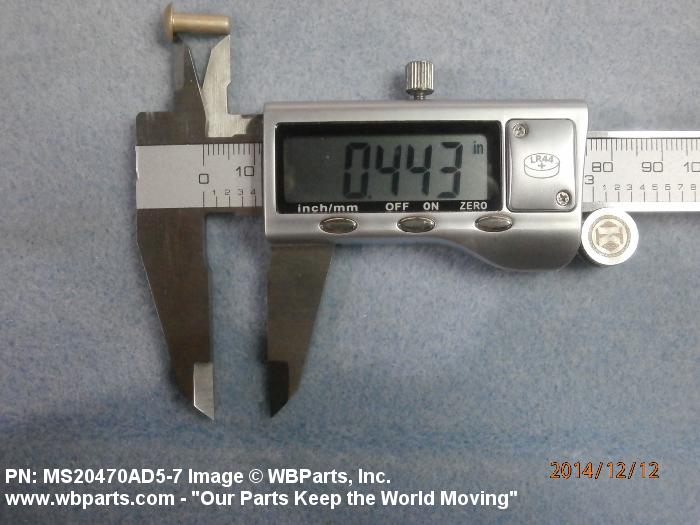

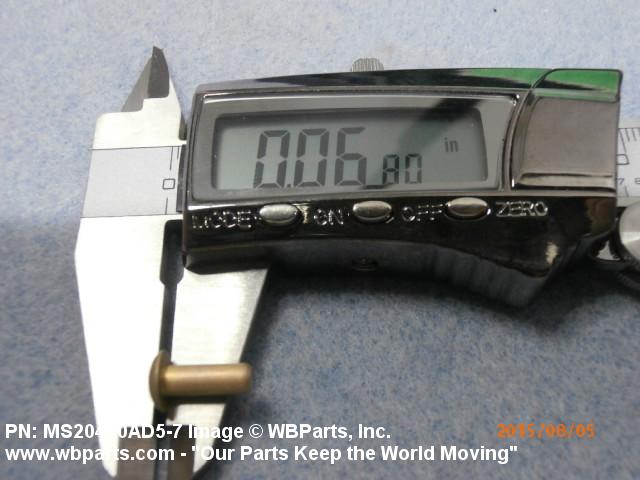

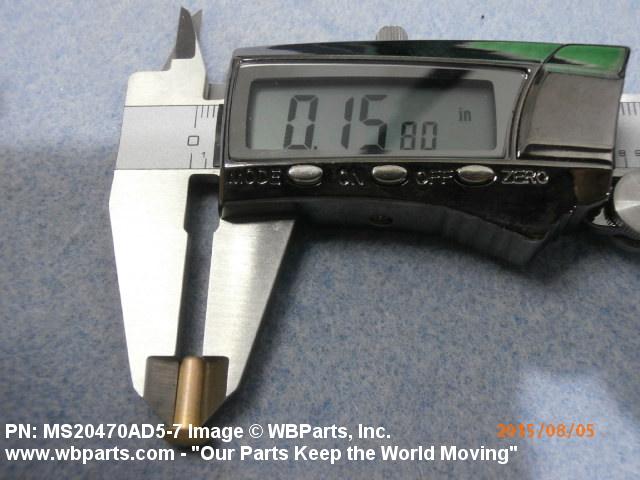

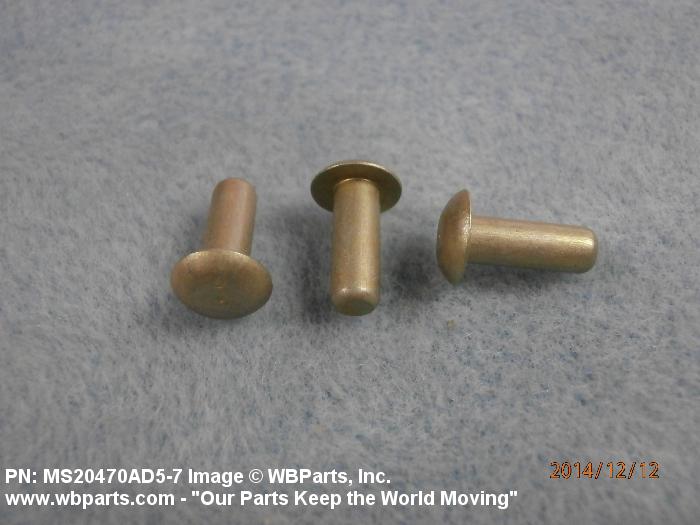

Drawings & Photos | NSN 5320-00-117-6840
Demand History | NSN 5320-00-117-6840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20470AD57 | 2025-07-196 | 12355 | us |
| 5320-00-117-6840 | 2025-06-165 | 960 | AE |
| MS20470AD57 | 2025-01-16 | 238 | France |
| MS20470AD57 | 2024-06-180 | 40 | Japan |
| MS20470AD57 | 2024-06-172 | 50 | Philippines |
| MS20470AD57 | 2024-04-99 | 1000 | US |
| MS20470AD57 | 2024-02-43 | 100 | US |
| MS20470AD57 | 2023-10-286 | 400 | United Arab Emirates |
| MS20470AD57A | 2023-08-223 | 45 | United States |
| MS20470AD57 | 2023-07-208 | 10 | US |
| MS20470AD57 | 2022-12-342 | 6 | United States |
| AN470AD57 | 2022-08-241 | 5 | South Africa |
| MS20470AD57 | 2022-01-11 | 816 | United States |
| MS20470AD57 | 2021-10-300 | 1000 | United States |
| MS20470AD57A | 2021-10-298 | 1000 | Croatia |
| MS20470AD5-7 | 2020-05-147 | 1000 | US |
| MS20470AD57 | 2019-09-269 | 1000 | United States |
| MS20470AD57 | 2019-09-262 | 1000 | United States |
| MS20470AD57 | 2018-09-254 | 20 | Philippines |
| MS20470AD57 | 2017-12-349 | 200 | US |
| MS20470AD57 | 2017-05-124 | 180 | US |
| MS20470AD57 | 2016-11-309 | 2 | Thailand |
| MS20470AD57 | 2015-10-302 | 600 | Spain |
| MS20470AD57 | 2015-09-272 | 3284 | United States |
| MS20470AD57 | 2015-09-272 | 3284 | United States |
| MS20470AD57 | 2015-08-222 | 50 | United States |
| MS20470AD57 | 2015-08-219 | 50 | United States |
| AN470AD5-7 | 2015-05-138 | 76 | United States |
| AN470AD5-7 | 2015-05-138 | 100 | United States |
| AN470AD5-7 | 2015-05-138 | 10 | United States |
| AN470AD5-7 | 2015-05-138 | 76 | United States |
| AN470AD5-7 | 2015-05-138 | 100 | United States |
| AN470AD5-7 | 2015-05-138 | 10 | United States |
| MS20470AD57 | 2015-01-26 | 100 | United States |
| MS20470AD5-7 | 2014-11-317 | 84 | United States |
| 5320-00-117-6840 | 2014-07-196 | 100 | AR |
| 5320-00-117-6840 | 2014-02-48 | 25 | MY |
| MS20470AD57 | 2013-10-276 | 500 | Hong Kong |
| MS20470AD57 | 2013-04-100 | 100 | Canada |
| 5320-00-117-6840 | 2013-01-08 | 1 | United States |
| MS20470AD57 | 2012-08-219 | 50 | United States |
| MS20470AD57 | 2012-03-90 | 1644 | US |
| AN470AD57 | 2012-01-05 | 100 | UY |
| MS20470AD57 | 2011-09-259 | 250 | PK |
| 5320-00-117-6840 | 2011-07-200 | 1000 | IT |
| MS20470AD57 | 2011-05-124 | 258 | us |
| MS20470AD57 | 2011-04-94 | 15 | United States |
| MS20470AD57 | 2011-02-34 | 1 | US |
| MS20470AD57 | 2010-11-309 | 200 | DE |
| MS20470AD57 | 2010-10-291 | 300 | us |
| 5320-00-117-6840 | 2010-04-103 | 5 | PK |
| 5320-00-117-6840 | 2010-03-63 | 30 | US |
| 5320-00-117-6840 | 2009-10-288 | 1206 | US |
| MS20470AD57 | 2009-07-204 | 500 | United States |
| 5320-00-117-6840 | 2008-05-129 | 24 | Taiwan |
Cross Reference | NSN 5320-00-117-6840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 413719-081 | 02964 | AMERICAN STERILIZER COMPANY DBA AMSCO STERILITY ASSURANCE |
| 413719-081 | 0NWN1 | STERIS CORPORATION |
| 5320001176840 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 939.17.81.254 | S4080 | PILATUS AIRCRAFT LTD |
| AN470AD5-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20470AD5-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20470AD5-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20470AD5-7A | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6840
Related Products | NSN 5320-00-117-6840
Technical Data | NSN 5320-00-117-6840
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |

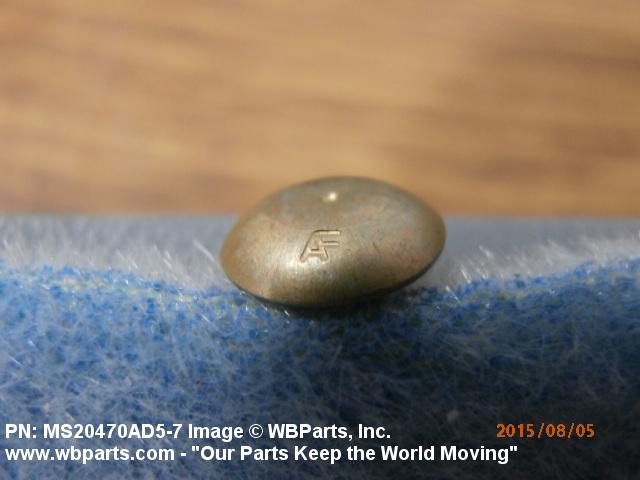

| HEAD STYLE | C28 UNIVERSAL |

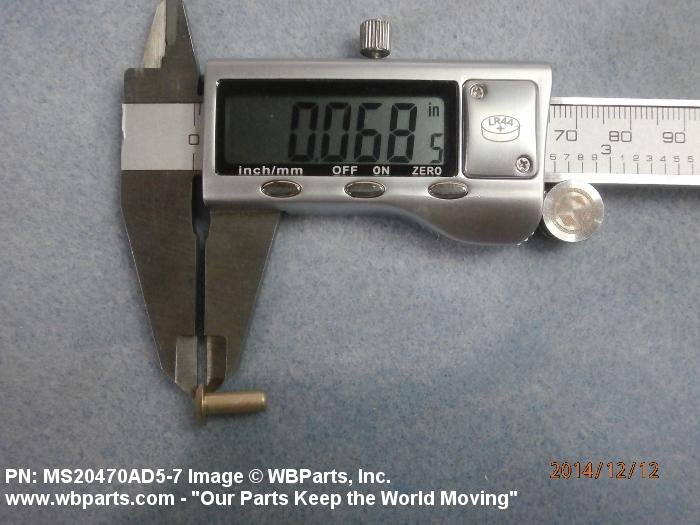

| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |

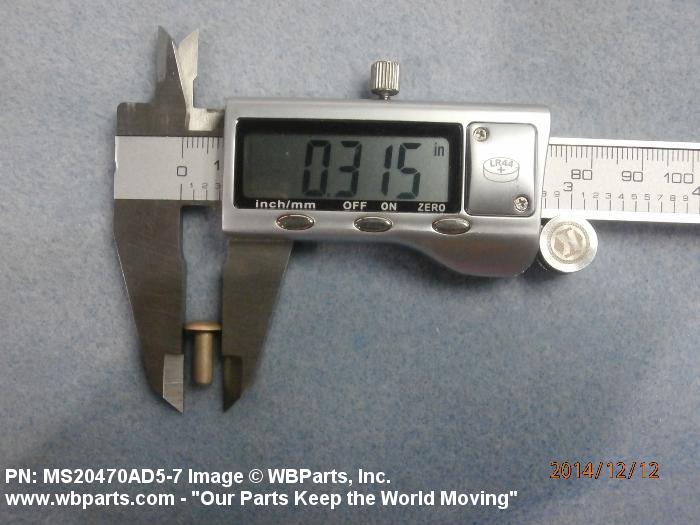

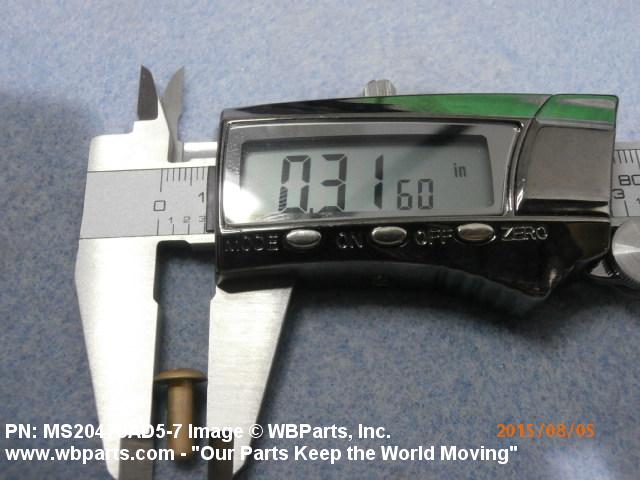

| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |

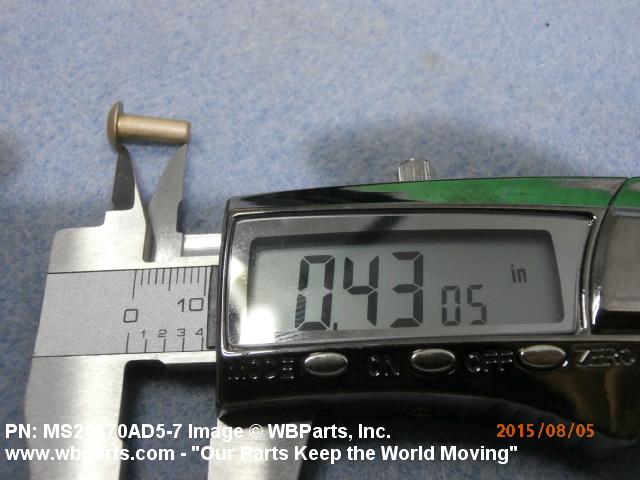

| FASTENER LENGTH | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |

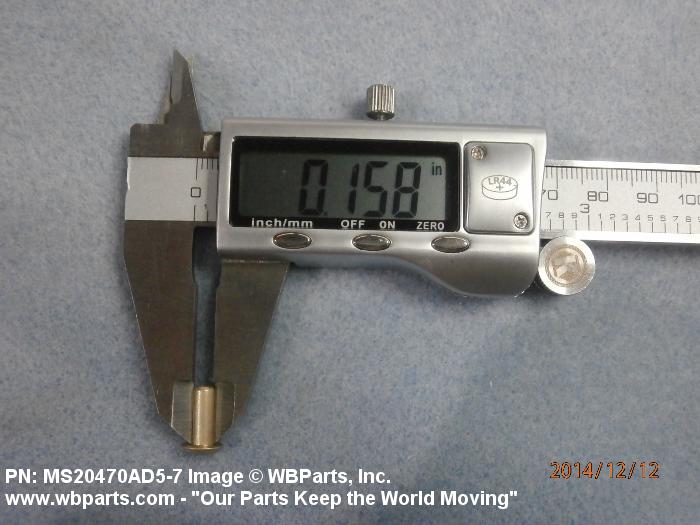

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.194 INCHES MINIMUM AND 0.214 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-117-6840
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-117-6840
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
