Product Details | SOLID RIVET

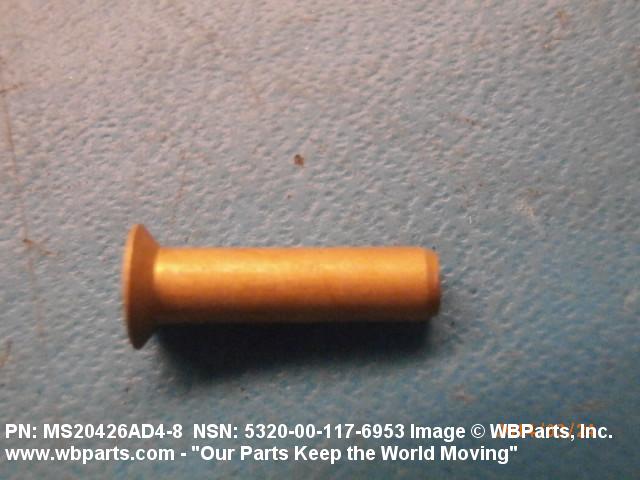

5320-00-117-6953 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426A48, MS20426A4-8, MS20426AD48, MS20426AD4-8, MS20426AD59, MS20426AD5-9, MS20426AD68, MS20426AD6-8, MS20426B48, MS20426B4-8, GHN1000157, GHN10001-57 , 85447900, 854479-00, 305-1377-00, 411172-292, 5320-00-117-6953, 00-117-6953, 5320001176953, 001176953, 305137700, 411172292
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-117-6953 | 00861 ( RIVET, SOLID ) |

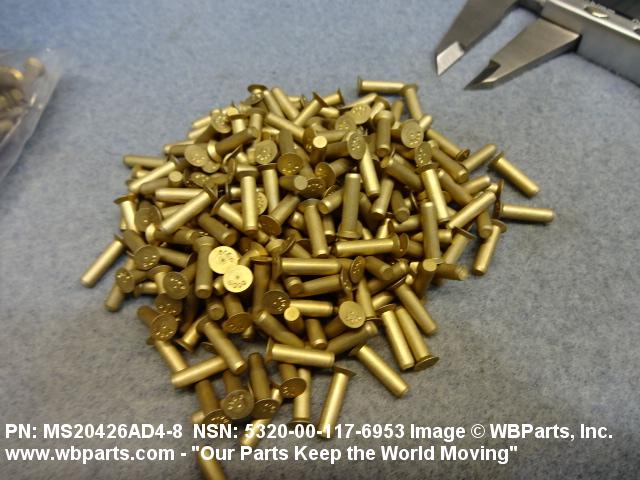

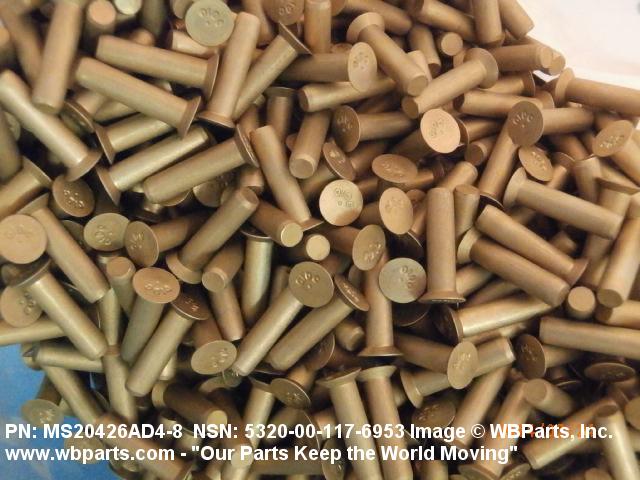

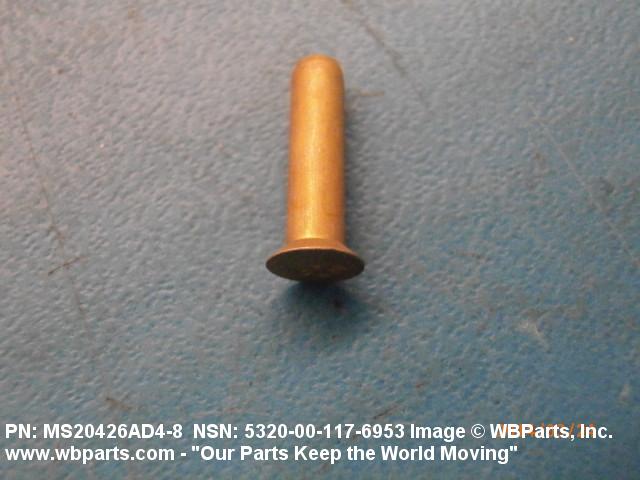

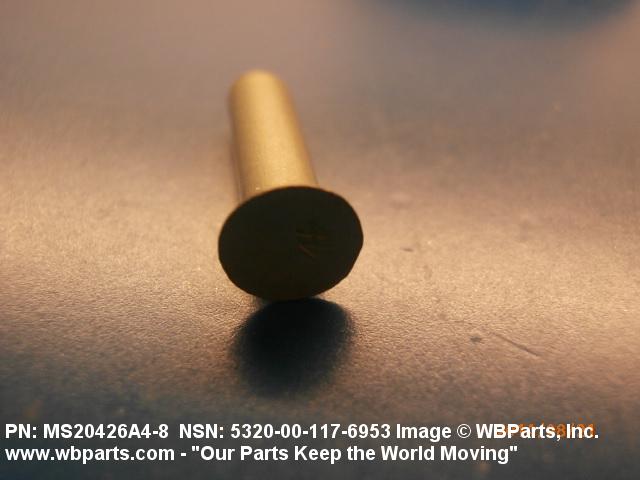

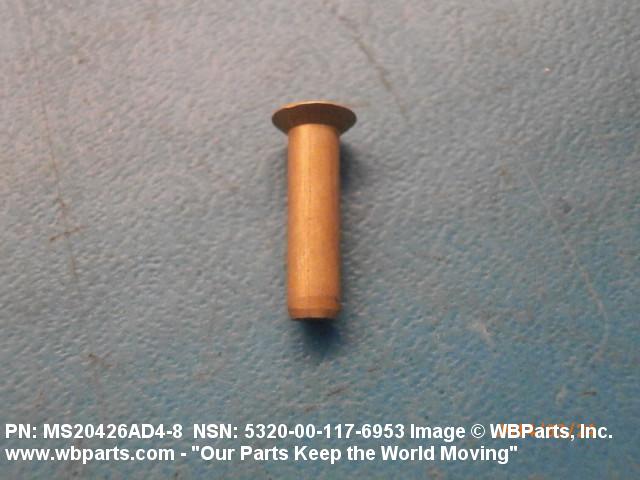

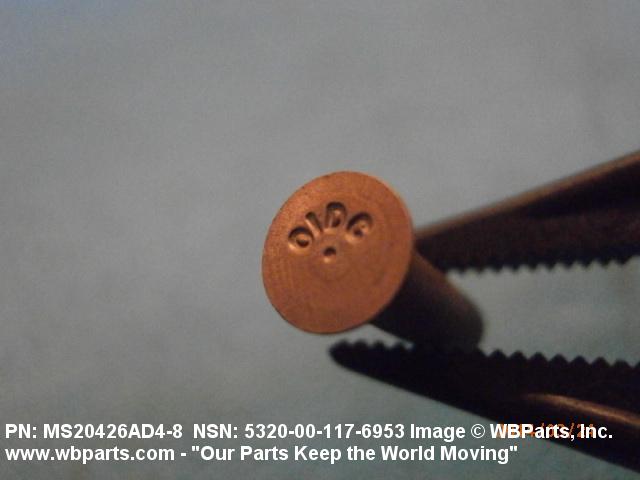

Drawings & Photos | NSN 5320-00-117-6953
Demand History | NSN 5320-00-117-6953
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426AD48 | 2024-05-15 | 3655 | US |
| MS20426AD48 | 2024-02-08 | 96 | US |
| MS20426AD48 | 2023-07-25 | 500 | US |
| 5320-00-117-6953 | 2023-01-26 | 676 | DIBBS |
| MS20426AD48 | 2022-10-10 | 100 | Malaysia |
| MS20426AD59 | 2022-10-06 | 100 | Malaysia |
| MS20426AD48 | 2022-07-08 | 52 | US |
| MS20426A48 | 2022-04-28 | 1 | United States |
| 5320-00-117-6953 | 2022-02-03 | 677 | DIBBS |
| MS20426AD48 | 2021-11-21 | 16 | United States |
| MS20426AD59 | 2021-09-14 | 100 | United States |
| MS20426AD4-8 | 2020-06-22 | 80 | Hong Kong |
| MS20426AD5-9 | 2020-06-22 | 320 | Hong Kong |
| MS20426AD4-8 | 2020-05-26 | 1000 | US |
| MS20426AD5-9 | 2020-05-26 | 1000 | US |
| 5320-00-117-6953 | 2020-02-27 | 50 | US |
| MS20426AD59 | 2019-09-26 | 400 | United States |
| MS20426AD59 | 2019-09-19 | 400 | United States |
| MS20426AD48 | 2019-09-10 | 712 | Australia |
| MS20426AD59 | 2019-06-13 | 1 | United States |
| MS20426AD59 | 2019-06-13 | 2 | United States |
| MS20426AD59 | 2019-06-13 | 6 | United States |
| MS20426AD59 | 2019-06-13 | 10 | United States |
| MS20426AD59 | 2019-06-13 | 20 | United States |
| MS20426AD59 | 2019-06-13 | 40 | United States |
| MS20426AD48 | 2019-02-05 | 8 | Australia |
| MS20426AD48 | 2019-01-11 | 51 | US |
| MS20426AD68 | 2018-06-26 | 150 | Canada |
| MS20426B48 | 2018-04-12 | 50 | US |
| MS20426AD48 | 2018-03-19 | 1 | KR |
| MS20426AD68 | 2018-03-16 | 800 | PK |
| MS20426AD59 | 2017-10-25 | 1400 | Malaysia |
| MS20426AD48 | 2017-06-16 | 75 | United States |
| MS20426AD68 | 2017-02-06 | 100 | US |
| MS20426AD48 | 2016-11-04 | 1 | Thailand |
| MS20426B48 | 2016-09-15 | 1 | US |
| MS20426B48 | 2016-09-15 | 5 | US |
| MS20426B48 | 2016-09-15 | 10 | US |
| 5320-00-117-6953 | 2016-08-08 | 873 | DIBBS |
| MS20426AD48 | 2016-04-25 | 100 | US |
| 5320-00-117-6953 | 2016-04-24 | 2357 | DIBBS |
| 5320-00-117-6953 | 2016-02-07 | 676 | DIBBS |
| MS20426AD48 | 2015-12-07 | 200 | Malaysia |
| MS20426AD68 | 2015-09-29 | 357 | United States |
| MS20426AD68 | 2015-09-29 | 357 | United States |
| MS20426AD48 | 2015-08-18 | 32 | us |
| MS20426AD68 | 2015-02-25 | 250 | Turkey |
| 5320-00-117-6953 | 2015-02-08 | 149 | DIBBS |
| MS20426AD48 | 2014-11-26 | 68 | United States |
| 5320-00-117-6953 | 2014-10-06 | 177 | DIBBS |
| MS20426AD48 | 2014-09-08 | 300 | US |
| MS20426A48 | 2014-03-21 | 1 | United States |
| MS20426AD48 | 2014-02-27 | 125 | UM |
| 5320-00-117-6953 | 2014-02-18 | 15 | MY |
| 5320-00-117-6953 | 2014-02-18 | 15 | MY |
| MS20426AD48 | 2014-02-05 | 100 | Malaysia |
| 5320-00-117-6953 | 2014-01-05 | 442 | DIBBS |
| MS20426AD48 | 2013-03-25 | 100 | United States |
| MS20426A48 | 2013-02-22 | 200 | PK |
| MS20426AD48 | 2012-11-21 | 100 | United States |
| MS20426AD48 | 2012-08-24 | 560 | United States |
| MS20426A48 | 2012-01-25 | 50 | NG |
| MS20426AD48 | 2011-12-07 | 250 | Israel |
| MS20426AD48 | 2011-11-01 | 100 | US |
| MS20426AD6-8 | 2011-10-26 | 50 | Hong Kong |
| 5320-00-117-6953 | 2011-09-07 | 500 | SG |
| 5320-00-117-6953 | 2011-05-25 | 5000 | United States |
| MS20426AD48 | 2011-03-02 | 25000 | IN |
| MS20426AD68 | 2011-02-03 | 1 | US |
| MS20426AD48 | 2011-02-03 | 1 | US |
| MS20426AD48 | 2011-01-28 | 100 | United States |
| 5320-00-117-6953 | 2010-12-14 | 250 | US |
| 5320-00-117-6953 | 2010-11-02 | 725 | DIBBS |
| MS20426AD48 | 2010-10-09 | 500 | US |
| MS20426AD68 | 2010-07-19 | 1 | United States |
| 5320-00-117-6953 | 2010-06-09 | 673 | DIBBS |
| MS20426A48 | 2010-05-12 | 1 | United States |
| 5320-00-117-6953 | 2010-04-12 | 3 | PK |
| MS20426AD48 | 2010-03-31 | 50 | US |
| MS20426AD68 | 2009-10-20 | 1000 | Malaysia |
| 5320-00-117-6953 | 2009-08-06 | 4 | US |
| 5320-00-117-6953 | 2009-07-20 | 2500 | IL |
| MS20426AD48 | 2009-05-26 | 2 | PK |
| 5320-00-117-6953 | 2009-02-26 | 84 | United States |
| 5320-00-117-6953 | 2008-10-16 | 50 | us |
| 5320-00-117-6953 | 2008-09-24 | 390 | DIBBS |
| 5320-00-117-6953 | 2008-09-15 | 1000 | Malaysia |
| 5320-00-117-6953 | 2008-05-14 | 430 | DIBBS |
| 5320-00-117-6953 | 2008-02-13 | 2600 | US |
| 5320-00-117-6953 | 2008-02-08 | 50 | United States |
| 5320-00-117-6953 | 2007-05-02 | 20000 | China |
Cross Reference | NSN 5320-00-117-6953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 305-1377-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 411172-292 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 854479-00 | 32345 | DEFENSE REDUCTION AGENCY |
| MS20426A4-8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20426AD4-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD4-8 | 8J942 | RAPID RIVET AND FASTENER CORPORATION |
| MS20426AD4-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20426AD5-9 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20426AD6-8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20426B4-8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-00-117-6953
Related Products | NSN 5320-00-117-6953
5320-00-117-6954, 5320-00-117-6955, 5320-00-117-6956, 5320-00-117-6957, 5320-00-117-6958
Technical Data | NSN 5320-00-117-6953
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM OR ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-A-8625 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

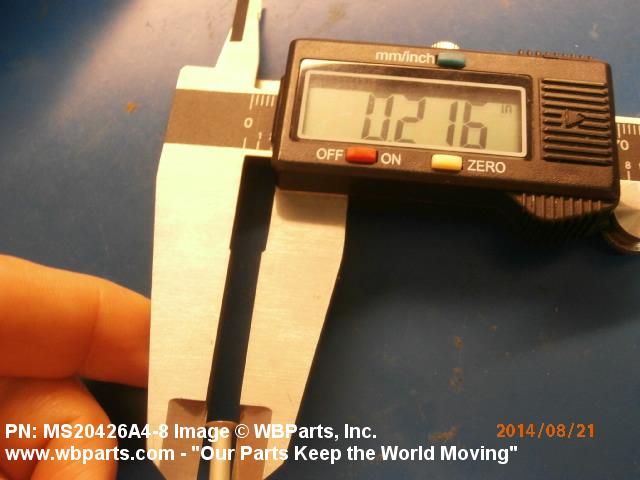

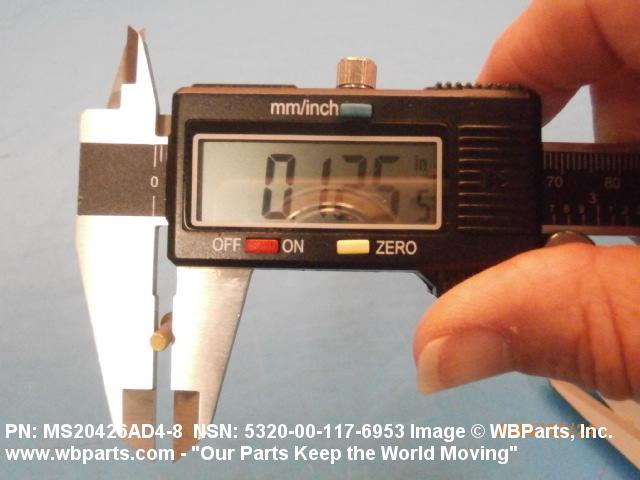

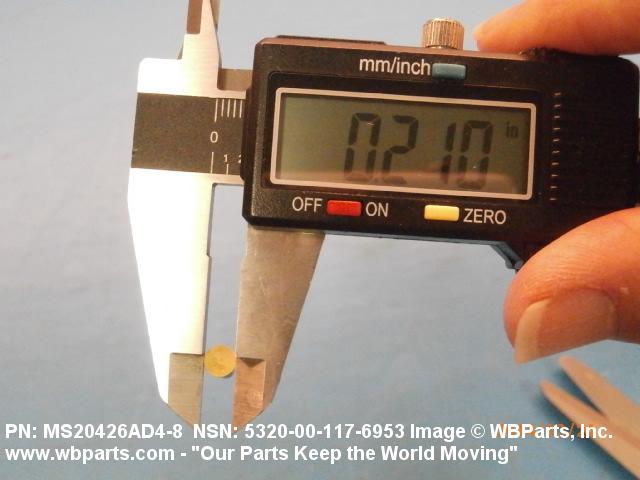

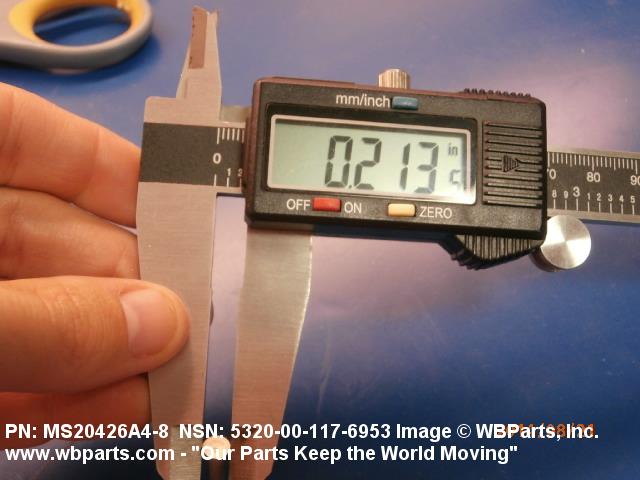

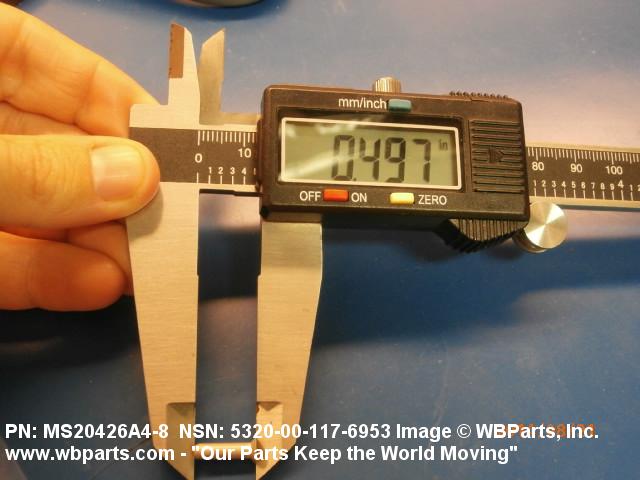

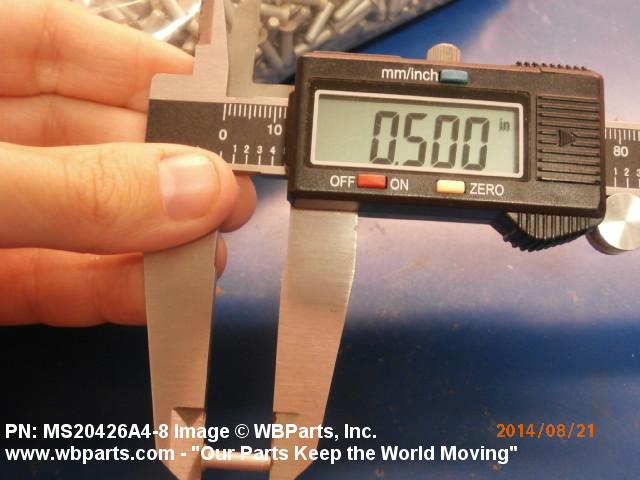

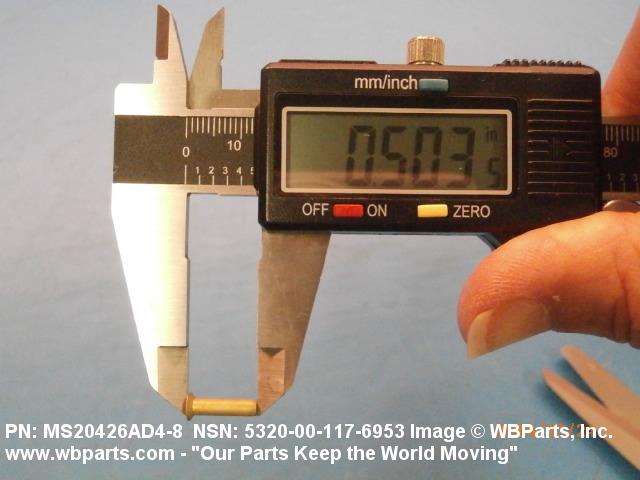

| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

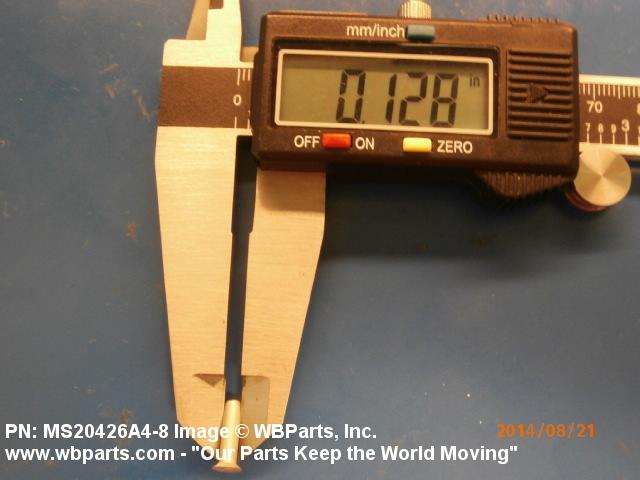

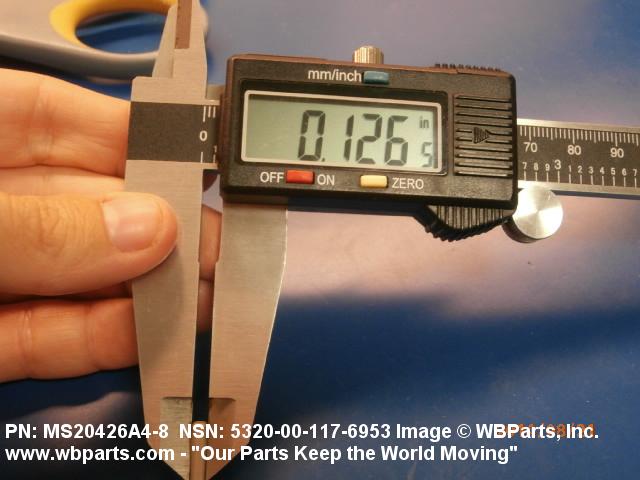

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-117-6953
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
