NSN 5320-00-145-5923 HL868, HL86-8, HS55838
Product Details | PIN-RIVET COLLAR

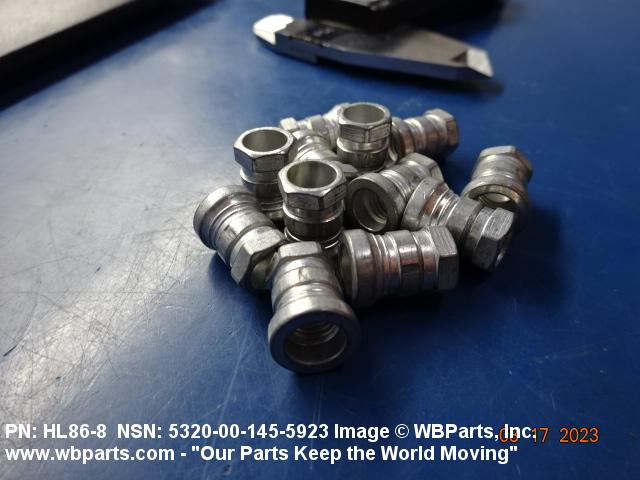

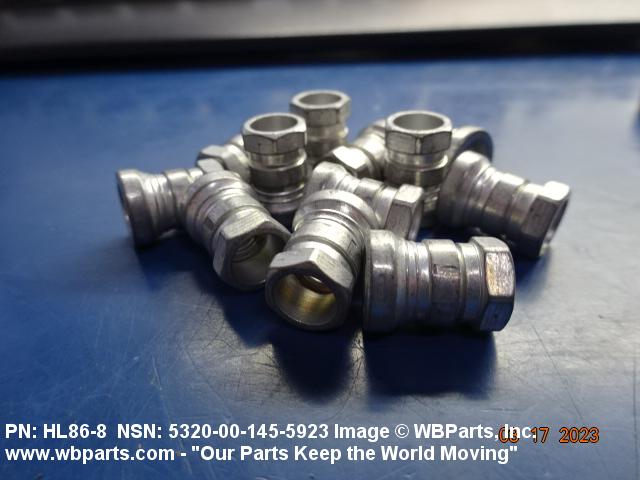

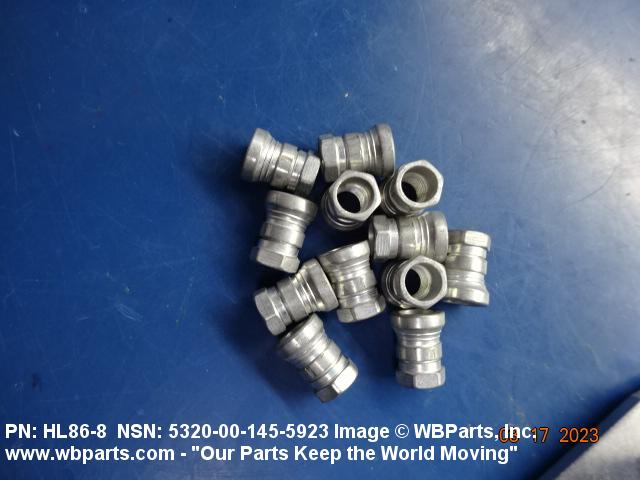

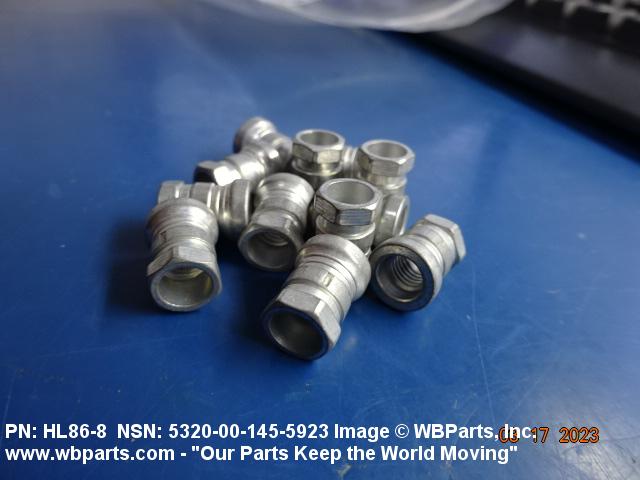

5320-00-145-5923 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL868, HL86-8, HS55838, HS5583-8, 5320-00-145-5923, 00-145-5923, 5320001455923, 001455923
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1971 | 00-145-5923 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-145-5923
Demand History | NSN 5320-00-145-5923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-145-5923 | 2025-10-294 | 100 | US |
| HL868 | 2025-07-204 | 112 | United States |
| 5320-00-145-5923 | 2025-04-114 | 18 | IL |
| HL86-8 | 2024-06-168 | 235 | DIBBS |
| HS5583-8 | 2024-06-168 | 235 | DIBBS |
| HL868 | 2024-06-157 | 1972 | IN |
| 5320-00-145-5923 | 2024-02-50 | 385 | DIBBS |
| 5320-00-145-5923 | 2023-03-68 | 200 | United States |
| HS55838 | 2023-01-03 | 5376 | India |
| HL868 | 2022-06-158 | 1190 | South Africa |
| HL868 | 2019-04-116 | 8 | Canada |
| 5320-00-145-5923 | 2018-11-308 | 9731 | DIBBS |
| 5320-00-145-5923 | 2018-05-144 | 1 | DIBBS-RFPs |
| HL868 | 2017-07-191 | 10 | Thailand |
| HL868 | 2015-02-43 | 40 | South Africa |
| HL868 | 2015-01-07 | 1 | United States |
| 5320-00-145-5923 | 2014-07-194 | 4133 | DIBBS |
| 5320-00-145-5923 | 2013-07-212 | 6755 | DIBBS |
| 5320-00-145-5923 | 2013-06-168 | 5422 | DIBBS |
| 5320-00-145-5923 | 2013-05-128 | 4996 | DIBBS |
| 5320-00-145-5923 | 2012-04-114 | 15 | MANUAL |
| 5320-00-145-5923 | 2011-10-293 | 85 | US |
| 5320-00-145-5923 | 2011-07-192 | 39 | Taiwan |
| 5320-00-145-5923 | 2011-04-97 | 50 | Taiwan |
| 5320-00-145-5923 | 2010-08-232 | 100 | US |
| HL868 | 2010-04-96 | 63 | US |
| HL868 | 2010-04-96 | 63 | US |
| 5320-00-145-5923 | 2009-08-215 | 7199 | DIBBS |
| 5320-00-145-5923 | 2009-06-152 | 5487 | DIBBS |
| 5320-00-145-5923 | 2009-05-125 | 10042 | DIBBS |
| 5320-00-145-5923 | 2008-09-262 | 4370 | DIBBS |
Cross Reference | NSN 5320-00-145-5923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL86-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL86-8 | 73197 | HI-SHEAR CORPORATION |
| HL86-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL86-8 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL86-8 | L4528 | LISI AEROSPACE CANADA CORP |
| HL86-8 | R1120 | SATAIR A/S |
| HS5583-8 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-145-5923
Related Products | NSN 5320-00-145-5923
Technical Data | NSN 5320-00-145-5923
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

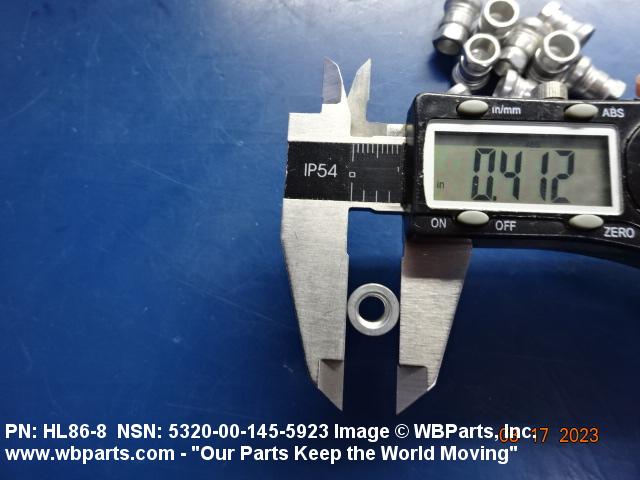

| COLLAR OUTSIDE DIAMETER | 0.408 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |

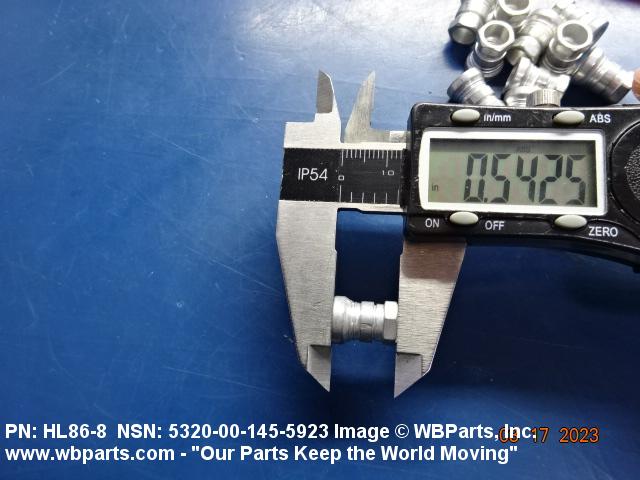

| COLLAR OVERALL HEIGHT | 0.532 INCHES MINIMUM AND 0.552 INCHES MAXIMUM |

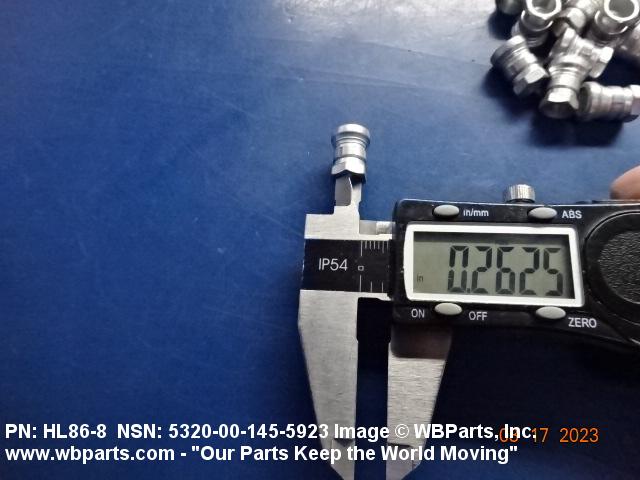

| COLLAR INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.261 INCHES MAXIMUM |
