NSN 5320-00-227-7657 BACC30R8, HL848, HL84-8
Product Details | PIN-RIVET COLLAR

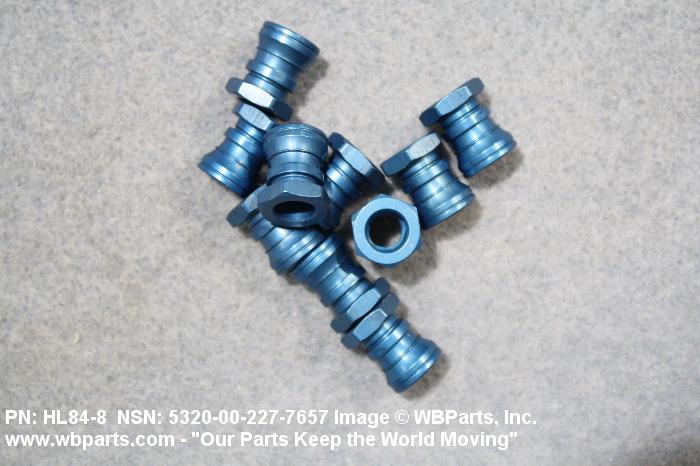

5320-00-227-7657 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30R8, HL848, HL84-8, 660138, 66013-8, 5320-00-227-7657, 00-227-7657, 5320002277657, 002277657
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JAN 1969 | 00-227-7657 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-227-7657
Demand History | NSN 5320-00-227-7657
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-227-7657 | 2017-03-60 | 12070 | DIBBS |
| BACC30R8 | 2015-09-265 | 60 | United States |
| BACC30R8 | 2015-08-229 | 98 | US |
| BACC30R8 | 2015-08-229 | 980 | US |
| BACC30R8 | 2015-08-229 | 1960 | US |
| BACC30R8 | 2015-08-229 | 2940 | US |
| BACC30R8 | 2015-08-229 | 3920 | US |
| BACC30R8 | 2013-01-03 | 240 | US |
| 5320-00-227-7657 | 2010-04-113 | 1262 | DIBBS |
| 5320-00-227-7657 | 2010-04-100 | 1301 | DIBBS |
| 5320-00-227-7657 | 2008-11-319 | 11397 | DIBBS |
Cross Reference | NSN 5320-00-227-7657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66013-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACC30R8 | 81205 | THE BOEING COMPANY DBA BOEING |
| HL84-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL84-8 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL84-8 | 73197 | HI-SHEAR CORPORATION |
| HL84-8 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-227-7657
Related Products | NSN 5320-00-227-7657
Technical Data | NSN 5320-00-227-7657
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
| COLLAR OUTSIDE DIAMETER | 0.420 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.532 INCHES MINIMUM AND 0.552 INCHES MAXIMUM |
| COLLAR INSIDE DIAMETER | 0.286 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| IDENTIFICATION CODE COLOR | BLUE |
Restrictions/Controls & Freight Information | NSN 5320-00-227-7657
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
