NSN 5320-00-236-7244 MS20435M65, MS20435M6-5 , MS20470AD514
Product Details | SOLID RIVET
5320-00-236-7244 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20435M65, MS20435M6-5 , MS20470AD514, MS20470AD5-14, AN435M65, AN435M6-5 , AN470AD514, AN470AD5-14, BAC415BB5AD14, 939.17.81.260, 9391781260, 5320-00-236-7244, 00-236-7244, 5320002367244, 002367244
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-236-7244 | 00861 ( RIVET, SOLID ) |

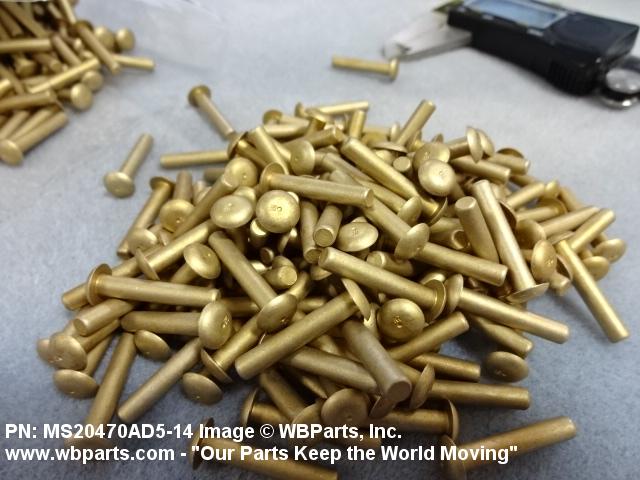

Drawings & Photos | NSN 5320-00-236-7244
Demand History | NSN 5320-00-236-7244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20470AD514 | 2023-12-352 | 894 | United States |
| MS20470AD514 | 2019-09-269 | 100 | United States |
| MS20470AD514 | 2019-09-262 | 100 | United States |
| MS20470AD5-14 | 2016-04-96 | 200 | Romania |
| 5320-00-236-7244 | 2014-10-287 | 14 | US |
| 5320-00-236-7244 | 2012-02-52 | 78 | DIBBS |
| 5320-00-236-7244 | 2011-01-28 | 56 | DIBBS |
| AN470AD514 | 2008-04-93 | 500 | India |
Cross Reference | NSN 5320-00-236-7244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 939.17.81.260 | S4080 | PILATUS AIRCRAFT LTD |
| AN470AD5-14 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BAC415BB5AD14 | 81205 | THE BOEING COMPANY DBA BOEING |
| MS20470AD5-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20470AD5-14 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-236-7244
Related Products | NSN 5320-00-236-7244
Technical Data | NSN 5320-00-236-7244
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

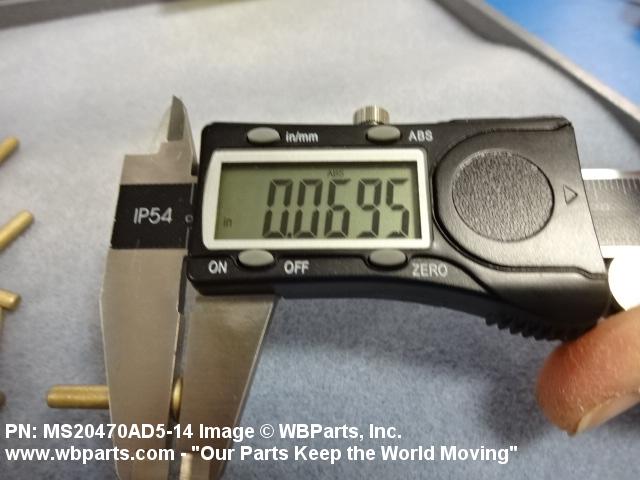

| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |

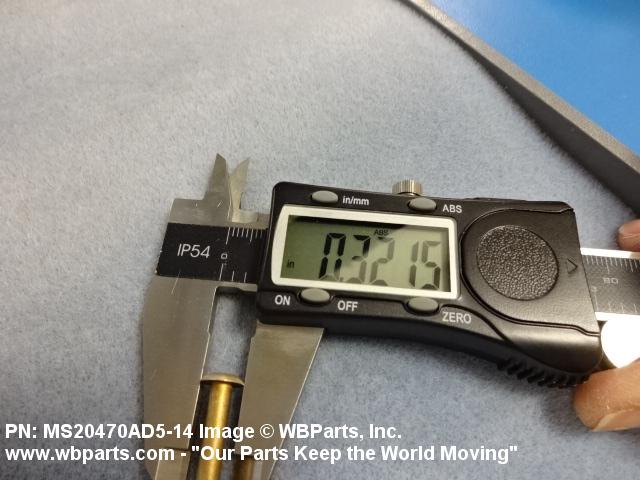

| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |

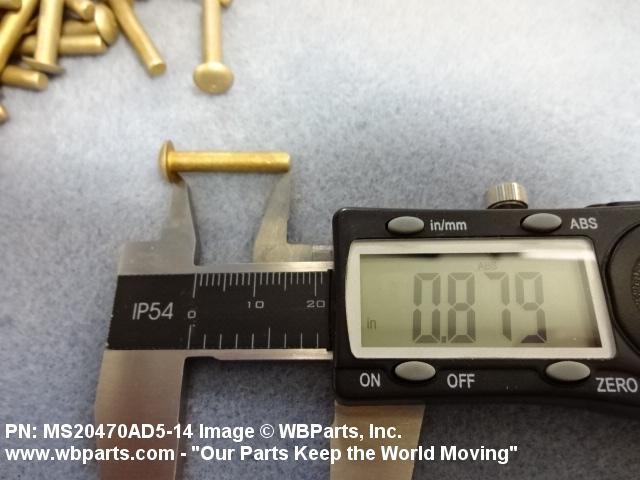

| FASTENER LENGTH | 0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |

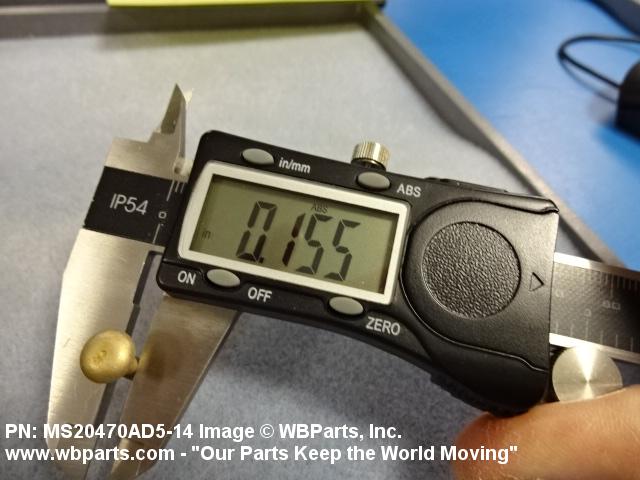

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |

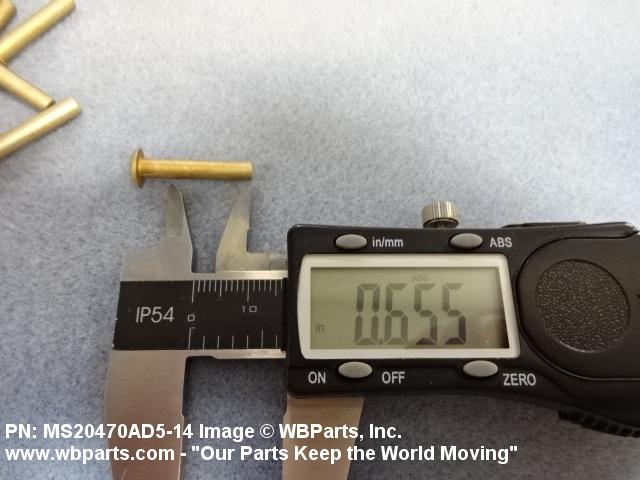

| GRIP LENGTH | 0.631 INCHES MINIMUM AND 0.651 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-236-7244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-236-7244
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
