NSN 5320-00-244-8501 H8007, 5320111, 5320-1-11
Product Details | TUBULAR RIVET
5320-00-244-8501 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: H8007, 5320111, 5320-1-11, 70S15, 5320-00-244-8501, 00-244-8501, 5320002448501, 002448501
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-244-8501 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-00-244-8501
Cross Reference | NSN 5320-00-244-8501
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-244-8501
Related Products | NSN 5320-00-244-8501
Technical Data | NSN 5320-00-244-8501
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 270 OVERALL |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |

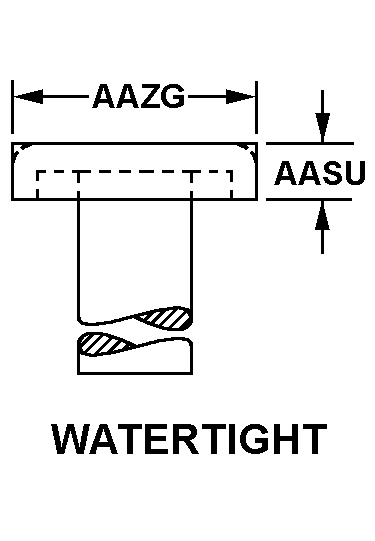

| HEAD STYLE | C30 WATERTIGHT |
| HEAD HEIGHT | 0.036 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.412 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| SHANK STYLE | D6 TUBULAR |
| FASTENER LENGTH | 0.386 INCHES MINIMUM AND 0.602 INCHES MAXIMUM |
| HOLE DIAMETER | 0.127 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| SHANK DIAMETER | 0.180 INCHES MINIMUM AND 0.184 INCHES MAXIMUM |
| HOLE DEPTH | 0.192 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-244-8501
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096300 | RIVETS BRASS/BRONZE/COPPER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-244-8501
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
