NSN 5320-00-264-4152 6711910, 00-264-4152, 002644152
Product Details | TUBULAR RIVET
5320-00-264-4152 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: 6711910, 5320-00-264-4152, 00-264-4152, 5320002644152, 002644152
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-264-4152 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-00-264-4152
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-264-4152
Related Products | NSN 5320-00-264-4152
Technical Data | NSN 5320-00-264-4152
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OVERALL |

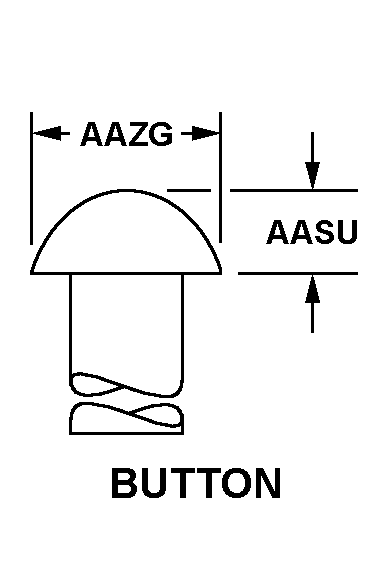

| HEAD STYLE | C3 BUTTON |
| HEAD HEIGHT | 0.079 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.209 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| SHANK STYLE | D6 TUBULAR |
| FASTENER LENGTH | 0.282 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| HOLE DIAMETER | 0.075 INCHES MINIMUM AND 0.081 INCHES MAXIMUM |
| SHANK DIAMETER | 0.119 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| HOLE DEPTH | 0.065 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-264-4152
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139780 | NICKEL ARTICLES NOI |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
