Product Details | PIN-RIVET COLLAR
5320-00-284-2150 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: ST3M414C5, 2175069001, 217-506-9001, 2DCEU05, 2DC-EU05, 2DCEU05T, 2DC-EU05T, 2DCEU5T, 2DC-EU5T, 5320-00-284-2150, 00-284-2150, 5320002842150, 002842150
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 AUG 1973 | 00-284-2150 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-284-2150

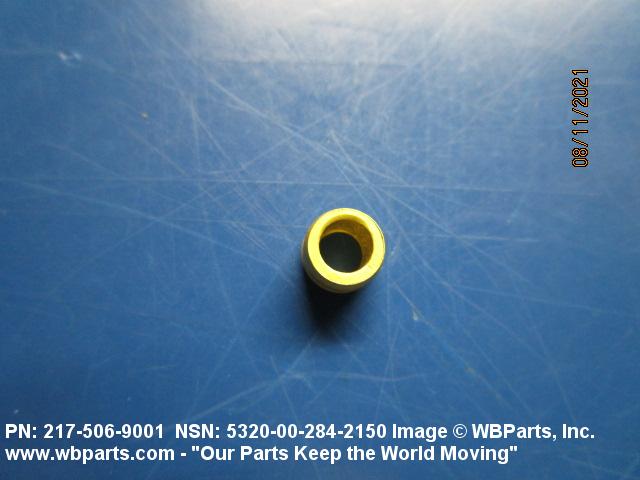

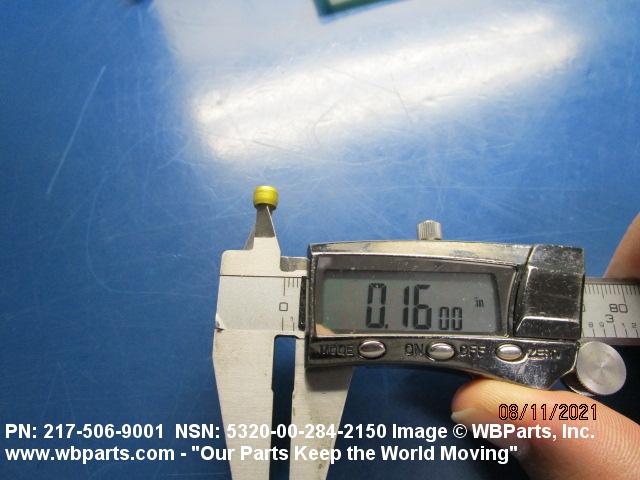

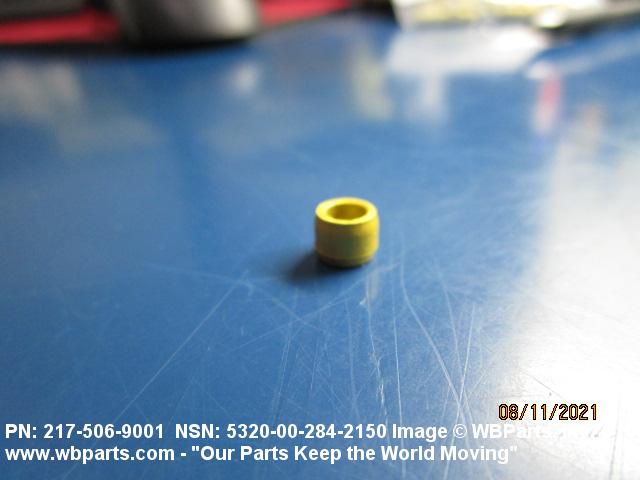

Demand History | NSN 5320-00-284-2150
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2175069001 | 2021-07-211 | 50 | United States |
| 2175069001 | 2021-06-181 | 50 | United States |
Cross Reference | NSN 5320-00-284-2150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 217-506-9001 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2DC-EU05 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 2DC-EU05 | 29666 | HUCK MFG CO |
| 2DC-EU05T | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 2DC-EU5T | 29666 | HUCK MFG CO |
| 2DCEU5T | 19738 | AVDEL CORP |
| ST3M414C5 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-284-2150
Related Products | NSN 5320-00-284-2150
Technical Data | NSN 5320-00-284-2150
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAT TREATMENT | ANNEALED OVERALL |
| COLLAR STYLE | A2 CONFIGURAL TYPE |

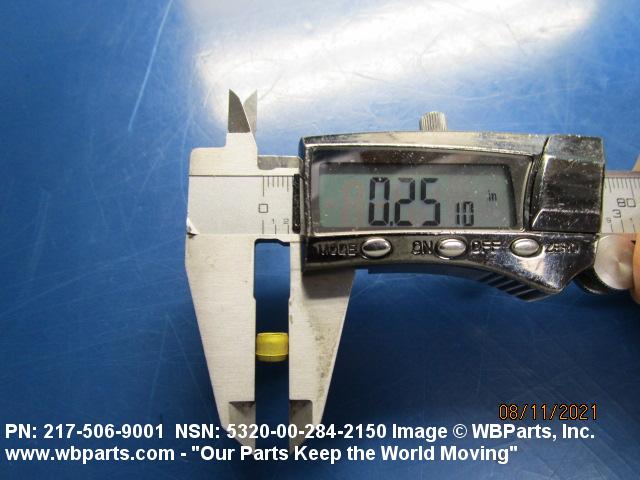

| COLLAR OUTSIDE DIAMETER | 0.256 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

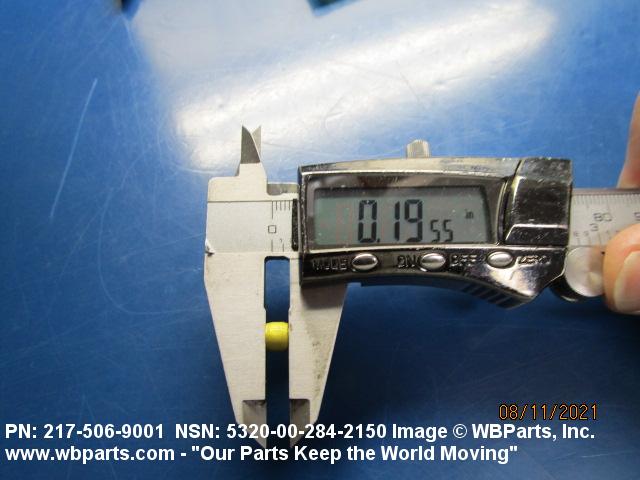

| COLLAR OVERALL HEIGHT | 0.197 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
