NSN 5320-00-298-6166 ST3M526C3M, ST3M526C3MA, SW10006M
Product Details | PIN-RIVET COLLAR

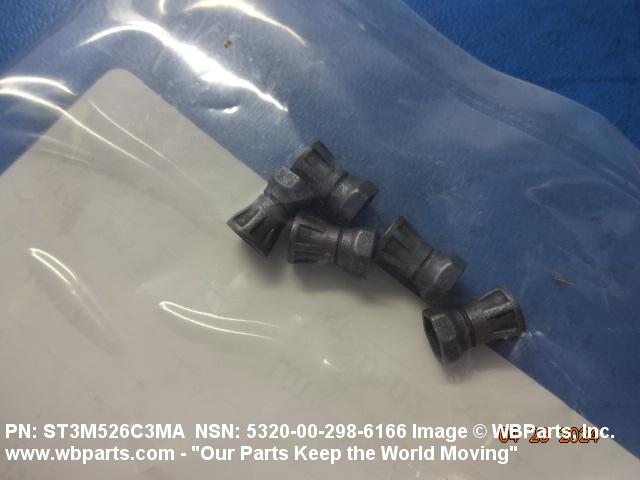

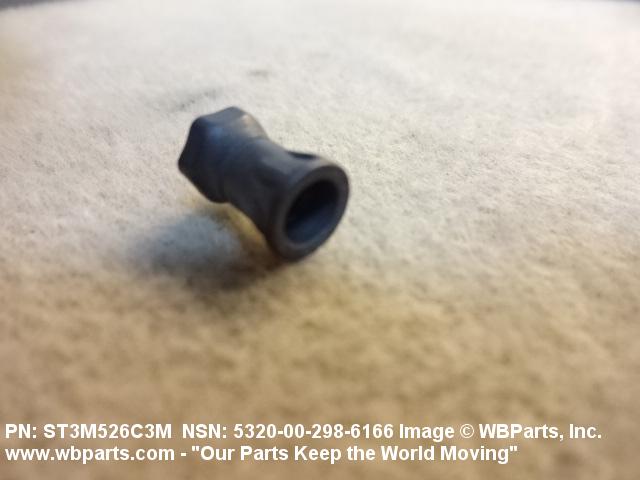

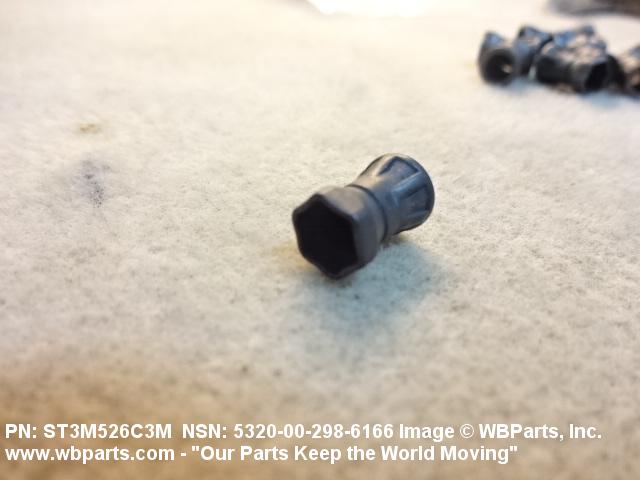

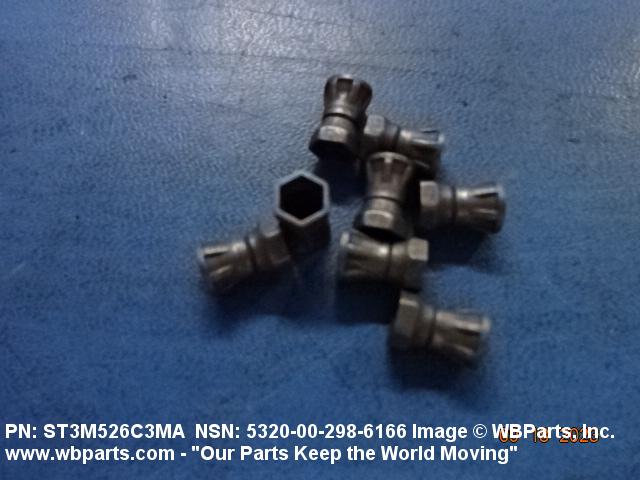

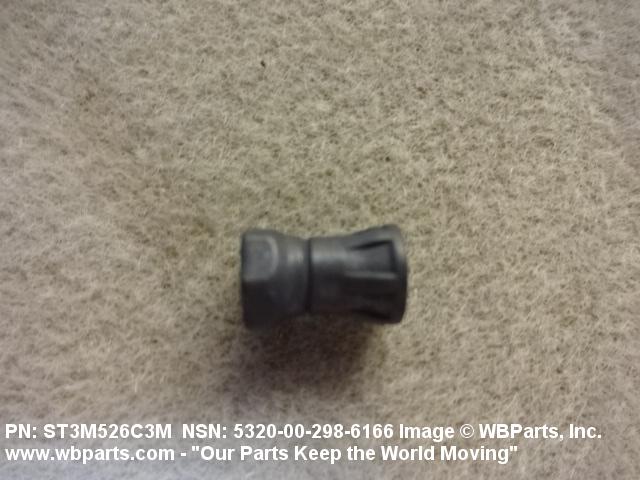

5320-00-298-6166 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: ST3M526C3M, ST3M526C3MA, SW10006M, SW1000-6M, SW10006MA, SW1000-6MA, 10123628 , 3929AS16213, 3929AS1621-3 , 5320-00-298-6166, 00-298-6166, 5320002986166, 002986166
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1973 | 00-298-6166 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-298-6166
Demand History | NSN 5320-00-298-6166
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-298-6166 | 2025-07-198 | 220 | Spain |
| 5320-00-298-6166 | 2025-07-198 | 220 | Spain |
| ST3M526C3M | 2025-07-184 | 800 | United States |
| ST3M526C3MA | 2025-05-140 | 5 | United States |
| 5320-00-298-6166 | 2024-06-155 | 320 | Spain |
| ST3M526C3MA | 2024-04-101 | 5 | United States |
| 5320-00-298-6166 | 2024-01-18 | 5 | US |
| ST3M526C3MA | 2023-07-205 | 2 | United States |
| 5320-00-298-6166 | 2023-07-193 | 170 | Spain |
| ST3M526C3MA | 2022-03-90 | 10340 | DIBBS |
| SW1000-6MA | 2022-03-90 | 10340 | DIBBS |
| ST3M526C3MA | 2022-03-79 | 10340 | DIBBS |
| SW1000-6MA | 2022-03-79 | 10340 | DIBBS |
| ST3M526C3MA | 2021-12-342 | 110 | United States |
| ST3M526C3MA | 2021-11-322 | 60465 | DIBBS |
| SW1000-6MA | 2021-11-322 | 60465 | DIBBS |
| ST3M526C3MA | 2021-09-257 | 100 | US |
| ST3M526C3MA | 2021-08-235 | 3657 | US |
| ST3M526C3MA | 2021-08-227 | 14678 | DIBBS |
| SW1000-6MA | 2021-08-227 | 14678 | DIBBS |
| 5320-00-298-6166 | 2021-08-224 | 6 | US |
| ST3M526C3M | 2021-06-165 | 70 | Spain |
| ST3M526C3M | 2021-05-142 | 30 | US |
| ST3M526C3MA | 2021-05-136 | 15970 | DIBBS |
| SW1000-6MA | 2021-05-136 | 15970 | DIBBS |
| ST3M526C3MA | 2021-01-19 | 10433 | DIBBS |
| SW1000-6MA | 2021-01-19 | 10433 | DIBBS |
| ST3M526C3MA | 2020-12-341 | 23534 | DIBBS |
| SW1000-6MA | 2020-12-341 | 23534 | DIBBS |
| 5320-00-298-6166 | 2020-05-122 | 1 | DIBBS-RFPs |
| ST3M526C3M | 2019-11-330 | 735 | United States |
| ST3M526C3M | 2019-09-253 | 356 | Australia |
| ST3M526C3M | 2019-02-36 | 4 | Australia |
| 5320-00-298-6166 | 2013-09-246 | 1 | DIBBS-RFPs |
| ST3M526C3M | 2011-01-28 | 2720 | US |
| 5320-00-298-6166 | 2009-11-324 | 140 | United States |
| 5320-00-298-6166 | 2009-09-252 | 25 | US |
| ST3M526C3M | 2009-06-175 | 260 | US |
| 5320-00-298-6166 | 2009-06-175 | 260 | US |
| 5320-00-298-6166 | 2009-02-51 | 5 | US |
| ST3M526C3M | 2008-10-301 | 11 | us |
Cross Reference | NSN 5320-00-298-6166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929AS1621-3 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| ST3M526C3M | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M526C3MA | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ST3M526C3MA | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M526C3MA | 73197 | HI-SHEAR CORPORATION |
| ST3M526C3MA | 76301 | BOEING COMPANY, THE DBA BOEING |
| SW1000-6M | 50392 | SPS TECHNOLOGIES INC |
| SW1000-6M | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SW1000-6M | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SW1000-6M | 73197 | HI-SHEAR CORPORATION |
| SW1000-6M | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SW1000-6M | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| SW1000-6M | R1120 | SATAIR A/S |
| SW1000-6MA | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| SW1000-6MA | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SW1000-6MA | 73197 | HI-SHEAR CORPORATION |
| SW1000-6MA | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-298-6166
Related Products | NSN 5320-00-298-6166
Technical Data | NSN 5320-00-298-6166

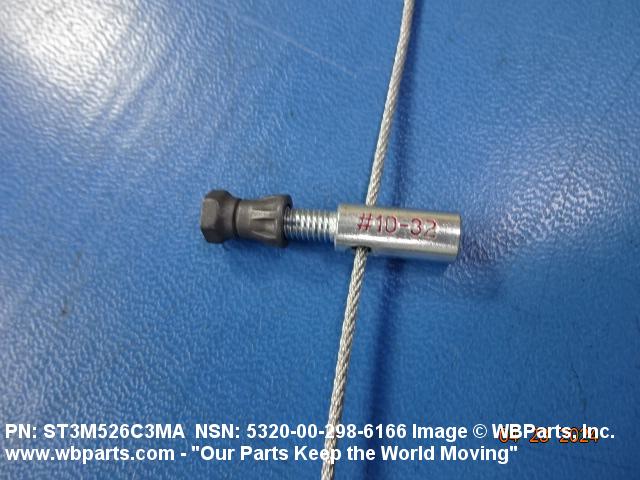

| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

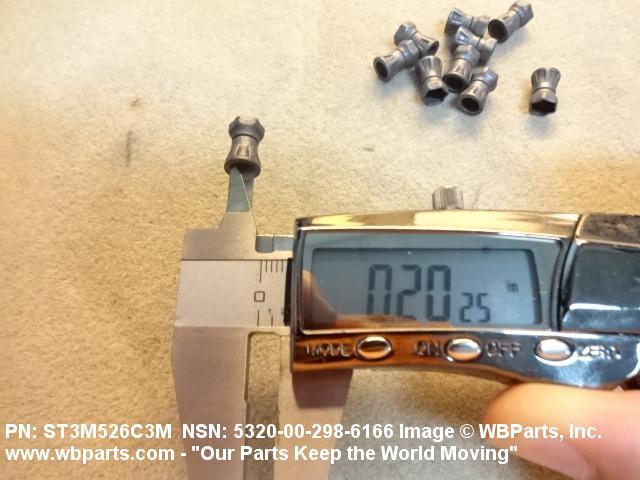

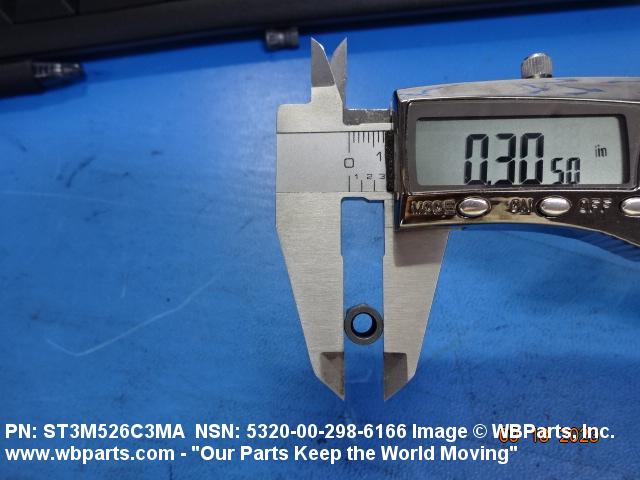

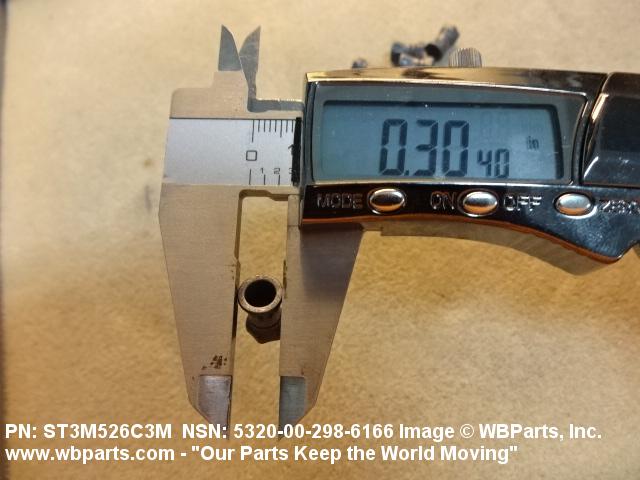

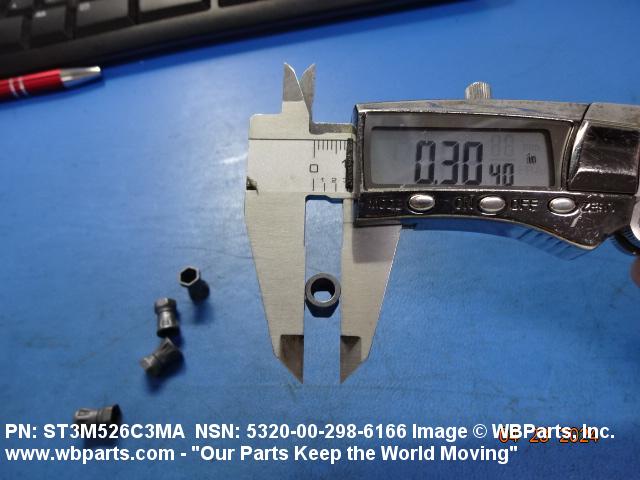

| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |

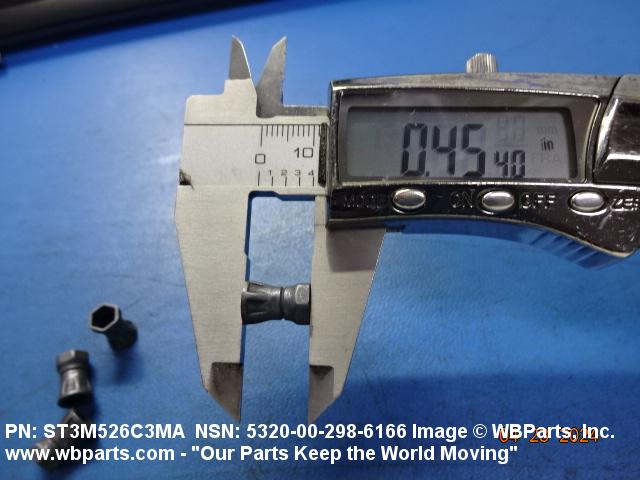

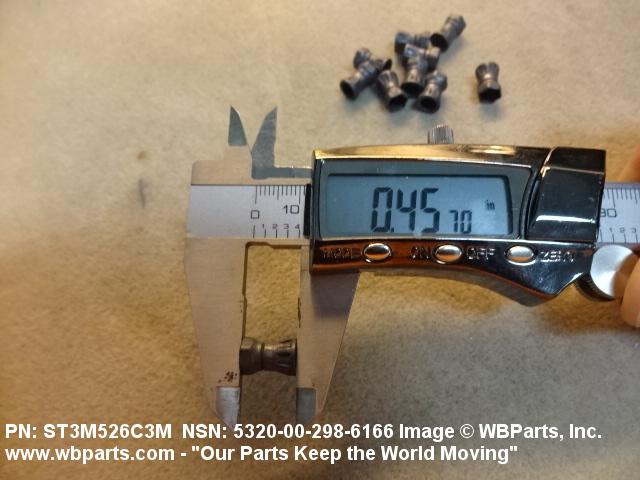

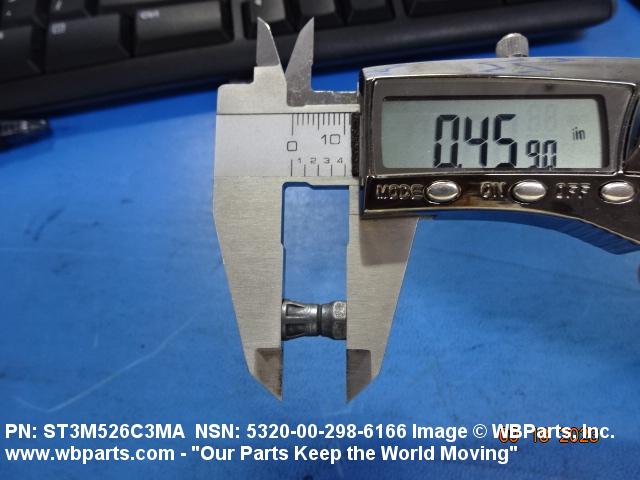

| COLLAR OVERALL HEIGHT | 0.430 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |

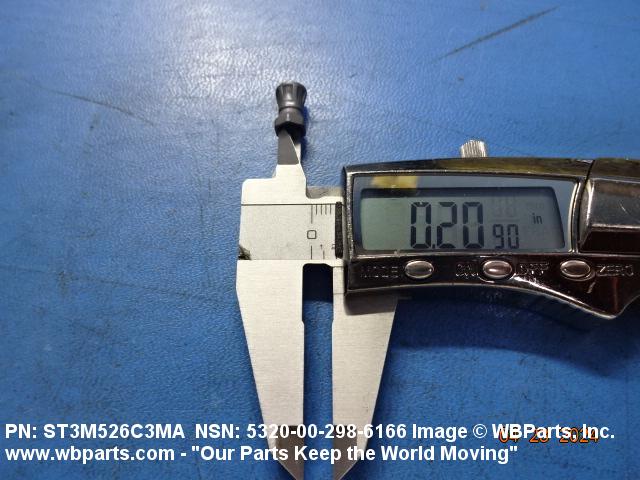

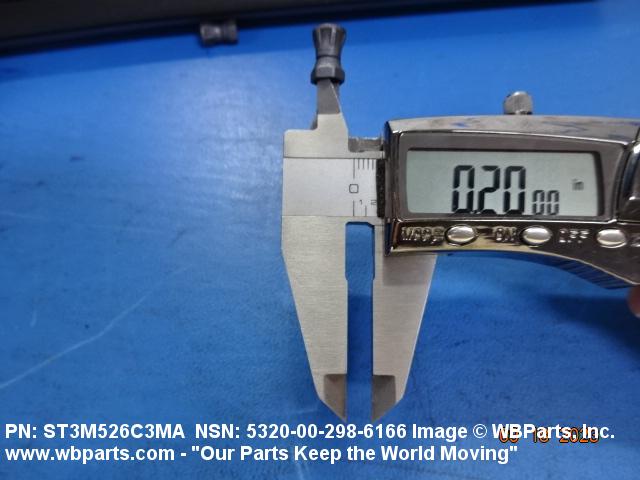

| COLLAR INSIDE DIAMETER | 0.201 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
