NSN 5320-00-528-4374 A284374, 352150S, 00-528-4374
Product Details | SOLID RIVET
5320-00-528-4374 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: A284374, 352150S, 5320-00-528-4374, 00-528-4374, 5320005284374, 005284374
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-528-4374 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-00-528-4374
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-528-4374
Related Products | NSN 5320-00-528-4374
Technical Data | NSN 5320-00-528-4374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OR STEEL COMP 1006 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633 FED SPEC 1ST MATERIAL RESPONSE OR AISI ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| HEAT TREATMENT | ANNEALED OVERALL |

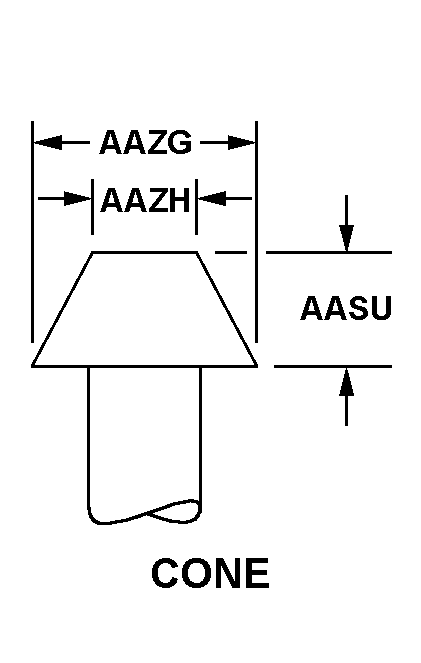

| HEAD STYLE | C5 CONE |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.750 INCHES MAXIMUM |
| HEAD MINOR DIAMETER | 0.688 INCHES MINIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 1.531 INCHES NOMINAL |
| SHANK DIAMETER | 0.438 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-00-528-4374
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
