NSN 5320-00-616-4347 MS20600B5W7, MS20600-B5W7, RV25057
Product Details | BLIND RIVET
5320-00-616-4347 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS20600B5W7, MS20600-B5W7, RV25057, RV250-5-7, 5320-00-616-4347, 00-616-4347, 5320006164347, 006164347
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-4347 | 00864 ( RIVET, BLIND ) |

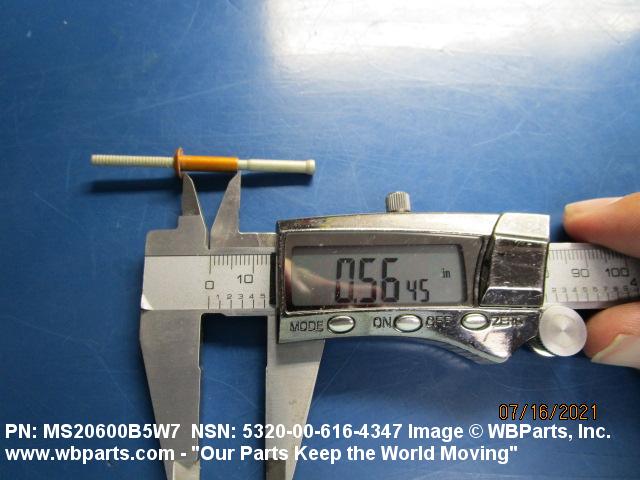

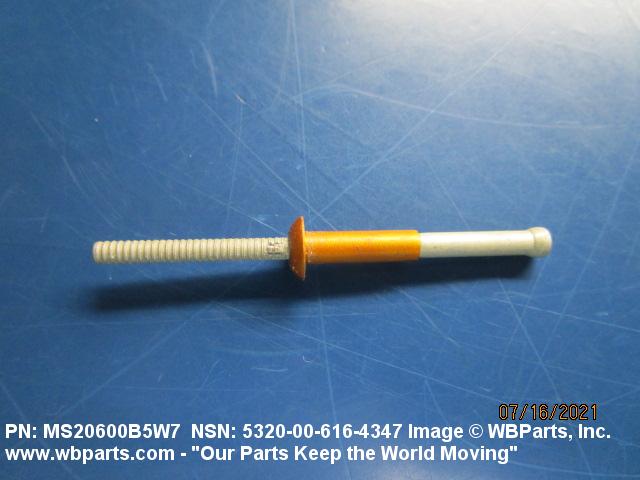

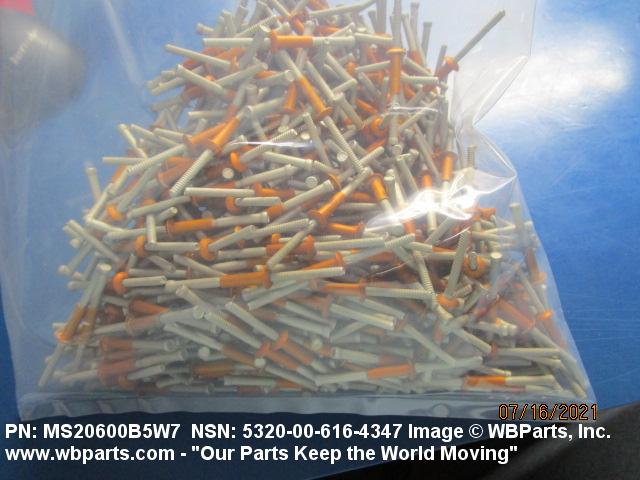

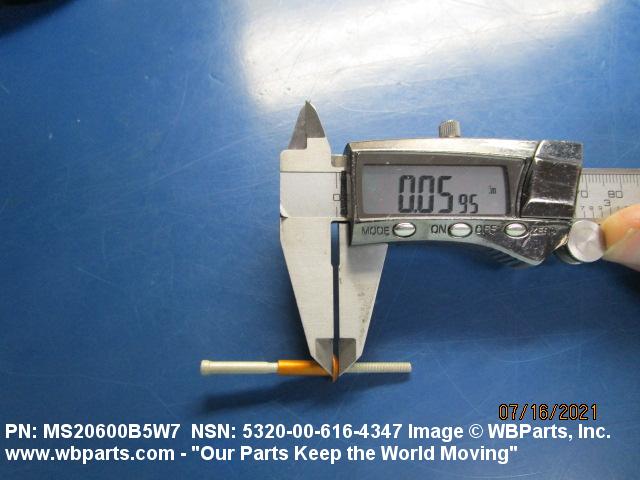

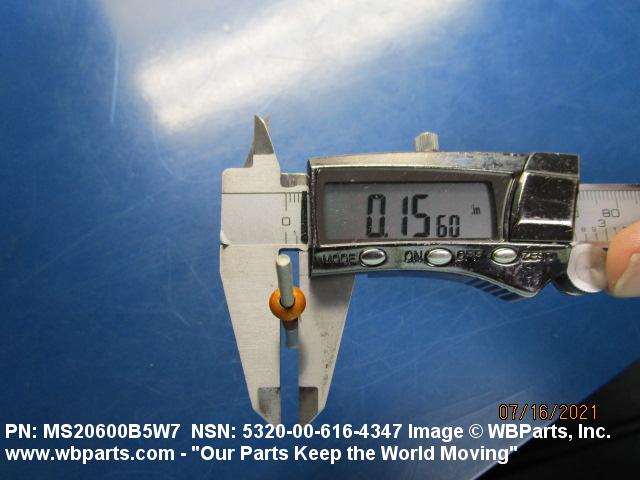

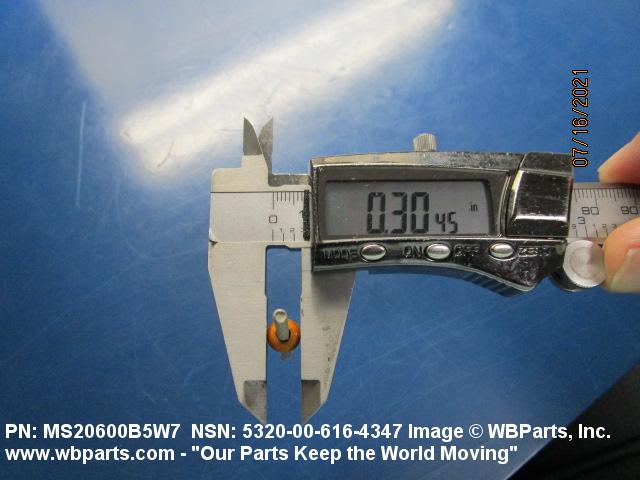

Drawings & Photos | NSN 5320-00-616-4347
Demand History | NSN 5320-00-616-4347
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-616-4347 | 2023-03-72 | 1 | DIBBS |
| 5320-00-616-4347 | 2021-07-183 | 500 | Turkey |
| 5320-00-616-4347 | 2021-07-182 | 500 | Turkey |
| 5320-00-616-4347 | 2021-06-160 | 500 | NO |
| 5320-00-616-4347 | 2021-04-109 | 500 | EE |
Cross Reference | NSN 5320-00-616-4347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20600-B5W7 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS20600B5W7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS20600B5W7 | 29666 | HUCK MFG CO |
| MS20600B5W7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20600B5W7 | 9K475 | HUCK FASTENERS DBA HUCK INTL INC |
| RV250-5-7 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV250-5-7 | 98996 | OLYMPIC FASTENING SYSTEMS INC |
