NSN 5320-00-685-5934 MS20426D55, MS20426D5-5, AN426D55
Product Details | SOLID RIVET
5320-00-685-5934 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426D55, MS20426D5-5, AN426D55, AN426D5-5, 2051175840, 205-11758-40, 5320-00-685-5934, 00-685-5934, 5320006855934, 006855934
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-685-5934 | 00861 ( RIVET, SOLID ) |

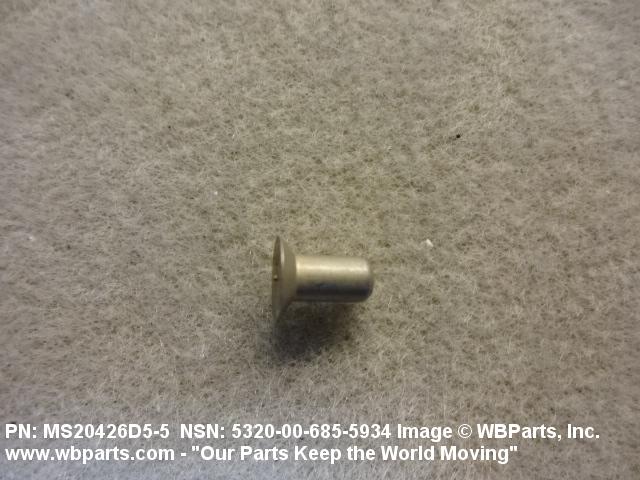

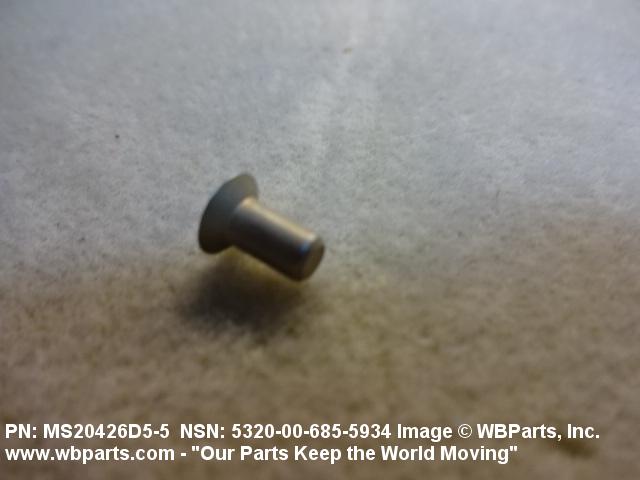

Drawings & Photos | NSN 5320-00-685-5934
Demand History | NSN 5320-00-685-5934
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426D55 | 2025-05-149 | 1 | US |
| 5320-00-685-5934 | 2019-05-141 | 200 | DIBBS |
| 5320-00-685-5934 | 2018-04-105 | 163 | DIBBS |
| 5320-00-685-5934 | 2017-10-291 | 1000 | United States |
| MS20426D55 | 2017-10-290 | 1 | United States |
| 5320-00-685-5934 | 2017-07-204 | 32 | DIBBS |
| 5320-00-685-5934 | 2017-01-22 | 355 | DIBBS |
| 5320-00-685-5934 | 2010-04-105 | 12 | DIBBS |
| 5320-00-685-5934 | 2009-10-286 | 2 | United States |
| 5320-00-685-5934 | 2009-10-286 | 5 | United States |
| 5320-00-685-5934 | 2009-10-286 | 10 | United States |
| 5320-00-685-5934 | 2009-05-150 | 1047 | DIBBS |
| 5320-00-685-5934 | 2009-04-91 | 37 | DIBBS |
Cross Reference | NSN 5320-00-685-5934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205-11758-40 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 205-11758-40 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| AN426D5-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20426D5-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426D5-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-685-5934
Related Products | NSN 5320-00-685-5934
Technical Data | NSN 5320-00-685-5934
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1100 OR ALUMINUM ALLOY 2017 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2117 OR ALUMINUM ALLOY 5056 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | IL-W-7986 MIL SPEC 10TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

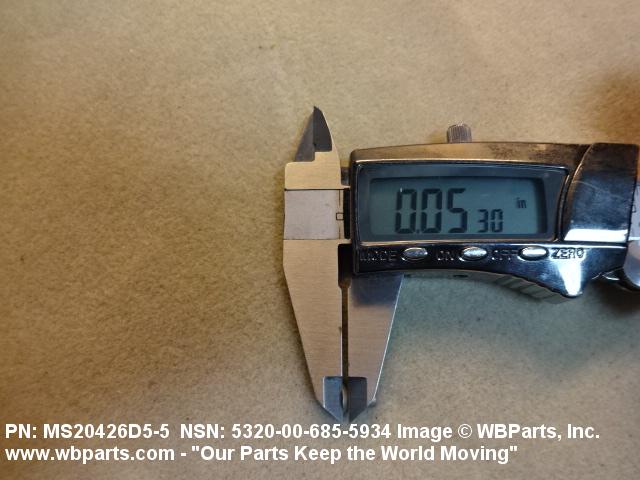

| HEAD HEIGHT | 0.055 INCHES NOMINAL |

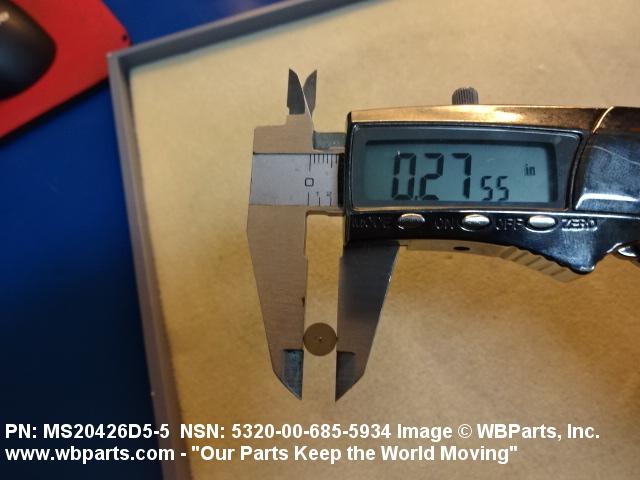

| HEAD MAJOR DIAMETER | 0.286 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

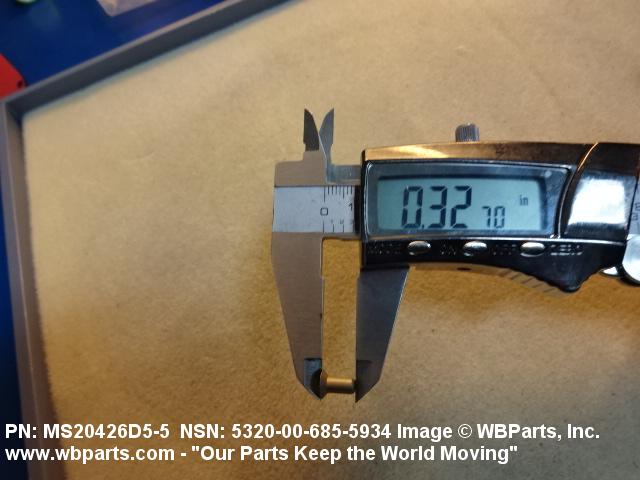

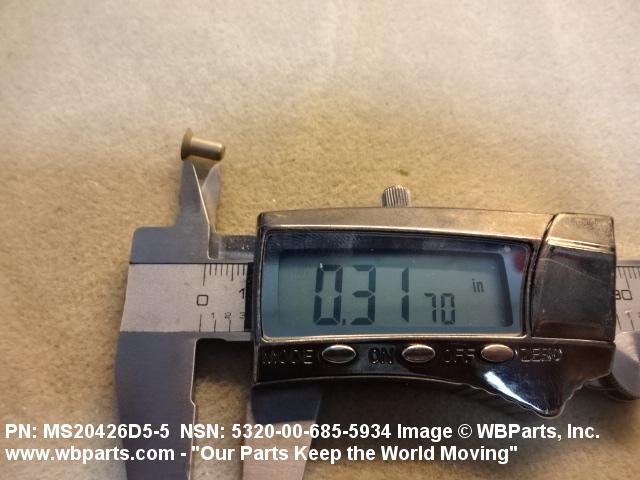

| FASTENER LENGTH | 0.312 INCHES NOMINAL |

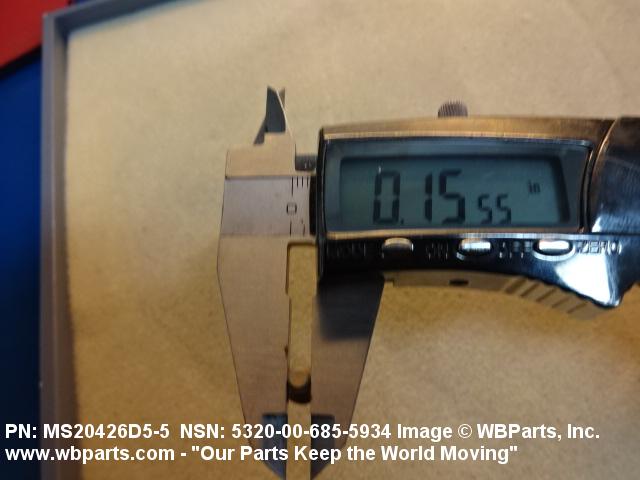

| SHANK DIAMETER | 0.156 INCHES NOMINAL |
| GRIP LENGTH | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5320-00-685-5934
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-685-5934
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
