NSN 5320-00-781-9498 MS16535219, MS16535-219, MS20450C912

Product Details | TUBULAR RIVET

5320-00-781-9498 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.

Part Alternates: MS16535219, MS16535-219, MS20450C912, MS20450C9-12, NAS620C10L, NAS620-C10L , AN450C912, AN450C9-12, B68180 , CAV10207P, CAV10-207P , SS-472-2477292- 111 , SS4722477292111, FFR556, FF-R-556, 004002894061, 004-002894-061 , 9208313, 92083-13 , 9476204121, 947620-4121 , 9476204131, 947620-4131 , 995627 , 09245353C010L, 092-45353C010L , 10055901 , 15700586-4 , 16X0.375, 16X0375, 186445, 2504638-13 , 309031 , 3100740520, 310-0740-520 , 4181546, 418154-6 , 4197600-34 , 510387 , 5320-00-781-9498, 00-781-9498, 5310007819483, 5320007819498, 419760034, 250463813, 157005864, 007819498

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-781-9498	00863 ( RIVET, TUBULAR )

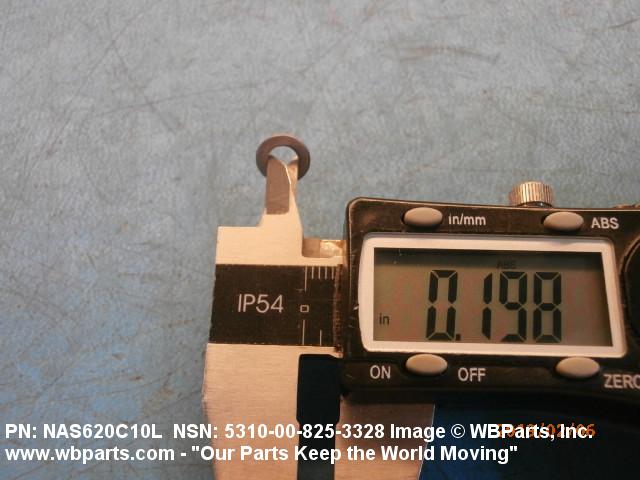

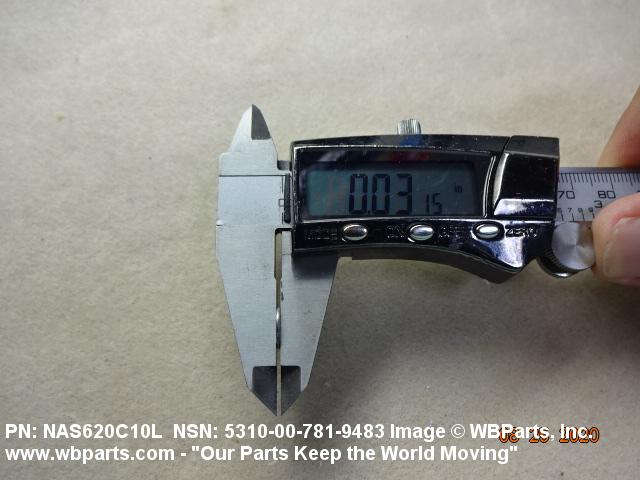

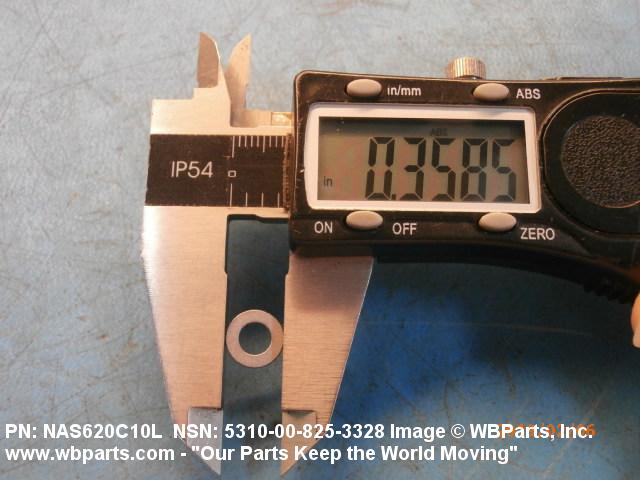

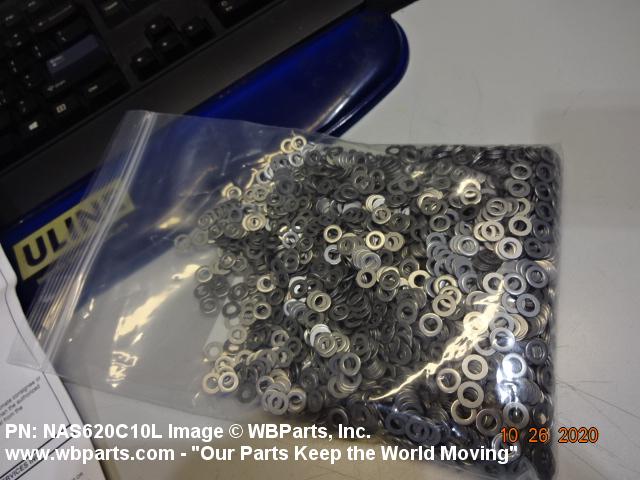

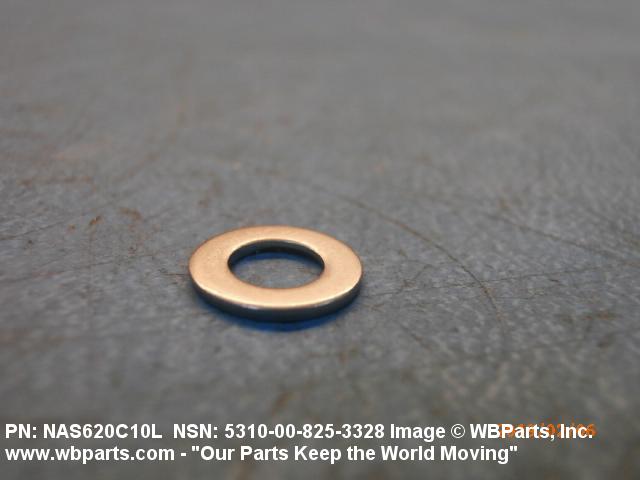

Drawings & Photos | NSN 5320-00-781-9498

Part Number	Request Date	QTY	Origin
NAS620C10L	2025-12-345	50	United States
5310-00-781-9483	2025-11-320	20	SA
NAS620C10L	2025-10-295	1180	United States
5310-00-781-9483	2025-07-198	20	Spain
5310-00-781-9483	2025-07-198	20	Spain
NAS620C10L	2025-05-140	50	US
NAS620C10L	2025-03-70	75	US
5310-00-781-9483	2024-12-344	100	United States
NAS620C10L	2024-04-107	225	US
5310-00-781-9483	2024-04-95	8	United States
5310-00-781-9483	2024-04-95	8	United States
NAS620C10L	2024-03-86	8	United States
NAS620C10L	2024-02-44	15240	us
NAS620C10L	2022-12-347	9	United States
NAS620C10L	2022-12-347	72	United States
NAS620C10L	2022-10-291	4	United States
NAS620C10L	2021-11-319	2184	IN
5310-00-781-9483	2021-06-168	5	US
NAS620C10L	2020-08-233	3500	United States
NAS620C10L	2020-07-188	100	United States
NAS620C10L	2020-06-174	80	Hong Kong
NAS620C10L	2020-04-99	30	United States
NAS620C10L	2020-03-79	31	Taiwan
NAS620C10L	2019-12-336	100	United States
5310-00-781-9483	2019-11-325	100	United States
NAS620C10L	2019-10-288	10	United States
5310-00-781-9483	2019-07-212	800	FR
5310-00-781-9483	2019-01-25	300	United States
5310-00-781-9483	2018-12-351	300	United States
5310-00-781-9483	2018-11-306	2	US
NAS620C10L	2018-07-211	250	Malaysia
NAS620C10L	2018-07-211	250	Malaysia
5310-00-781-9483	2018-06-178	1	United States
NAS620C10L	2017-11-307	3	UK
NAS620C10L	2017-10-298	500	Malaysia
NAS620C10L	2017-08-226	12	US
NAS620C10L	2017-06-170	100	United States
NAS620C10L	2017-06-170	100	United States
NAS620C10L	2017-05-143	24	United States
NAS620C10L	2017-04-109	448	US
NAS620C10L	2017-02-37	300	United States
NAS620C10L	2017-02-33	300	United States
NAS620C10L	2017-01-04	200	US
5310-00-781-9483	2016-04-116	2336	US
NAS620C10L	2016-03-71	1744	US
NAS620C10L	2016-03-70	1744	US
NAS620C10L	2016-03-70	0	US
5320-00-781-9498	2015-11-313	1	DIBBS
NAS620C10L	2015-09-259	1	United States
NAS620C10L	2015-08-230	14	US
NAS620C10L	2015-07-182	30	UK
NAS620C10L	2015-06-154	100	United States
NAS620C10L	2015-04-96	300	United States
NAS620C10L	2015-03-85	14	US
NAS620C10L	2015-03-69	500	US
NAS620C10L	2014-11-321	100	United States
NAS620C10L	2014-11-314	20	IN
NAS620C10L	2014-09-245	8	Australia
NAS620C10L	2014-09-245	1	Australia
NAS620C10L	2014-08-237	16	US
NAS620C10L	2014-04-112	4000	US
NAS620C10L	2013-10-280	250	United States
NAS620C10L	2013-09-253	400	US
NAS620C10L	2013-08-213	50	US
5310-00-781-9483	2013-06-175	16	US
NAS620C10L	2013-06-168	100	CN
NAS620C10L	2013-04-93	16	United States
NAS620C10L	2013-01-02	2000	United States
5310-00-781-9483	2012-12-340	500	US
NAS620C10L	2012-11-334	33	US
NAS620C10L	2012-11-318	120	US
NAS620C10L	2012-11-310	50
NAS620C10L	2012-08-220	2	US
NAS620C10L	2012-06-173	900	United States
NAS620C10L	2012-06-157	100	Mexico
5310-00-781-9483	2012-04-117	200	TW
NAS620C10L	2012-04-110	63	United States
5310-00-781-9483	2012-04-102	862	US
5310-00-781-9483	2012-03-88	50	US
NAS620C10L	2012-03-67	10	United States
NAS620C10L	2012-01-24	40	us
NAS620C10L	2012-01-13	960	United States
NAS620C10L	2011-09-269	25	United States
NAS620C10L	2011-07-194	100	AT
5320-00-781-9498	2011-07-189	1	DIBBS
NAS620C10L	2011-05-143	600	IN
5320-00-781-9498	2011-05-140	1	DIBBS
NAS620C10L	2011-05-130	500	US
FFR556	2011-05-123	1	US
MS16535219	2011-04-92	50	CN
5310-00-781-9483	2010-10-301	150	India
5310-00-781-9483	2010-10-284	1200	United States
5310-00-781-9483	2010-10-280	700	us
5310-00-781-9483	2010-09-252	1200	United States
NAS620C10L	2010-09-250	100	US
5310-00-781-9483	2010-08-243	100	US
NAS620C10L	2010-08-238	25	US
NAS620C10L	2010-08-215	40	US
NAS620C10L	2010-08-214	50	US
5310-00-781-9483	2010-03-76	2500	IL
NAS620C10L	2009-10-302	600	United States
NAS620C10L	2009-10-293	8	US
5310-00-781-9483	2009-10-274	5	United States
5310-00-781-9483	2009-09-267	2	United States
MS16535219	2009-09-244	8	Taiwan
MS16535219	2009-08-233	8	Taiwan
NAS620C10L	2009-04-114	1000	us
5310-00-781-9483	2009-04-93	1000	Turkey
NAS620C10L	2009-03-84	87	US
5310-00-781-9483	2008-10-276	14	US
5310-00-781-9483	2008-07-210	2400	Taiwan
5310-00-781-9483	2008-07-200	50	India
5310-00-781-9483	2008-07-193	35	US
5310-00-781-9483	2007-10-288	100	UM
5310-00-781-9483	2006-09-264	5000	Canada
NAS620C10L	2006-02-38	12000	US

Cross Reference | NSN 5320-00-781-9498

Part Number	Cage Code	Manufacturer
16X0.375	61007	TEXTRON INC TOWNSEND DIV
AN450C9-12	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FF-R-556	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16535-219	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20450C9-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-781-9498

Compare

Related Products | NSN 5320-00-781-9498

5320-00-781-9859, 5320-00-781-9991, 5320-00-782-1814, 5320-00-782-1816, 5320-00-782-4413

Technical Data | NSN 5320-00-781-9498

Characteristic	Specifications
MATERIAL	STEEL COMP 1005 OR STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	32000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	C19 OVAL/TRUSS
HEAD HEIGHT	0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.229 INCHES MINIMUM AND 0.239 INCHES MAXIMUM
SHANK STYLE	D6 TUBULAR
FASTENER LENGTH	0.375 INCHES NOMINAL
HOLE DIAMETER	0.100 INCHES MINIMUM AND 0.107 INCHES MAXIMUM
SHANK DIAMETER	0.141 INCHES MINIMUM AND 0.146 INCHES MAXIMUM
HOLE DEPTH	0.127 INCHES NOMINAL
FEATURES PROVIDED	CASEHARDENED
NONDEFINITIVE SPEC/STD DATA	12 TYPE AND 3 CLASS AND E GRADE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-R-556
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS16535-219

Restrictions/Controls & Freight Information | NSN 5320-00-781-9498

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-781-9498

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
