NSN 5320-00-797-2655 HL7010, HL70-10, GN512H5
Product Details | PIN-RIVET COLLAR

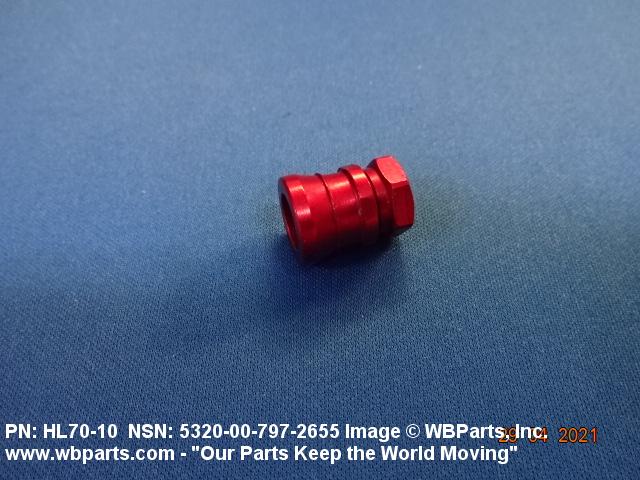

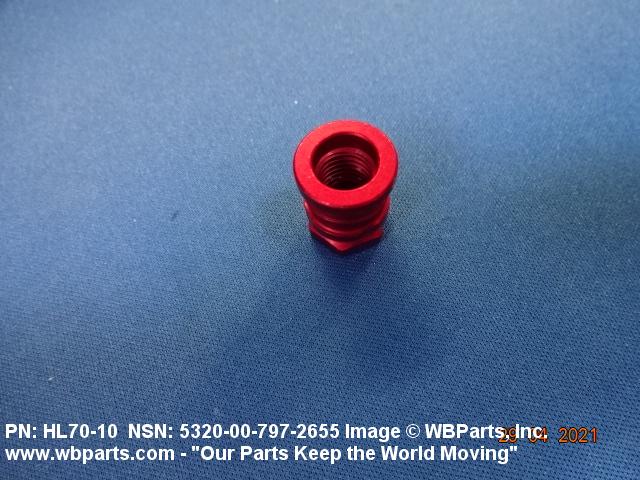

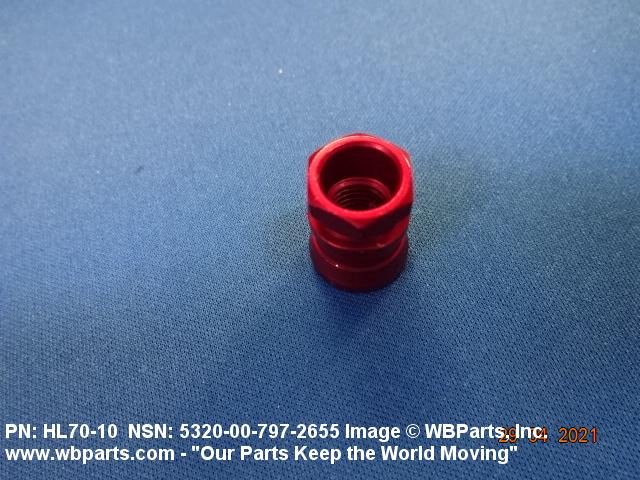

5320-00-797-2655 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL7010, HL70-10, GN512H5, 5320-00-797-2655, 00-797-2655, 5320007972655, 007972655
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-797-2655 | 67166 ( COLLAR, PIN-RIVET ) |

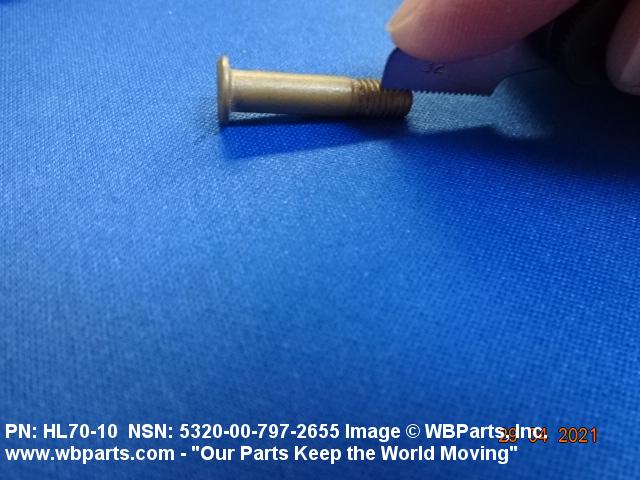

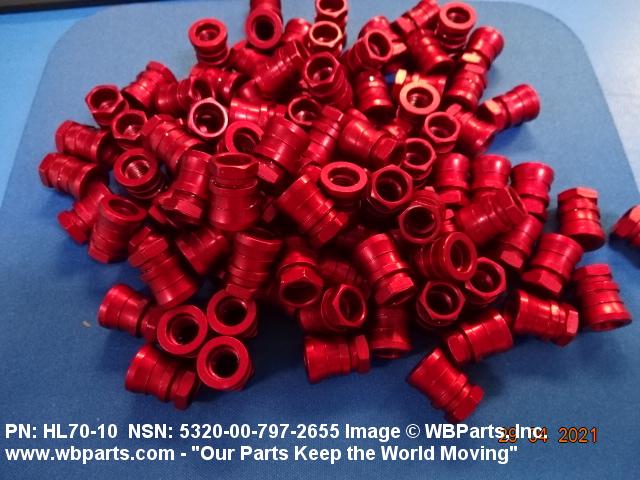

Drawings & Photos | NSN 5320-00-797-2655
Demand History | NSN 5320-00-797-2655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-797-2655 | 2025-03-73 | 269 | ID |
| 5320-00-797-2655 | 2022-02-45 | 2110 | Malaysia |
| 5320-00-797-2655 | 2021-04-112 | 100 | United States |
| GN512H5 | 2019-05-141 | 45000 | DIBBS |
| HL70-10 | 2019-05-141 | 45000 | DIBBS |
| 5320-00-797-2655 | 2019-01-25 | 1 | DIBBS-RFPs |
| 5320-00-797-2655 | 2018-11-308 | 21426 | DIBBS |
| 5320-00-797-2655 | 2017-11-309 | 18107 | DIBBS |
| 5320-00-797-2655 | 2016-12-340 | 10019 | DIBBS |
| 5320-00-797-2655 | 2016-11-312 | 2486 | DIBBS |
| 5320-00-797-2655 | 2016-10-278 | 14250 | DIBBS |
| HL70-10 | 2015-10-279 | 3000 | |
| HL7010 | 2013-09-254 | 168 | US |
| 5320-00-797-2655 | 2013-09-246 | 1 | DIBBS-RFPs |
| HL70-10 | 2013-07-200 | 130 | |
| HL7010 | 2012-05-128 | 20 | ZA |
| HL7010 | 2010-06-176 | 40 | Canada |
| 5320-00-797-2655 | 2009-12-344 | 24035 | DIBBS |
| 5320-00-797-2655 | 2009-05-134 | 125 | US |
| HL7010 | 2009-05-131 | 125 | US |
| HL7010 | 2009-04-110 | 1000 | IT |
| 5320-00-797-2655 | 2009-03-72 | 7708 | DIBBS |
| HL7010 | 2009-01-27 | 60 | Israel |
| HL7010 | 2009-01-20 | 40 | US |
| 5320-00-797-2655 | 2008-10-296 | 12 | India |
| HL7010 | 2008-06-157 | 2 | US |
Cross Reference | NSN 5320-00-797-2655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GN512H5 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL70-10 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL70-10 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-10 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-10 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL70-10 | 60516 | WEST COAST AEROSPACE INC |
| HL70-10 | 73197 | HI-SHEAR CORPORATION |
| HL70-10 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL70-10 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-797-2655
Related Products | NSN 5320-00-797-2655
Technical Data | NSN 5320-00-797-2655
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

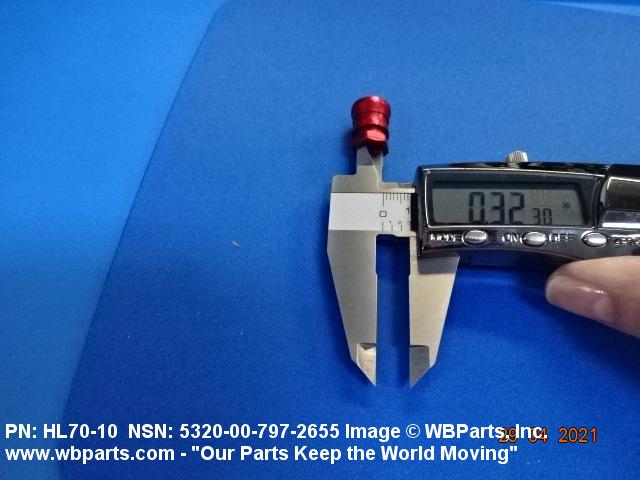

| COLLAR OUTSIDE DIAMETER | 0.512 INCHES MINIMUM AND 0.518 INCHES MAXIMUM |

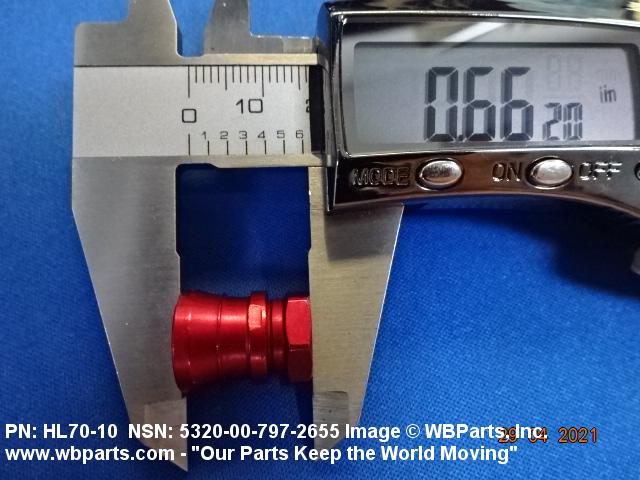

| COLLAR OVERALL HEIGHT | 0.652 INCHES MINIMUM AND 0.672 INCHES MAXIMUM |

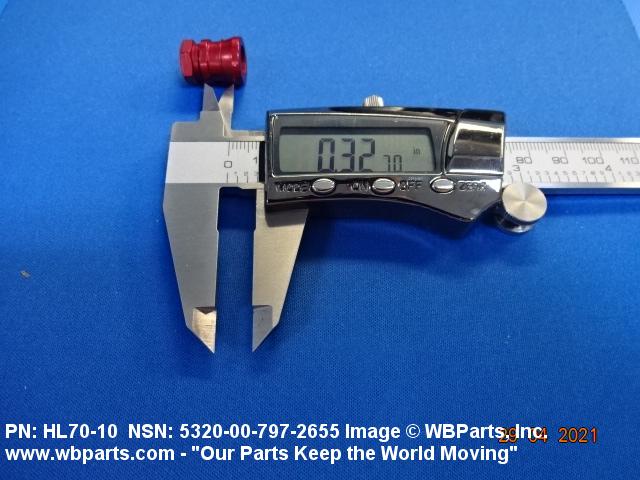

| COLLAR INSIDE DIAMETER | 0.314 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | GREASE FILM |
| IDENTIFICATION CODE COLOR | RED |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL70-10 |
