Product Details | TUBULAR RIVET

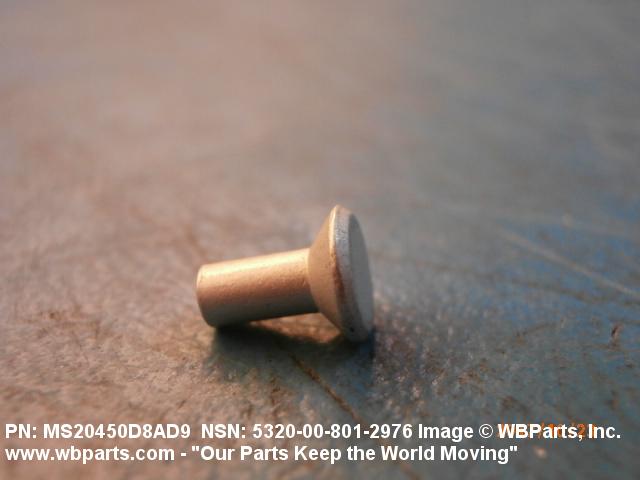

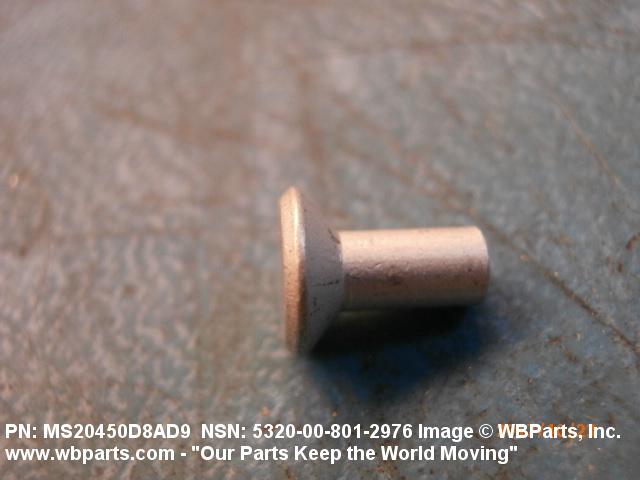

5320-00-801-2976 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: MS20450D8AD9, AN450D8AD9, MILR5674, 5320-00-801-2976, 00-801-2976, 5320008012976, 008012976
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-801-2976 | 00863 ( RIVET, TUBULAR ) |

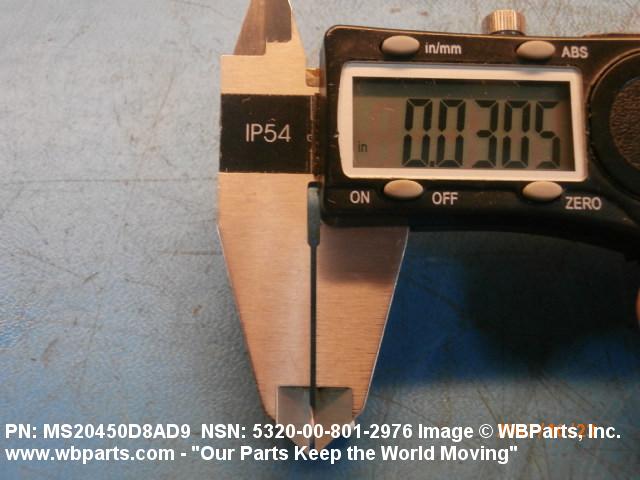

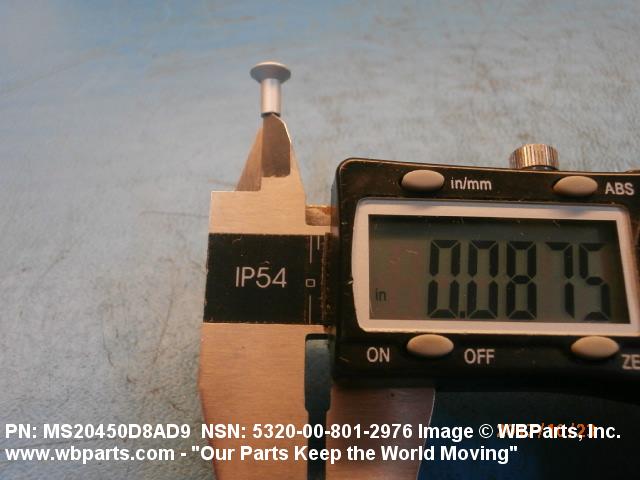

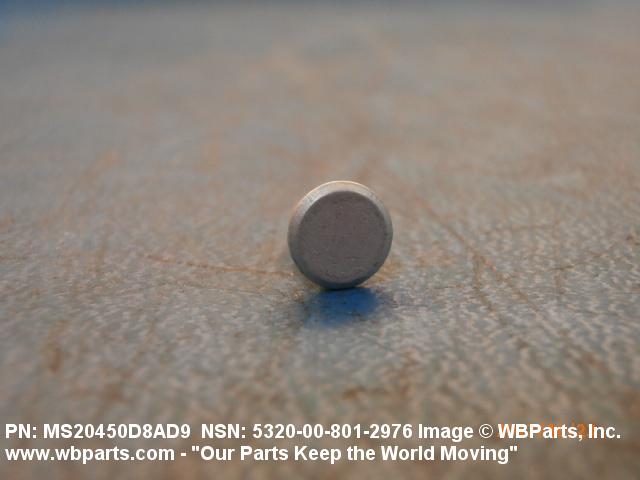

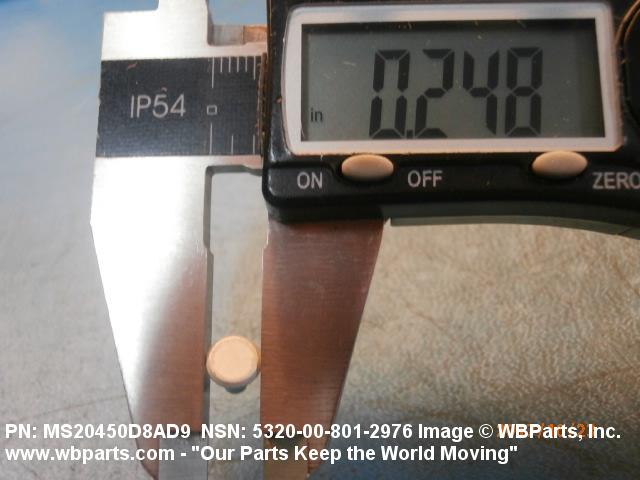

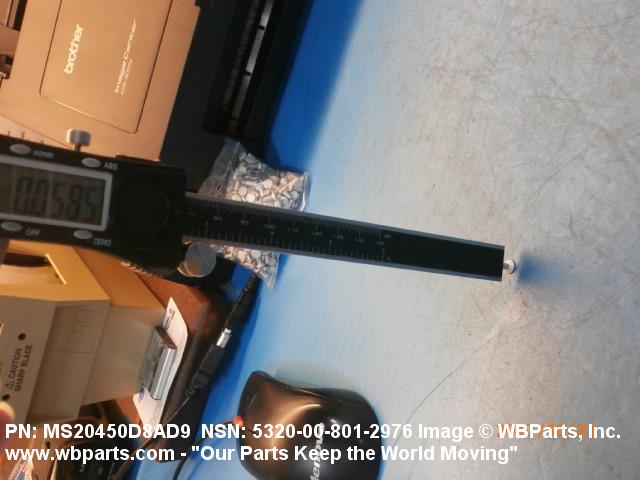

Drawings & Photos | NSN 5320-00-801-2976
Demand History | NSN 5320-00-801-2976
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20450D8AD9 | 2017-10-276 | 5000 | United States |
| 5320-00-801-2976 | 2017-09-272 | 2000 | United States |
| MILR5674 | 2013-06-164 | 1 | US |
| MILR5674 | 2011-02-48 | 50 | US |
Cross Reference | NSN 5320-00-801-2976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN450D8AD9 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILR5674 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MILR5674 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20450D8AD9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
