NSN 5320-00-883-8271 MS2061348, MS20613-4-8, MS206134P8
Product Details | SOLID RIVET
5320-00-883-8271 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS2061348, MS20613-4-8, MS206134P8, MS20613-4P8, 36R1N48, 36R1N4-8, 36RIN48, 36RIN4-8, 855813, 5320-00-883-8271, 00-883-8271, 5320008838271, 008838271
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-883-8271 | 00861 ( RIVET, SOLID ) |

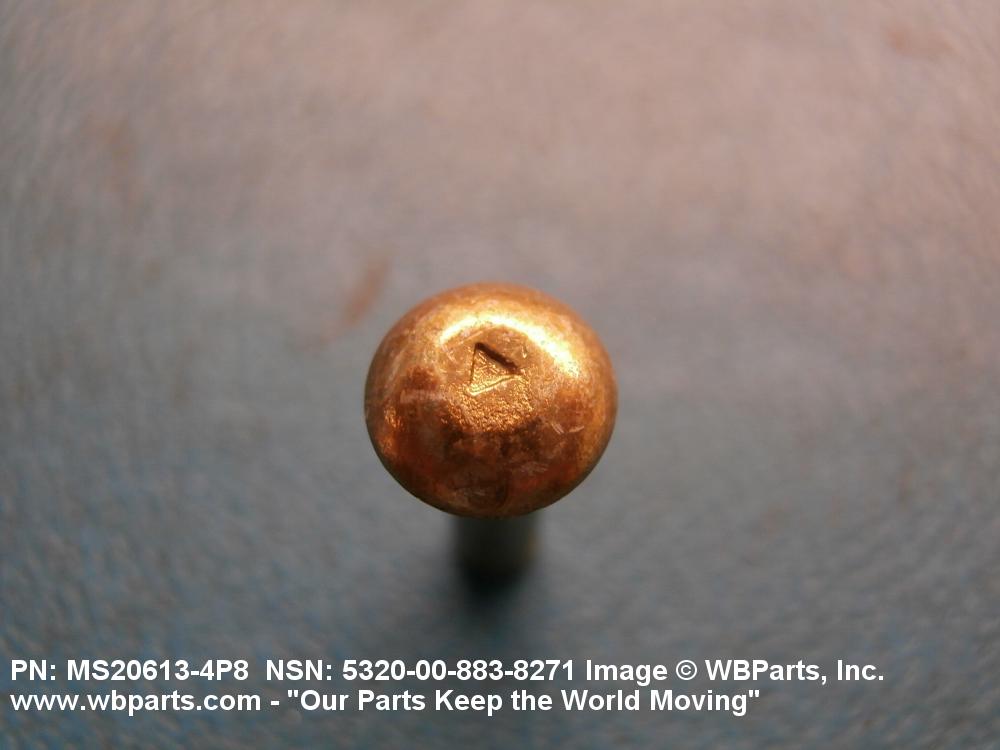

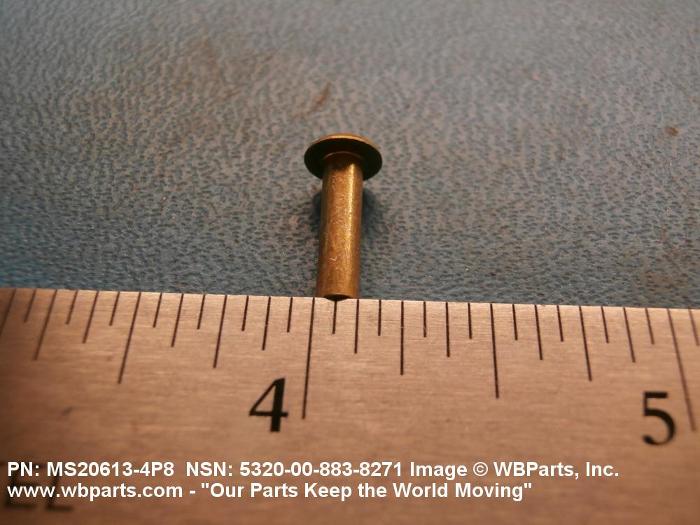

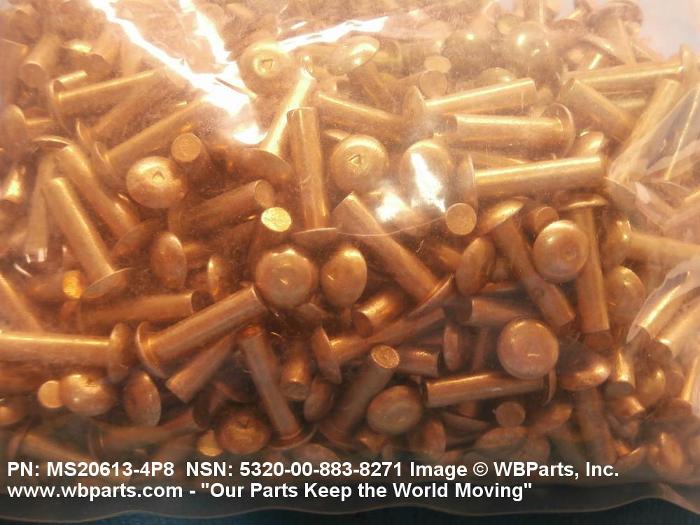

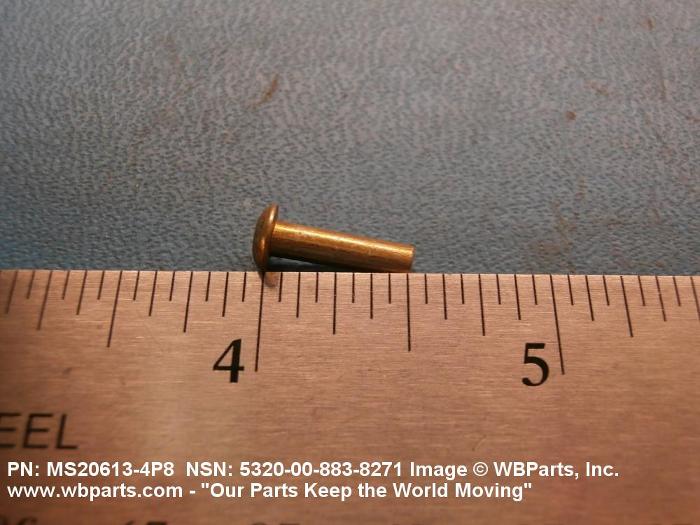

Drawings & Photos | NSN 5320-00-883-8271
Demand History | NSN 5320-00-883-8271
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-883-8271 | 2018-05-122 | 165 | DIBBS |
| 5320-00-883-8271 | 2016-08-229 | 409 | DIBBS |
| 5320-00-883-8271 | 2015-07-210 | 521 | DIBBS |
| 5320-00-883-8271 | 2015-06-152 | 461 | DIBBS |
| 5320-00-883-8271 | 2015-05-139 | 461 | DIBBS |
| 5320-00-883-8271 | 2013-03-72 | 700 | United States |
| 5320-00-883-8271 | 2010-12-348 | 100 | US |
| MS206134P8 | 2009-11-309 | 27 | United States |
Cross Reference | NSN 5320-00-883-8271
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36R1N4-8 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 36R1N4-8 | 80070 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 36RIN4-8 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 36RIN4-8 | 80070 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 5320008838271 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 855813 | 19203 | PICATINNY ARSENAL |
| MS20613-4-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20613-4P8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-883-8271
Related Products | NSN 5320-00-883-8271
Technical Data | NSN 5320-00-883-8271
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303F OR STEEL COMP 303S OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 323 OR STEEL COMP 324 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 385 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE AND QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 25000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20613-4P8 |
Restrictions/Controls & Freight Information | NSN 5320-00-883-8271
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
