NSN 5320-00-935-9052 HL856, HL85-6, HL876
Product Details | PIN-RIVET COLLAR
5320-00-935-9052 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL856, HL85-6, HL876, HL87-6, DAN126X, DAN12-6X, GN512CY6, 5320-00-935-9052, 00-935-9052, 5320009359052, 009359052
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1968 | 00-935-9052 | 67166 ( COLLAR, PIN-RIVET ) |

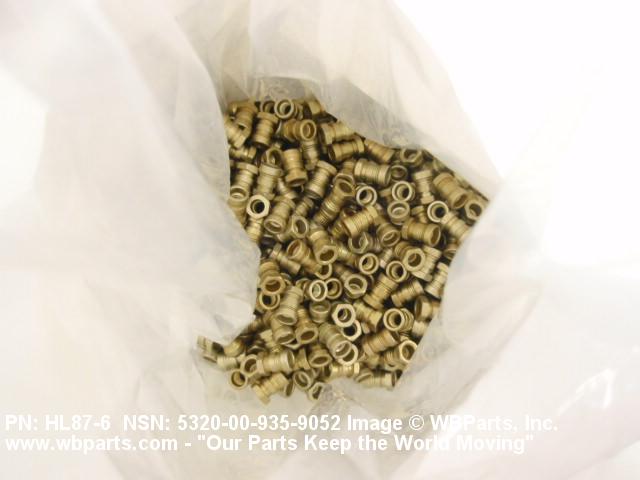

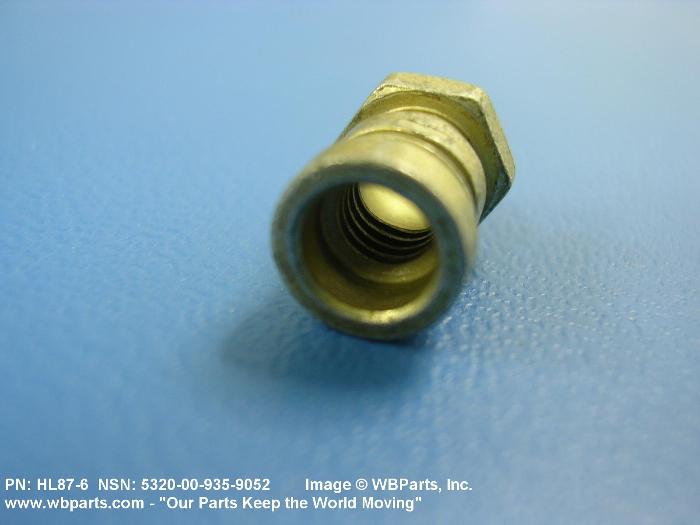

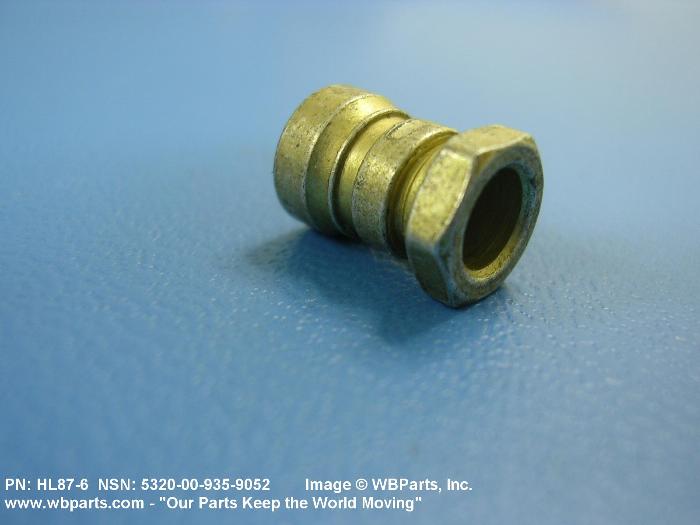

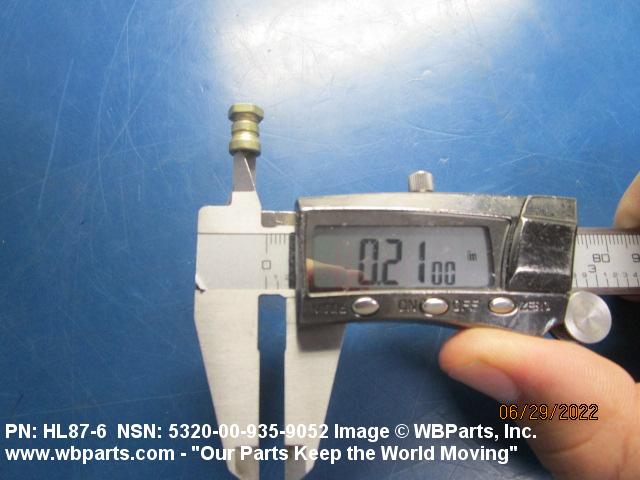

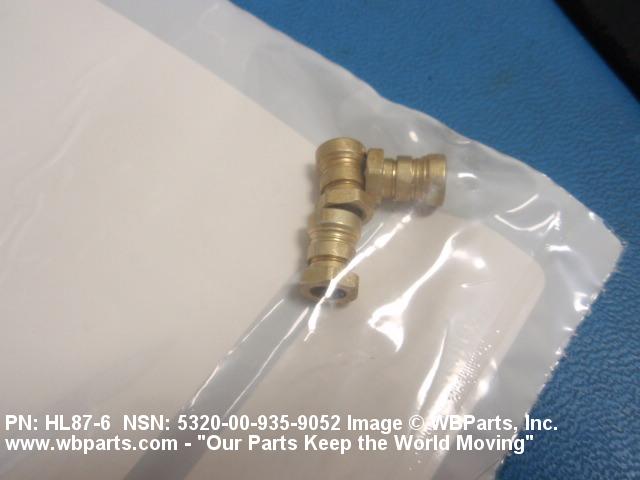

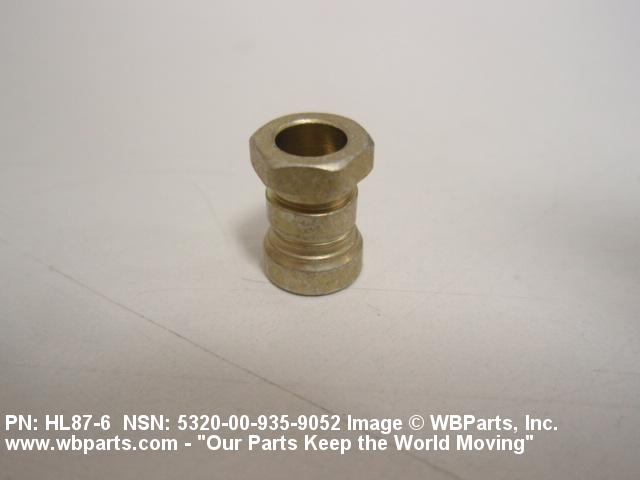

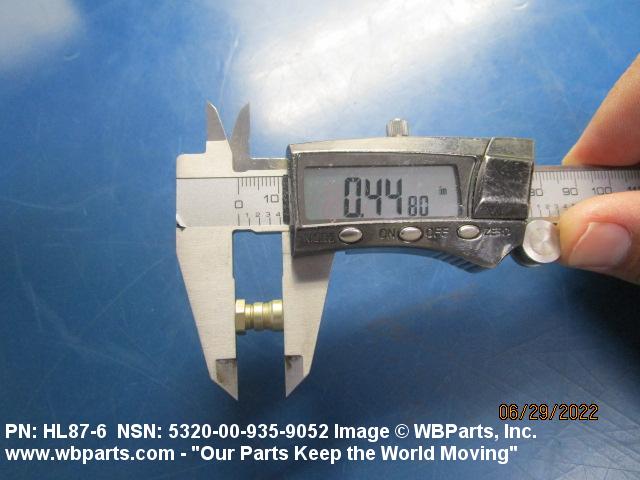

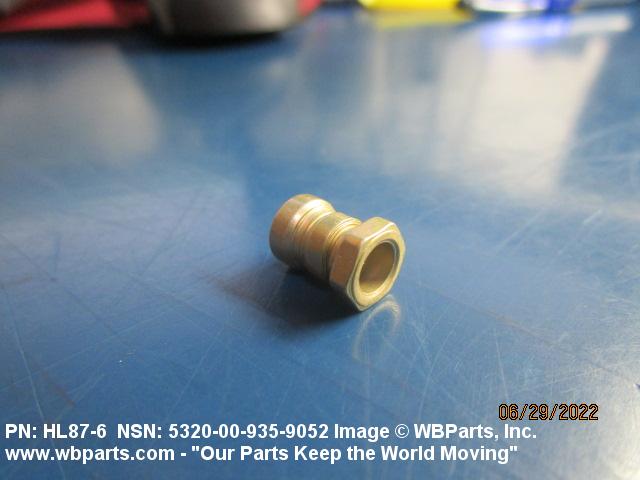

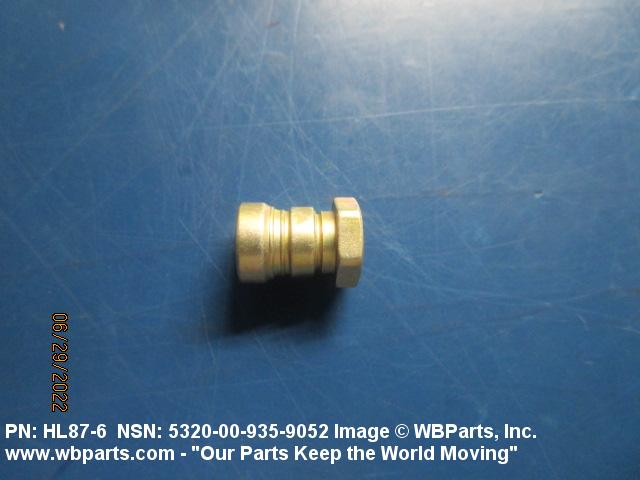

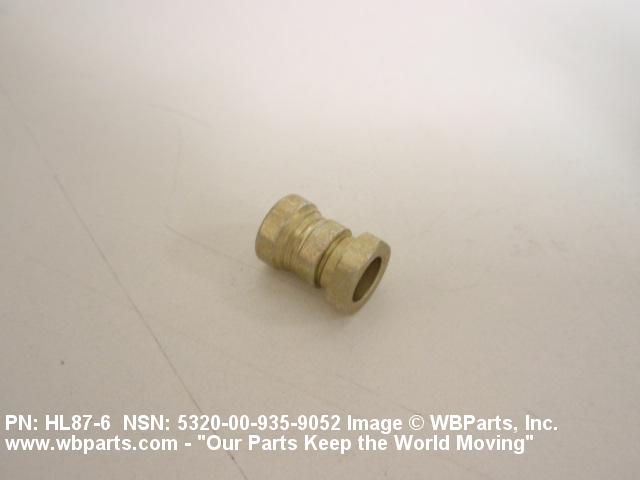

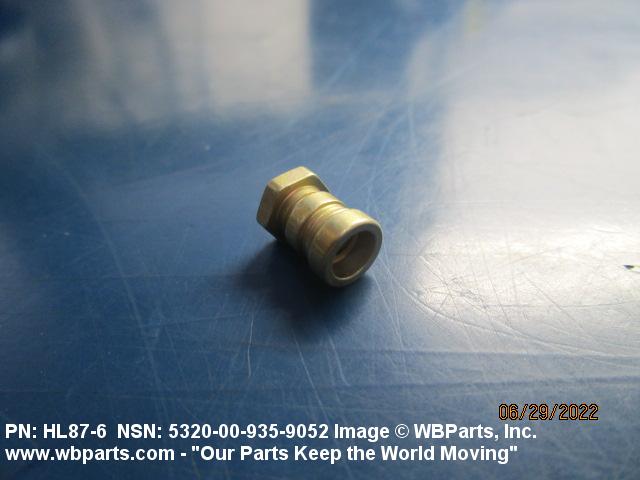

Drawings & Photos | NSN 5320-00-935-9052
Demand History | NSN 5320-00-935-9052
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GN512CY6 | 2024-08-241 | 12060 | DIBBS |
| HL87-6 | 2024-08-241 | 12060 | DIBBS |
| GN512CY6 | 2024-08-226 | 42088 | DIBBS |
| HL87-6 | 2024-08-226 | 42088 | DIBBS |
| GN512CY6 | 2024-08-219 | 16526 | DIBBS |
| HL87-6 | 2024-08-219 | 16526 | DIBBS |
| GN512CY6 | 2024-05-151 | 25562 | DIBBS |
| HL87-6 | 2024-05-151 | 25562 | DIBBS |
| GN512CY6 | 2024-05-143 | 25562 | DIBBS |
| HL87-6 | 2024-05-143 | 25562 | DIBBS |
| 5320-00-935-9052 | 2023-06-174 | 40 | US |
| GN512CY6 | 2022-04-101 | 26022 | DIBBS |
| HL87-6 | 2022-04-101 | 26022 | DIBBS |
| GN512CY6 | 2022-03-89 | 26022 | DIBBS |
| HL87-6 | 2022-03-89 | 26022 | DIBBS |
| GN512CY6 | 2022-03-60 | 22782 | DIBBS |
| HL87-6 | 2022-03-60 | 22782 | DIBBS |
| GN512CY6 | 2022-02-48 | 42860 | DIBBS |
| HL87-6 | 2022-02-48 | 42860 | DIBBS |
| 5320-00-935-9052 | 2022-01-04 | 10000 | United States |
| HL876 | 2021-01-13 | 675 | United States |
| GN512CY6 | 2019-02-35 | 205 | DIBBS |
| HL87-6 | 2019-02-35 | 205 | DIBBS |
| 5320-00-935-9052 | 2018-07-198 | 218385 | DIBBS |
| 5320-00-935-9052 | 2018-06-178 | 205 | DIBBS |
| 5320-00-935-9052 | 2018-04-100 | 139050 | DIBBS |
| 5320-00-935-9052 | 2018-03-71 | 73801 | DIBBS |
| 5320-00-935-9052 | 2018-03-63 | 73801 | DIBBS |
| 5320-00-935-9052 | 2018-01-31 | 29597 | DIBBS |
| HL876 | 2017-12-362 | 115 | United States |
| 5320-00-935-9052 | 2017-11-333 | 15094 | DIBBS |
| 5320-00-935-9052 | 2017-06-163 | 52275 | DIBBS |
| 5320-00-935-9052 | 2017-03-88 | 17363 | DIBBS |
| 5320-00-935-9052 | 2015-11-305 | 14176 | DIBBS |
| 5320-00-935-9052 | 2015-08-228 | 15698 | DIBBS |
| HL876 | 2014-12-350 | 100 | United States |
| DAN126X | 2014-06-162 | 14 | UK |
| HL87-6 | 2013-07-200 | 390 | |
| 5320-00-935-9052 | 2012-03-79 | 1 | Canada |
| HL876 | 2012-03-79 | 1 | Canada |
| HL876 | 2012-03-79 | 520 | United States |
| HL876 | 2011-07-185 | 200 | PH |
| HL876 | 2011-05-132 | 10 | Canada |
| 5320-00-935-9052 | 2010-09-270 | 200 | LT |
| 5320-00-935-9052 | 2010-06-181 | 400 | Thailand |
| HL876 | 2010-06-166 | 1000 | Singapore |
| HL876 | 2010-05-130 | 1000 | Singapore |
| 5320-00-935-9052 | 2009-06-162 | 150 | Romania |
| 5320-00-935-9052 | 2009-03-68 | 38000 | DIBBS |
| HL876 | 2009-01-07 | 1200 | United States |
| 5320-00-935-9052 | 2008-10-296 | 100 | Colombia |
| HL876 | 2008-09-267 | 400 | United States |
| HL876 | 2008-07-202 | 23000 | IL |
| 5320-00-935-9052 | 2008-06-158 | 3600 | DIBBS |
| 5320-00-935-9052 | 2008-03-80 | 200 | United States |
| 5320-00-935-9052 | 2008-02-54 | 1900 | Thailand |
Cross Reference | NSN 5320-00-935-9052
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DAN12-6X | D1081 | AIRBUS DEUTSCHLAND GMBH -WERKBREMEN- |
| DAN12-6X | D8518 | AIRBUS DEUTSCHLAND GMBH |
| DAN12-6X | U6300 | BLANC AERO INDUSTRIES UK LTD |
| GN512CY6 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL85-6 | 73197 | HI-SHEAR CORPORATION |
| HL87-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL87-6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL87-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL87-6 | 3G1W3 | HERNDON PRODUCTS, INC. |
| HL87-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL87-6 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL87-6 | 60516 | WEST COAST AEROSPACE INC |
| HL87-6 | 73197 | HI-SHEAR CORPORATION |
| HL87-6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL87-6 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-935-9052
Related Products | NSN 5320-00-935-9052
Technical Data | NSN 5320-00-935-9052
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.437 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |
| COLLAR INSIDE DIAMETER | 0.208 INCHES MINIMUM AND 0.212 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | GREASE FILM |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL87-6 |
Restrictions/Controls & Freight Information | NSN 5320-00-935-9052
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-935-9052
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
