NSN 5320-00-968-9210 BACC30BF8, BACC30M8, HL798
Product Details | PIN-RIVET COLLAR
5320-00-968-9210 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30BF8, BACC30M8, HL798, HL79-8, GN512DF4, 3A0708, 3A070-8 , 3M9484, 3M948-4, 660148, 66014-8, 5320-00-968-9210, 00-968-9210, 5320009689210, 009689210
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-968-9210 | 67166 ( COLLAR, PIN-RIVET ) |

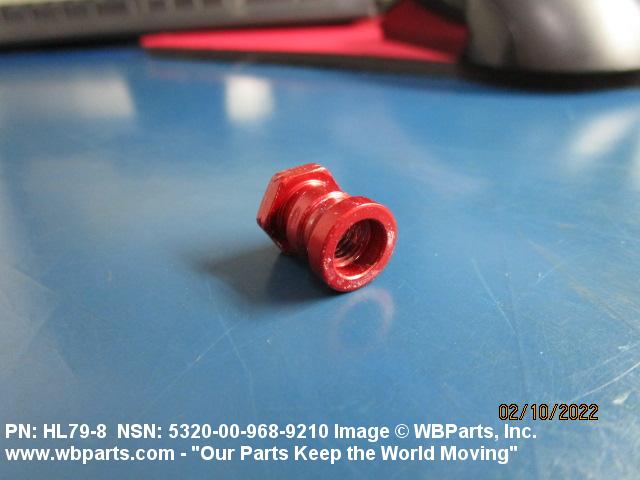

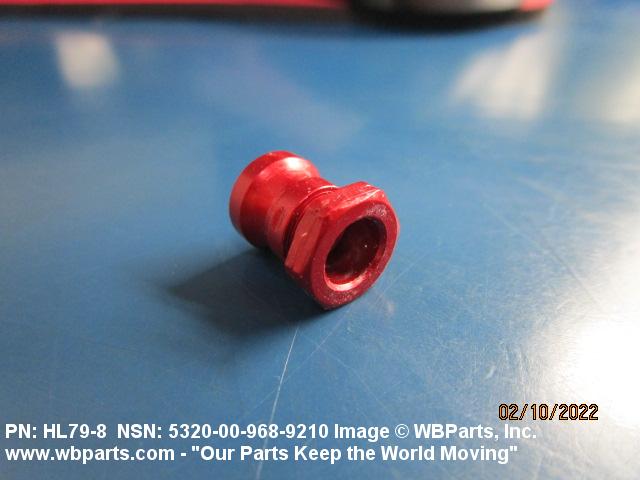

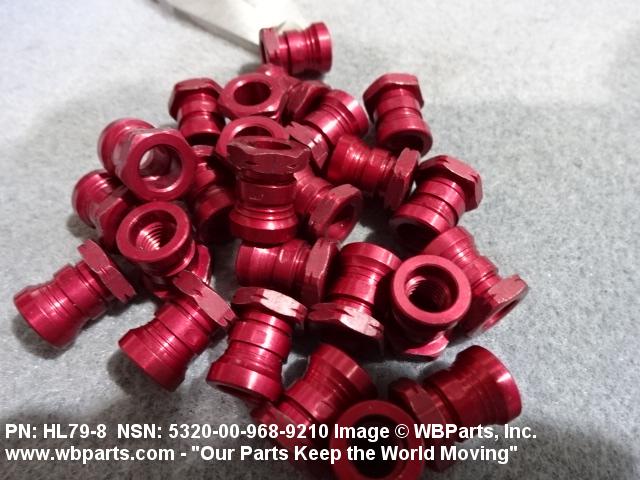

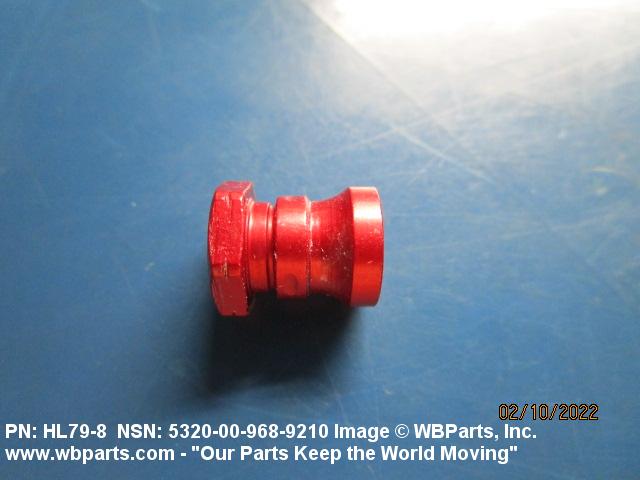

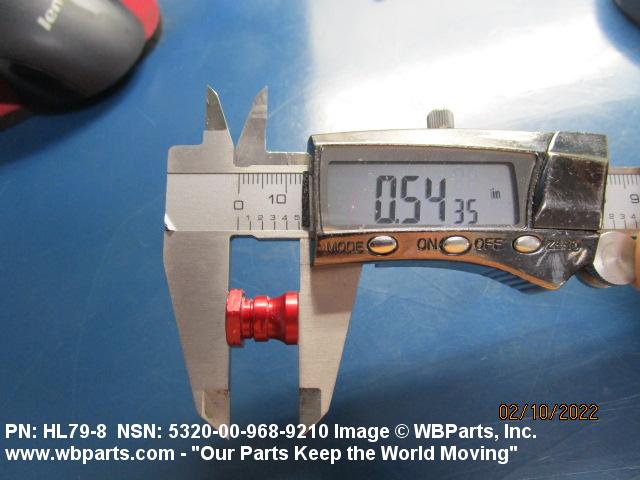

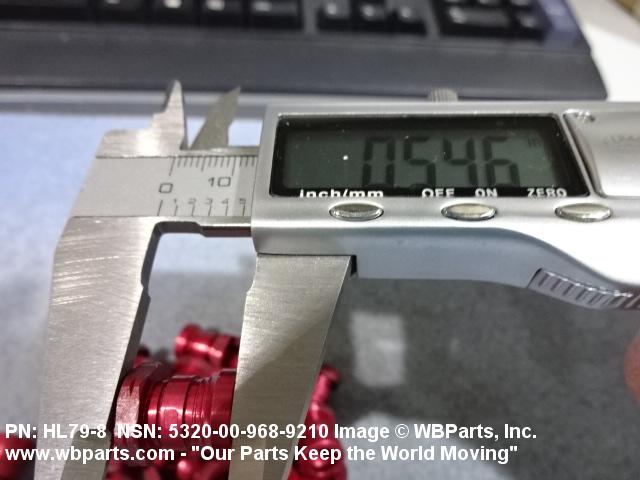

Drawings & Photos | NSN 5320-00-968-9210
Demand History | NSN 5320-00-968-9210
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACC30M8 | 2025-10-303 | 1000 | ID |
| 5320-00-968-9210 | 2025-09-259 | 200 | United States |
| BACC30M8 | 2025-07-198 | 104 | United States |
| BACC30M8 | 2025-07-198 | 150 | United States |
| BACC30M8 | 2025-07-198 | 204 | United States |
| BACC30M8 | 2025-06-163 | 2000 | United States |
| BACC30M8 | 2025-05-143 | 5 | United States |
| HL798 | 2025-05-143 | 5 | United States |
| BACC30M8 | 2024-12-346 | 800 | United States |
| BACC30M8 | 2024-10-290 | 500 | United States |
| BACC30M8 | 2024-10-283 | 1500 | United States |
| 5320-00-968-9210 | 2022-01-26 | 1025 | Italy |
| 5320-00-968-9210 | 2022-01-20 | 1025 | Italy |
| 5320-00-968-9210 | 2021-09-264 | 30 | Thailand |
| BACC30M8 | 2021-01-12 | 20 | United States |
| HL79-8 | 2020-03-84 | 2270 | DIBBS |
| HL79-8 | 2019-10-302 | 300000 | DIBBS |
| HL79-8 | 2019-10-294 | 300000 | DIBBS |
| HL79-8 | 2019-09-258 | 25582 | DIBBS |
| BACC30M8 | 2019-03-73 | 620 | Germany |
| BACC30M8 | 2018-12-340 | 100 | United States |
| HL798 | 2018-11-331 | 50 | US |
| 5320-00-968-9210 | 2017-11-309 | 358 | DIBBS |
| 5320-00-968-9210 | 2017-09-254 | 118380 | DIBBS |
| 5320-00-968-9210 | 2017-07-201 | 27385 | DIBBS |
| 5320-00-968-9210 | 2017-06-169 | 782 | DIBBS |
| 5320-00-968-9210 | 2017-04-99 | 11462 | DIBBS |
| 5320-00-968-9210 | 2017-03-73 | 160185 | DIBBS |
| 5320-00-968-9210 | 2017-02-37 | 59174 | DIBBS |
| 5320-00-968-9210 | 2016-12-347 | 68766 | DIBBS |
| 5320-00-968-9210 | 2016-09-249 | 47841 | DIBBS |
| BACC30BF8 | 2015-04-113 | 24 | United States |
| BACC30M8 | 2014-02-38 | 165 | US |
| BACC30M8 | 2012-12-342 | 100 | US |
| HL798 | 2012-08-221 | 20 | United States |
| HL798 | 2011-11-308 | 300 | US |
| HL798 | 2011-07-202 | 10 | US |
| HL798 | 2011-07-188 | 100 | PT |
| BACC30M8 | 2011-04-103 | 60 | US |
| 5320-00-968-9210 | 2011-03-84 | 5000 | United States |
| 5320-00-968-9210 | 2010-09-270 | 200 | LT |
| BACC30M8 | 2010-06-166 | 1000 | Singapore |
| BACC30M8 | 2010-05-130 | 1000 | Singapore |
| BACC30M8 | 2010-03-89 | 6 | United States |
| 5320-00-968-9210 | 2010-03-71 | 14854 | DIBBS |
| BACC30M8 | 2010-01-20 | 144 | us |
| 5320-00-968-9210 | 2009-12-344 | 8123 | DIBBS |
| 5320-00-968-9210 | 2009-11-312 | 30 | US |
| 5320-00-968-9210 | 2009-10-278 | 200 | Malta |
| 5320-00-968-9210 | 2008-12-344 | 6292 | DIBBS |
Cross Reference | NSN 5320-00-968-9210
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3A070-8 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 3M948-4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 66014-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACC30BF8 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACC30M8 | 81205 | THE BOEING COMPANY DBA BOEING |
| GN512DF4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL79-8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL79-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL79-8 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL79-8 | 73197 | HI-SHEAR CORPORATION |
| HL79-8 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL79-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL79-8 | 97928 | HUCK INTL INC |
| HL79-8 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL79-8 | L4528 | LISI AEROSPACE CANADA CORP |
| HL79-8 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-968-9210
Related Products | NSN 5320-00-968-9210
Technical Data | NSN 5320-00-968-9210
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

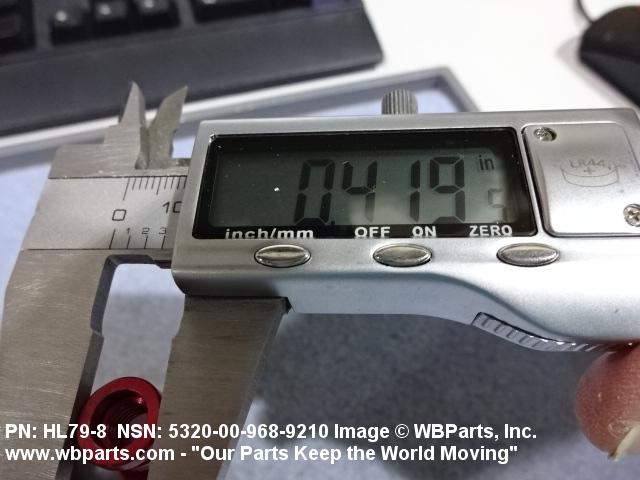

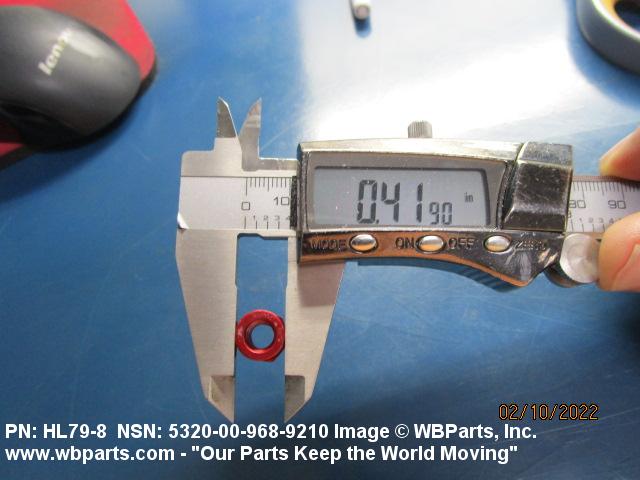

| COLLAR OUTSIDE DIAMETER | 0.418 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| COLLAR OVERALL HEIGHT | 0.532 INCHES MINIMUM AND 0.552 INCHES MAXIMUM |

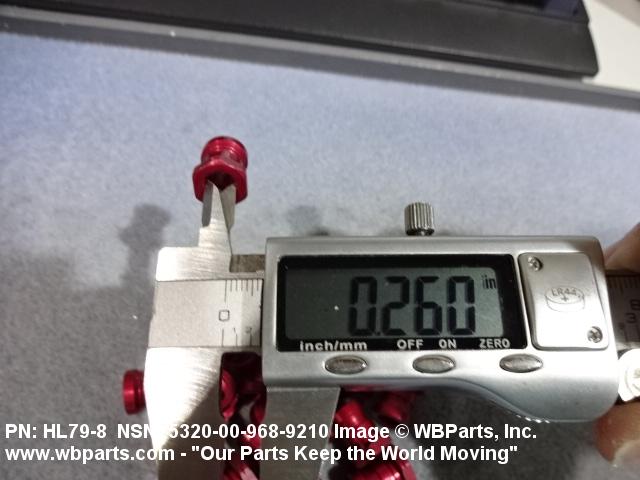

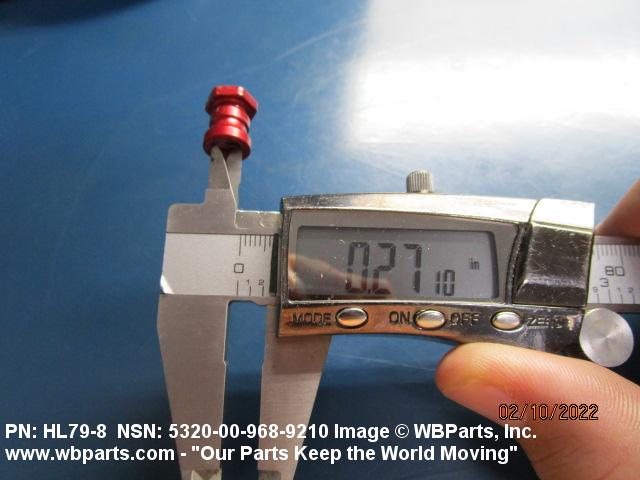

| COLLAR INSIDE DIAMETER | 0.268 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
| IDENTIFICATION CODE COLOR | RED |
| SPECIAL FEATURES | COLOR RED |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL79-8 |
Restrictions/Controls & Freight Information | NSN 5320-00-968-9210
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-968-9210
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
