NSN 5320-00-992-5595 AGS2050419, AGS2050-419, 00-992-5595
Product Details | TUBULAR RIVET
5320-00-992-5595 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: AGS2050419, AGS2050-419, 5320-00-992-5595, 00-992-5595, 5320009925595, 009925595
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-992-5595 | 00863 ( RIVET, TUBULAR ) |
Drawings & Photos | NSN 5320-00-992-5595
Demand History | NSN 5320-00-992-5595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AGS2050419 | 2021-03-75 | 2000 | India |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-992-5595
Related Products | NSN 5320-00-992-5595
Technical Data | NSN 5320-00-992-5595
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | D.T.D. 904 FSCM K7766 NATIONAL SPEC SINGLE TREATMENT RESPONSE OVERALL |

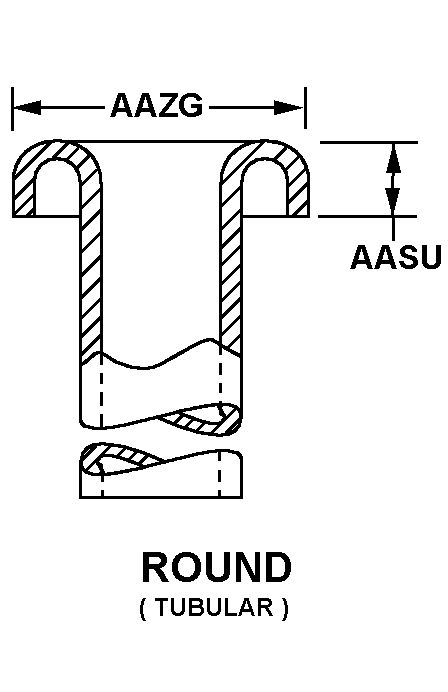

| HEAD STYLE | C42 ROUND |
| HEAD HEIGHT | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.229 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.185 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-992-5595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-992-5595
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
