NSN 5320-01-005-2349 HE11400290012, HE114-0029-0012, HL8612

Product Details | PIN-RIVET COLLAR

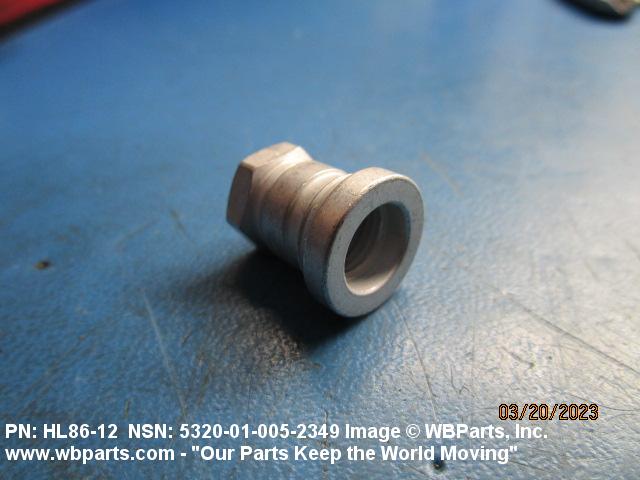

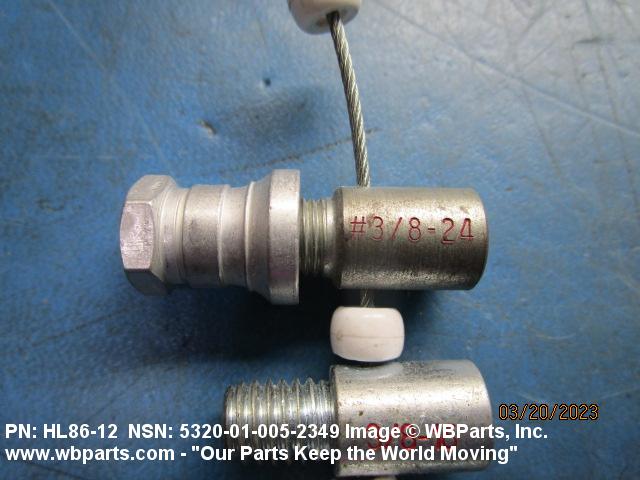

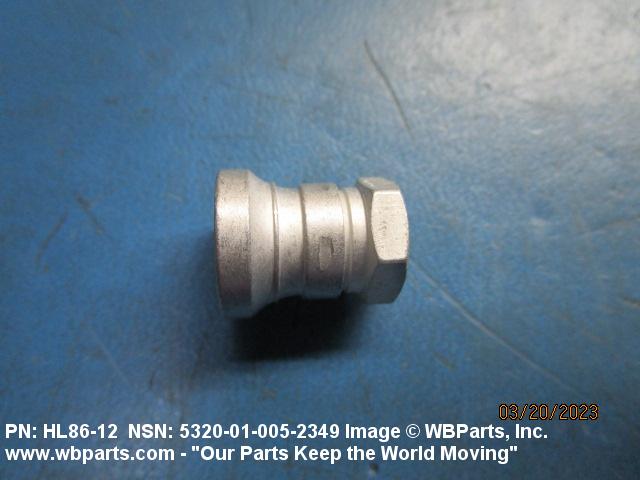

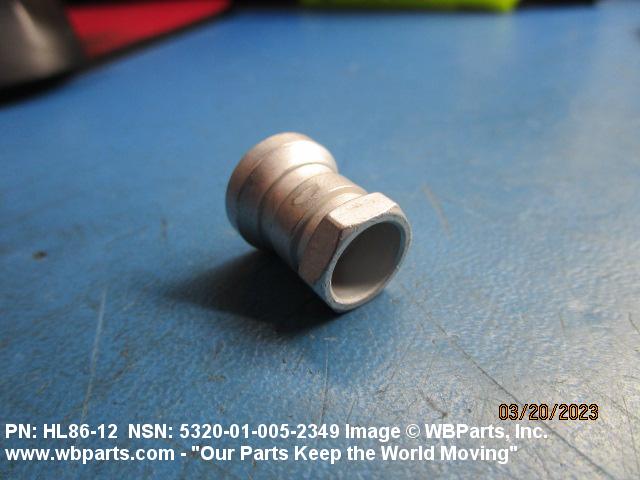

5320-01-005-2349 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HE11400290012, HE114-0029-0012, HL8612, HL86-12, 5320-01-005-2349, 01-005-2349, 5320010052349, 010052349

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 JUN 1975	01-005-2349	67166 ( COLLAR, PIN-RIVET )

Drawings & Photos | NSN 5320-01-005-2349

Part Number	Request Date	QTY	Origin
HL8612	2023-08-242	7000	India
HL8612	2023-03-68	10	United States
HL8612	2022-06-158	25	South Africa
5320-01-005-2349	2019-01-25	1	DIBBS-RFPs
5320-01-005-2349	2018-11-332	292	DIBBS
5320-01-005-2349	2018-06-178	7160	DIBBS
5320-01-005-2349	2018-05-140	3668	DIBBS
5320-01-005-2349	2017-09-270	660	DIBBS
5320-01-005-2349	2010-04-99	1301	DIBBS
5320-01-005-2349	2009-12-338	732	DIBBS
5320-01-005-2349	2008-05-136	50	Italy

Cross Reference | NSN 5320-01-005-2349

Part Number	Cage Code	Manufacturer
HE114-0029-0012	89372	ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS
HL86-12	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL86-12	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL86-12	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL86-12	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL86-12	60516	WEST COAST AEROSPACE INC
HL86-12	73197	HI-SHEAR CORPORATION
HL86-12	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL86-12	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HL86-12	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-005-2349

Compare

Related Products | NSN 5320-01-005-2349

5320-01-005-3234, 5320-01-005-3235, 5320-01-005-3236, 5320-01-005-3237, 5320-01-005-3238

Technical Data | NSN 5320-01-005-2349

Characteristic	Specifications
MATERIAL	STEEL COMP 303SE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE

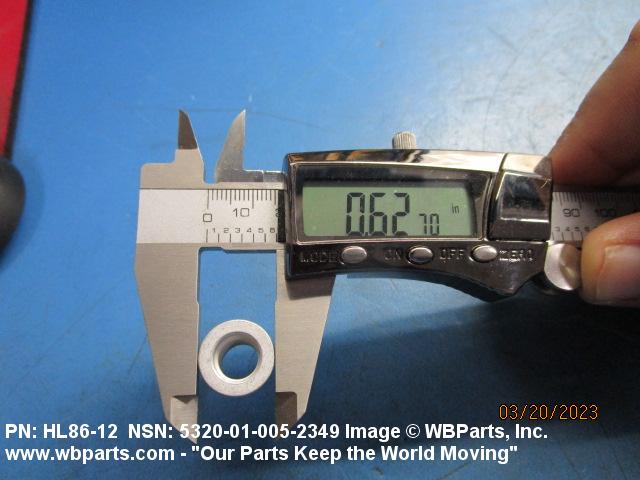

COLLAR OUTSIDE DIAMETER	0.622 INCHES MINIMUM AND 0.628 INCHES MAXIMUM

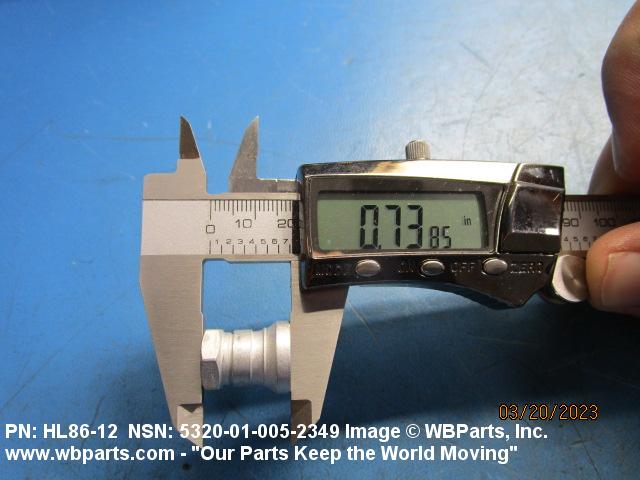

COLLAR OVERALL HEIGHT	0.724 INCHES MINIMUM AND 0.744 INCHES MAXIMUM

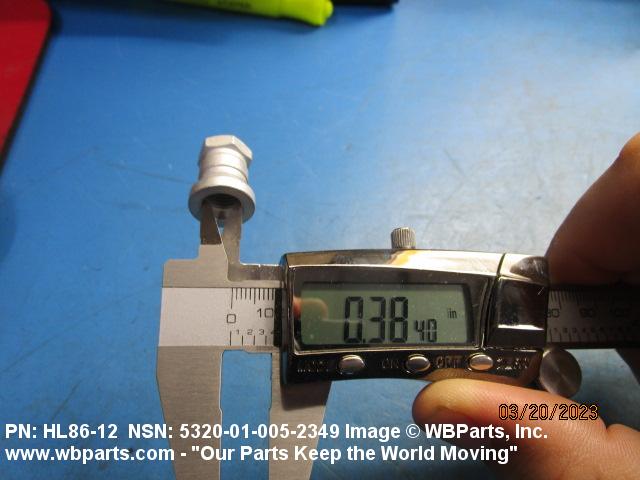

COLLAR INSIDE DIAMETER	0.376 INCHES MINIMUM AND 0.388 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD CLASS	3B
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
MANUFACTURERS CODE	73197
DESIGN CONTROL REFERENCE	HL86-12
