NSN 5320-01-010-5862 BACC30AB6P, HL976, HL97-6
Product Details | PIN-RIVET COLLAR

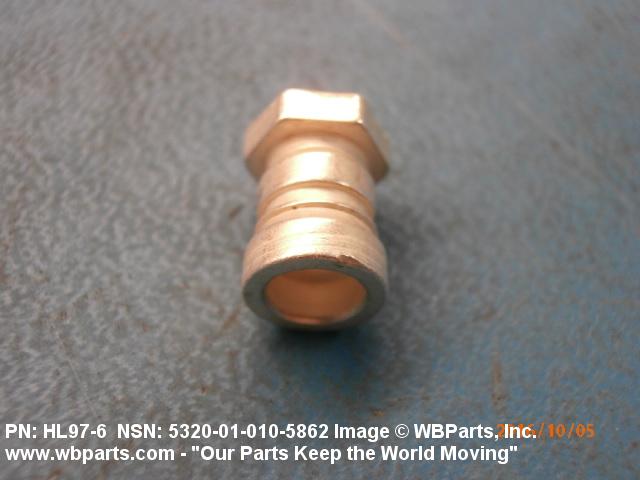

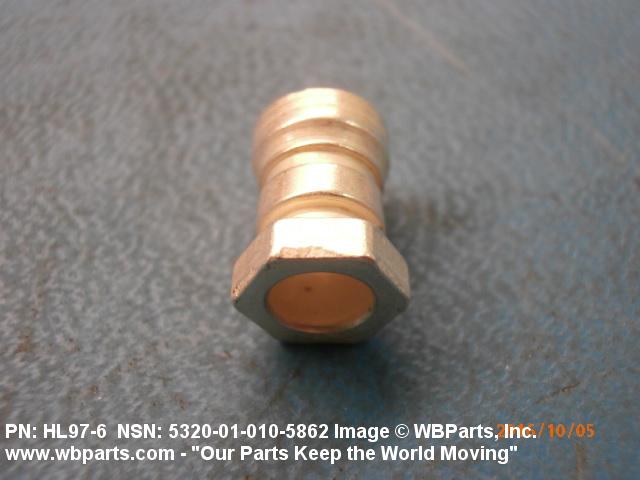

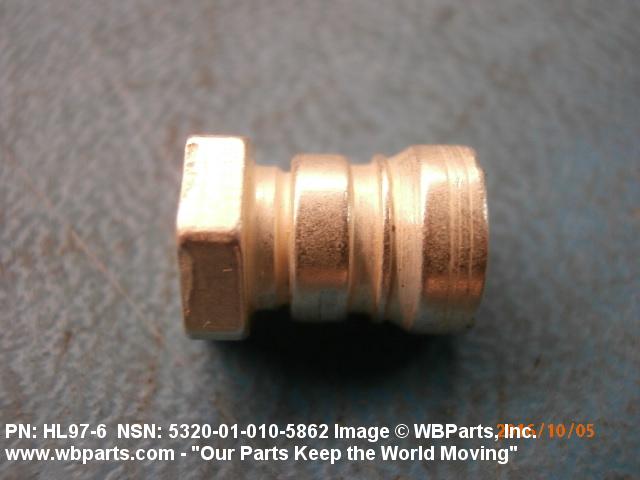

5320-01-010-5862 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30AB6P, HL976, HL97-6, ST25D616, ST25D61-6, 03A0686S, 03A068-6S, 5320-01-010-5862, 01-010-5862, 5320010105862, 010105862
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 OCT 1975 | 01-010-5862 | 67166 ( COLLAR, PIN-RIVET ) |
Drawings & Photos | NSN 5320-01-010-5862
Demand History | NSN 5320-01-010-5862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACC30AB6P | 2025-11-324 | 300 | US |
| HL976 | 2025-11-324 | 300 | US |
| BACC30AB6P | 2020-10-300 | 3082 | DIBBS |
| HL97-6 | 2020-10-300 | 3082 | DIBBS |
| BACC30AB6P | 2020-10-288 | 3082 | DIBBS |
| HL97-6 | 2020-10-288 | 3082 | DIBBS |
| HL976 | 2016-09-274 | 250 | United States |
| HL976 | 2014-04-97 | 6195 | US |
| HL976 | 2012-02-40 | 600 | US |
| HL976 | 2012-02-40 | 600 | US |
| 5320-01-010-5862 | 2011-12-355 | 600 | United States |
| 5320-01-010-5862 | 2011-11-332 | 3700 | DIBBS |
| 5320-01-010-5862 | 2011-10-294 | 2602 | DIBBS |
| 5320-01-010-5862 | 2011-10-289 | 0 | DIBBS |
| HL976 | 2011-07-195 | 25 | US |
| 5320-01-010-5862 | 2011-06-162 | 0 | DIBBS |
| 5320-01-010-5862 | 2011-05-137 | 276 | DIBBS |
| 5320-01-010-5862 | 2011-04-116 | 50 | DIBBS |
| 5320-01-010-5862 | 2011-04-96 | 500 | DIBBS |
| 5320-01-010-5862 | 2011-03-61 | 50 | DIBBS |
| 5320-01-010-5862 | 2011-01-06 | 412 | DIBBS |
| 5320-01-010-5862 | 2010-09-265 | 953 | DIBBS |
| HL976 | 2008-10-284 | 500 | IT |
| 5320-01-010-5862 | 2008-01-08 | 10 | Canada |
Cross Reference | NSN 5320-01-010-5862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A068-6S | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| BACC30AB6P | 81205 | THE BOEING COMPANY DBA BOEING |
| HL97-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL97-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL97-6 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97-6 | 60516 | WEST COAST AEROSPACE INC |
| HL97-6 | 73197 | HI-SHEAR CORPORATION |
| HL97-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST25D61-6 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-010-5862
Related Products | NSN 5320-01-010-5862
Technical Data | NSN 5320-01-010-5862
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

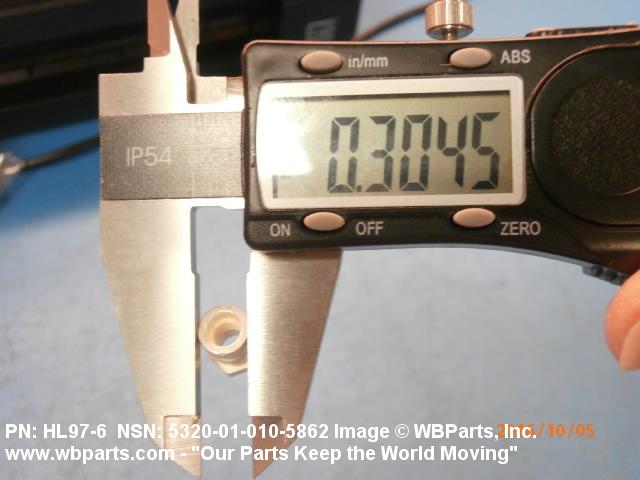

| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |

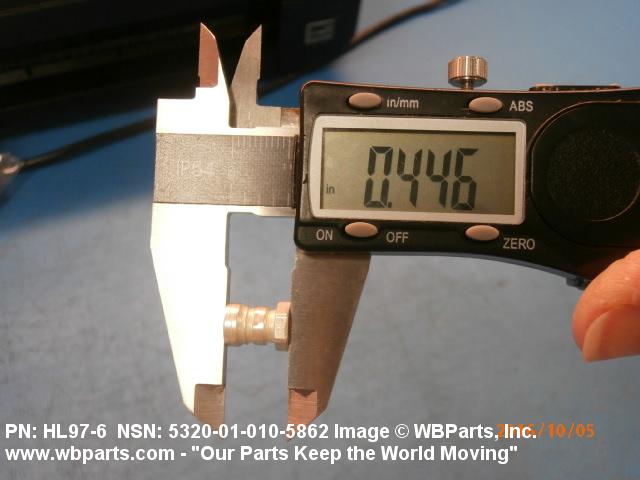

| COLLAR OVERALL HEIGHT | 0.437 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |

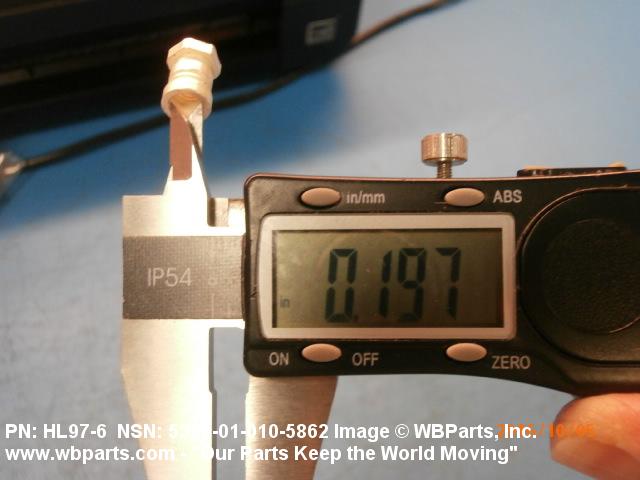

| COLLAR INSIDE DIAMETER | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |

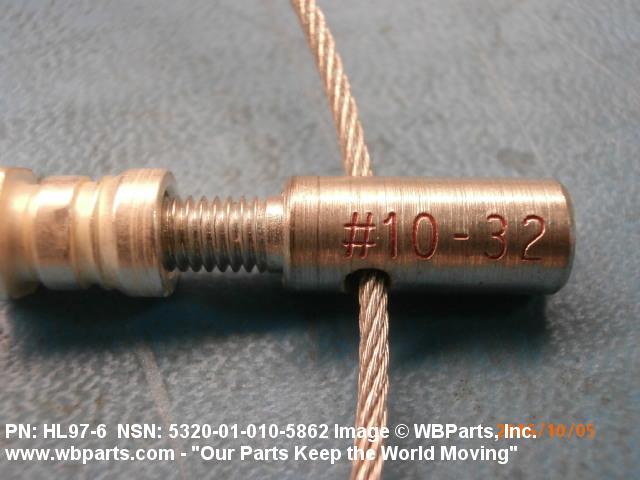

| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL97-6 |
