NSN 5320-01-125-7533 SP77208, SP77-208, 01-125-7533
Product Details | SOLID RIVET
5320-01-125-7533 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: SP77208, SP77-208, 5320-01-125-7533, 01-125-7533, 5320011257533, 011257533
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 FEB 1982 | 01-125-7533 | 00861 ( RIVET, SOLID ) |

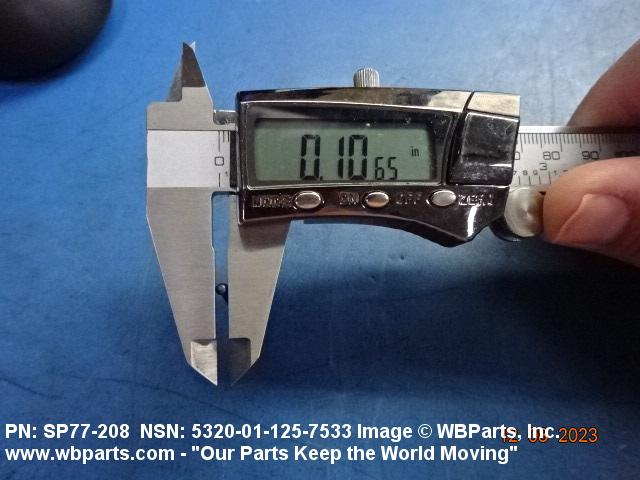

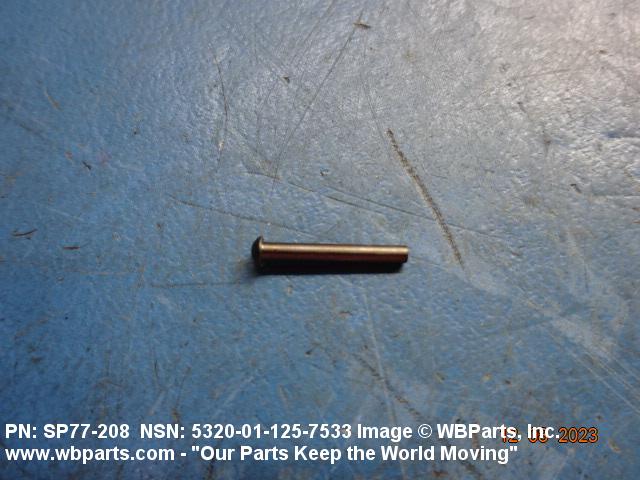

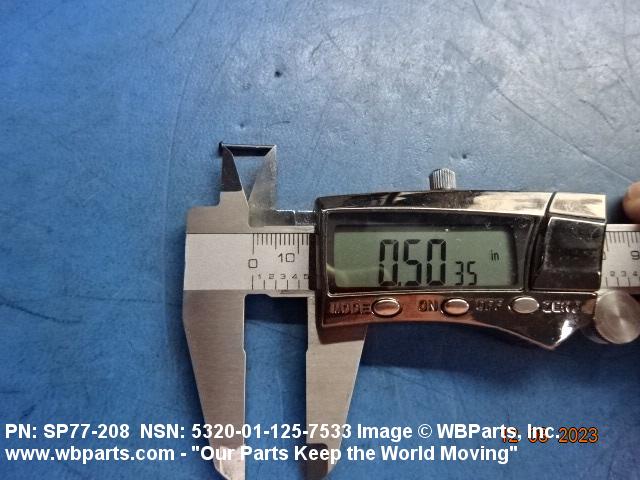

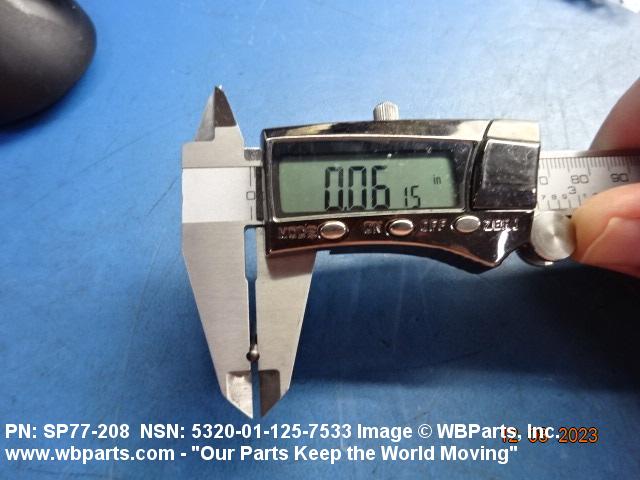

Drawings & Photos | NSN 5320-01-125-7533
Demand History | NSN 5320-01-125-7533
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-125-7533 | 2024-03-75 | 200 | us |
| 5320-01-125-7533 | 2023-11-310 | 100 | Taiwan |
| 5320-01-125-7533 | 2023-10-292 | 100 | Taiwan |
| 5320-01-125-7533 | 2020-02-50 | 20 | United States |
| 5320-01-125-7533 | 2017-12-351 | 100 | us |
| 5320-01-125-7533 | 2017-12-346 | 80 | TW |
| 5320-01-125-7533 | 2016-10-302 | 100 | India |
| 5320-01-125-7533 | 2016-09-257 | 7154 | DIBBS |
| 5320-01-125-7533 | 2016-08-225 | 7000 | DIBBS |
| 5320-01-125-7533 | 2016-08-217 | 7000 | DIBBS |
| 5320-01-125-7533 | 2016-06-181 | 6000 | DIBBS |
| 5320-01-125-7533 | 2016-06-172 | 1944 | DIBBS |
| 5320-01-125-7533 | 2016-06-164 | 1944 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-125-7533
Related Products | NSN 5320-01-125-7533
Technical Data | NSN 5320-01-125-7533
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| HEAD STYLE | C2 BRAZIER |
| HEAD HEIGHT | 0.300 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.875 INCHES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.063 INCHES NOMINAL |
| MANUFACTURERS CODE | K7766 |
| DESIGN CONTROL REFERENCE | SP77-208 |
Restrictions/Controls & Freight Information | NSN 5320-01-125-7533
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-125-7533
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
