NSN 5320-01-143-5078 M7885/2-04-01, M7885/2-4-01, M788520401
Product Details | BLIND RIVET
5320-01-143-5078 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/2-04-01, M7885/2-4-01, M788520401, M78852401, MBBN3012L3201, NAS9301BNS401, NAS9301BNS-4-01, AF3213401, AF3213-4-01, AF321341, AF3213-4-1, CR 3213-4-1, CR3213401, CR3213-4-01, CR321341, CR3213-4-1, HC32134, HC3213-4, HC3213401, HC3213-4-01, HC321341, HC3213-4-1, HR3213401, HR3213-4-01, HS59024, HS5902-4, MIL-R-7885/2, MILR78852, 5320-01-143-5078, 01-143-5078, 5320011435078, 011435078
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 1982 | 01-143-5078 | 00864 ( RIVET, BLIND ) |

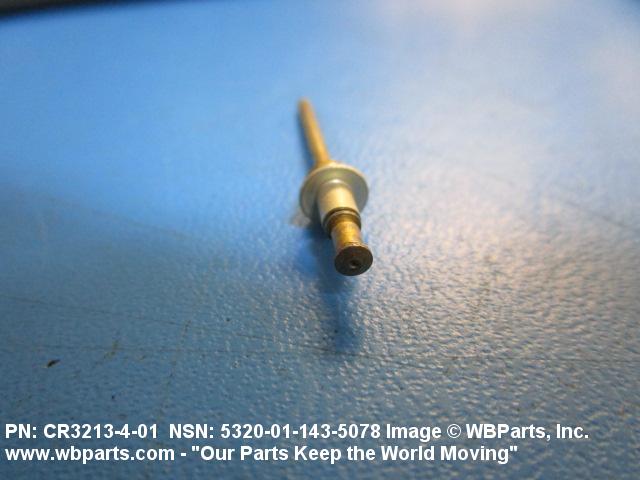

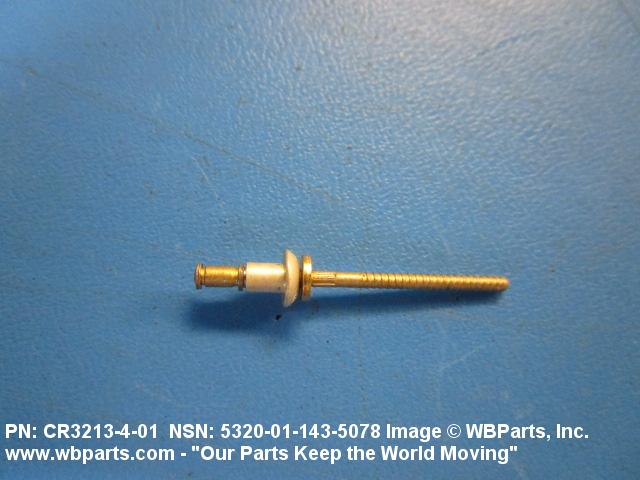

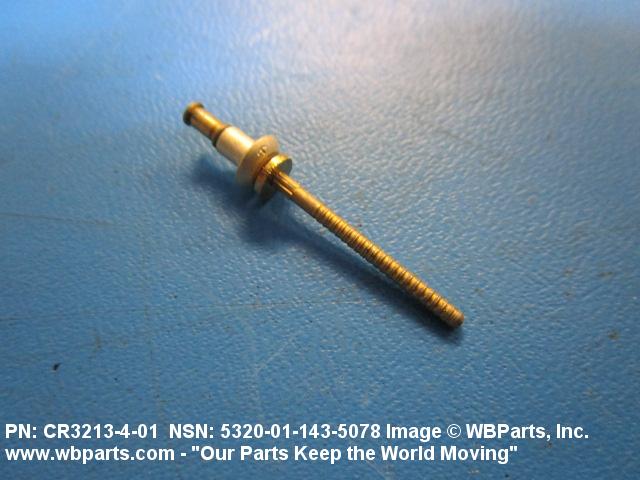

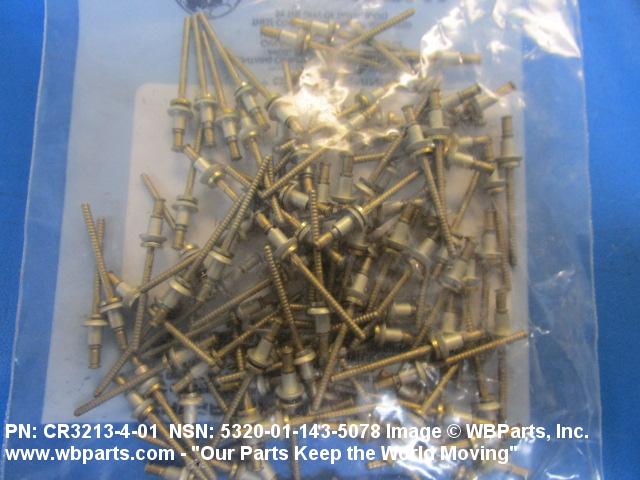

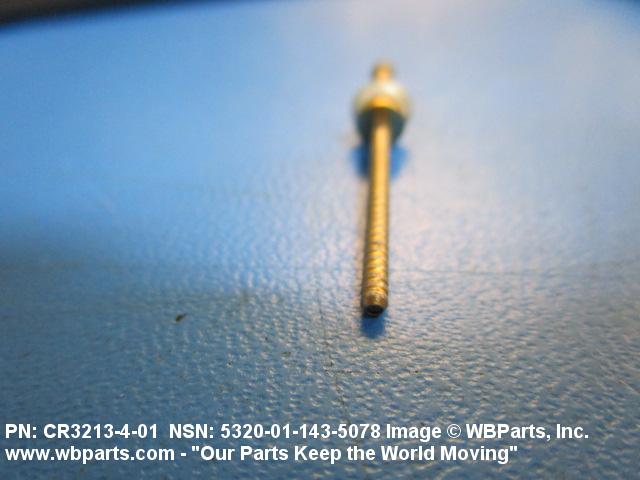

Drawings & Photos | NSN 5320-01-143-5078
Demand History | NSN 5320-01-143-5078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M78852401 | 2025-12-342 | 660 | us |
| M78852401 | 2025-12-338 | 275 | us |
| CR3213401 | 2025-04-107 | 300 | United States |
| HC3213401 | 2025-04-106 | 10 | France |
| CR3213401 | 2025-02-48 | 100 | US |
| 5320-01-143-5078 | 2024-12-340 | 5000 | US |
| 5320-01-143-5078 | 2024-11-311 | 4212 | United States |
| CR3213401 | 2024-09-269 | 100 | Germany |
| CR3213401 | 2024-09-269 | 3000 | Germany |
| CR3213401 | 2024-09-269 | 10000 | Germany |
| CR3213401 | 2024-09-255 | 99 | Canada |
| CR3213401 | 2024-08-240 | 600 | Japan |
| CR3213401 | 2024-03-89 | 100 | US |
| CR321341 | 2022-09-265 | 2000 | United States |
| M78852401 | 2021-12-356 | 210 | United States |
| CR3213401 | 2021-12-356 | 210 | United States |
| M78852401 | 2021-12-354 | 210 | United States |
| M78852401 | 2021-12-348 | 210 | United States |
| CR3213401 | 2020-04-93 | 5000 | CZ |
| 5320-01-143-5078 | 2020-03-80 | 40 | US |
| CR321341 | 2019-06-168 | 300 | CL |
| NAS9301BNS-4-01 | 2019-02-42 | 175 | Lebanon |
| NAS9301BNS-4-01 | 2019-02-42 | 175 | Lebanon |
| CR321341 | 2018-10-292 | 800 | US |
| CR3213401 | 2017-05-122 | 0 | United States |
| NAS9301BNS401 | 2016-10-287 | 100 | US |
| CR321341 | 2016-03-82 | 300 | Malaysia |
| CR321341 | 2015-10-303 | 1000 | Malaysia |
| 5320-01-143-5078 | 2015-07-196 | 20 | United States |
| CR3213401 | 2014-07-196 | 1 | AR |
| 5320-01-143-5078 | 2014-03-76 | 50 | US |
| 5320-01-143-5078 | 2013-10-297 | 500 | MANUAL |
| 5320-01-143-5078 | 2013-09-246 | 1 | DIBBS-RFPs |
| HC321341 | 2013-06-170 | 2000 | US |
| CR321341 | 2013-06-162 | 1500 | US |
| CR3213-4-01 | 2013-05-134 | 50 | CZ |
| 5320-01-143-5078 | 2012-10-296 | 81390 | DIBBS |
| 5320-01-143-5078 | 2011-08-213 | 59915 | DIBBS |
| M78852401 | 2011-04-110 | 26 | US |
| CR3213-4-01 | 2011-03-83 | 100 | Taiwan |
| 5320-01-143-5078 | 2011-02-56 | 100 | US |
| 5320-01-143-5078 | 2011-01-28 | 1 | US |
| 5320-01-143-5078 | 2009-11-323 | 16 | Australia |
| CR321341 | 2009-10-288 | 500 | Malaysia |
| CR321341 | 2009-05-138 | 899 | China |
| M78852401 | 2009-03-61 | 50 | US |
| 5320-01-143-5078 | 2008-06-171 | 1000 | United States |
| CR321341 | 2008-01-04 | 200 | Spain |
| CR3213401 | 2007-12-347 | 100 | BE |
| M78852401 | 2006-04-118 | 100 | US |
Cross Reference | NSN 5320-01-143-5078
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3213-4-01 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3213-4-1 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR 3213-4-1 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR3213-4-01 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-4-1 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| HC3213-4 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3213-4-01 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3213-4-1 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HR3213-4-01 | 2N935 | B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES |
| HS5902-4 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| M7885/2-04-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M7885/2-4-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MBBN3012L3201 | C0418 | AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG |
| MIL-R-7885/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9301BNS-4-01 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| NAS9301BNS-4-01 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-143-5078
Related Products | NSN 5320-01-143-5078
Technical Data | NSN 5320-01-143-5078
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE SLEEVE CADMIUM AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |

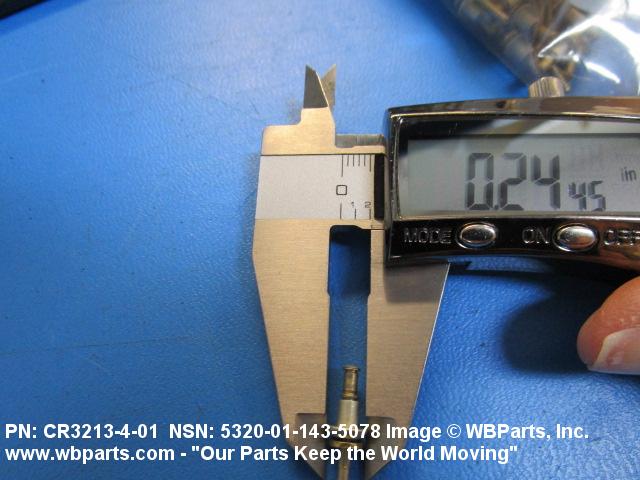

| HEAD MAJOR DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.151 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |

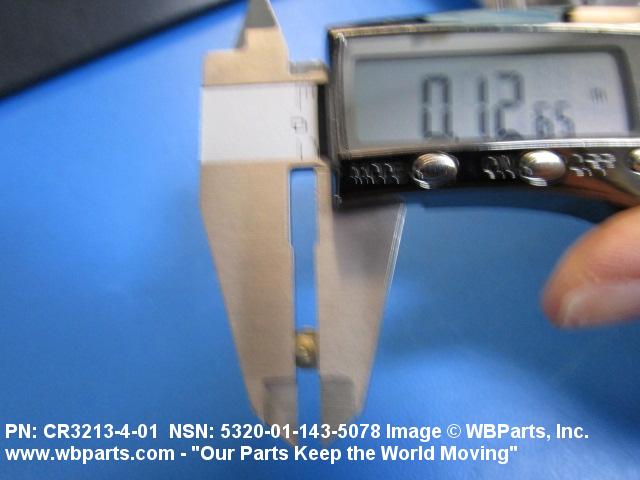

| SHANK DIAMETER | 0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| GRIP LENGTH | 0.025 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | "NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY. |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7885/2-04-01 |
Restrictions/Controls & Freight Information | NSN 5320-01-143-5078
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
