NSN 5320-01-183-0574 HLM8606, HLM86-06, HLM86PBW06
Product Details | PIN-RIVET COLLAR
5320-01-183-0574 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HLM8606, HLM86-06, HLM86PBW06, HLM86PBW-06, HS704406, HS7044-06, OSS704406, OSS7044-06, 5320-01-183-0574, 01-183-0574, 5320011830574, 011830574
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUL 1984 | 01-183-0574 | 67166 ( COLLAR, PIN-RIVET ) |

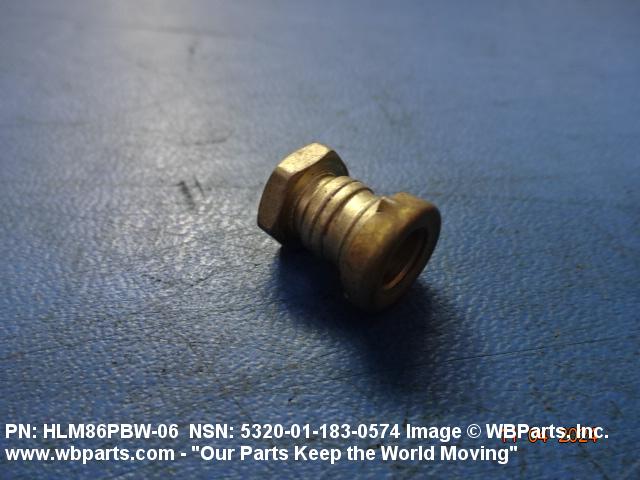

Drawings & Photos | NSN 5320-01-183-0574
Demand History | NSN 5320-01-183-0574
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| OSS704406 | 2025-12-353 | 3000 | United States |
| OSS704406 | 2025-03-63 | 1200 | United States |
| OSS704406 | 2025-01-30 | 1200 | United States |
| OSS704406 | 2025-01-09 | 1200 | United States |
| 5320-01-183-0574 | 2024-10-303 | 250 | United States |
| 5320-01-183-0574 | 2024-10-283 | 496 | United States |
| OSS704406 | 2024-10-283 | 496 | United States |
| HLM86PBW-06 | 2022-03-79 | 207 | DIBBS |
| HLM86PBW-06 | 2021-11-327 | 1051 | DIBBS |
| HLM86PBW-06 | 2021-10-301 | 995 | DIBBS |
| HLM86PBW-06 | 2021-08-227 | 18 | DIBBS |
| HLM86PBW-06 | 2021-05-123 | 979 | DIBBS |
| OSS7044-06 | 2021-05-123 | 979 | DIBBS |
| HLM86PBW-06 | 2020-11-320 | 149 | DIBBS |
| OSS7044-06 | 2020-11-320 | 149 | DIBBS |
| HLM86PBW-06 | 2020-03-75 | 836 | DIBBS |
| OSS7044-06 | 2020-03-75 | 836 | DIBBS |
| 5320-01-183-0574 | 2019-01-25 | 1 | DIBBS-RFPs |
| 5320-01-183-0574 | 2018-11-322 | 960 | DIBBS |
| 5320-01-183-0574 | 2012-08-243 | 1621 | DIBBS |
| 5320-01-183-0574 | 2012-06-181 | 904 | DIBBS |
| 5320-01-183-0574 | 2010-05-146 | 1312 | DIBBS |
Cross Reference | NSN 5320-01-183-0574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HLM86-06 | 73197 | HI-SHEAR CORPORATION |
| HLM86PBW-06 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLM86PBW-06 | 73197 | HI-SHEAR CORPORATION |
| HLM86PBW-06 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLM86PBW-06 | L4528 | LISI AEROSPACE CANADA CORP |
| HS7044-06 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS7044-06 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HS7044-06 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| HS7044-06 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| OSS7044-06 | 1YQE8 | ALLIANT TECHSYSTEMS OPERATIONS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-183-0574
Related Products | NSN 5320-01-183-0574
Technical Data | NSN 5320-01-183-0574
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |
| COLLAR OUTSIDE DIAMETER | 9.2 MILLIMETERS NOMINAL |
| COLLAR OVERALL HEIGHT | 12.9 MILLIMETERS NOMINAL |
| COLLAR INSIDE DIAMETER | 6.35 MILLIMETERS NOMINAL |
| THREAD SERIES DESIGNATOR | ISO S |
| NOMINAL THREAD SIZE | 5.0 MILLIMETERS |
| THREAD TOLERANCE CLASS | 4H EXTERNAL |
| THREAD PITCH IN MILLIMETERS | 0.60 |
| THREAD DIRECTION | RIGHT-HAND |
| FEATURES PROVIDED | WASHER |
| SPECIAL FEATURES | COLLAR-TYPE 303SE STAINLESS STEELPER ASTM A582; WASHER-300 SERIES STAINLESS STEEL; FINISH-CADMIUM PLATE PER QQ-P-416,TYPE II,CLASS 2,ON COLLAR AND WASHER,CETYL ALCOHOL LUBE ON NUT,NO LUBE ON WASHER. |
| END ITEM IDENTIFICATION | 1005-01-182-7599 |
Restrictions/Controls & Freight Information | NSN 5320-01-183-0574
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-183-0574
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
