NSN 5320-01-188-1736 HL828ADW, HL82-8ADW, 01-188-1736

Product Details | PIN-RIVET COLLAR

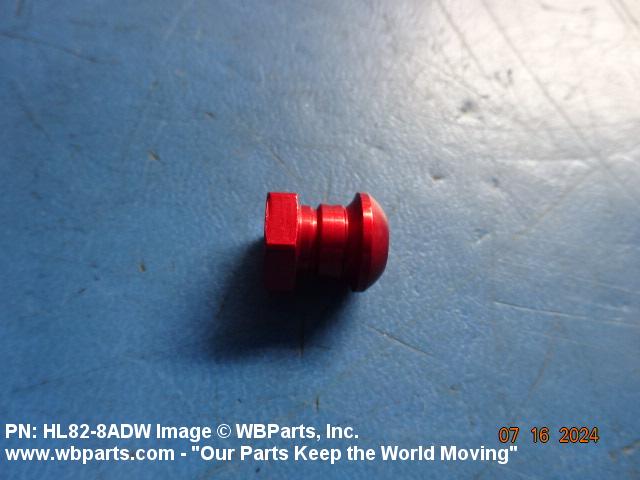

5320-01-188-1736 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HL828ADW, HL82-8ADW, 5320-01-188-1736, 01-188-1736, 5320011881736, 011881736

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 AUG 1984	01-188-1736	67166 ( COLLAR, PIN-RIVET )

Drawings & Photos | NSN 5320-01-188-1736

Part Number	Request Date	QTY	Origin
HL82-8ADW	2025-06-168	331	DIBBS
HL828ADW	2024-04-114	600	United States
HL82-8ADW	2023-05-136	161	DIBBS
HL82-8ADW	2021-06-164	102	DIBBS
5320-01-188-1736	2012-03-74	37	DIBBS
5320-01-188-1736	2011-04-102	37	DIBBS
5320-01-188-1736	2010-12-337	57	DIBBS
5320-01-188-1736	2010-10-294	37	DIBBS

Cross Reference | NSN 5320-01-188-1736

Part Number	Cage Code	Manufacturer
HL82-8ADW	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL82-8ADW	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL82-8ADW	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL82-8ADW	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL82-8ADW	60516	WEST COAST AEROSPACE INC
HL82-8ADW	73197	HI-SHEAR CORPORATION
HL82-8ADW	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL82-8ADW	97928	HUCK INTL INC
HL82-8ADW	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-188-1736

Compare

Related Products | NSN 5320-01-188-1736

5320-01-188-4580, 5320-01-188-4581, 5320-01-188-4829, 5320-01-188-5174, 5320-01-188-5175

Technical Data | NSN 5320-01-188-1736

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 BODY STEEL COMP 630 OR STEEL COMP 631 OR STEEL COMP 632 WASHER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE COLLAR AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5528 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5520 ASSN STD 3RD MATERIAL RESPONSE WASHER
SURFACE TREATMENT	ANODIZE COLLAR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BODY
HEAT TREATMENT	T-6 SOLUTION HEAT TREATED COLLAR H-1025 STRAIN HARDENED WASHER
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE
COLLAR OUTSIDE DIAMETER	0.465 INCHES MINIMUM AND 0.475 INCHES MAXIMUM

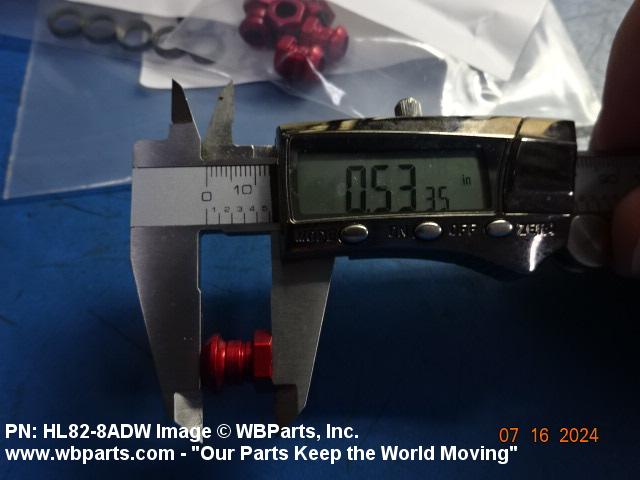

COLLAR OVERALL HEIGHT	0.570 INCHES NOMINAL
COLLAR INSIDE DIAMETER	0.270 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3B
THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP
IDENTIFICATION CODE COLOR	RED
FEATURES PROVIDED	WASHER
SPECIAL FEATURES	WASHER MATERIAL 17-7PH AND 15-7MO HEAT TREAT TO TH1050 PER MIL-H-6875; WASHER HAS SOLID FILM LUBE
