NSN 5320-01-188-7664 SP77405, SP77-405, 01-188-7664
Product Details | SOLID RIVET

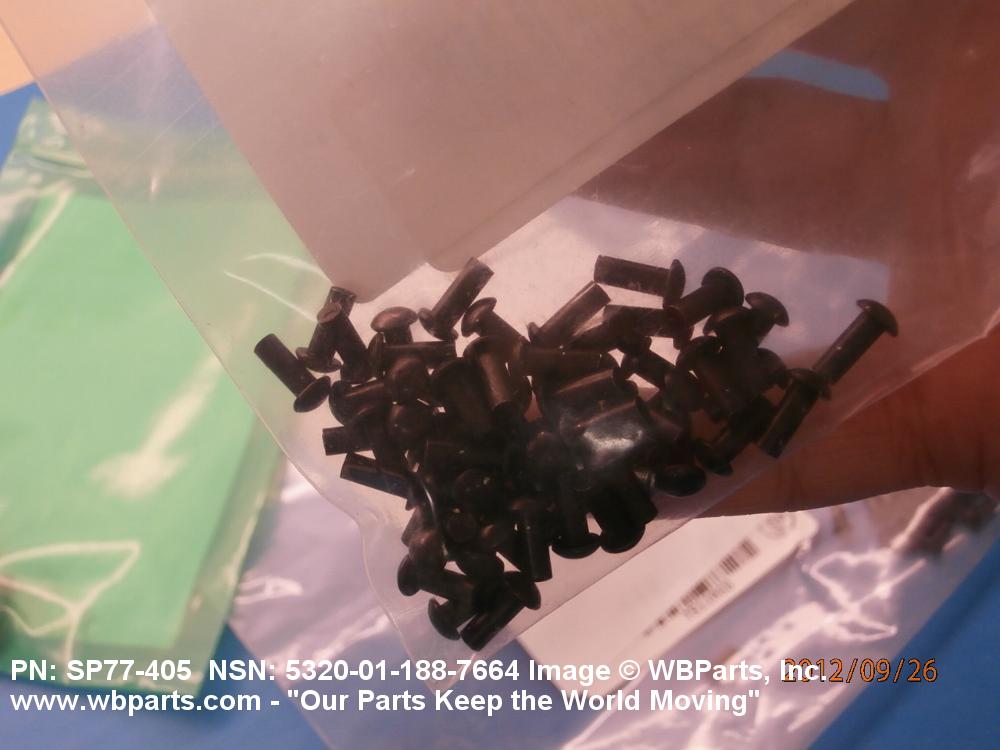

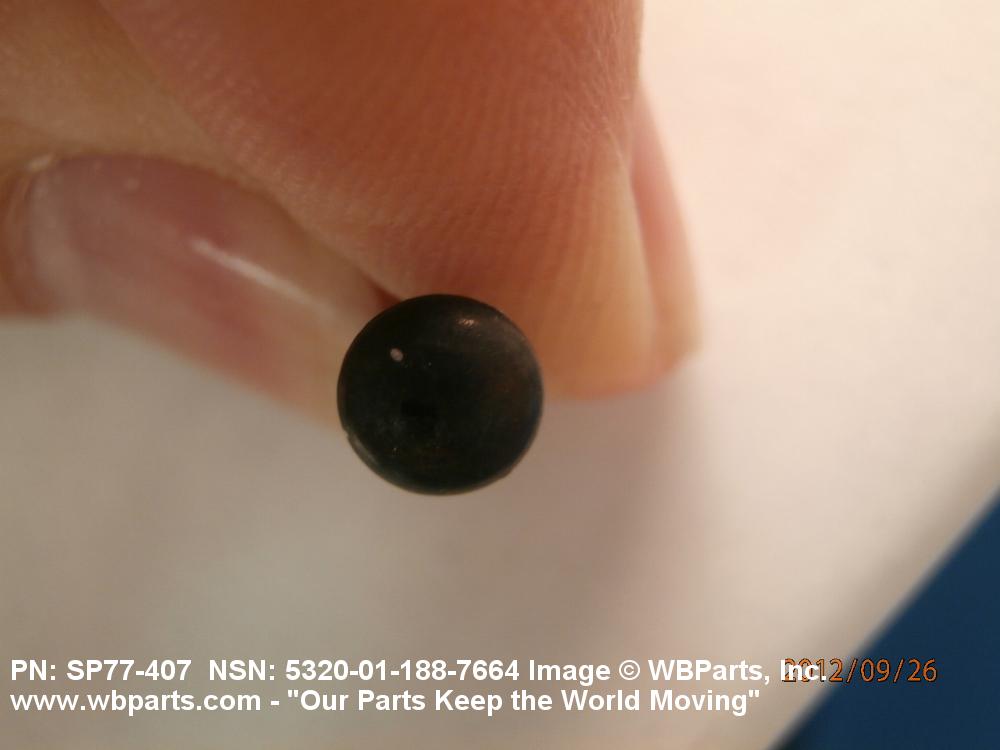

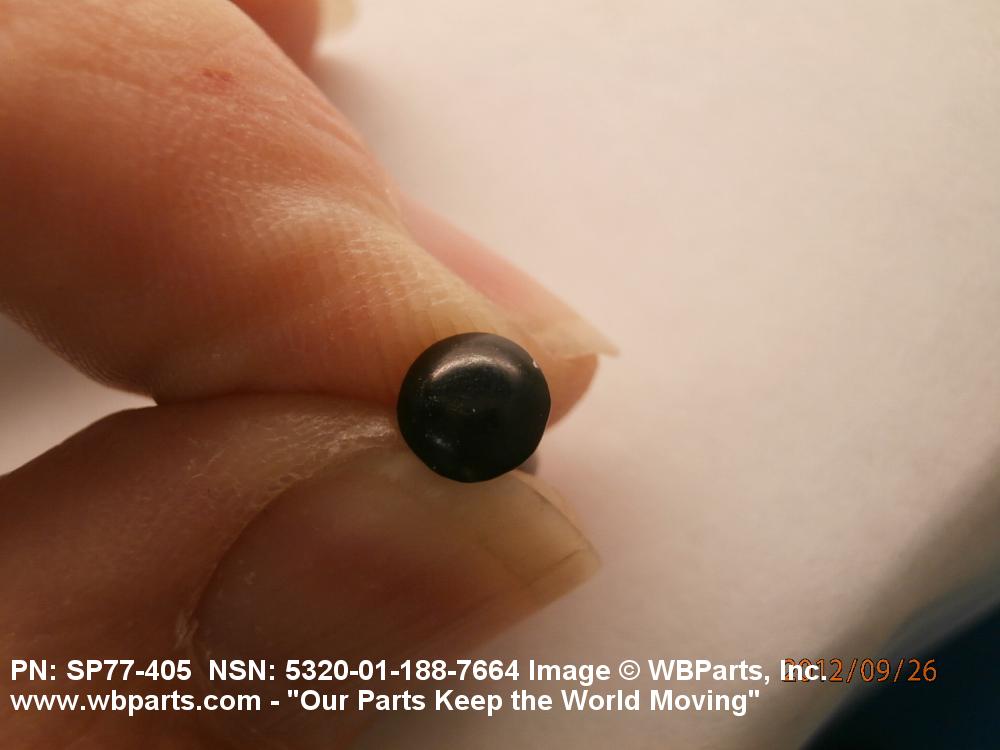

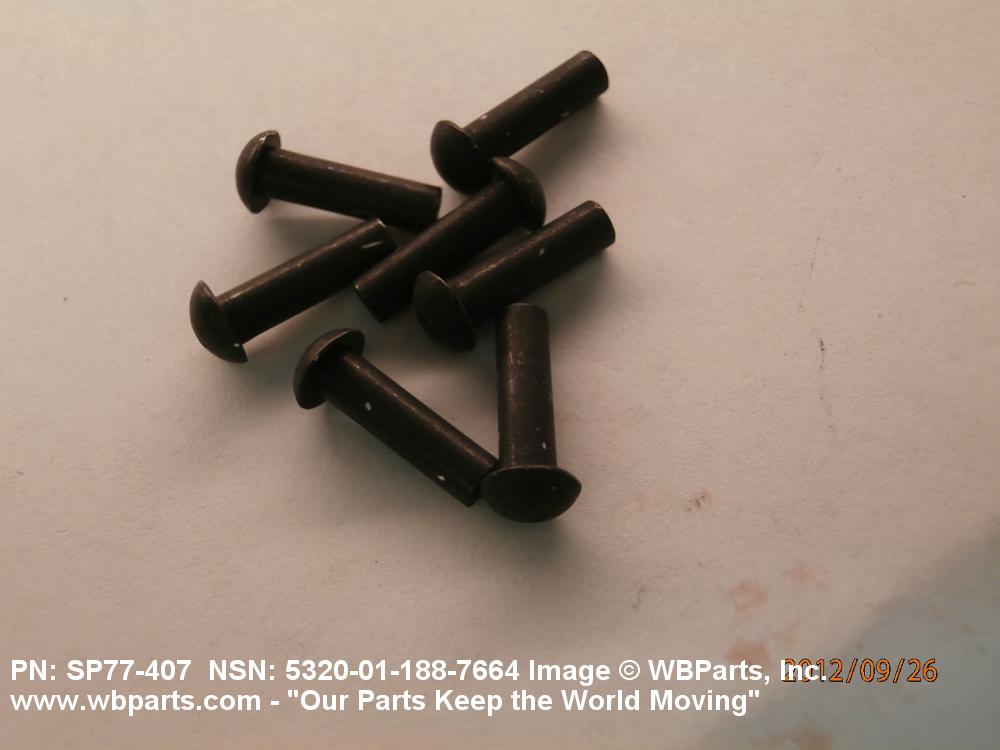

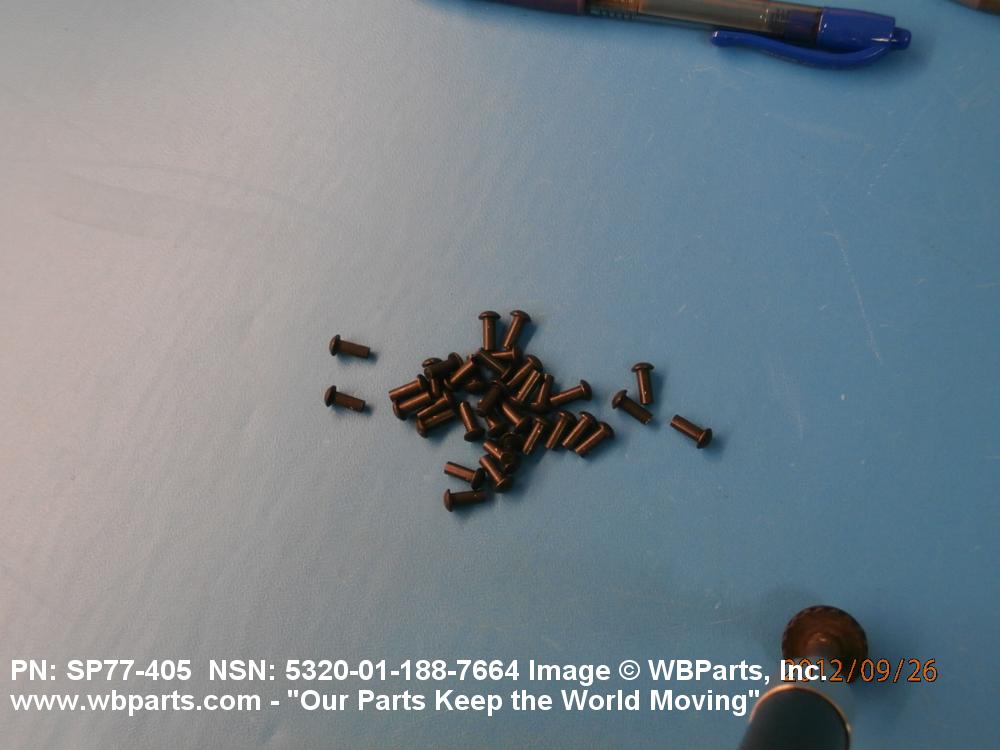

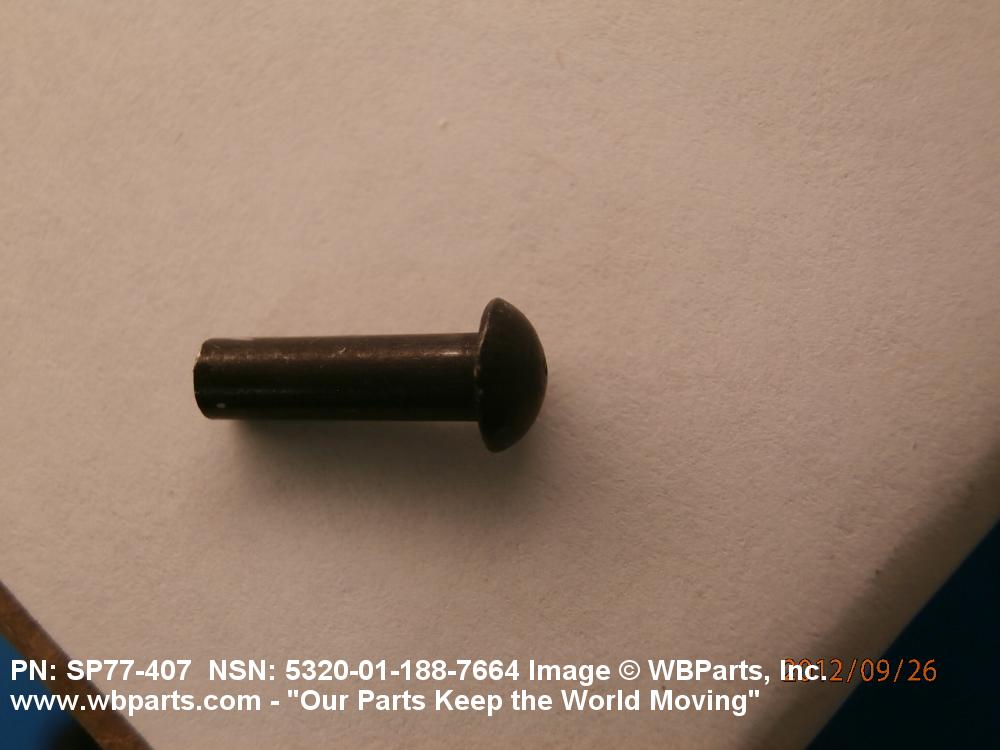

5320-01-188-7664 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: SP77405, SP77-405, 5320-01-188-7664, 01-188-7664, 5320011887664, 011887664
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 SEP 1984 | 01-188-7664 | 00861 ( RIVET, SOLID ) |

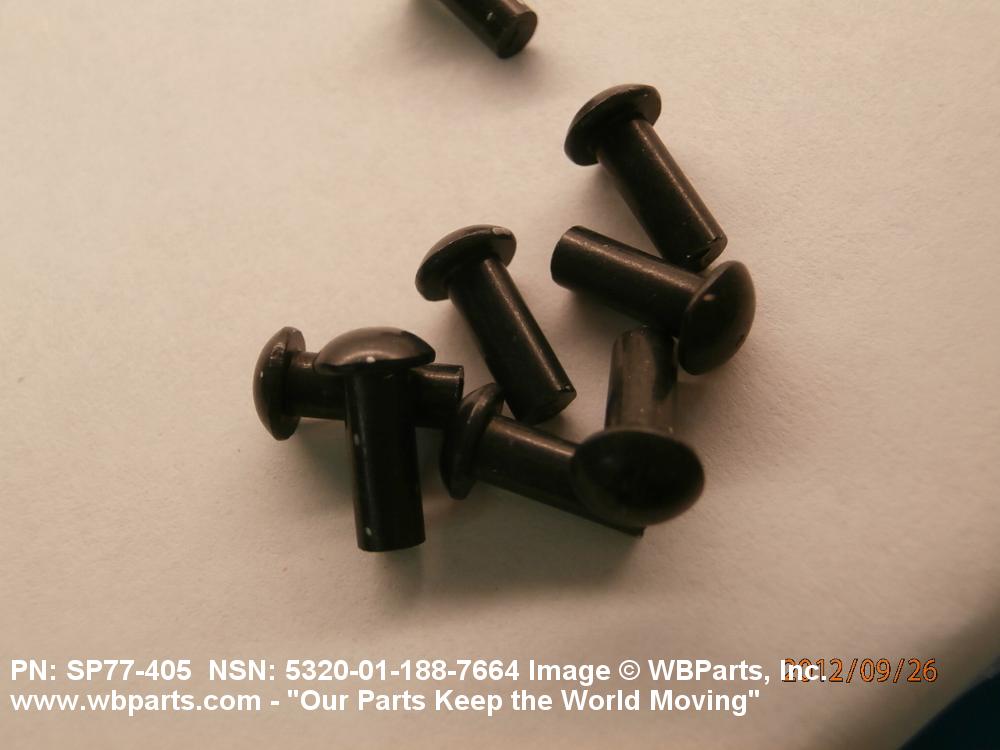

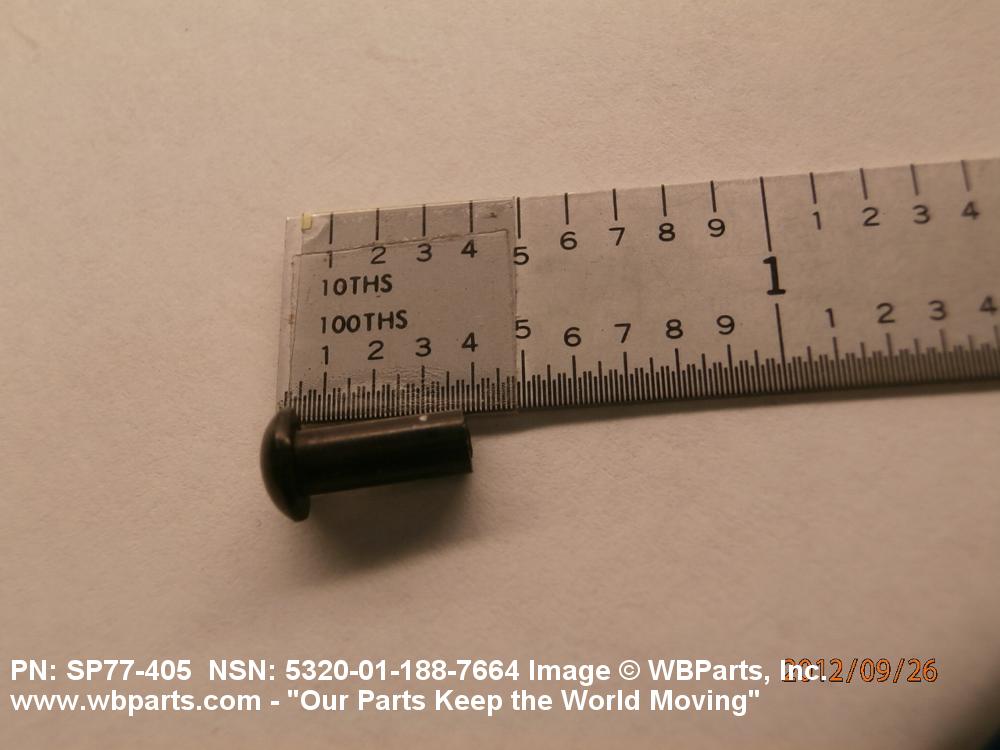

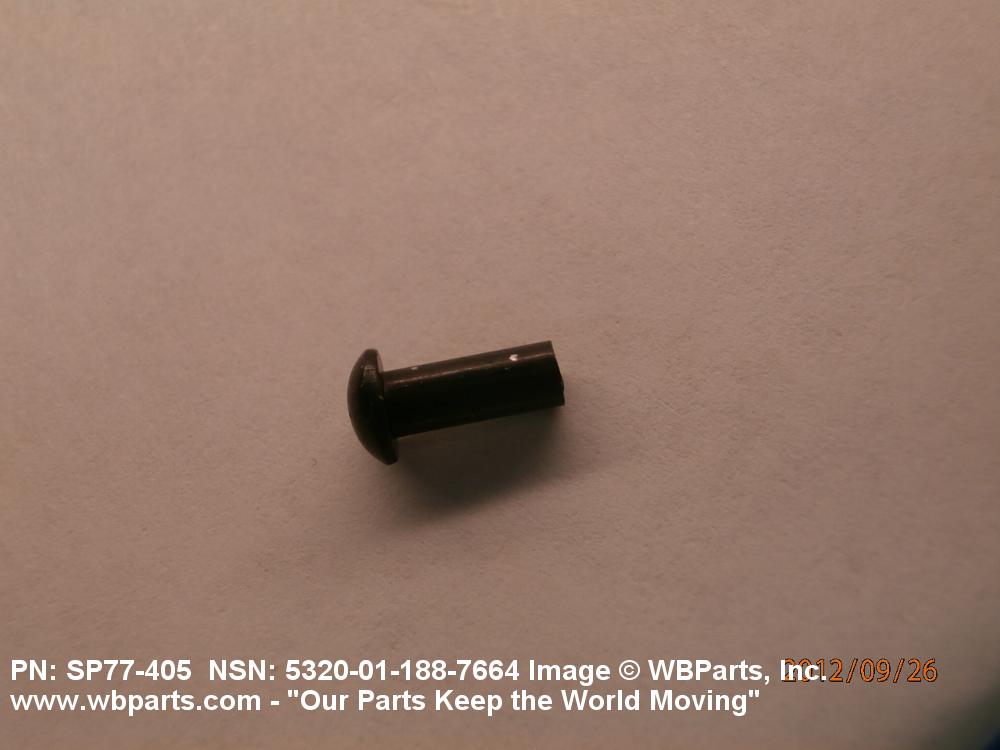

Drawings & Photos | NSN 5320-01-188-7664
Demand History | NSN 5320-01-188-7664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-188-7664 | 2017-05-151 | 25 | DIBBS |
| 5320-01-188-7664 | 2016-05-130 | 4 | DIBBS |
| 5320-01-188-7664 | 2016-05-123 | 4 | DIBBS |
| 5320-01-188-7664 | 2016-04-117 | 8 | DIBBS |
| 5320-01-188-7664 | 2016-04-116 | 14 | DIBBS |
| 5320-01-188-7664 | 2016-04-106 | 4 | DIBBS |
| 5320-01-188-7664 | 2016-04-98 | 4 | DIBBS |
| 5320-01-188-7664 | 2016-03-75 | 8 | DIBBS |
| SP77405 | 2012-07-212 | 200 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-188-7664
Related Products | NSN 5320-01-188-7664
Technical Data | NSN 5320-01-188-7664
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | L36 FSCM K7766 NATIONAL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | DEF 151 FSCM K7766 NATIONAL SPEC 1ST TREATMENT RESPONSE OR DTD 913 FSCM K7766 NATIONAL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C2 BRAZIER |
| HEAD HEIGHT | 0.071 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.210 INCHES MINIMUM AND 0.227 INCHES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| IDENTIFICATION CODE COLOR | BLACK |
Restrictions/Controls & Freight Information | NSN 5320-01-188-7664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
