NSN 5320-01-193-0247 HL5845AW, HL584-5AW, 01-193-0247

Product Details | PIN-RIVET COLLAR

5320-01-193-0247 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HL5845AW, HL584-5AW, 5320-01-193-0247, 01-193-0247, 5320011930247, 011930247

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 OCT 1984	01-193-0247	67166 ( COLLAR, PIN-RIVET )

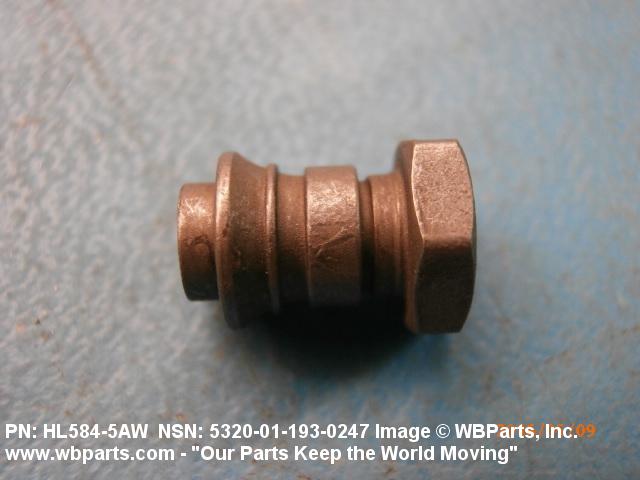

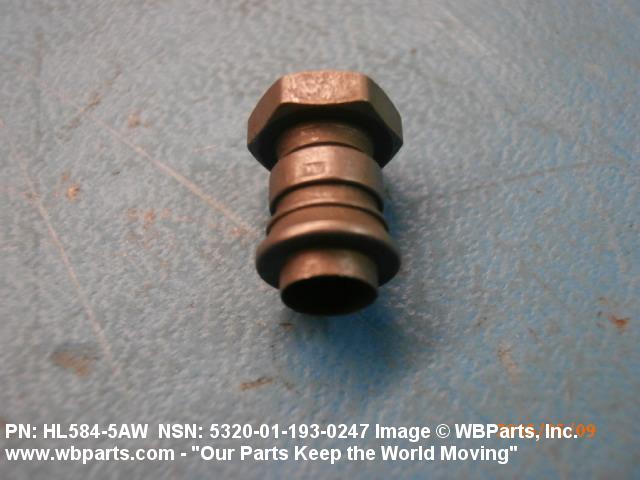

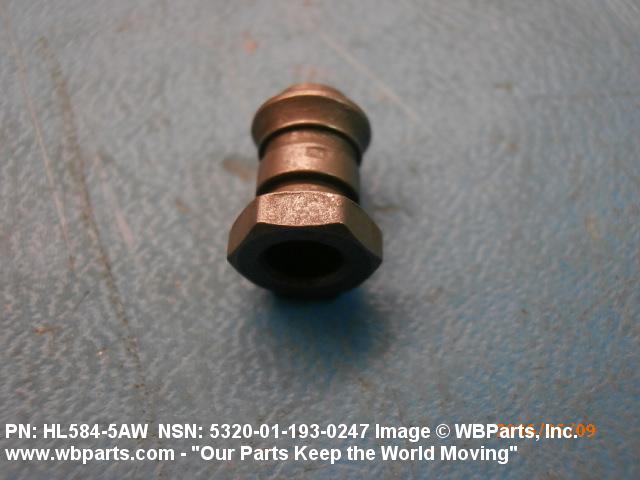

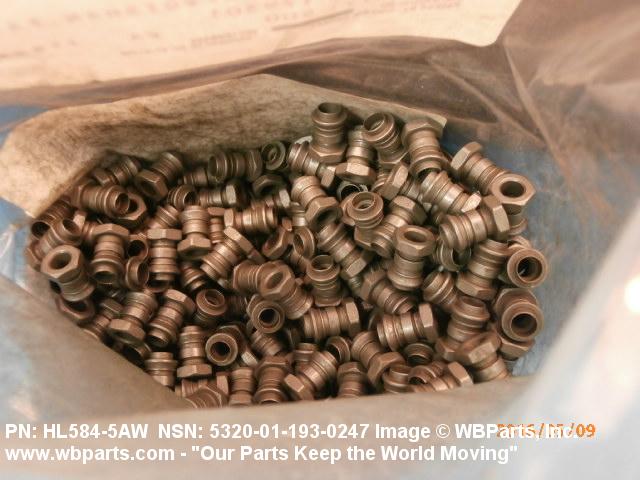

Drawings & Photos | NSN 5320-01-193-0247

Part Number	Request Date	QTY	Origin
HL584-5AW	2025-09-246	732	DIBBS
HL584-5AW	2025-07-203	115	DIBBS
5320-01-193-0247	2025-05-133	109	DIBBS
5320-01-193-0247	2016-08-236	300	DIBBS
5320-01-193-0247	2016-06-175	75	DIBBS
HL5845AW	2016-05-125	500	United States
HL5845AW	2013-12-337	116	US
5320-01-193-0247	2009-05-151	262	DIBBS
5320-01-193-0247	2009-04-104	1038	DIBBS
5320-01-193-0247	2008-10-283	750	DIBBS
5320-01-193-0247	2008-09-262	604	DIBBS
5320-01-193-0247	2008-08-224	354	DIBBS
5320-01-193-0247	2008-06-161	232	DIBBS

Cross Reference | NSN 5320-01-193-0247

Part Number	Cage Code	Manufacturer
HL584-5AW	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL584-5AW	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL584-5AW	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL584-5AW	73197	HI-SHEAR CORPORATION
HL584-5AW	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL584-5AW	97928	HUCK INTL INC
HL584-5AW	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-193-0247

Compare

Related Products | NSN 5320-01-193-0247

5320-01-193-0248, 5320-01-193-1506, 5320-01-193-1511, 5320-01-193-1512, 5320-01-193-1513

Technical Data | NSN 5320-01-193-0247

Characteristic	Specifications
MATERIAL	STEEL COMP 303SE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5640 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE

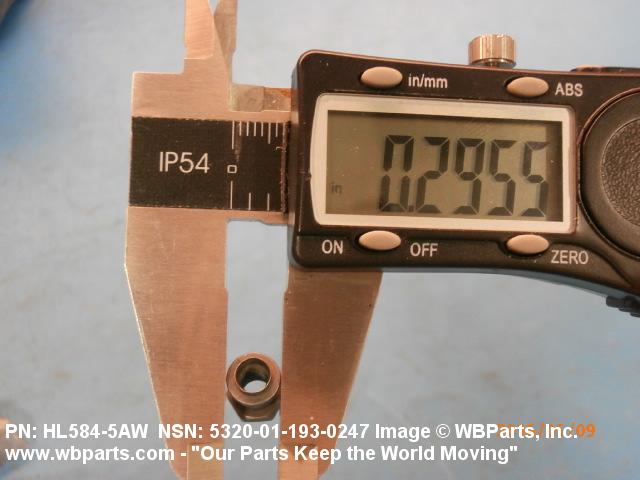

COLLAR OUTSIDE DIAMETER	0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM
COLLAR OVERALL HEIGHT	0.505 INCHES MINIMUM AND 0.535 INCHES MAXIMUM

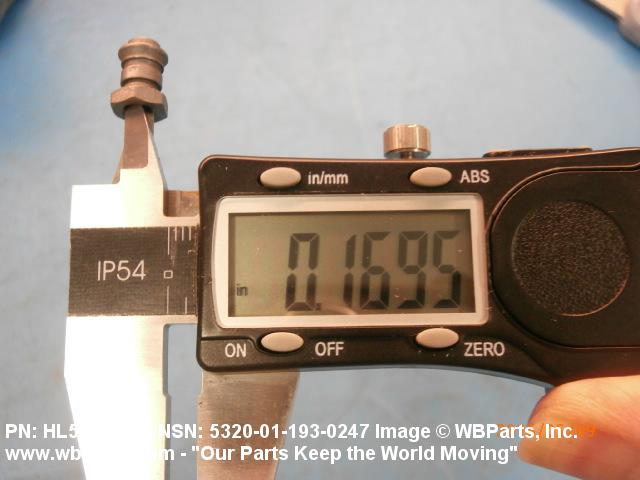

COLLAR INSIDE DIAMETER	0.167 INCHES MINIMUM AND 0.172 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD CLASS	3B
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	SOLID FILM
FEATURES PROVIDED	WASHER

Restrictions/Controls & Freight Information | NSN 5320-01-193-0247

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-193-0247

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
