NSN 5320-01-194-3041 MS14218AD58, MS14218AD5-8, ST3M748AD58
Product Details | SOLID RIVET
5320-01-194-3041 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS14218AD58, MS14218AD5-8, ST3M748AD58, ST3M748AD5-8, BRFS5AD8, BRFZ5AD8, 10112120 , 5320-01-194-3041, 01-194-3041, 5320011943041, 011943041
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 NOV 1984 | 01-194-3041 | 00861 ( RIVET, SOLID ) |

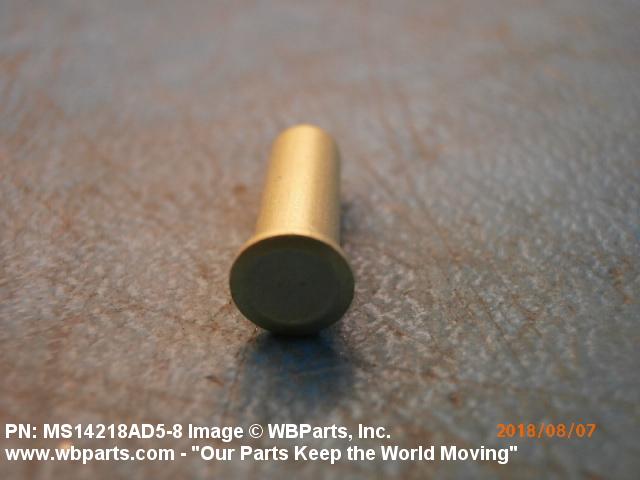

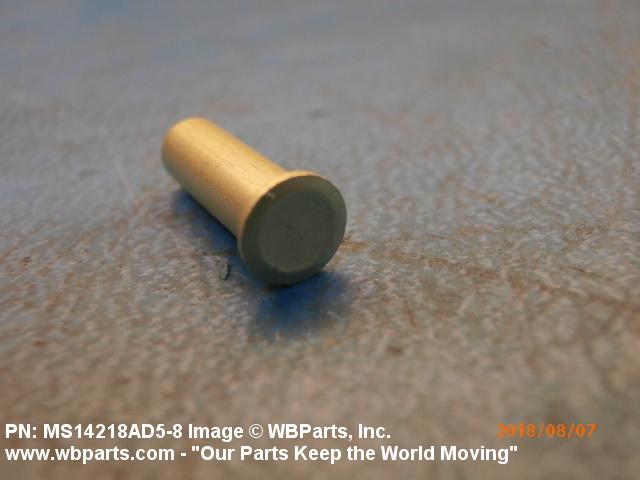

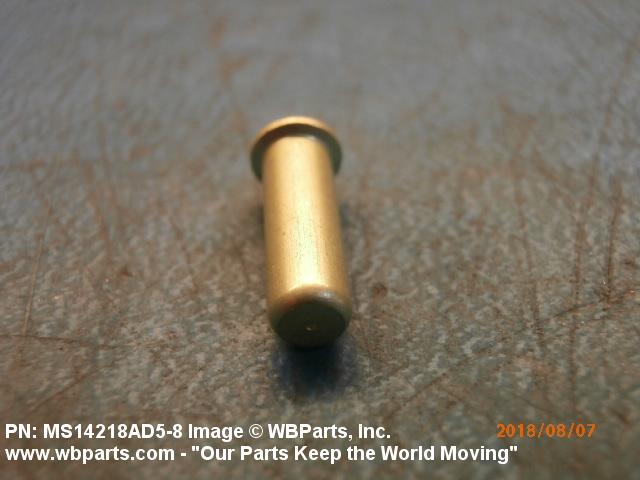

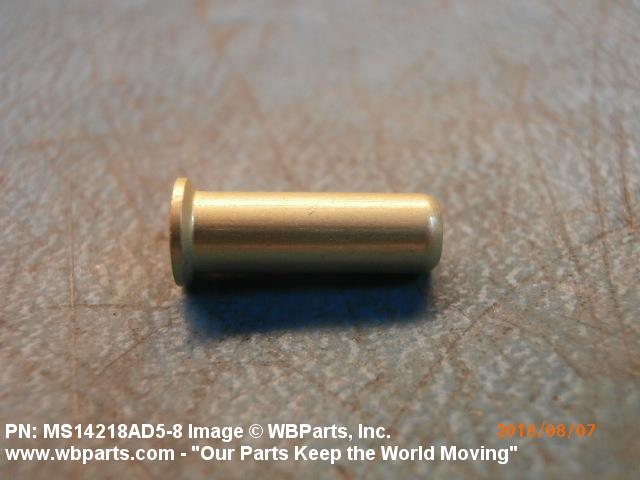

Drawings & Photos | NSN 5320-01-194-3041
Demand History | NSN 5320-01-194-3041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-194-3041 | 2019-01-07 | 15988 | DIBBS |
| 5320-01-194-3041 | 2018-12-364 | 15988 | DIBBS |
| ST3M748AD58 | 2018-07-206 | 5 | Australia |
| ST3M748AD58 | 2018-03-75 | 5 | Australia |
| 5320-01-194-3041 | 2016-11-319 | 10196 | DIBBS |
| 5320-01-194-3041 | 2012-11-318 | 5129 | DIBBS |
| 5320-01-194-3041 | 2010-05-140 | 5435 | DIBBS |
| 5320-01-194-3041 | 2009-01-20 | 7440 | DIBBS |
Cross Reference | NSN 5320-01-194-3041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BRFS5AD8 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| BRFS5AD8 | 55580 | BRILES RIVET CORP |
| BRFS5AD8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BRFZ5AD8 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| MS14218AD5-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ST3M748AD5-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-194-3041
Related Products | NSN 5320-01-194-3041
Technical Data | NSN 5320-01-194-3041
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C7 COUNTERSUNK WITH REVERSE CHAMFER |

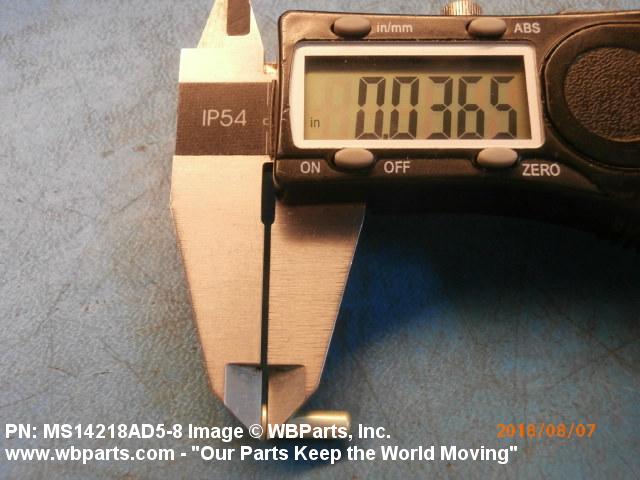

| HEAD HEIGHT | 0.034 INCHES MINIMUM AND 0.039 INCHES MAXIMUM |

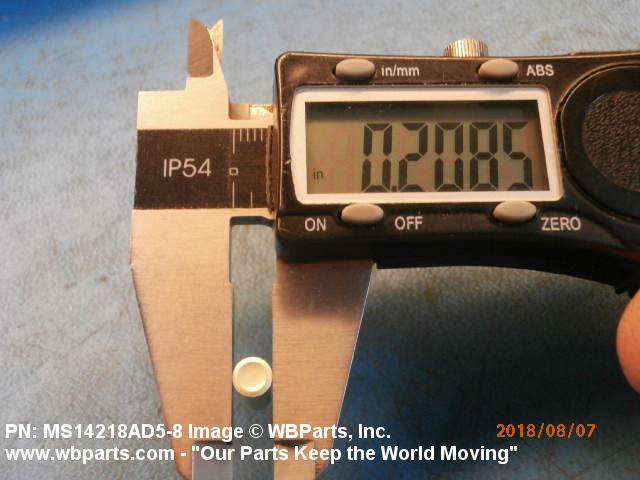

| HEAD MAJOR DIAMETER | 0.210 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 119.5 DEGREES MINIMUM AND 120.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

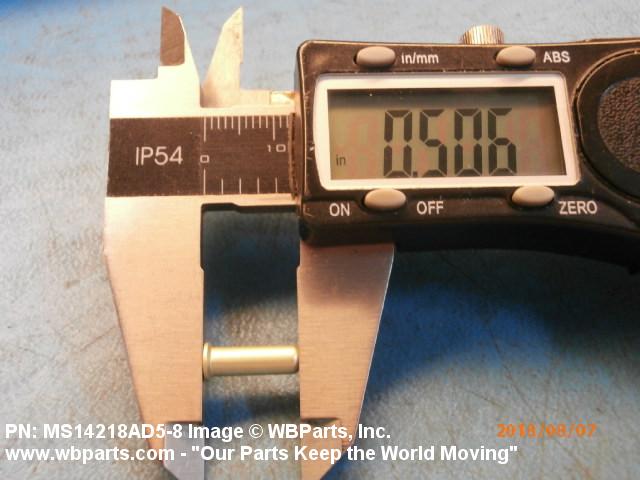

| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

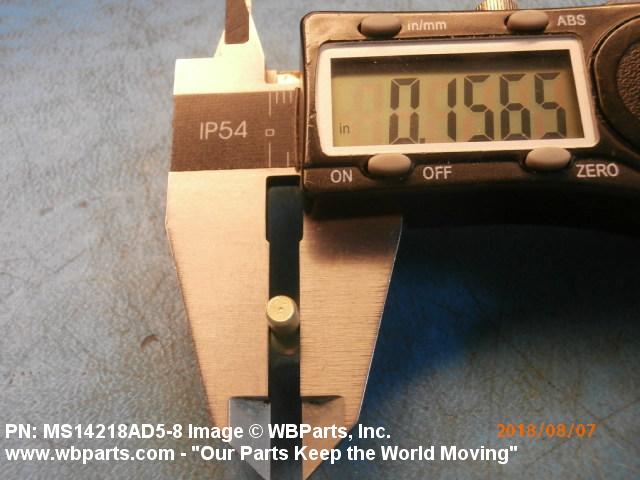

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
