NSN 5320-01-229-8182 MS1653631, MS16536-31, MS20426T46
Product Details | TUBULAR RIVET
5320-01-229-8182 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: MS1653631, MS16536-31, MS20426T46, MS20426T4-6 , AF272T46, AF272T-4-6 , AIC50746, AIC507-4-6 , ARM2008T46, ARM2008T4-6 , CSR902B46, CSR902B-4-6 , SCR3146, SC-R31-4-6 , ST3M71843, ST3M718-4-3 , ST3M71846, ST3M718-4-6 , GHN10001142, GHN10001-142 , 03A08846, 03A088-4-6 , 10112220 , 71R20846, 71R208-4-6 , 5320-01-229-8182, 01-229-8182, 5320012298182, 012298182
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1986 | 01-229-8182 | 00863 ( RIVET, TUBULAR ) |

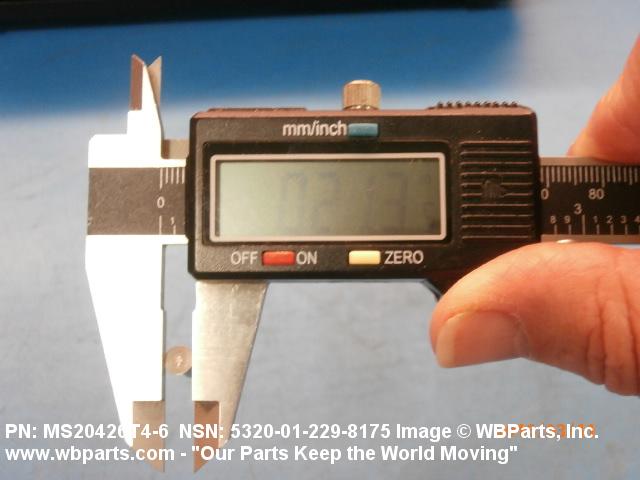

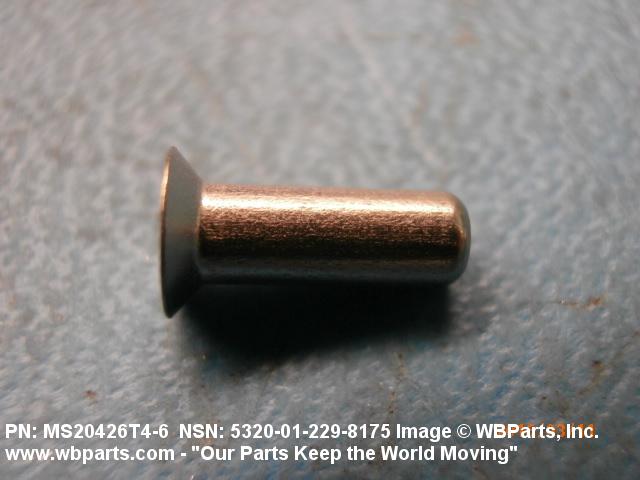

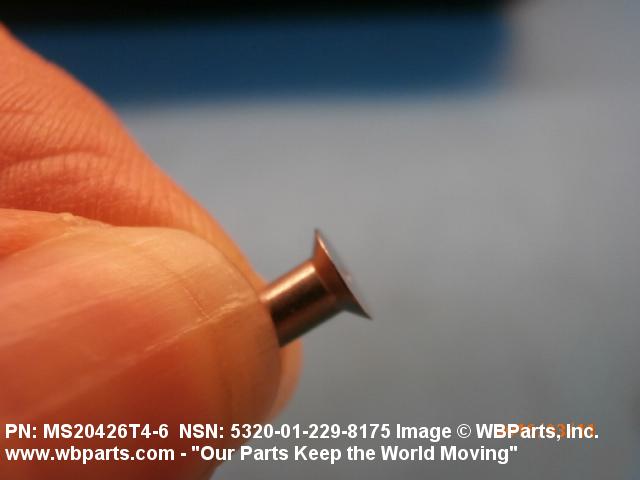

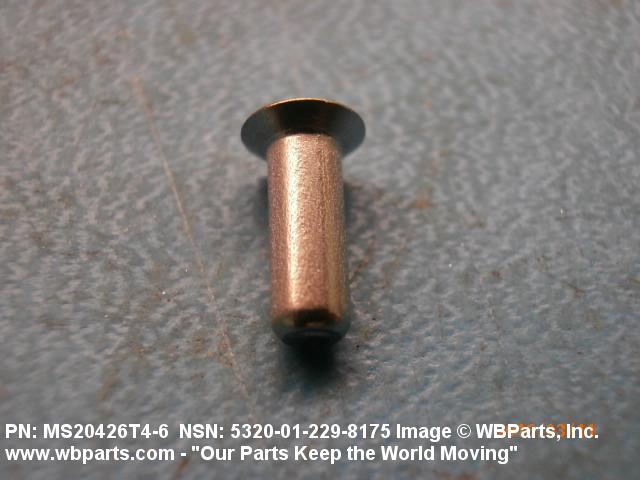

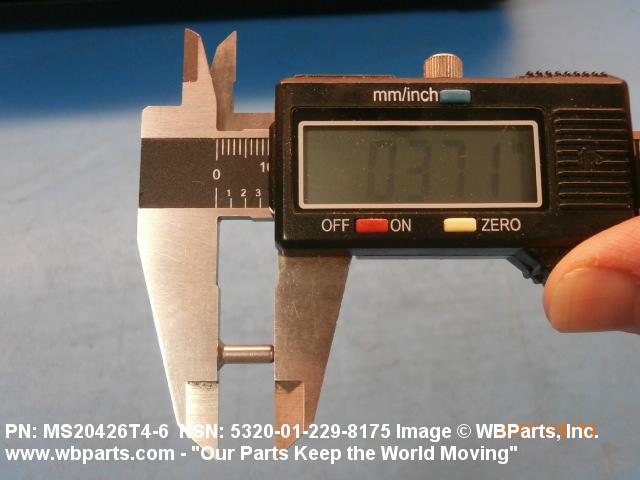

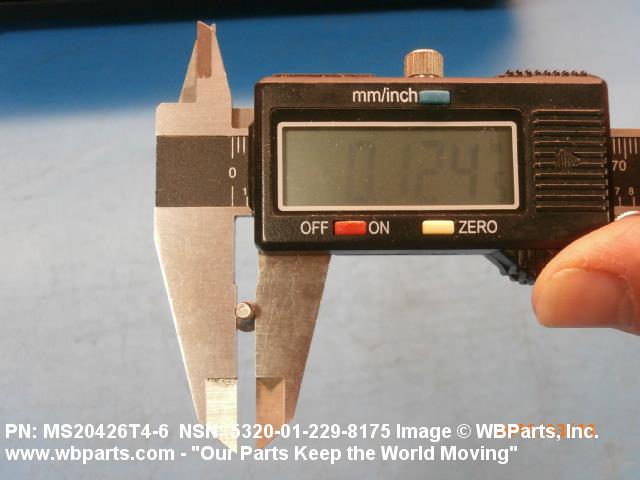

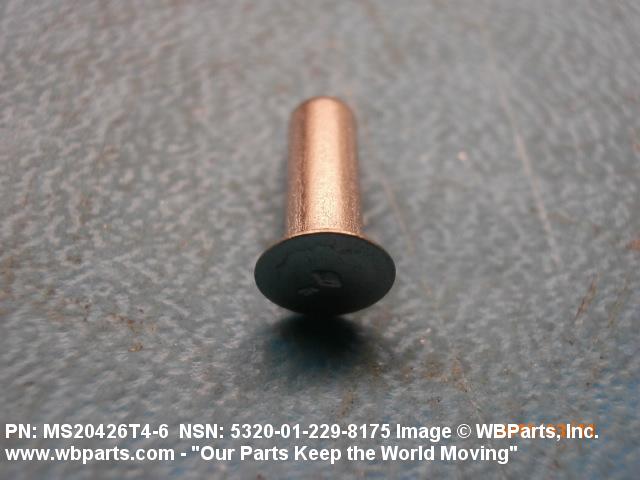

Drawings & Photos | NSN 5320-01-229-8182
Demand History | NSN 5320-01-229-8182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426T46 | 2025-06-164 | 16 | United States |
| MS20426T46 | 2021-08-238 | 216 | us |
| 5320-01-229-8182 | 2018-08-232 | 189 | DIBBS |
| MS20426T46 | 2016-03-68 | 100 | Austria |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-229-8182
Related Products | NSN 5320-01-229-8182
Technical Data | NSN 5320-01-229-8182
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 26000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C7 COUNTERSUNK WITH REVERSE CHAMFER |
| HEAD HEIGHT | 0.030 INCHES MINIMUM AND 0.038 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 148.0 DEGREES MINIMUM AND 150.0 DEGREES MAXIMUM |
| SHANK STYLE | D6 TUBULAR |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| HOLE DIAMETER | 0.084 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| SHANK DIAMETER | 0.118 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
| HOLE DEPTH | 0.074 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| SPECIAL FEATURES | OPTIONAL TAPERED HOLE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16536-31 |
Restrictions/Controls & Freight Information | NSN 5320-01-229-8182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-229-8182
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
