NSN 5320-01-243-0789 MS20426T34, MS20426T3-4, AF272T34

Product Details | SOLID RIVET

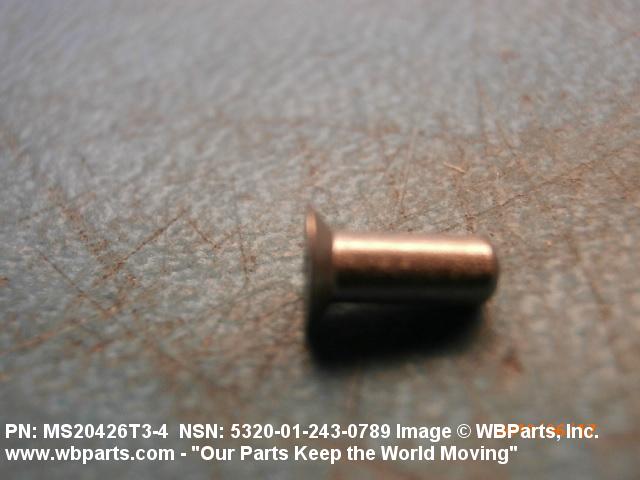

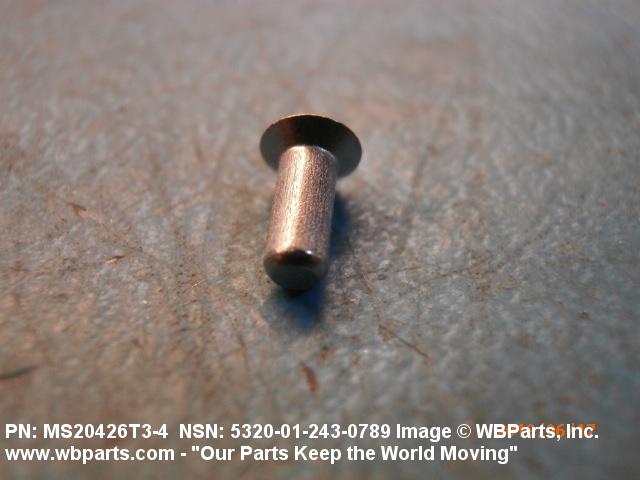

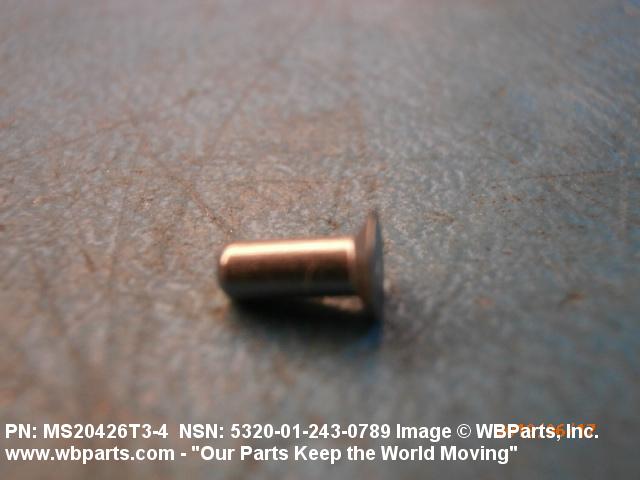

5320-01-243-0789 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20426T34, MS20426T3-4, AF272T34, AF272T-3-4, AIC50734, AIC507-3-4, ARM2008T34, ARM2008T3-4, CSR902B34, CSR902B-3-4, SCR3134, SC-R31-3-4, ST3M71834, ST3M718-3-4, 03A08834, 03A088-3-4, 10112306 , 71R20834, 71R208-3-4, 5320-01-243-0789, 01-243-0789, 5320012430789, 012430789

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 OCT 1986	01-243-0789	00861 ( RIVET, SOLID )

Drawings & Photos | NSN 5320-01-243-0789

Part Number	Request Date	QTY	Origin
MS20426T34	2025-10-280	500	United States
MS20426T34	2025-10-280	1000	United States
MS20426T34	2025-07-204	16	United States
5320-01-243-0789	2025-01-17	100	US
5320-01-243-0789	2024-03-71	6943	DIBBS
5320-01-243-0789	2024-03-63	6943	DIBBS
MS20426T34	2019-06-162	100	United States
5320-01-243-0789	2018-11-316	5218	DIBBS
MS20426T3-4	2015-12-341	320	Spain
5320-01-243-0789	2015-11-321	15000	DIBBS
5320-01-243-0789	2015-11-307	15000	DIBBS
5320-01-243-0789	2015-10-292	8219	DIBBS
5320-01-243-0789	2015-10-281	8219	DIBBS
5320-01-243-0789	2015-10-277	8204	DIBBS
5320-01-243-0789	2015-06-166	8677	us
5320-01-243-0789	2015-06-153	8677	DIBBS
5320-01-243-0789	2015-05-126	760	Spain
MS20426T34	2014-11-329	450	Spain
MS20426T34	2014-09-252	100	United States
CSR902B34	2014-04-101	500	DE
MS20426T34	2013-12-345	60	US
MS20426T34	2012-09-246	1000	US
5320-01-243-0789	2010-12-344	2000	US
MS20426T34	2010-09-265	100	United States
MS20426T34	2009-05-124	36	US
71R20834	2008-11-308	50	US
71R20834	2008-10-303	1000	Belgium
ST3M71834	2007-11-311	10	US

Cross Reference | NSN 5320-01-243-0789

Part Number	Cage Code	Manufacturer
03A088-3-4	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
71R208-3-4	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
AF272T-3-4	53551	ALLFAST FASTENING SYSTEMS, LLC
AIC507-3-4	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
ARM2008T3-4	64728	AEROSPACE RIVET MFRS CORP
CSR902B-3-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MS20426T3-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20426T3-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SC-R31-3-4	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
ST3M718-3-4	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-243-0789

Compare

Related Products | NSN 5320-01-243-0789

5320-01-243-0790, 5320-01-243-0791, 5320-01-243-0792, 5320-01-243-0793, 5320-01-243-0794

Technical Data | NSN 5320-01-243-0789

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R58450 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4982 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HEAT TREATMENT	ANNEALED OVERALL
SHEAR STRENGTH	50000 SINGLE POUNDS PER SQUARE INCH

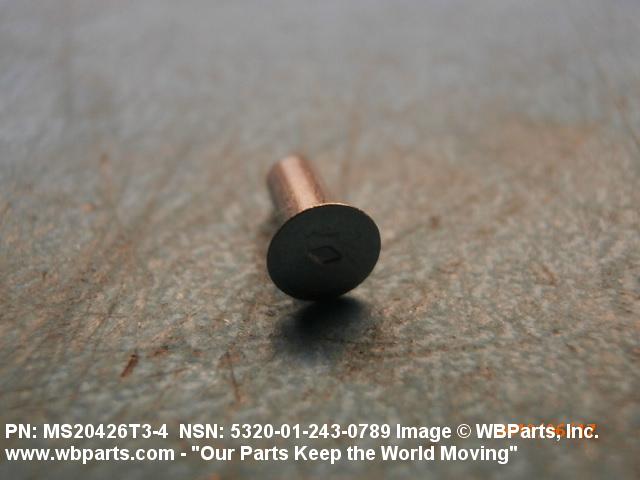

HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

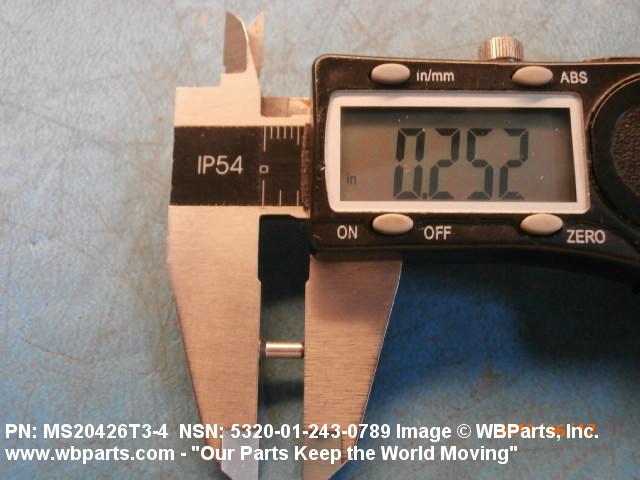

FASTENER LENGTH	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM

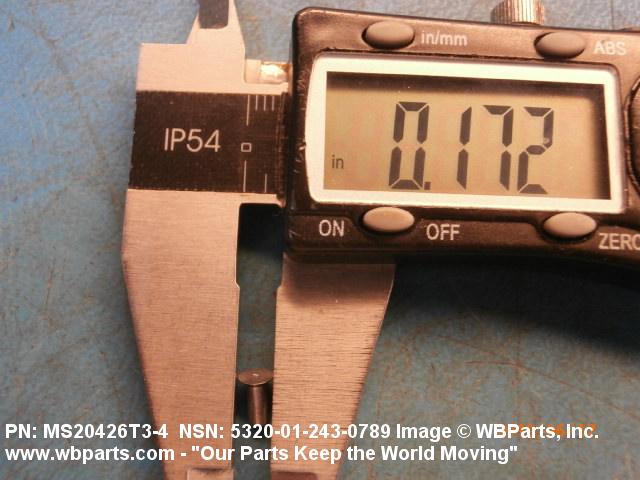

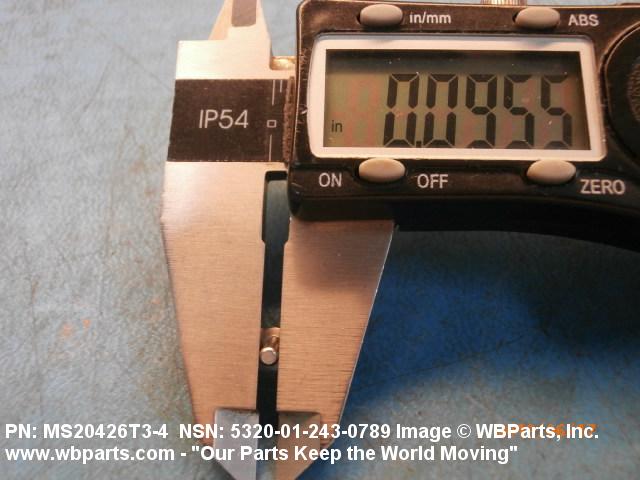

SHANK DIAMETER	0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
