NSN 5320-01-295-5113 HL97TFW14, HL97TFW-14, 01-295-5113
Product Details | PIN-RIVET COLLAR

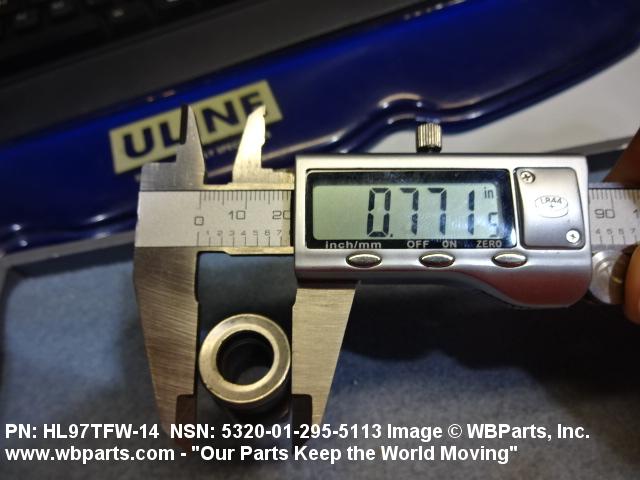

5320-01-295-5113 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL97TFW14, HL97TFW-14, 5320-01-295-5113, 01-295-5113, 5320012955113, 012955113
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1989 | 01-295-5113 | 67166 ( COLLAR, PIN-RIVET ) |

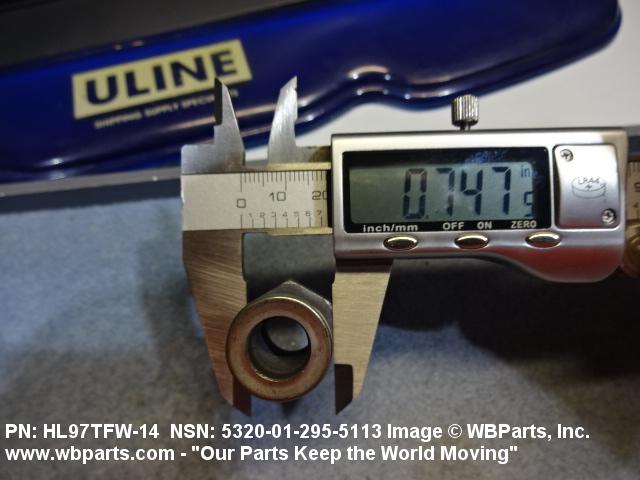

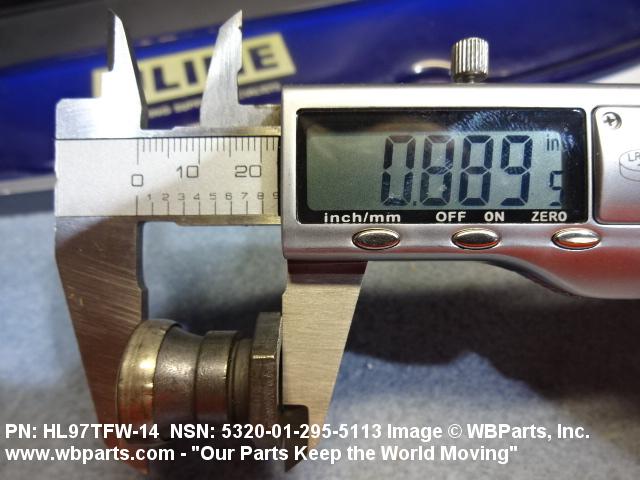

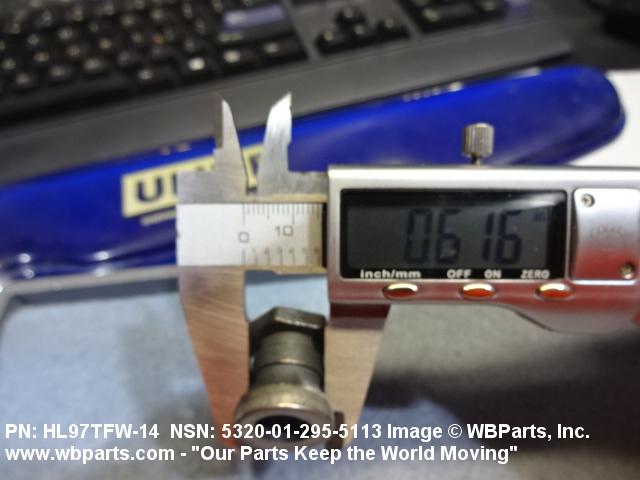

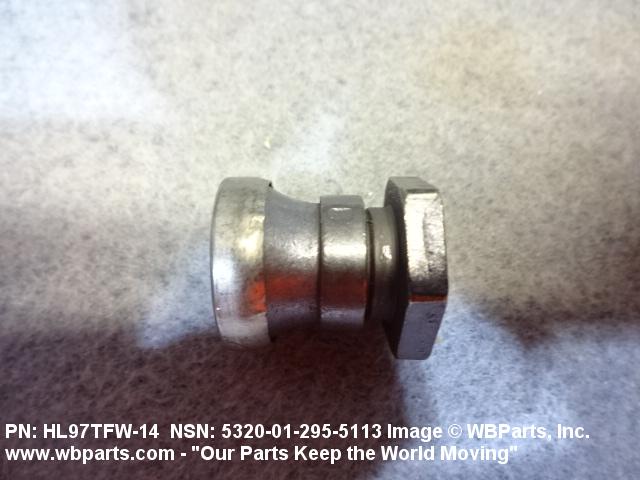

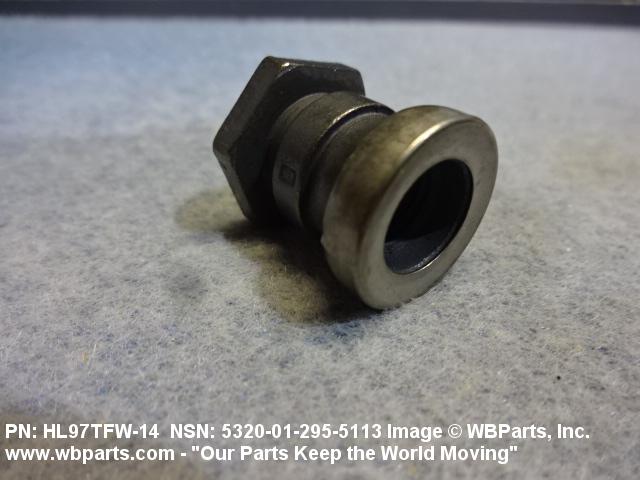

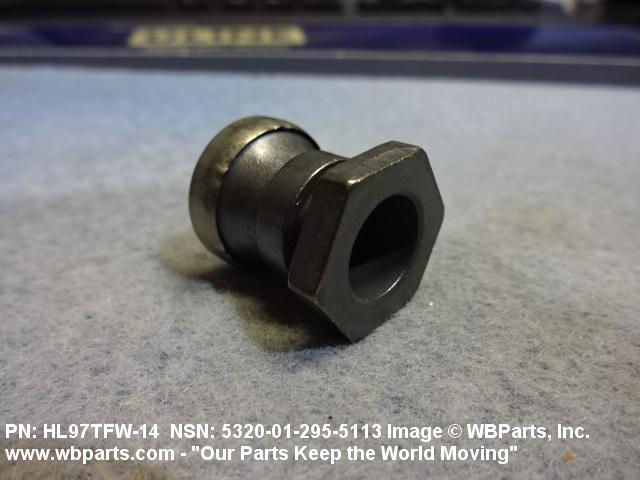

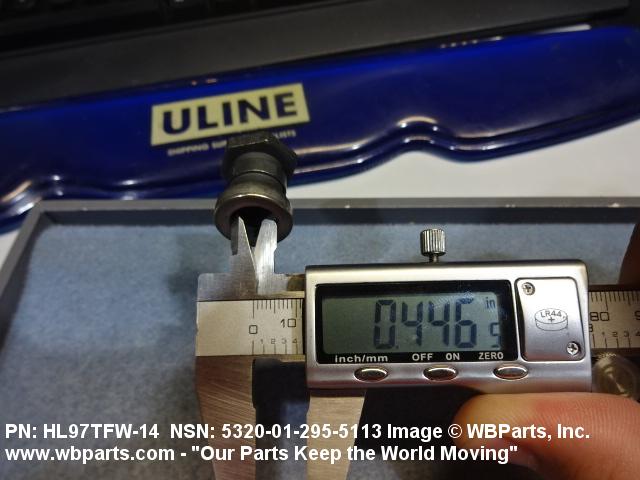

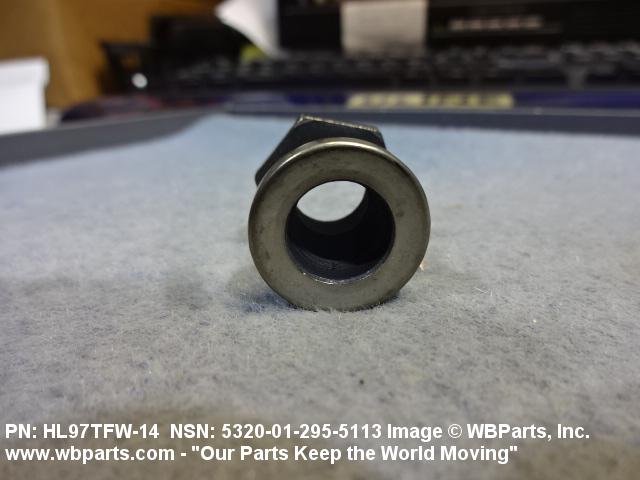

Drawings & Photos | NSN 5320-01-295-5113
Demand History | NSN 5320-01-295-5113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL97TFW-14 | 2025-06-161 | 968 | DIBBS |
| HL97TFW-14 | 2025-01-14 | 32 | DIBBS |
| HL97TFW-14 | 2024-01-25 | 110 | DIBBS |
| HL97TFW-14 | 2022-04-94 | 100 | DIBBS |
| HL97TFW-14 | 2022-03-82 | 100 | DIBBS |
| 5320-01-295-5113 | 2018-11-310 | 95 | United States |
| 5320-01-295-5113 | 2018-10-276 | 95 | DIBBS |
| 5320-01-295-5113 | 2017-02-33 | 95 | DIBBS |
| 5320-01-295-5113 | 2013-07-200 | 100 | DIBBS |
| 5320-01-295-5113 | 2011-08-231 | 13 | DIBBS |
Cross Reference | NSN 5320-01-295-5113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL97TFW-14 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL97TFW-14 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97TFW-14 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL97TFW-14 | 60516 | WEST COAST AEROSPACE INC |
| HL97TFW-14 | 73197 | HI-SHEAR CORPORATION |
| HL97TFW-14 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97TFW-14 | 97928 | HUCK INTL INC |
| HL97TFW-14 | L4528 | LISI AEROSPACE CANADA CORP |
