NSN 5320-01-305-5542 HL97TFW6, HL97TFW-6, 01-305-5542
Product Details | PIN-RIVET COLLAR
5320-01-305-5542 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL97TFW6, HL97TFW-6, 5320-01-305-5542, 01-305-5542, 5320013055542, 013055542
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1989 | 01-305-5542 | 67166 ( COLLAR, PIN-RIVET ) |

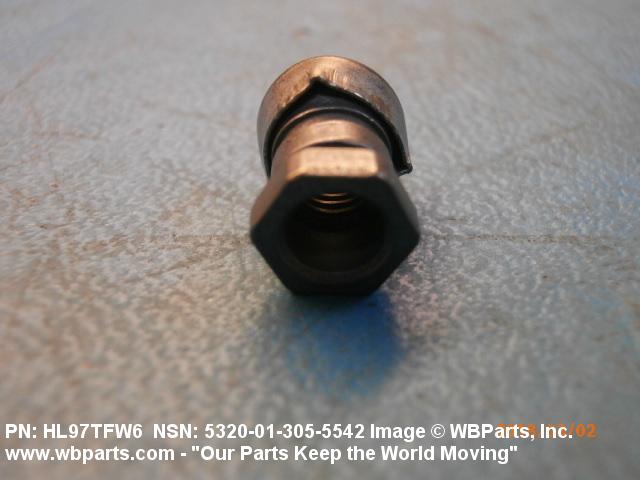

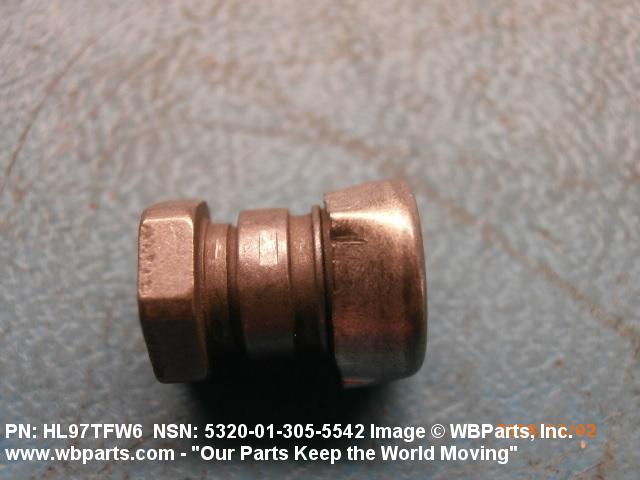

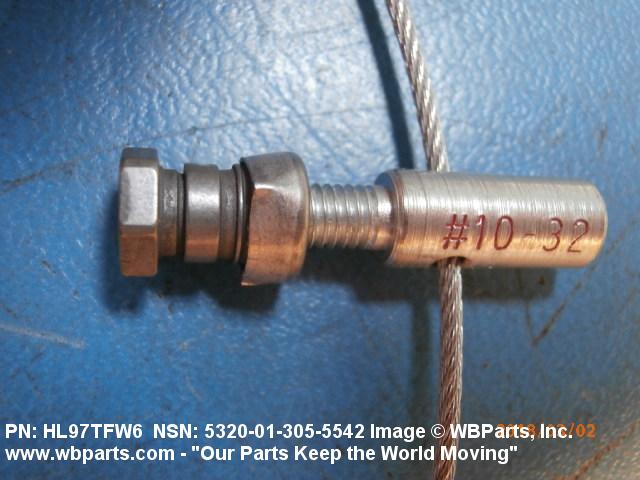

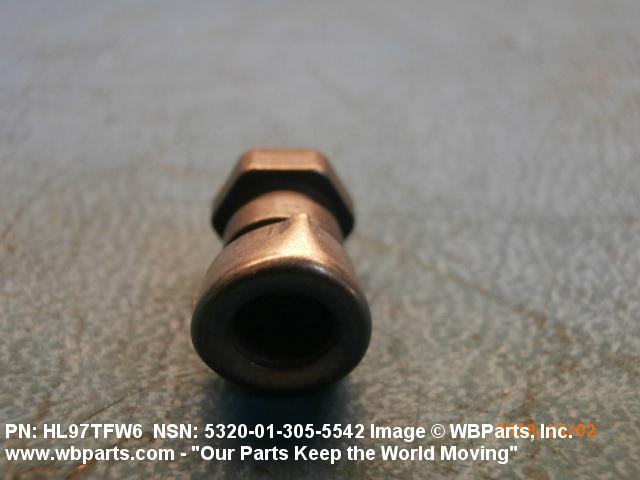

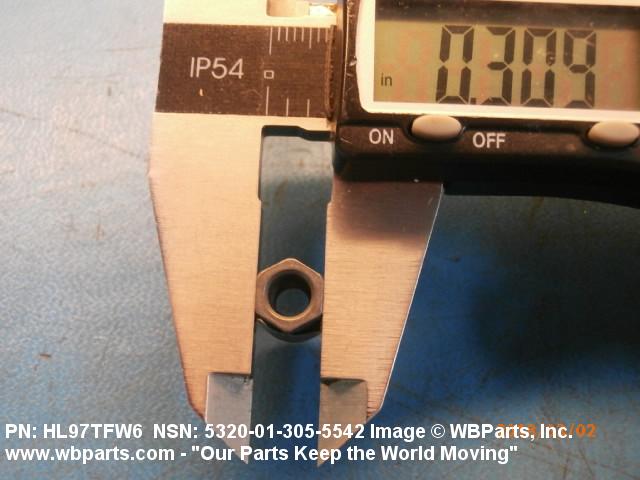

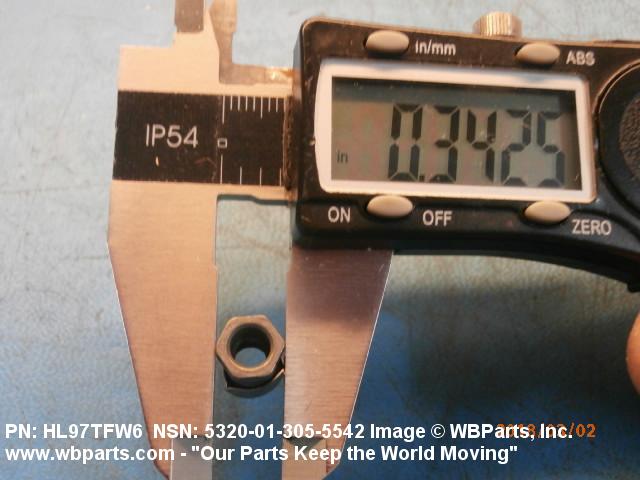

Drawings & Photos | NSN 5320-01-305-5542
Demand History | NSN 5320-01-305-5542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-305-5542 | 2019-10-294 | 48 | United States |
| 5320-01-305-5542 | 2018-07-206 | 45 | US |
| 5320-01-305-5542 | 2018-02-33 | 48 | United States |
| 5320-01-305-5542 | 2017-05-124 | 102 | DIBBS |
Cross Reference | NSN 5320-01-305-5542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL97TFW-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL97TFW-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97TFW-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL97TFW-6 | 60516 | WEST COAST AEROSPACE INC |
| HL97TFW-6 | 73197 | HI-SHEAR CORPORATION |
| HL97TFW-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL97TFW-6 | 97928 | HUCK INTL INC |
| HL97TFW-6 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-305-5542
Related Products | NSN 5320-01-305-5542
Technical Data | NSN 5320-01-305-5542
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 BODY STEEL COMP 301 OR STEEL COMP 302B OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303 PLUS CB OR STEEL COMP 303 PLUS X OR STEEL COMP 303F OR STEEL COMP 303F PLUS CB OR STEEL COMP 303S OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 323 OR STEEL COMP 324 OR STEEL COMP 325 OR STEEL COMP 330 OR STEEL COMP 330A OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 WASHER |
| SURFACE TREATMENT | PASSIVATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | HI-SHEAR SPEC. 258,CAGEC 73197 MFR REF SINGLE TREATMENT RESPONSE WASHER |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

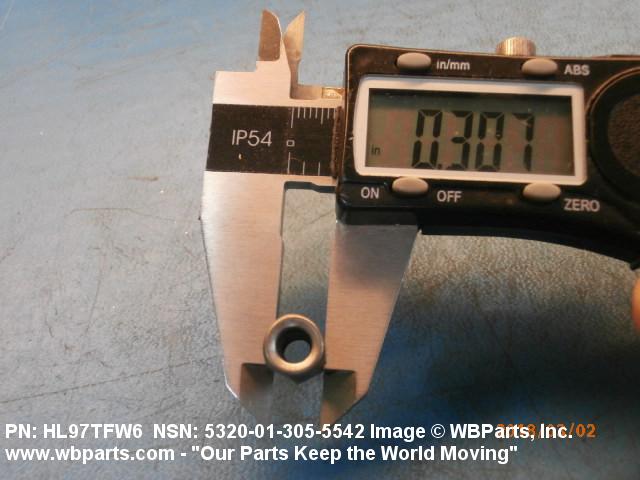

| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |

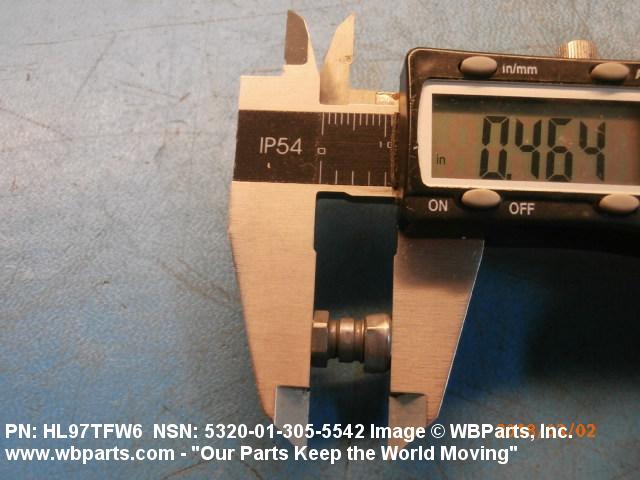

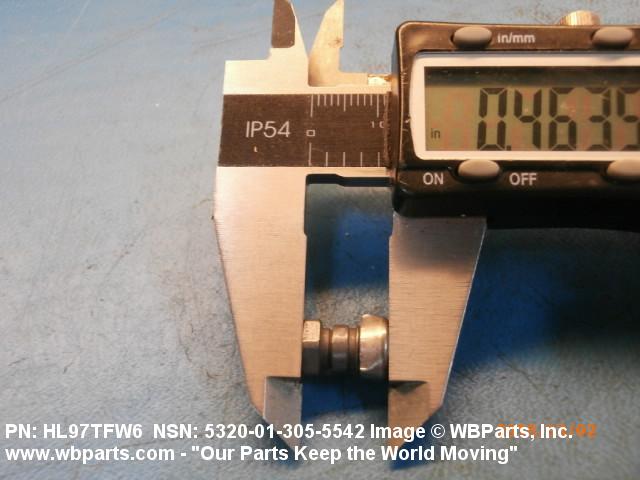

| COLLAR OVERALL HEIGHT | 0.437 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |

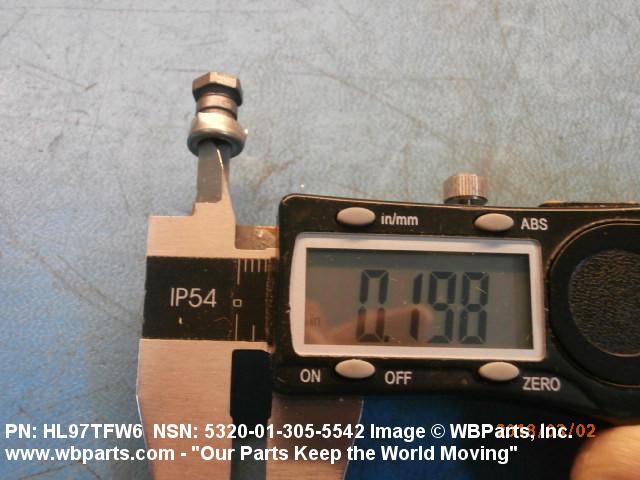

| COLLAR INSIDE DIAMETER | 0.195 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | SOLID FILM |
| FEATURES PROVIDED | WASHER |
Restrictions/Controls & Freight Information | NSN 5320-01-305-5542
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-305-5542
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
