NSN 5320-01-311-2513 MS20470E56A, MS20470E5-6A, 10118855
Product Details | SOLID RIVET
5320-01-311-2513 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470E56A, MS20470E5-6A, 10118855 , 5320-01-311-2513, 01-311-2513, 5320013112513, 013112513
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 NOV 1989 | 01-311-2513 | 00861 ( RIVET, SOLID ) |

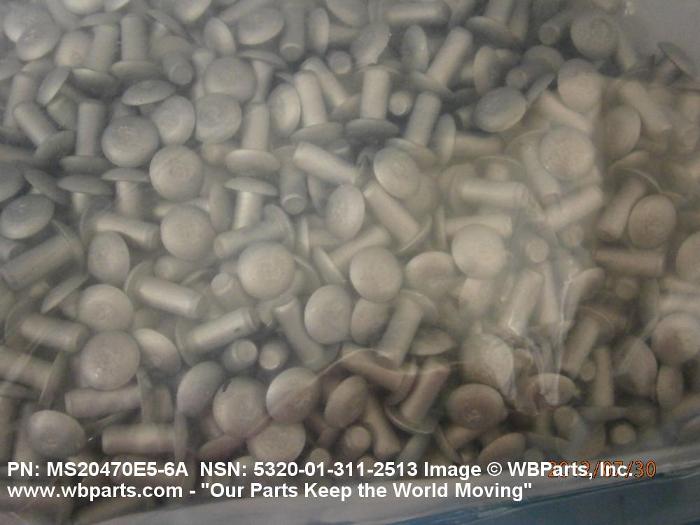

Drawings & Photos | NSN 5320-01-311-2513
Demand History | NSN 5320-01-311-2513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-311-2513 | 2019-09-258 | 116 | DIBBS |
| 5320-01-311-2513 | 2017-05-142 | 117 | DIBBS |
| MS20470E56A | 2012-07-200 | 6 | Mexico |
| MS20470E5-6A | 2012-04-110 | 5488 | Mexico |
| MS20470E5-6A | 2012-04-96 | 39 | US |
| MS20470E56A | 2010-05-131 | 14400 | MX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-311-2513
Related Products | NSN 5320-01-311-2513
Technical Data | NSN 5320-01-311-2513
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7050 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HEAD STYLE | C2 BRAZIER |
| HEAD HEIGHT | 0.067 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.312 INCHES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| SHANK DIAMETER | 0.156 INCHES NOMINAL |
| IDENTIFICATION CODE COLOR | NATURAL |
Restrictions/Controls & Freight Information | NSN 5320-01-311-2513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-311-2513
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
