NSN 5320-01-316-8309 MS206154MP10, MS20615-4MP10, 01-316-8309
Product Details | SOLID RIVET
5320-01-316-8309 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS206154MP10, MS20615-4MP10, 5320-01-316-8309, 01-316-8309, 5320013168309, 013168309
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1990 | 01-316-8309 | 00861 ( RIVET, SOLID ) |

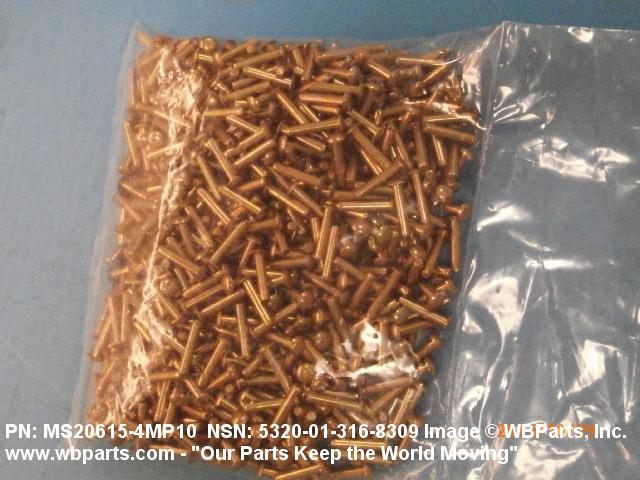

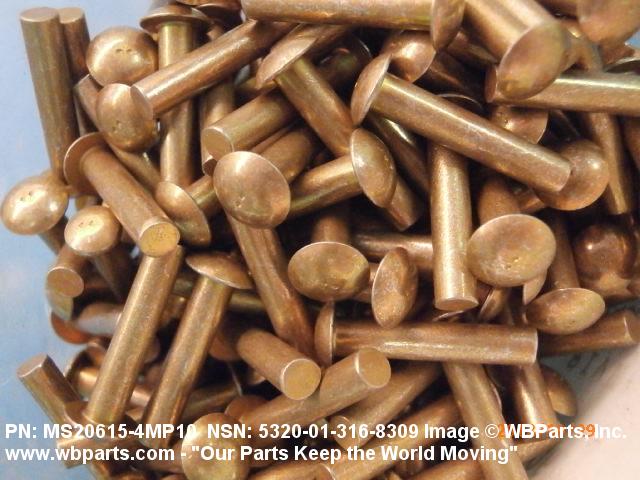

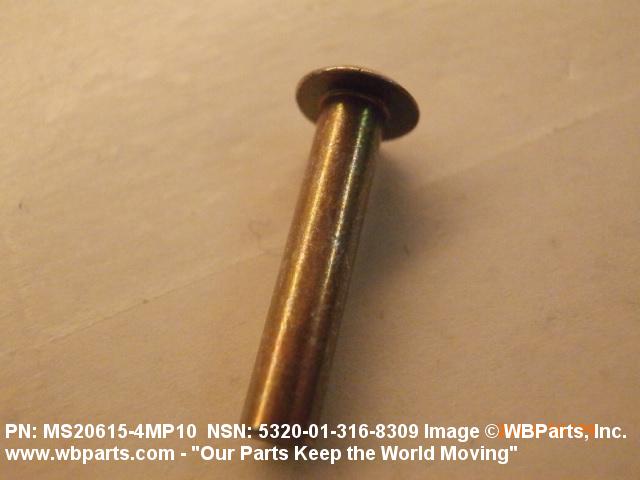

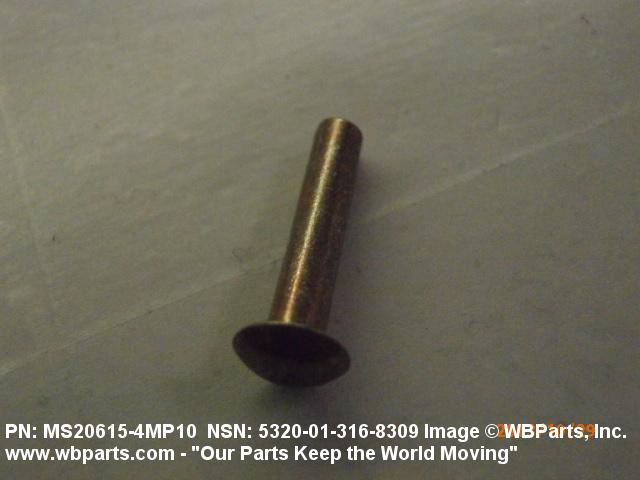

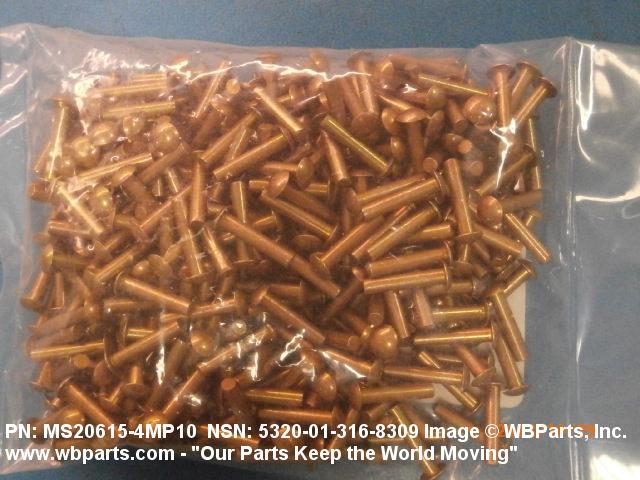

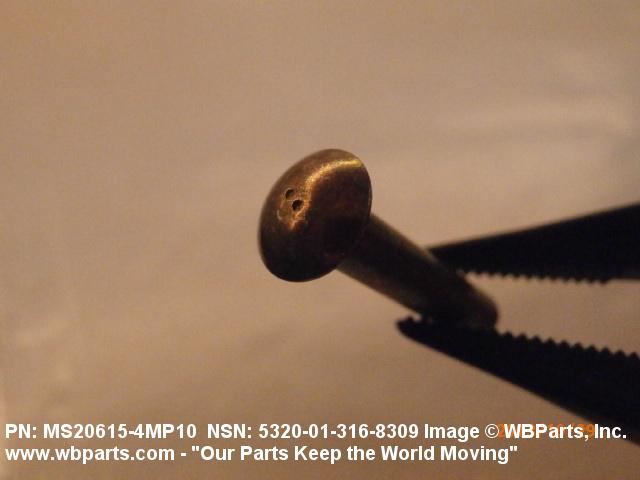

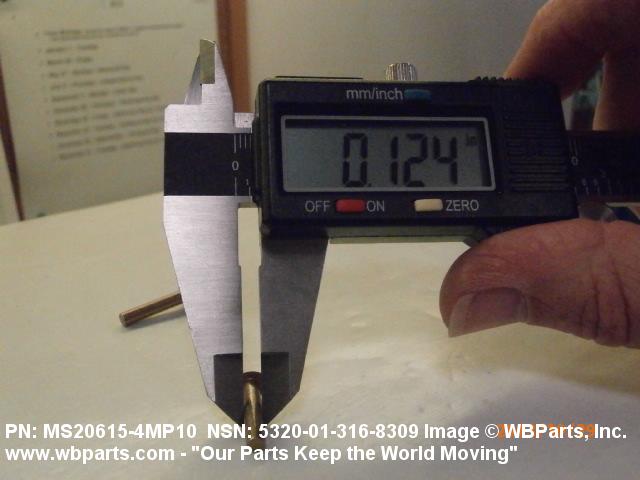

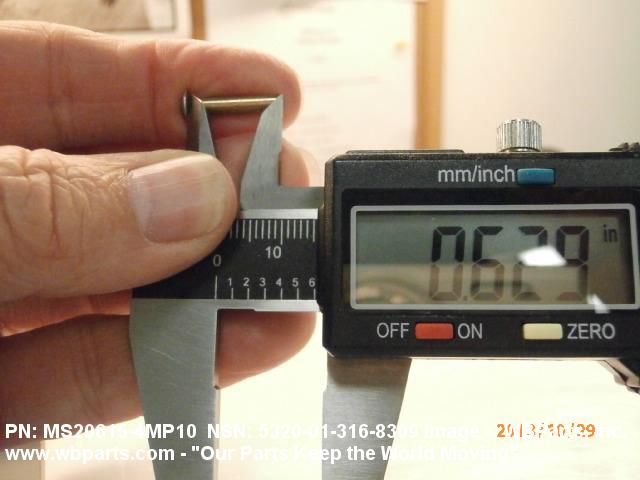

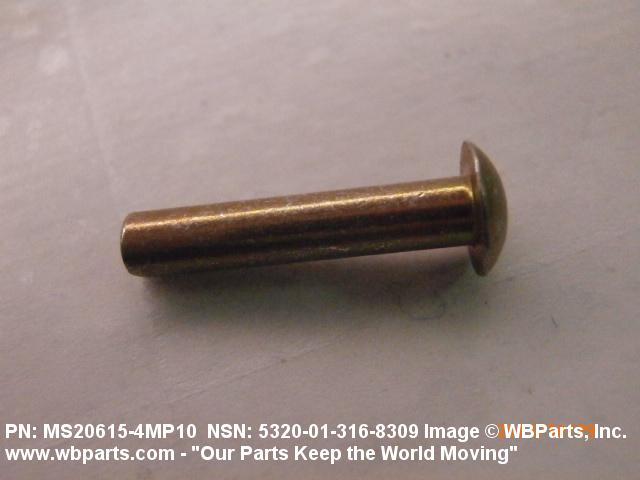

Drawings & Photos | NSN 5320-01-316-8309
Demand History | NSN 5320-01-316-8309
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-316-8309 | 2019-09-260 | 1000 | Hong Kong |
| 5320-01-316-8309 | 2013-09-267 | 800 | Switzerland |
Cross Reference | NSN 5320-01-316-8309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20615-4MP10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-316-8309
Related Products | NSN 5320-01-316-8309
Technical Data | NSN 5320-01-316-8309
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 49000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.062 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |

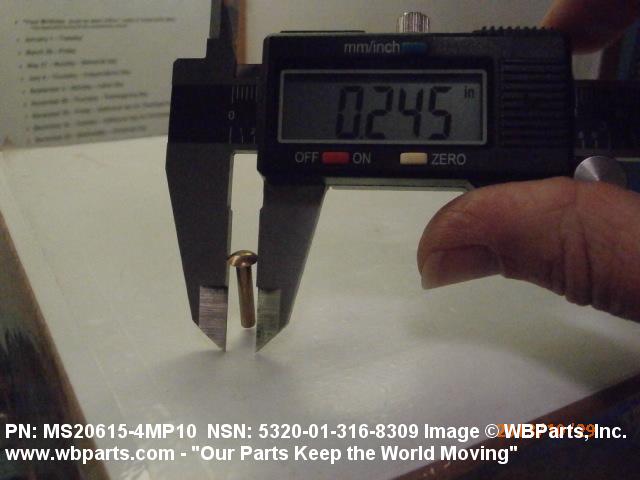

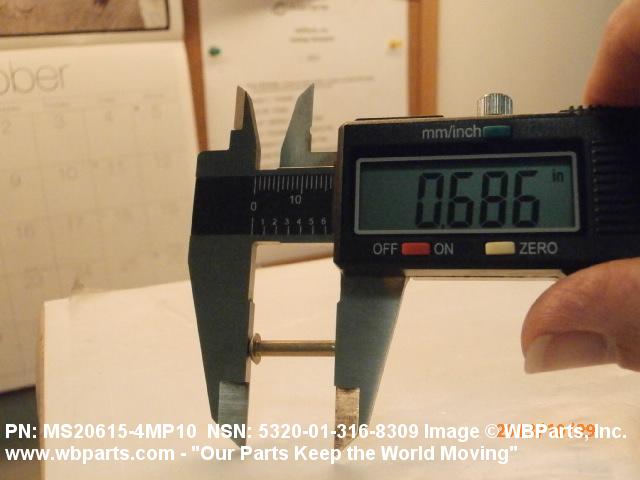

| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.427 INCHES MINIMUM AND 0.447 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20615-4MP10 |
Restrictions/Controls & Freight Information | NSN 5320-01-316-8309
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
