NSN 5320-01-333-5542 MBF2111C5250, MBF2111C5-250, 03A148V05250
Product Details | BLIND RIVET
5320-01-333-5542 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MBF2111C5250, MBF2111C5-250, 03A148V05250, 03A148V05-250, 5320-01-333-5542, 01-333-5542, 5320013335542, 013335542
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 FEB 1991 | 01-333-5542 | 00864 ( RIVET, BLIND ) |

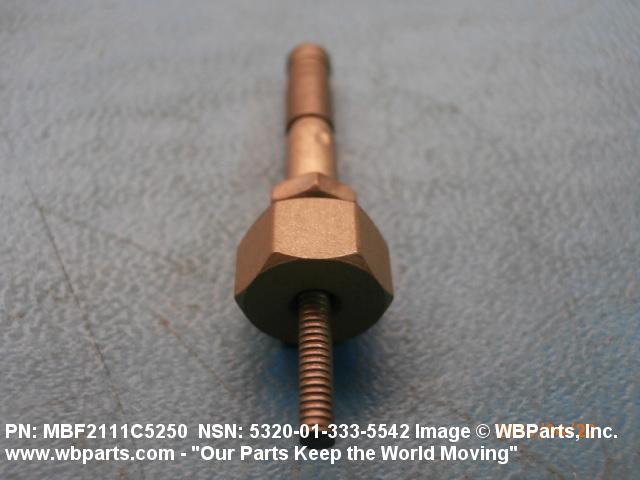

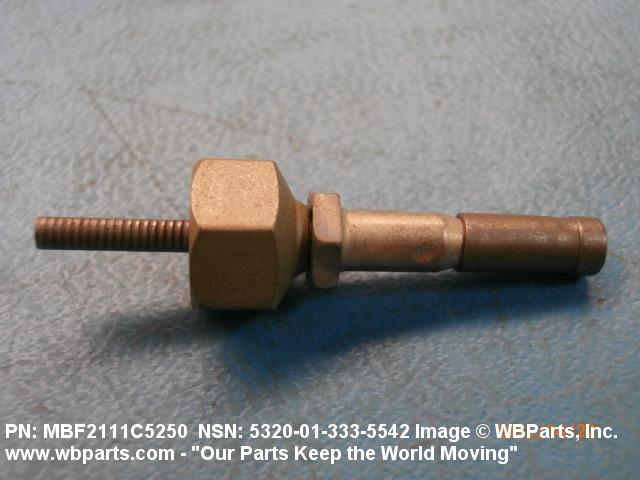

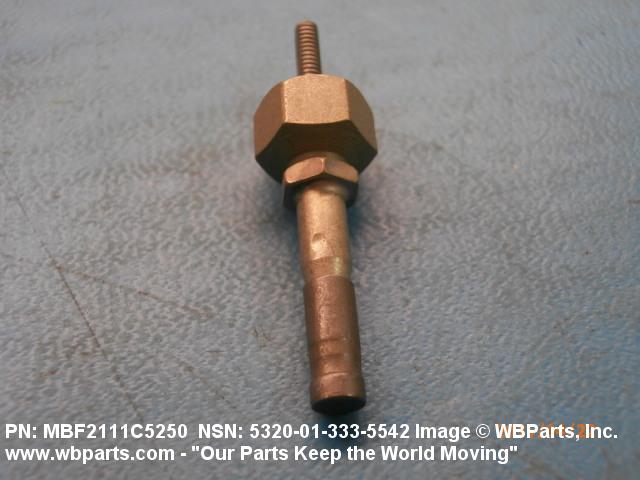

Drawings & Photos | NSN 5320-01-333-5542
Demand History | NSN 5320-01-333-5542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-333-5542 | 2017-05-144 | 100 | DIBBS |
| 5320-01-333-5542 | 2017-05-136 | 100 | DIBBS |
| 03A148V05250 | 2015-03-69 | 2 | us |
| 03A148V05250 | 2013-01-08 | 1 | United States |
| 03A148V05250 | 2012-05-143 | 2 | United States |
| 03A148V05250 | 2012-05-125 | 2 | United States |
Cross Reference | NSN 5320-01-333-5542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A148V05-250 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MBF2111C5-250 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MBF2111C5-250 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MBF2111C5-250 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-333-5542
Technical Data | NSN 5320-01-333-5542
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 NUT STEEL COMP 304 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-9047 MIL SPEC SINGLE MATERIAL RESPONSE OR AMMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5639 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE SLEEVE PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C17 HEXAGON |

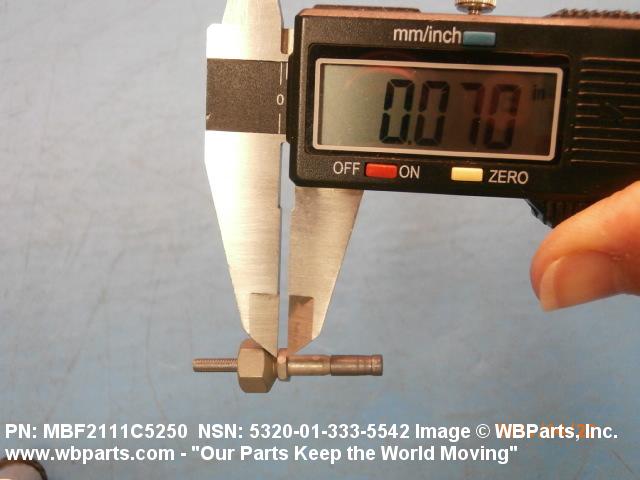

| HEAD HEIGHT | 0.069 INCHES MINIMUM AND 0.076 INCHES MAXIMUM |

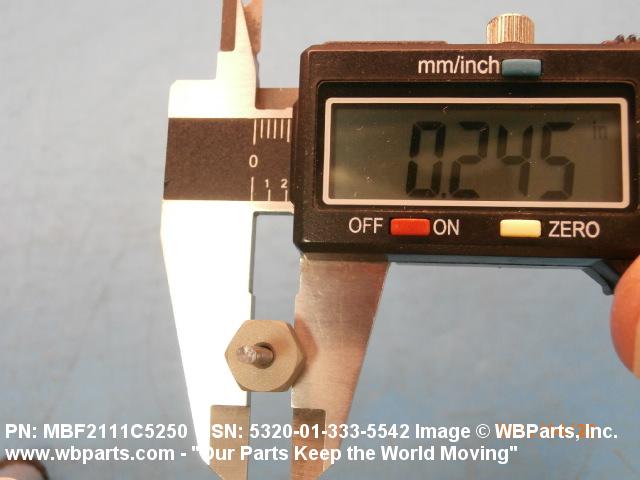

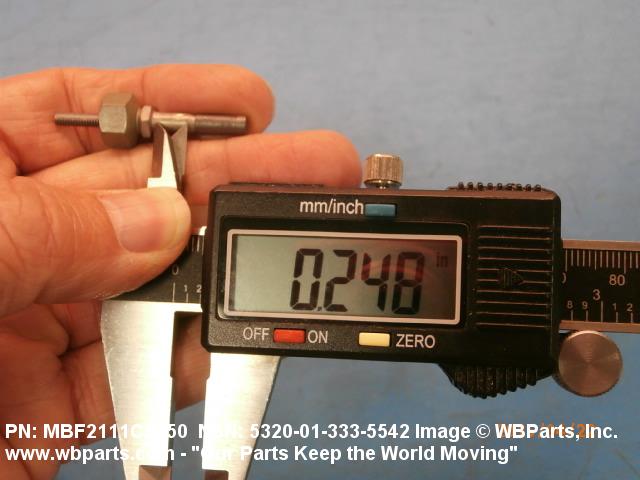

| WIDTH ACROSS FLATS | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | ANY ACCEPTABLE |

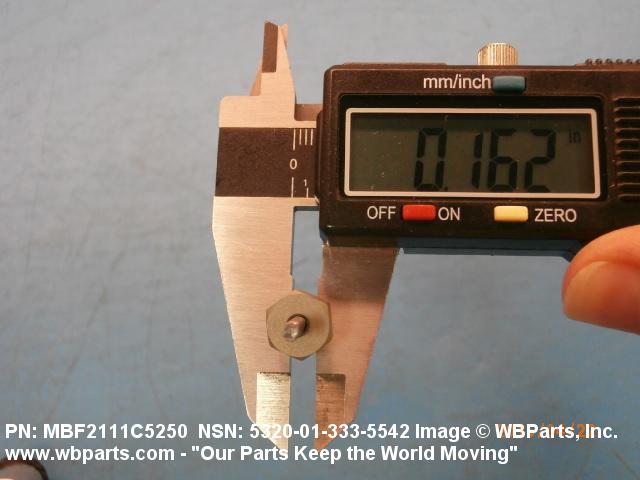

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1645 INCHES MAXIMUM |
| GRIP LENGTH | 0.200 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| SPECIAL FEATURES | FURNISHED WITH STEEL DRIVE NUT.COMPLETE TOP SURFACE OF NUT SHALL BE POWDER BLASTED TO PRODUCE A SURFACE FINISH OF 50/80 MICRO INCHES AFTER MFR. OPERATIONS. POWDER ON REMAINDER OF NUT BODY IS OPTIONAL |
Restrictions/Controls & Freight Information | NSN 5320-01-333-5542
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
