NSN 5320-01-333-5546 S493192063, S4931920-6-3, 01-333-5546
Product Details | PIN-RIVET
5320-01-333-5546 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: S493192063, S4931920-6-3, 5320-01-333-5546, 01-333-5546, 5320013335546, 013335546
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 FEB 1991 | 01-333-5546 | 67165 ( PIN-RIVET ) |

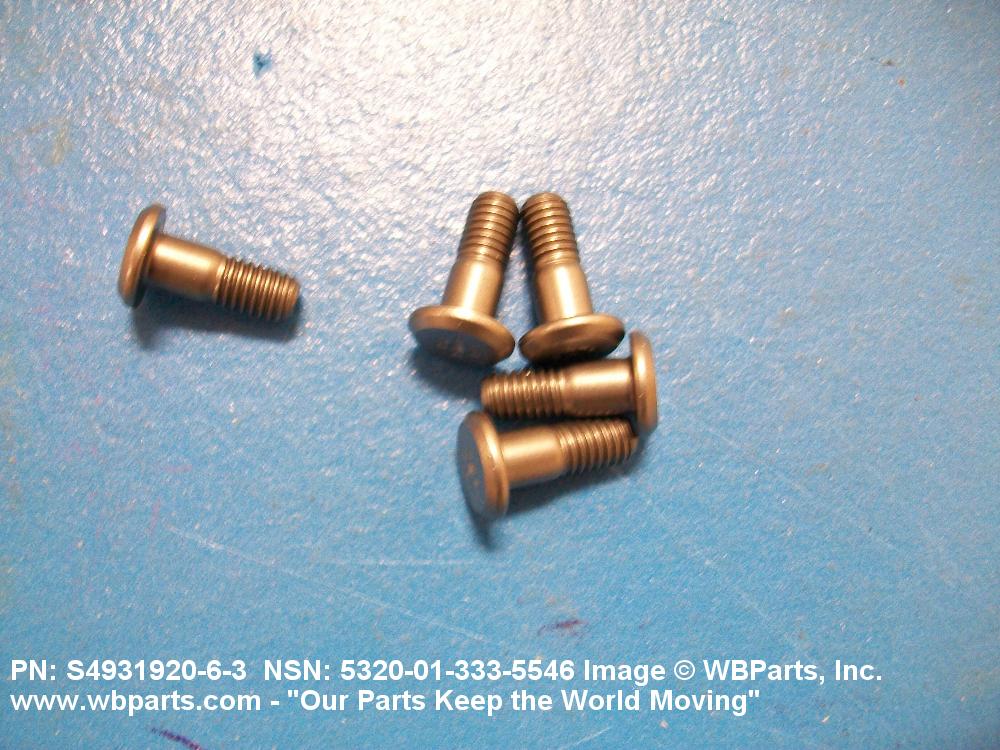

Drawings & Photos | NSN 5320-01-333-5546
Demand History | NSN 5320-01-333-5546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S493192063 | 2011-07-200 | 50 | United States |
| S493192063 | 2011-07-200 | 100 | United States |
| S493192063 | 2011-07-200 | 150 | United States |
| S493192063 | 2011-07-188 | 10 | United States |
Cross Reference | NSN 5320-01-333-5546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S4931920-6-3 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| S4931920-6-3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| S4931920-6-3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| S4931920-6-3 | 73197 | HI-SHEAR CORPORATION |
| S4931920-6-3 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-333-5546
Technical Data | NSN 5320-01-333-5546
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.064 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.357 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |
| FASTENER LENGTH | 0.503 INCHES MINIMUM AND 0.523 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| GRIP LENGTH | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-333-5546
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
