Product Details | PIN-RIVET
5320-01-356-6208 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: AICL782V08U2F, AIC-L782V08U2F, HLT452SS52, HLT452SS-5-2, 03A07652F, 03A076-5-2F, 5320-01-356-6208, 01-356-6208, 5320013566208, 013566208
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 APR 1992 | 01-356-6208 | 67165 ( PIN-RIVET ) |

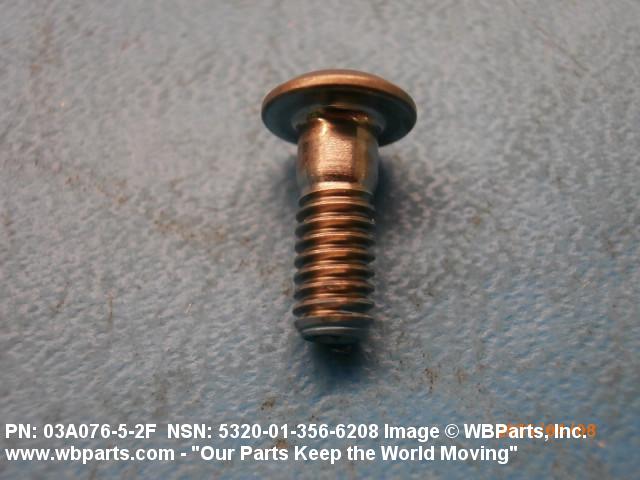

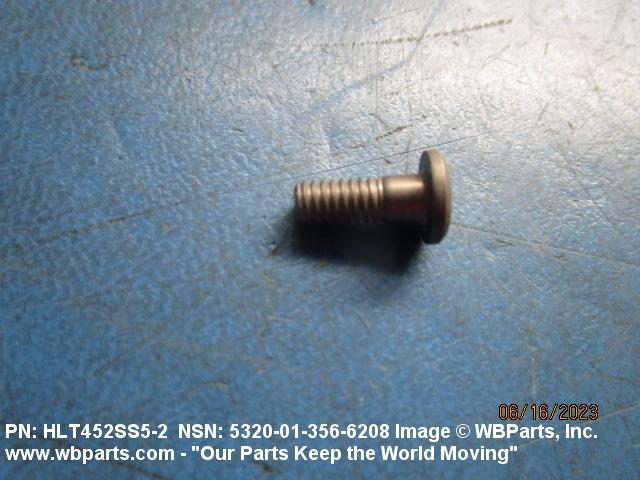

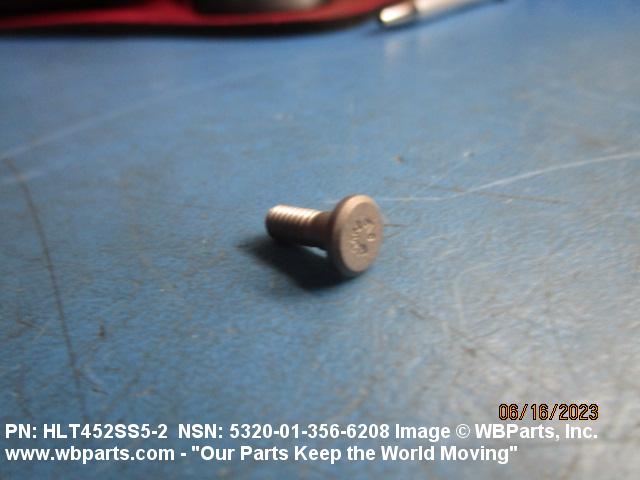

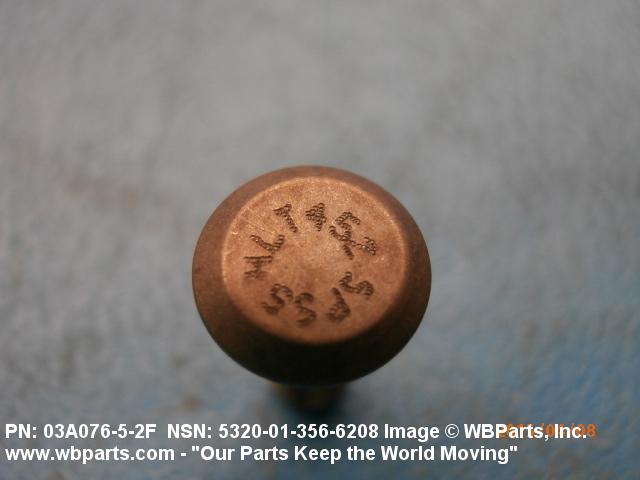

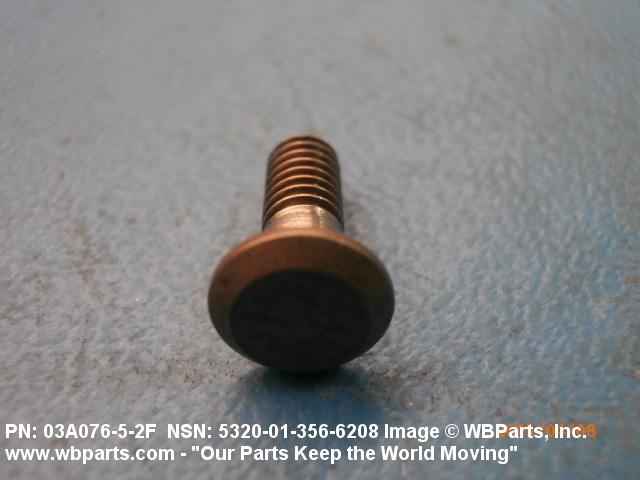

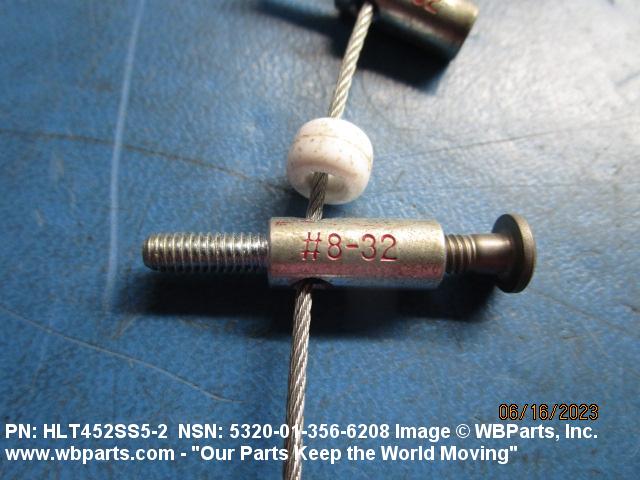

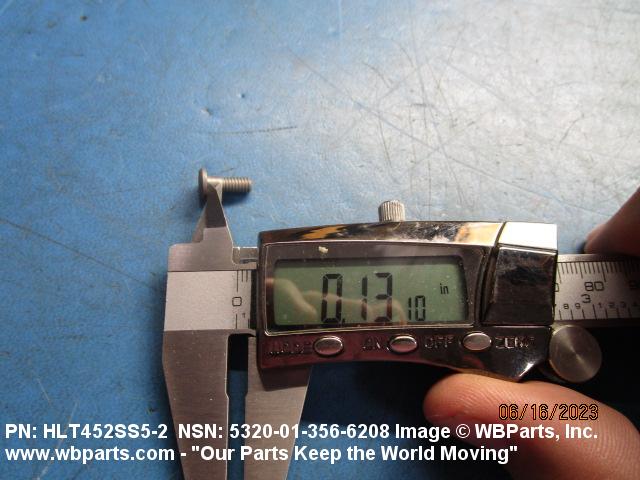

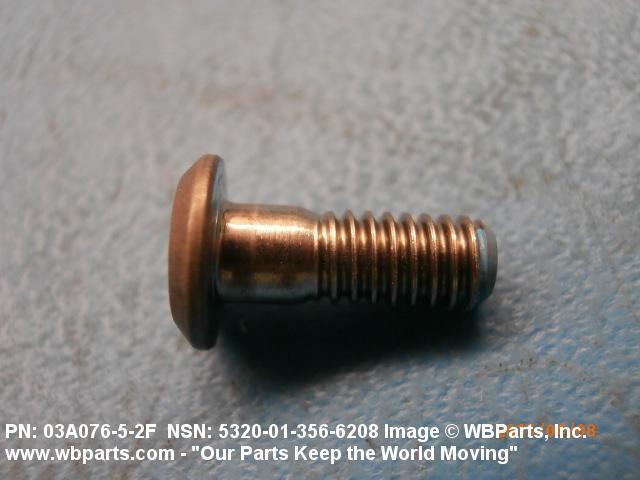

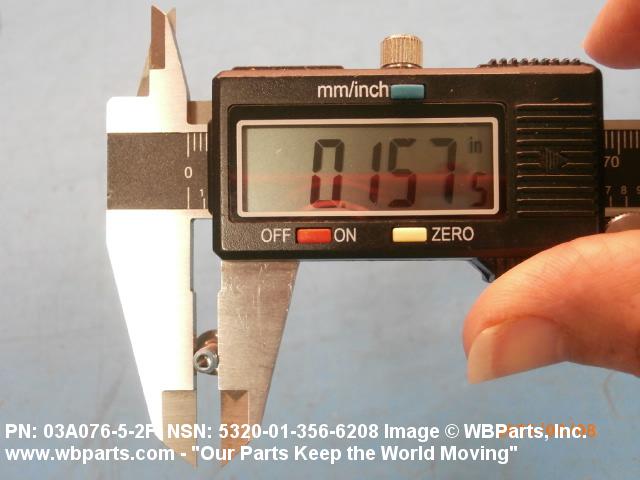

Drawings & Photos | NSN 5320-01-356-6208
Demand History | NSN 5320-01-356-6208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-356-6208 | 2023-06-01 | 100 | United States |
| 5320-01-356-6208 | 2023-05-30 | 40 | United States |
| 5320-01-356-6208 | 2023-05-30 | 40 | United States |
| 03A07652F | 2019-12-10 | 5 | United States |
| 03A07652F | 2018-11-30 | 50 | United States |
| 5320-01-356-6208 | 2016-09-27 | 16 | US |
| 03A07652F | 2015-03-16 | 8 | us |
| 5320-01-356-6208 | 2014-10-27 | 100 | US |
| 03A07652F | 2013-01-08 | 9 | United States |
| 03A07652F | 2013-01-08 | 12 | United States |
| 5320-01-356-6208 | 2012-10-23 | 48 | United States |
| 5320-01-356-6208 | 2012-10-23 | 48 | United States |
| 5320-01-356-6208 | 2012-06-11 | 10 | DIBBS |
Cross Reference | NSN 5320-01-356-6208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A076-5-2F | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A076-5-2F | 60516 | WEST COAST AEROSPACE INC |
| 03A076-5-2F | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A076-5-2F | 9N513 | VOI-SHAN/CHATSWORTH DIV OF VSI CORP |
| AIC-L782V08U2F | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT452SS-5-2 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT452SS-5-2 | 0PTK6 | SPS TECHNOLOGIES INC |
| HLT452SS-5-2 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT452SS-5-2 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT452SS-5-2 | 73197 | HI-SHEAR CORPORATION |
| HLT452SS-5-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT452SS-5-2 | 97928 | HUCK INTL INC |
| HLT452SS-5-2 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-01-356-6208
Related Products | NSN 5320-01-356-6208
5320-01-356-6209, 5320-01-356-6210, 5320-01-356-6211, 5320-01-356-6212, 5320-01-356-7345
Technical Data | NSN 5320-01-356-6208
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 50.0 ROCKWELL A MINIMUM AND 80.0 ROCKWELL A MAXIMUM HEAD |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |

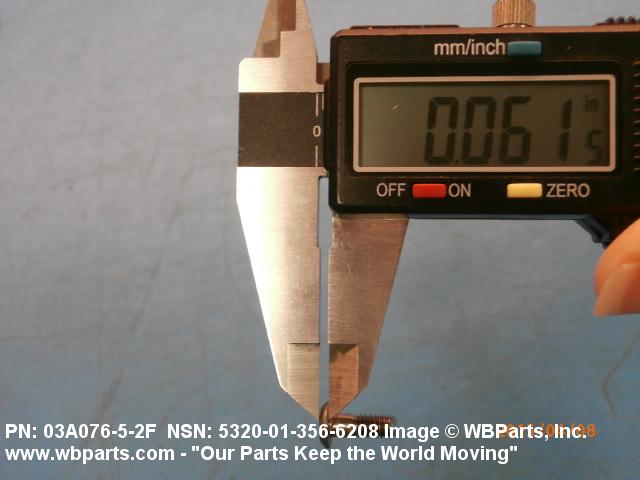

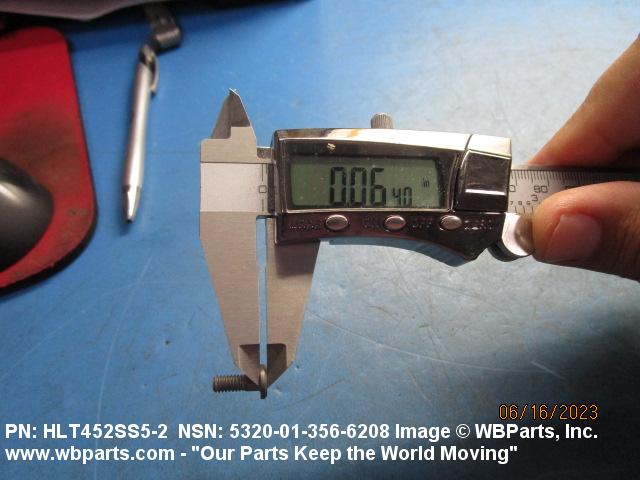

| HEAD HEIGHT | 0.055 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |

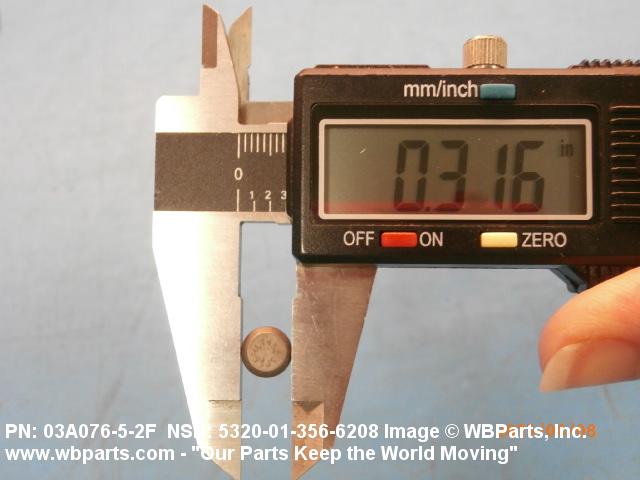

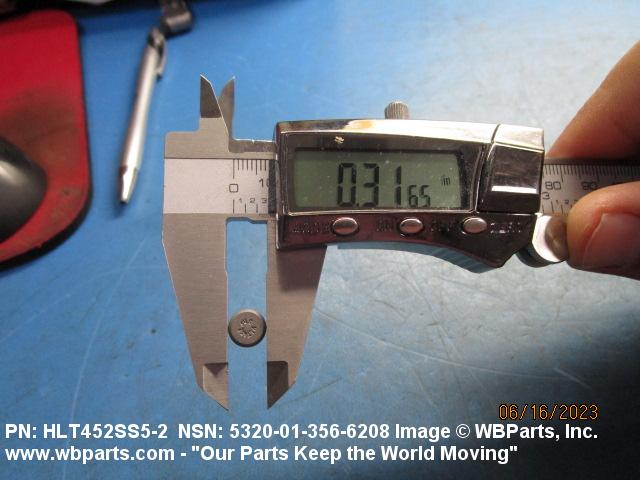

| HEAD MAJOR DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

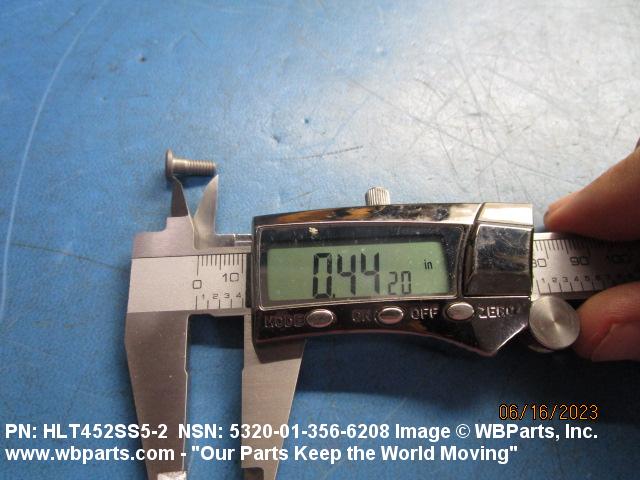

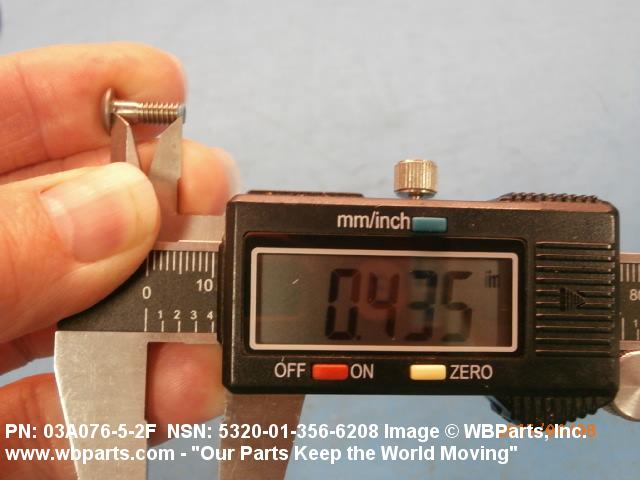

| FASTENER LENGTH | 0.427 INCHES MINIMUM AND 0.447 INCHES MAXIMUM |

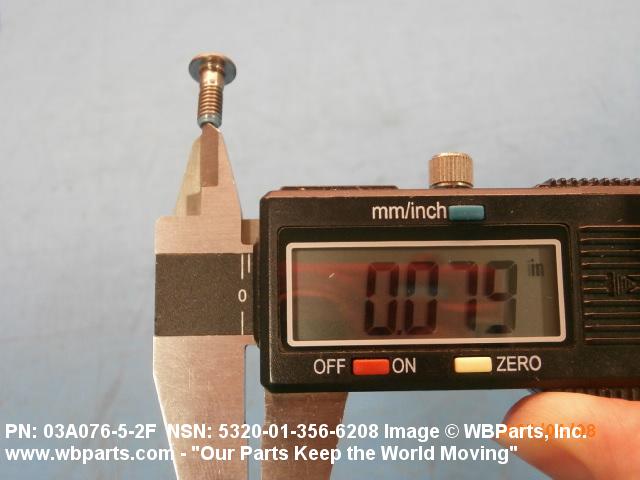

| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0801 INCHES MAXIMUM |

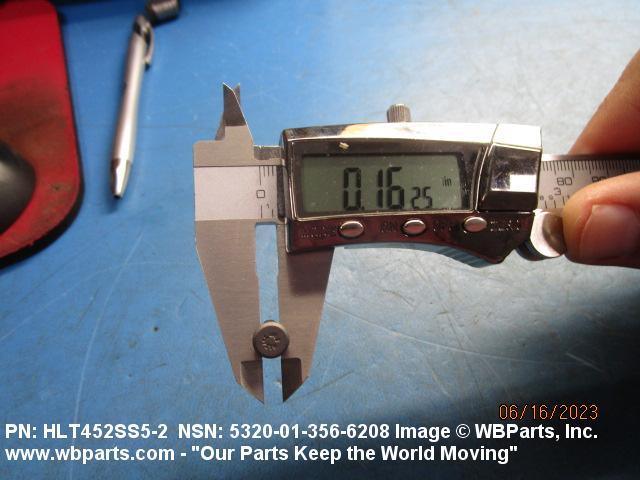

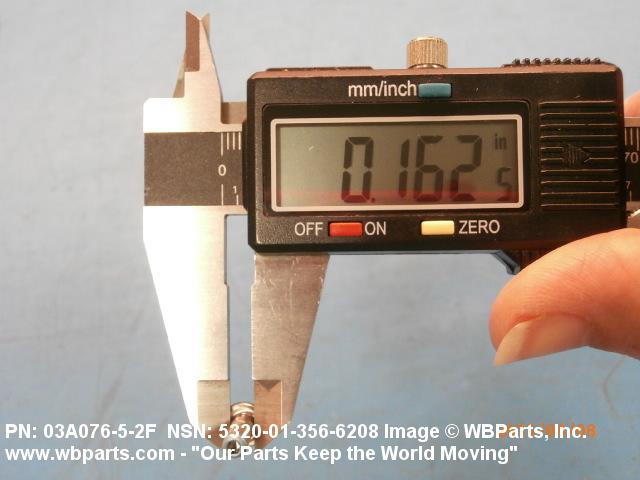

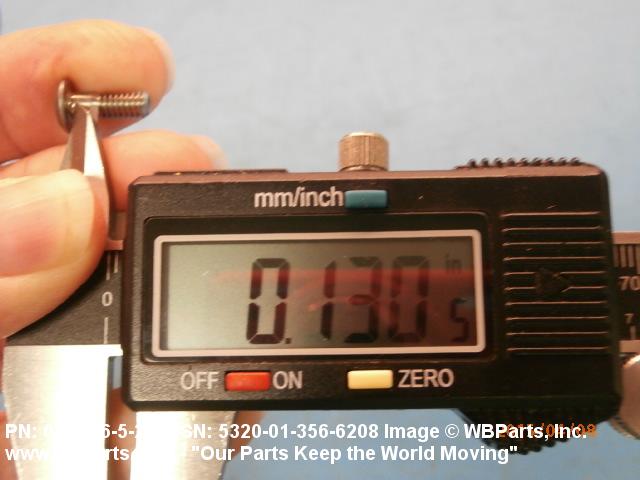

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |
| GRIP LENGTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-356-6208
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-356-6208
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
M EA : Each |
