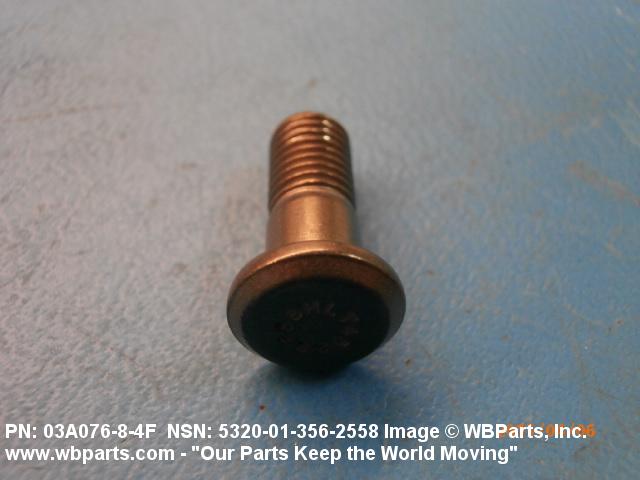

5320-01-356-2558 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: AICL782V4U4F, AIC-L782V4U4F, HLT452SS84, HLT452SS-8-4, 03A07684F, 03A076-8-4F, 5320-01-356-2558, 01-356-2558, 5320013562558, 013562558
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1992 | 01-356-2558 | 67165 ( PIN-RIVET ) |

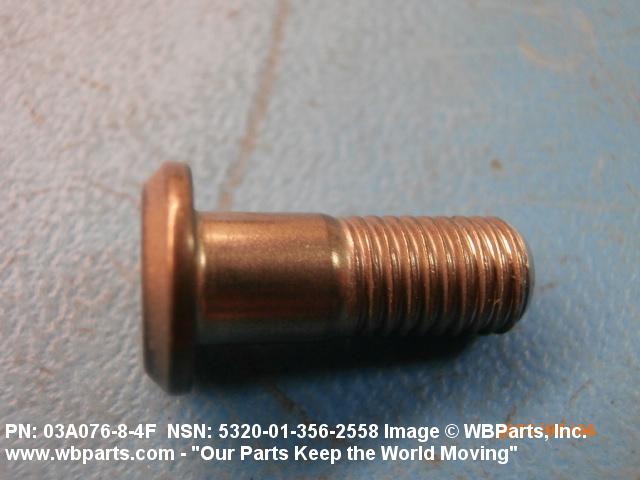

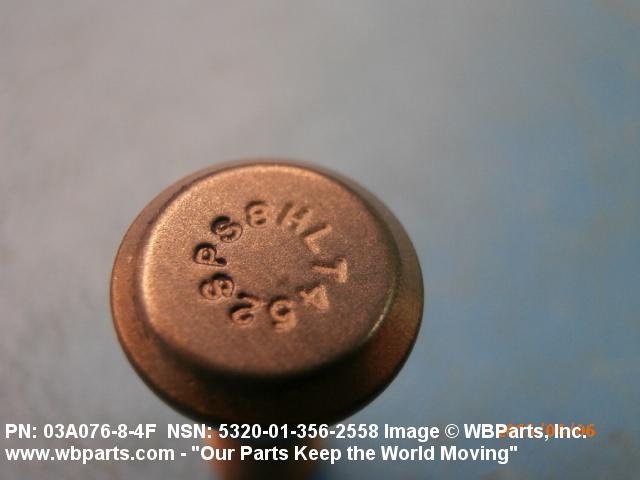

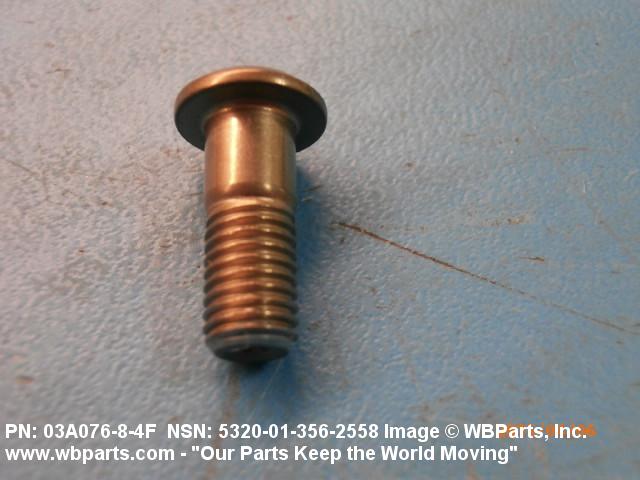

Drawings & Photos | NSN 5320-01-356-2558
Demand History | NSN 5320-01-356-2558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-356-2558 | 2018-12-02 | 116 | DIBBS |
| 5320-01-356-2558 | 2018-11-09 | 116 | DIBBS |
| 5320-01-356-2558 | 2018-11-01 | 116 | DIBBS |
| 5320-01-356-2558 | 2017-10-01 | 115 | DIBBS |
| 5320-01-356-2558 | 2015-12-06 | 48 | DIBBS |
| 5320-01-356-2558 | 2015-10-14 | 12 | DIBBS |
| 5320-01-356-2558 | 2015-09-15 | 9 | DIBBS |
| 03A07684F | 2015-03-16 | 12 | us |
| 5320-01-356-2558 | 2014-12-21 | 23 | DIBBS |
| 5320-01-356-2558 | 2014-10-14 | 5 | DIBBS |
| 5320-01-356-2558 | 2014-09-30 | 5 | DIBBS |
| 03A07684F | 2012-08-06 | 12 | United States |
| 5320-01-356-2558 | 2012-05-25 | 12 | DIBBS |
Cross Reference | NSN 5320-01-356-2558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A076-8-4F | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| AIC-L782V4U4F | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT452SS-8-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT452SS-8-4 | 0PTK6 | SPS TECHNOLOGIES INC |
| HLT452SS-8-4 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT452SS-8-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT452SS-8-4 | 73197 | HI-SHEAR CORPORATION |
| HLT452SS-8-4 | 97928 | HUCK INTL INC |
| HLT452SS-8-4 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-01-356-2558
Related Products | NSN 5320-01-356-2558
5320-01-356-2559, 5320-01-356-2560, 5320-01-356-3177, 5320-01-356-3210, 5320-01-356-3211
Technical Data | NSN 5320-01-356-2558

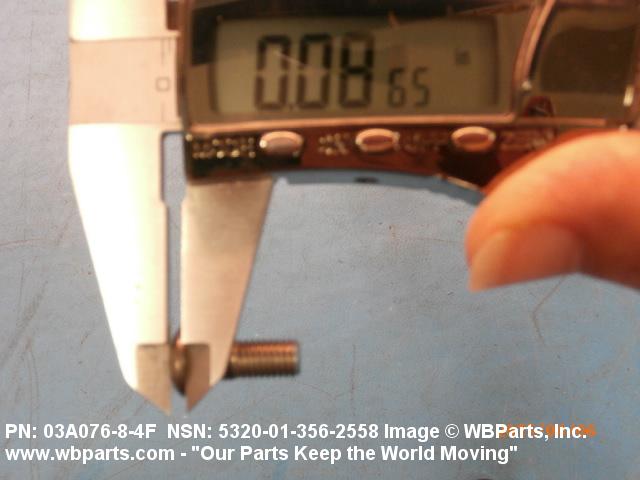

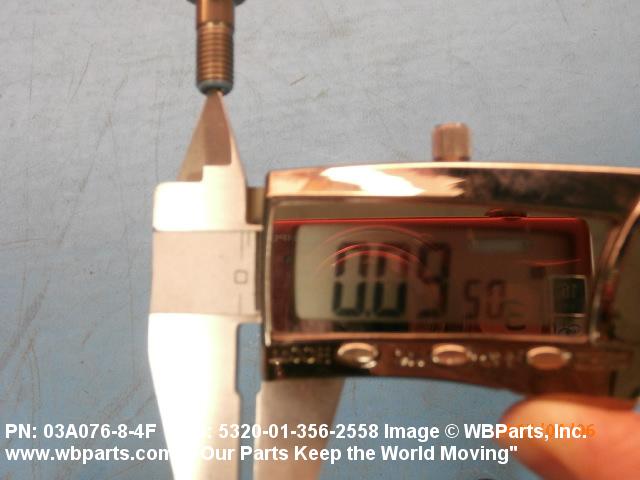

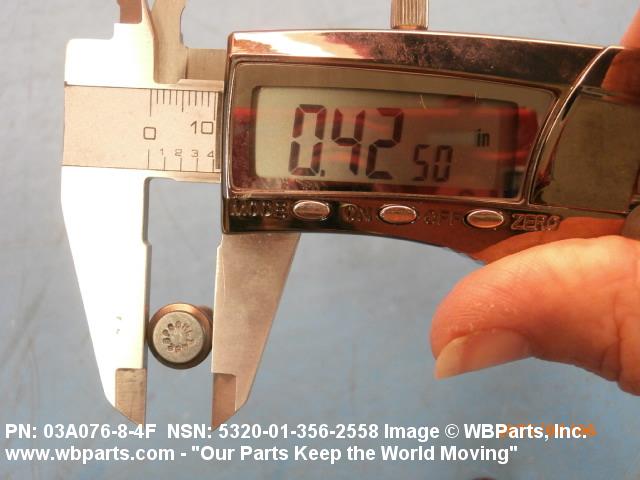

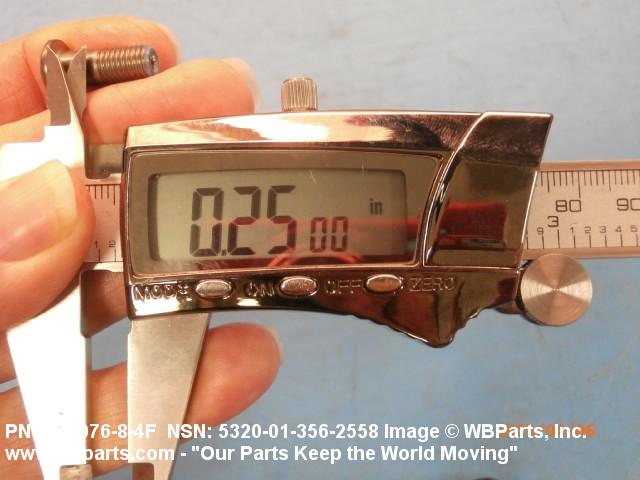

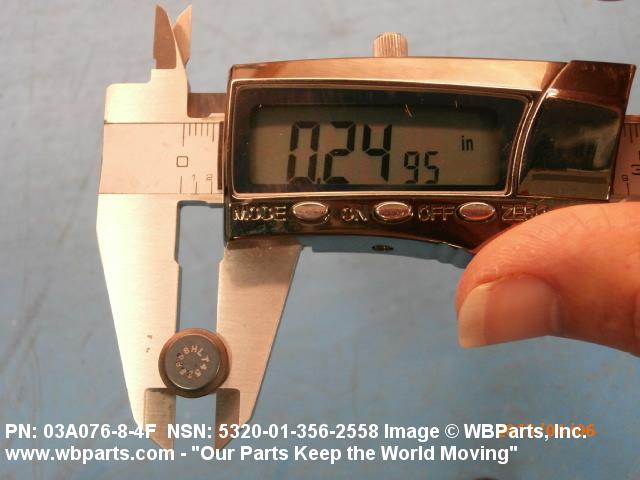

| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |
| HEAD HEIGHT | 0.0800 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.4100 INCHES MINIMUM AND 0.4150 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

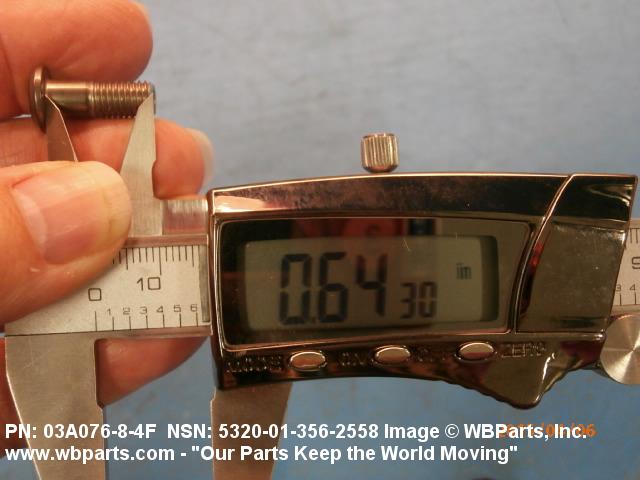

| FASTENER LENGTH | 0.6350 INCHES MINIMUM AND 0.6550 INCHES MAXIMUM |
