NSN 5320-01-333-9938 CSR90433411, CSR90433-4-11, 3D0169411
Product Details | TUBULAR RIVET
5320-01-333-9938 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: CSR90433411, CSR90433-4-11, 3D0169411, 3D0169-4-11, 5320-01-333-9938, 01-333-9938, 5320013339938, 013339938
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1991 | 01-333-9938 | 00863 ( RIVET, TUBULAR ) |

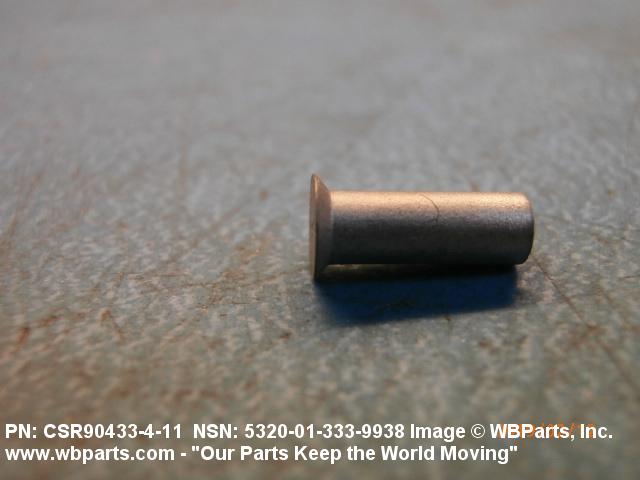

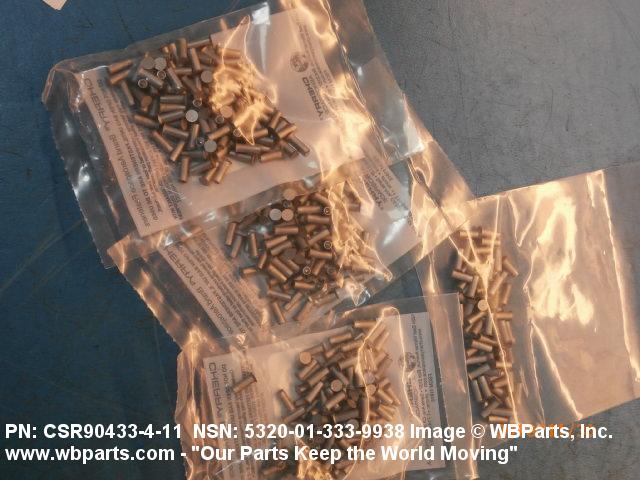

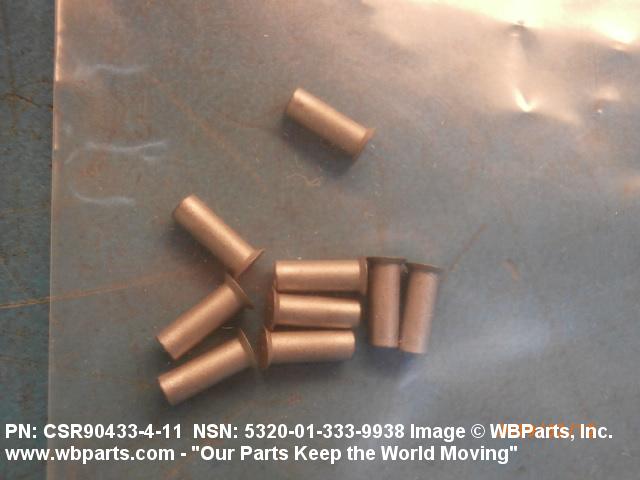

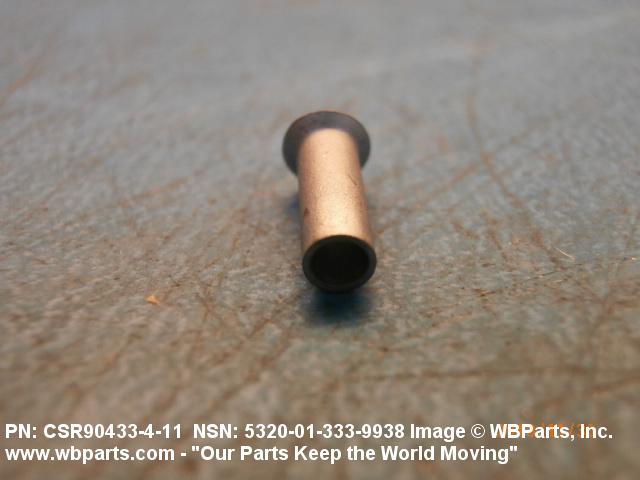

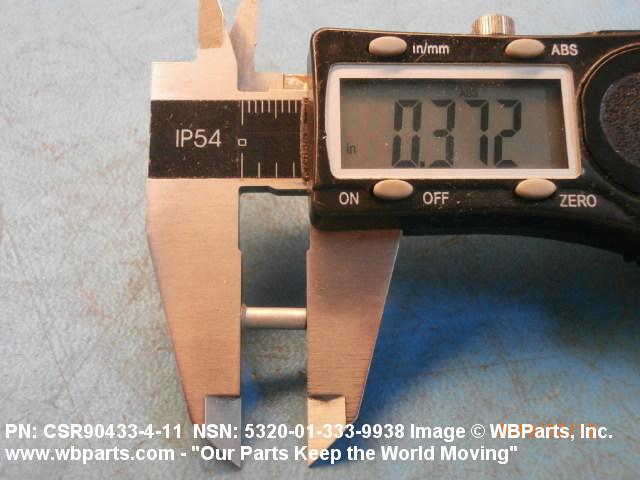

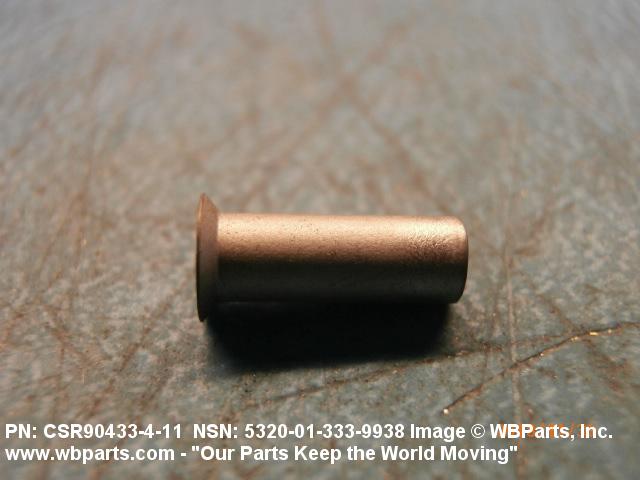

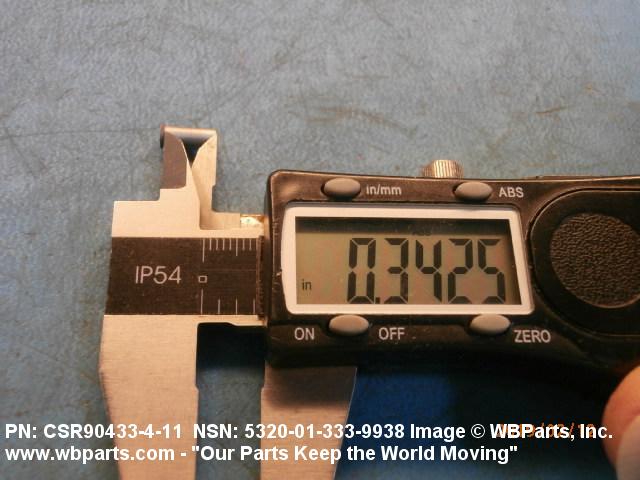

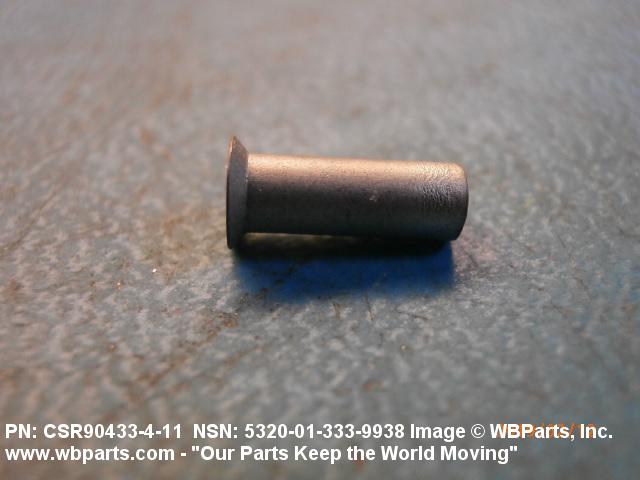

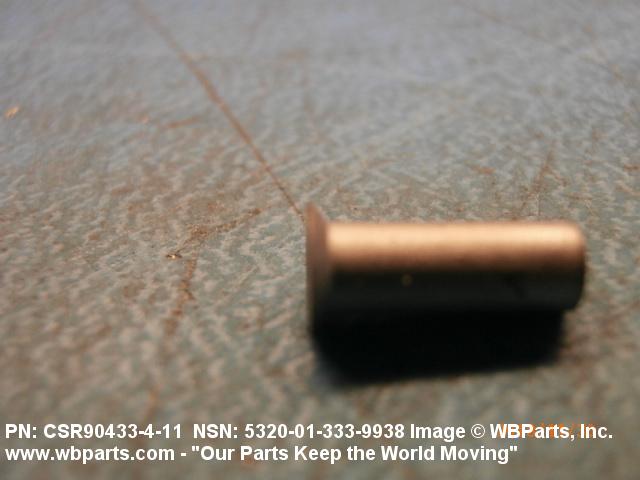

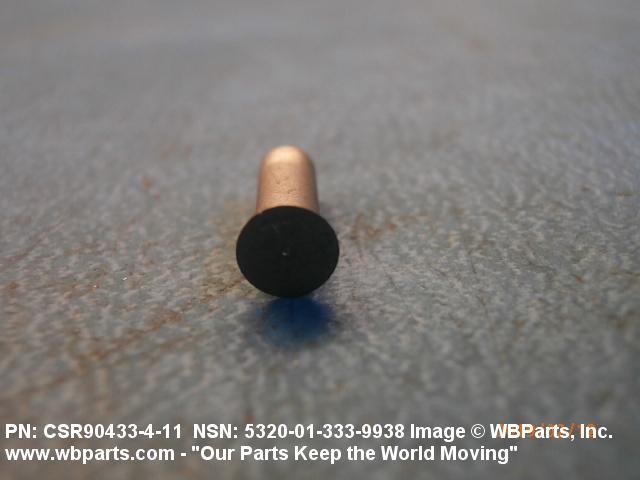

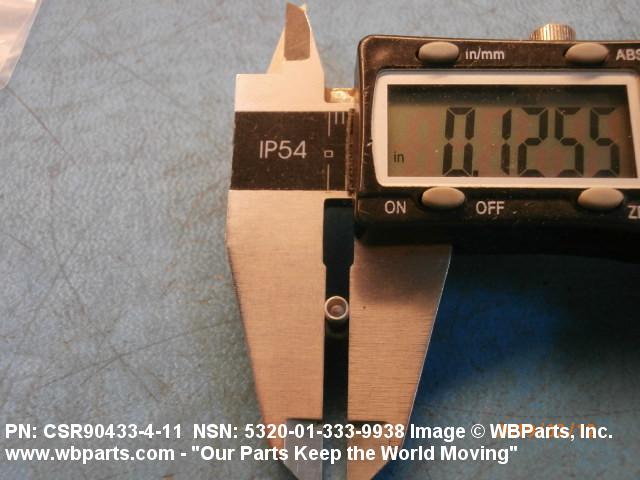

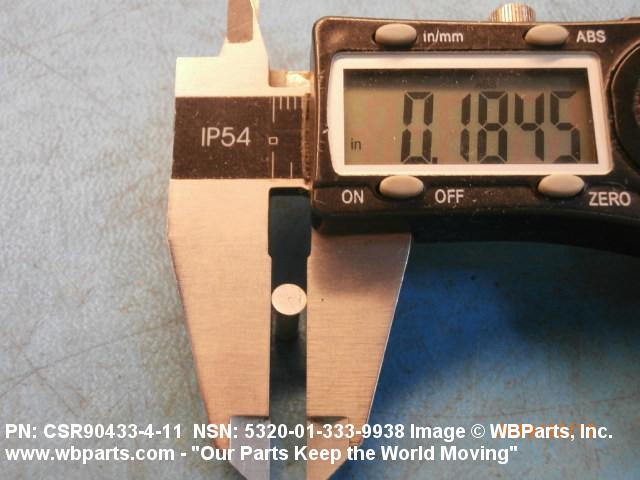

Drawings & Photos | NSN 5320-01-333-9938
Demand History | NSN 5320-01-333-9938
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-333-9938 | 2025-07-209 | 869 | United States |
| 5320-01-333-9938 | 2024-12-346 | 4 | Netherlands |
| CSR90433-4-11 | 2022-10-303 | 376 | DIBBS |
| CSR90433-4-11 | 2022-08-230 | 15 | DIBBS |
| CSR90433-4-11 | 2022-08-220 | 10 | DIBBS |
| CSR90433411 | 2021-06-173 | 562 | United States |
| CSR90433411 | 2019-02-37 | 309 | United States |
| CSR90433411 | 2018-11-332 | 3000 | United States |
| CSR90433411 | 2018-11-317 | 3000 | United States |
| 5320-01-333-9938 | 2018-06-154 | 166 | DIBBS |
| 5320-01-333-9938 | 2018-05-140 | 75 | DIBBS |
| 5320-01-333-9938 | 2018-04-114 | 50 | DIBBS |
| 5320-01-333-9938 | 2018-02-50 | 2 | DIBBS |
| 5320-01-333-9938 | 2017-09-253 | 2 | DIBBS |
| 5320-01-333-9938 | 2017-09-249 | 37 | DIBBS |
| 5320-01-333-9938 | 2017-09-249 | 44 | DIBBS |
| 5320-01-333-9938 | 2016-03-61 | 75 | DIBBS |
| 5320-01-333-9938 | 2012-07-190 | 25 | DIBBS |
| 5320-01-333-9938 | 2012-04-121 | 14 | DIBBS |
| 5320-01-333-9938 | 2010-05-141 | 245 | DIBBS |
| 5320-01-333-9938 | 2010-03-65 | 74 | DIBBS |
| 5320-01-333-9938 | 2010-02-35 | 50 | DIBBS |
| 5320-01-333-9938 | 2009-03-63 | 10 | DIBBS |
| 5320-01-333-9938 | 2009-01-05 | 100 | Malaysia |
| 5320-01-333-9938 | 2008-09-259 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-333-9938
Related Products | NSN 5320-01-333-9938
Technical Data | NSN 5320-01-333-9938
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R58450 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4982 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAT TREATMENT | ANNEALED OVERALL |

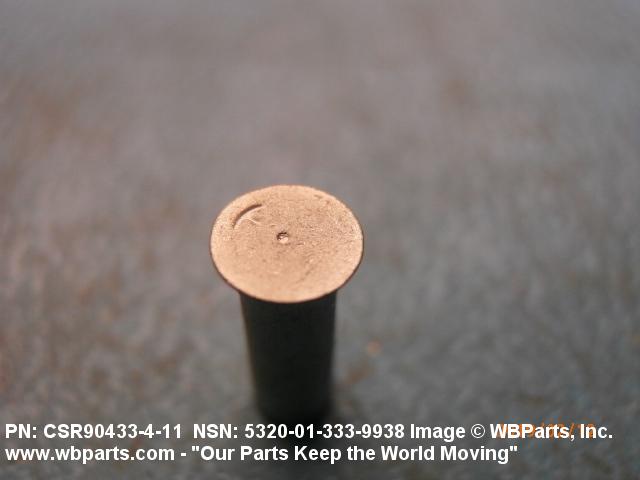

| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |

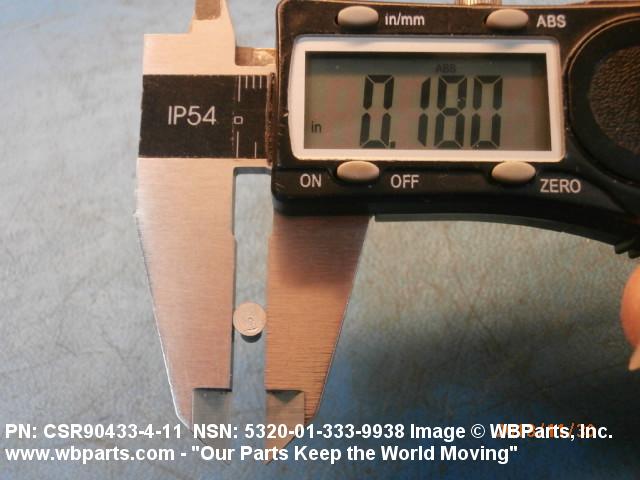

| HEAD MAJOR DIAMETER | 0.188 INCHES MINIMUM AND |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND |

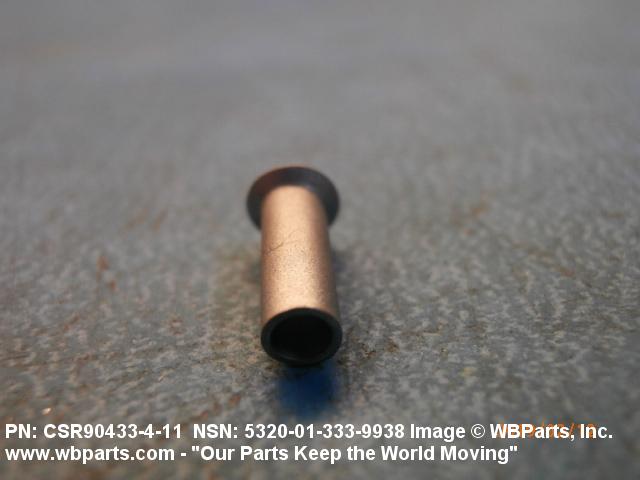

| SHANK STYLE | TUBULAR |

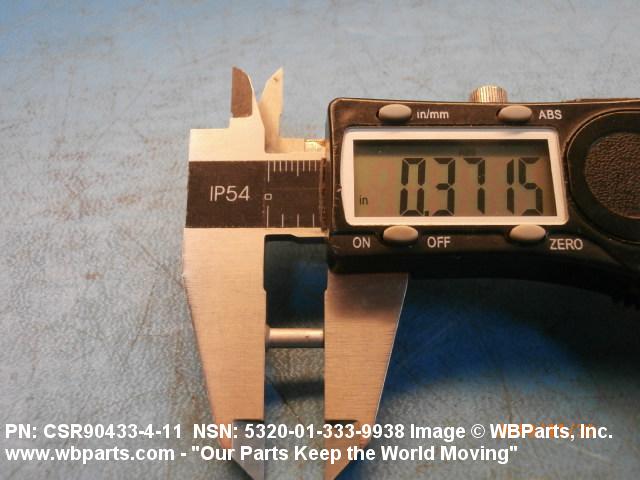

| FASTENER LENGTH | 0.363 INCHES MINIMUM AND |
| HOLE DIAMETER | 0.073 INCHES MINIMUM AND |

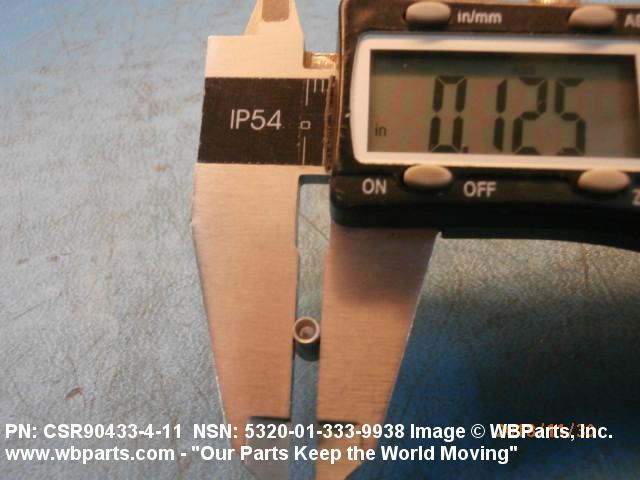

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND |
| HOLE DEPTH | 0.088 INCHES NOMINAL |

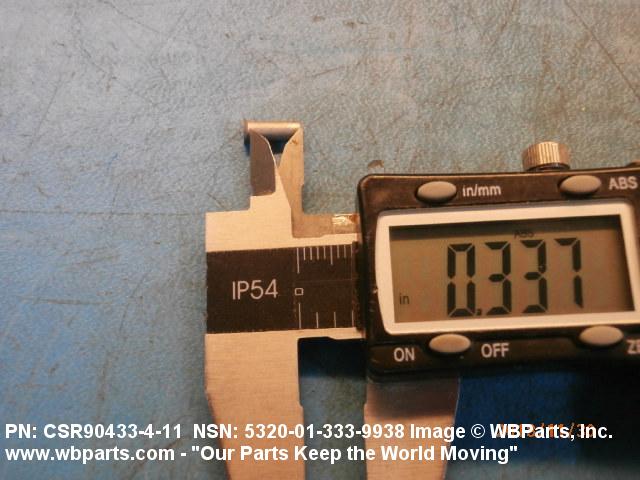

| GRIP LENGTH | 0.313 INCHES MINIMUM AND |
Restrictions/Controls & Freight Information | NSN 5320-01-333-9938
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-333-9938
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
