NSN 5320-01-375-2921 MS20470AD48A, MS20470AD4-8A, 01-375-2921

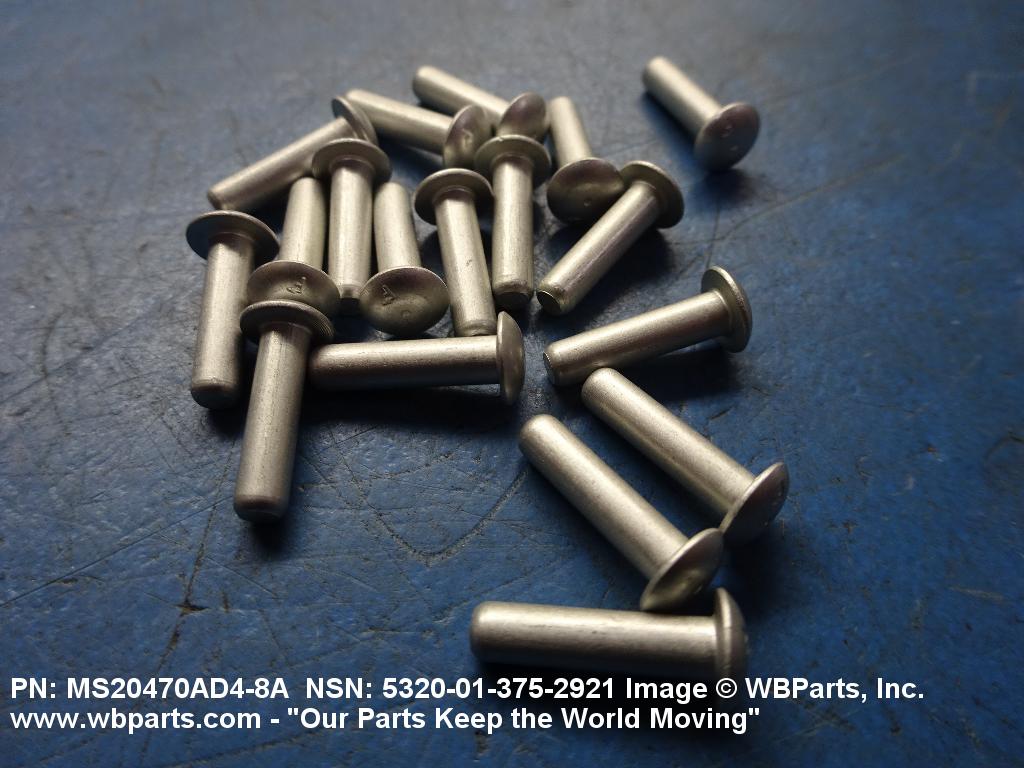

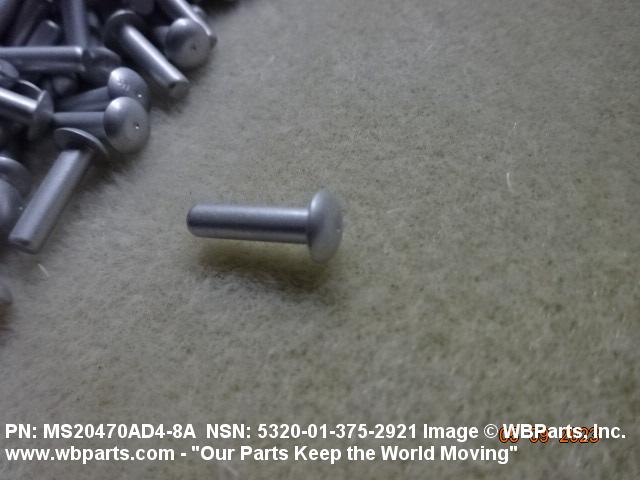

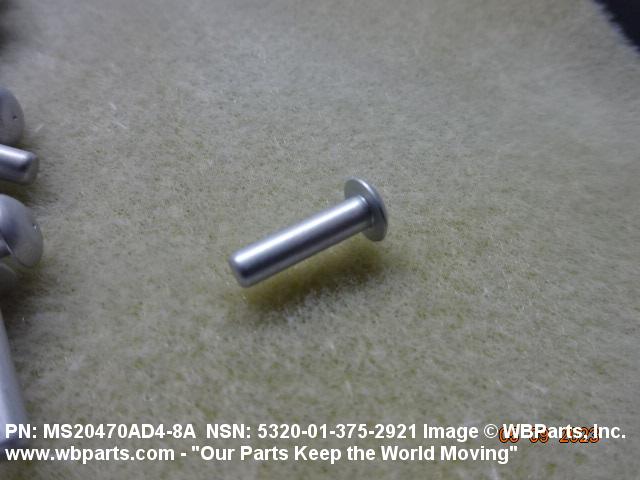

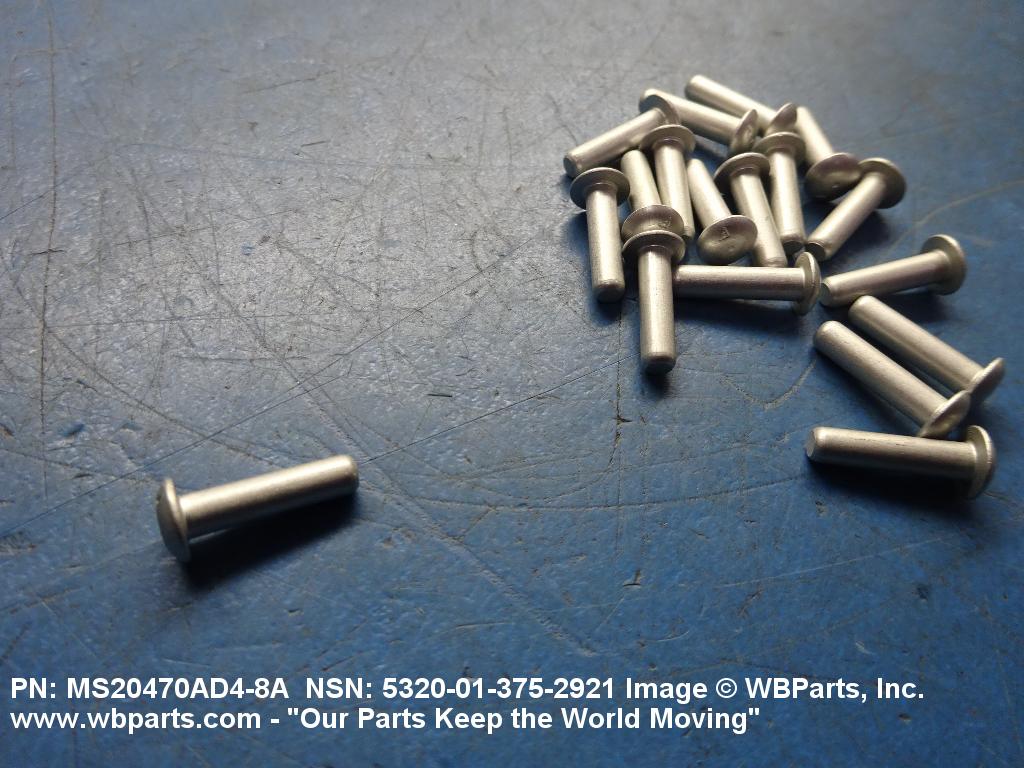

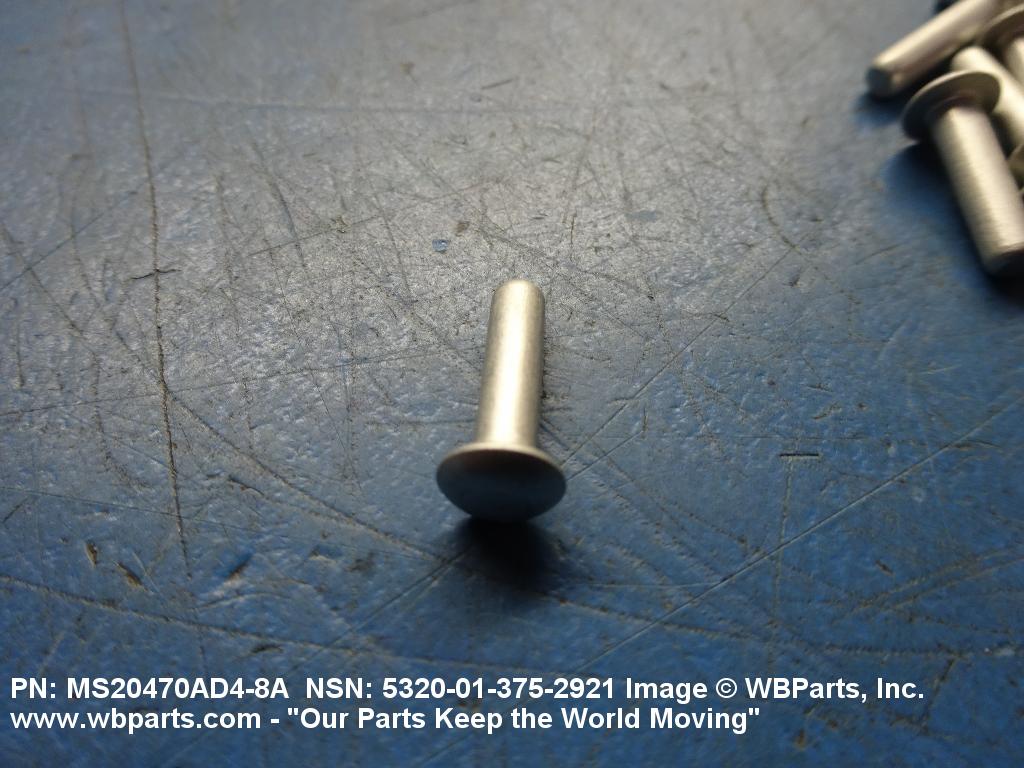

5320-01-375-2921 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20470AD48A, MS20470AD4-8A, 5320-01-375-2921, 01-375-2921, 5320013752921, 013752921

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 MAY 1993	01-375-2921	00861 ( RIVET, SOLID )

Part Number	Request Date	QTY	Origin
MS20470AD48A	2025-04-114	1200	United States
MS20470AD48A	2025-04-114	3500	United States
MS20470AD48A	2023-05-122	1500	United States
5320-01-375-2921	2022-06-173	150	US
MS20470AD48A	2022-05-136	9500	United States
5320-01-375-2921	2017-12-362	24	DIBBS
5320-01-375-2921	2012-03-85	1	DIBBS
5320-01-375-2921	2012-02-51	8100	US
5320-01-375-2921	2010-04-91	1	DIBBS
5320-01-375-2921	2009-08-215	1	DIBBS
5320-01-375-2921	2009-04-114	1	DIBBS

Part Number	Cage Code	Manufacturer
MS20470AD4-8A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20470AD4-8A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5320-01-375-2921

Compare

5320-01-375-2922, 5320-01-375-2923, 5320-01-375-2924, 5320-01-375-3485, 5320-01-375-5398

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C28 UNIVERSAL

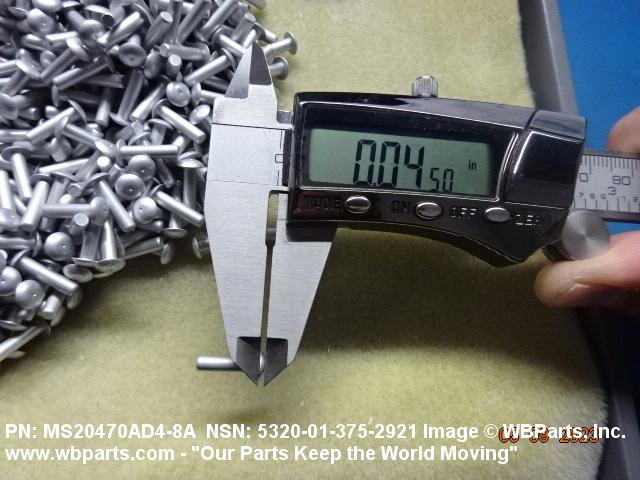

HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM

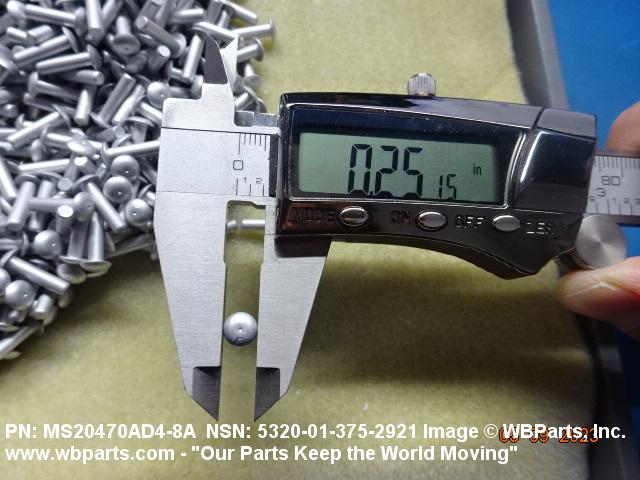

HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
SHANK STYLE	D9 STRAIGHT

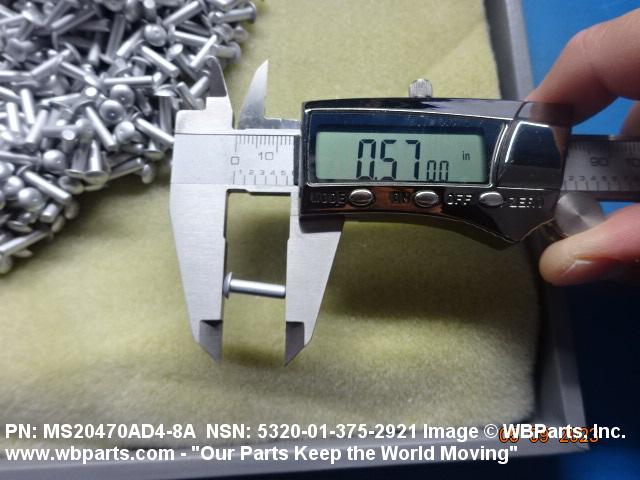

FASTENER LENGTH	0.500 INCHES NOMINAL
SHANK DIAMETER	0.125 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	96906-MS20470 GOVERNMENT STANDARD

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
