NSN 5320-01-377-6189 HL1187UG8, HL1187UG-8 , 03A0678L

Product Details | PIN-RIVET COLLAR

5320-01-377-6189 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.

Part Alternates: HL1187UG8, HL1187UG-8 , 03A0678L, 03A067-8L, 5320-01-377-6189, 01-377-6189, 5320013776189, 013776189

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 JUL 1993	01-377-6189	67166 ( COLLAR, PIN-RIVET )

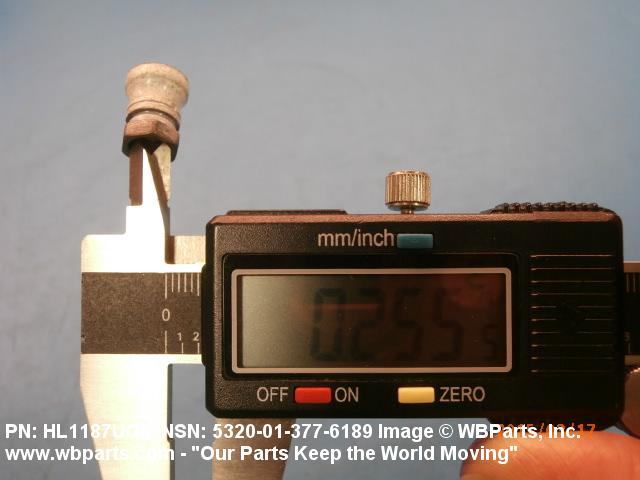

Drawings & Photos | NSN 5320-01-377-6189

Part Number	Request Date	QTY	Origin
03A067-8L	2025-09-265	267	DIBBS
HL1187UG-8	2025-09-265	267	DIBBS
03A067-8L	2025-08-231	684	DIBBS
HL1187UG-8	2025-08-231	684	DIBBS
03A067-8L	2025-07-190	181	DIBBS
HL1187UG-8	2025-07-190	181	DIBBS
03A067-8L	2019-01-30	153	DIBBS
HL1187UG-8	2019-01-30	153	DIBBS
5320-01-377-6189	2018-12-347	151	DIBBS
5320-01-377-6189	2018-11-318	98	DIBBS
5320-01-377-6189	2018-09-267	130	DIBBS
5320-01-377-6189	2018-09-259	130	DIBBS
5320-01-377-6189	2018-08-239	81	DIBBS
5320-01-377-6189	2018-08-231	81	DIBBS
5320-01-377-6189	2018-08-230	81	DIBBS
5320-01-377-6189	2018-05-150	82	DIBBS
5320-01-377-6189	2018-03-77	11	DIBBS
5320-01-377-6189	2018-01-25	5	DIBBS
5320-01-377-6189	2018-01-09	3	DIBBS
5320-01-377-6189	2015-05-125	6	us
5320-01-377-6189	2015-02-48	30	us
03A0678L	2013-01-08	15	United States
5320-01-377-6189	2009-03-84	100	DIBBS

Cross Reference | NSN 5320-01-377-6189

Part Number	Cage Code	Manufacturer
03A067-8L	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
HL1187UG-8	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL1187UG-8	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL1187UG-8	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL1187UG-8	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL1187UG-8	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL1187UG-8	60516	WEST COAST AEROSPACE INC
HL1187UG-8	73197	HI-SHEAR CORPORATION
HL1187UG-8	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-377-6189

Compare

Related Products | NSN 5320-01-377-6189

5320-01-377-6229, 5320-01-377-6230, 5320-01-377-6251, 5320-01-377-6254, 5320-01-377-7735

Technical Data | NSN 5320-01-377-6189

Characteristic	Specifications
MATERIAL	STEEL COMP 303 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5640 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582 COMP 303 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
COLLAR STYLE	A3 THREADED (BREAK OFF) TYPE
COLLAR OUTSIDE DIAMETER	0.408 INCHES MINIMUM AND 0.412 INCHES MAXIMUM

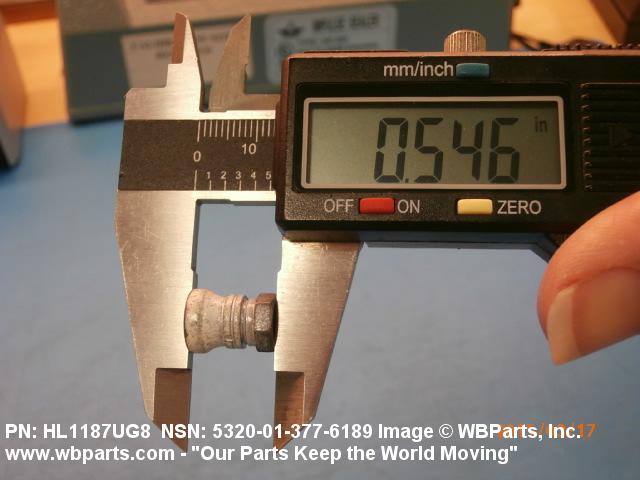

COLLAR OVERALL HEIGHT	0.532 INCHES MINIMUM AND 0.552 INCHES MAXIMUM

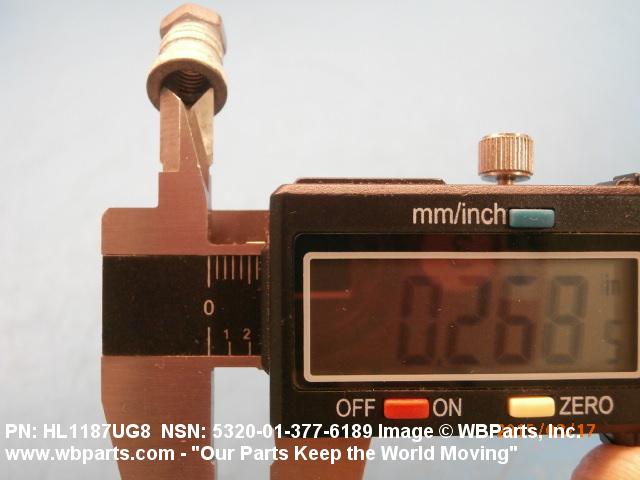

COLLAR INSIDE DIAMETER	0.268 INCHES MINIMUM AND 0.272 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	SOLID FILM OR CETYL ALCOHOL
FEATURES PROVIDED	SELF-LOCKING
SPECIAL FEATURES	SPECIFIED AREAS SHALL BE PAINTED WHITE AFTER LUBRICATION

Restrictions/Controls & Freight Information | NSN 5320-01-377-6189

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	096320	RIVETS I/S NICKEL PLATED BUFFED
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-377-6189

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
